WIREWOUND CHIP INDUCTORS
1. PART NO. EXPRESSION :
SCI0805S SERIES
SCI0805S-2N8KF
(a)
(b)
(c)
(d) (e) (f)
(a) Series code
(b) Dimension code
(c) Type code : S ( Standard )
(d) Inductance code : 2N8 = 2.8nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : RoHS Compliant

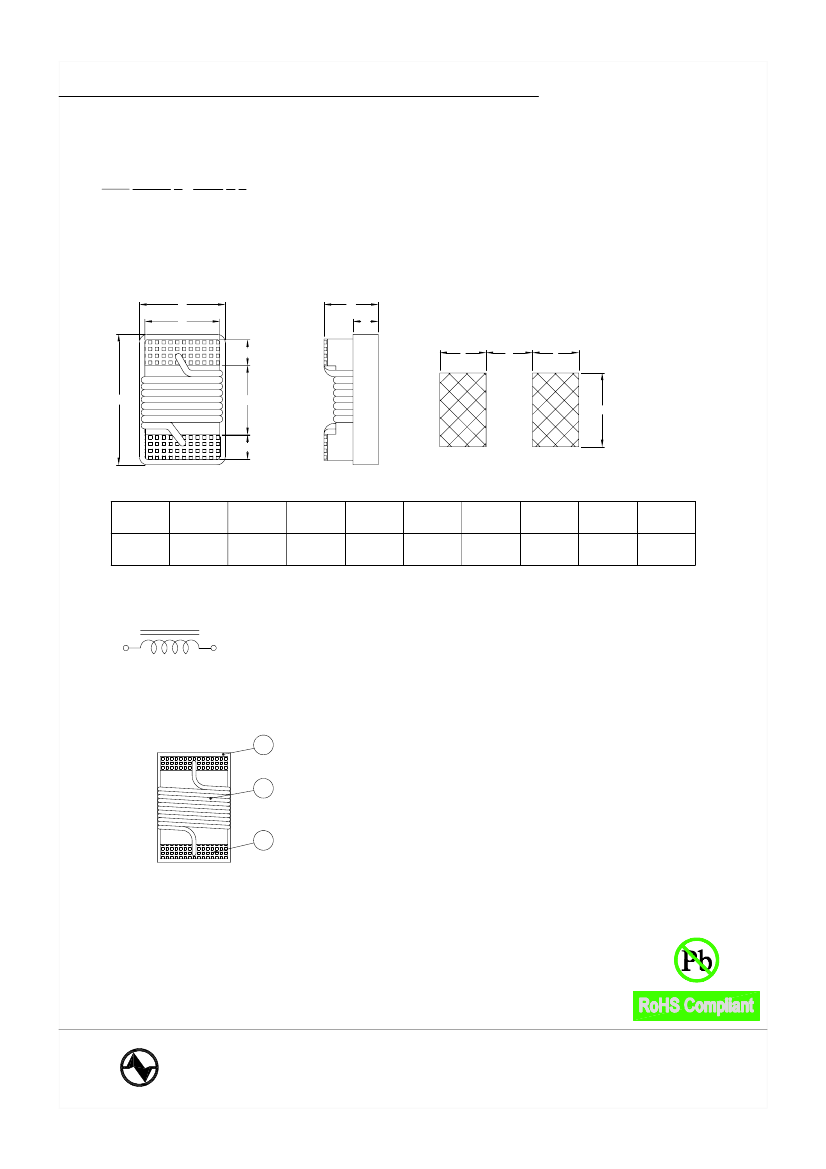

2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
A
G
F
F
PCB Pattern
Unit:m/m
A
B
C
D
0.51 Ref.
E
1.27 Ref.
F
0.51 Ref.
G
1.02 Ref.
H
1.78 Ref.
I
1.02 Ref.
J
0.76 Ref.
2.29 Max. 1.73 Max. 1.52 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
WIREWOUND CHIP INDUCTORS
5. GENERAL SPECIFICATION :
a) Storage temp. : -25°C to +80°C
b) Operating temp. : -40°C to +125°C
c) Temperature rise : 40°C Max.
d) Rated current : Base on temp. rise & L/L0A=10% Max.
e) Resistance to solder heat : 260°C.10sec
SCI0805S SERIES
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI0805S-2N8 F
SCI0805S-3N0 F
SCI0805S-3N3 F
SCI0805S-5N6 F
SCI0805S-6N8 F
SCI0805S-7N5 F
SCI0805S-8N2 F
SCI0805S-8N7 F
SCI0805S-10N F
SCI0805S-12N F
SCI0805S-15N F
SCI0805S-18N F
SCI0805S-22N F
SCI0805S-24N F
SCI0805S-27N F
SCI0805S-33N F
SCI0805S-36N F
SCI0805S-39N F
SCI0805S-43N F
SCI0805S-47N F
SCI0805S-56N F
SCI0805S-68N F
SCI0805S-72N F
SCI0805S-82N F
SCI0805S-91N F
Tolerance
Available
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
2.8
3.0
3.3
5.6
6.8
7.5
8.2
8.7
10
12
15
18
22
24
27
33
36
39
43
47
56
68
72
82
91
Test
Freq
( MHz )
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
200
150
150
150
Q
Min.
80
65
50
65
50
50
50
50
60
50
50
50
55
50
55
60
55
60
60
60
60
60
65
65
65
Q Test
Freq
( MHz )
1500
1500
1500
1000
1000
1000
1000
1000
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
SRF
( MHz )
Min.
7900
7900
6000
5500
5500
4500
4700
3900
4200
4000
3400
3300
2600
2000
2500
2050
1700
2000
1650
1650
1550
1450
1400
1300
1200
DCR
( )
Max.
0.060
0.060
0.080
0.080
0.110
0.140
0.120
0.210
0.100
0.150
0.170
0.200
0.220
0.220
0.250
0.270
0.270
0.290
0.340
0.310
0.340
0.380
0.400
0.420
0.480
IDC
( mA )
Max.
800
800
600
600
600
600
600
400
600
600
600
600
500
500
500
500
500
500
500
500
500
500
500
400
400
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
WIREWOUND CHIP INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI0805S-R10 F
SCI0805S-R11 F
SCI0805S-R12 F
SCI0805S-R15 F
SCI0805S-R18 F
SCI0805S-R20 F
SCI0805S-R22 F
SCI0805S-R24 F
SCI0805S-R25 F
SCI0805S-R27 F
SCI0805S-R30 F
SCI0805S-R33 F
SCI0805S-R36 F
SCI0805S-R39 F
SCI0805S-R43 F
SCI0805S-R47 F
SCI0805S-R56 F
SCI0805S-R62 F
SCI0805S-R68 F
SCI0805S-R75 F
SCI0805S-R82 F
SCI0805S-1R0 F
SCI0805S-1R2 F
SCI0805S-1R5 F
SCI0805S-1R8 F
SCI0805S-2R2 F
SCI0805S-2R7 F
Inductance tolerance :
: G : ±2%
J : ±5%
K : ±10%
Tolerance
Available
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
100
110
120
150
180
200
220
240
250
270
300
330
360
390
430
470
560
620
680
750
820
1000
1200
1500
1800
2200
2700
Test
Freq
( MHz )
150
150
150
100
100
100
100
100
100
100
100
100
100
100
50
50
25
25
25
25
25
25
7.96
7.96
7.96
7.96
7.96
Q
Min.
65
50
50
50
50
50
50
44
45
48
48
48
48
48
33
33
23
23
23
23
23
20
18
16
16
16
16
Q Test
Freq
( MHz )
500
250
250
250
250
250
250
250
250
250
250
250
250
250
100
100
50
50
50
50
50
50
25
25
7.96
7.96
7.96
SCI0805S SERIES
SRF
( MHz )
Min.
1200
1000
1100
920
870
860
850
690
680
650
620
600
580
560
430
375
340
220
200
200
200
100
100
100
80
60
50
DCR
( )
Max.
0.460
0.480
0.510
0.560
0.640
0.660
0.700
1.00
1.00
1.00
1.20
1.40
1.45
1.50
1.70
1.70
1.90
2.20
2.20
2.30
2.35
2.50
2.50
2.50
2.50
2.70
2.95
IDC
( mA )
Max.
400
400
400
400
400
400
400
350
350
350
330
310
300
290
230
220
210
210
190
180
180
170
170
170
170
160
150
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
WIREWOUND CHIP INDUCTORS
7. PACKAGING INFORMATION :

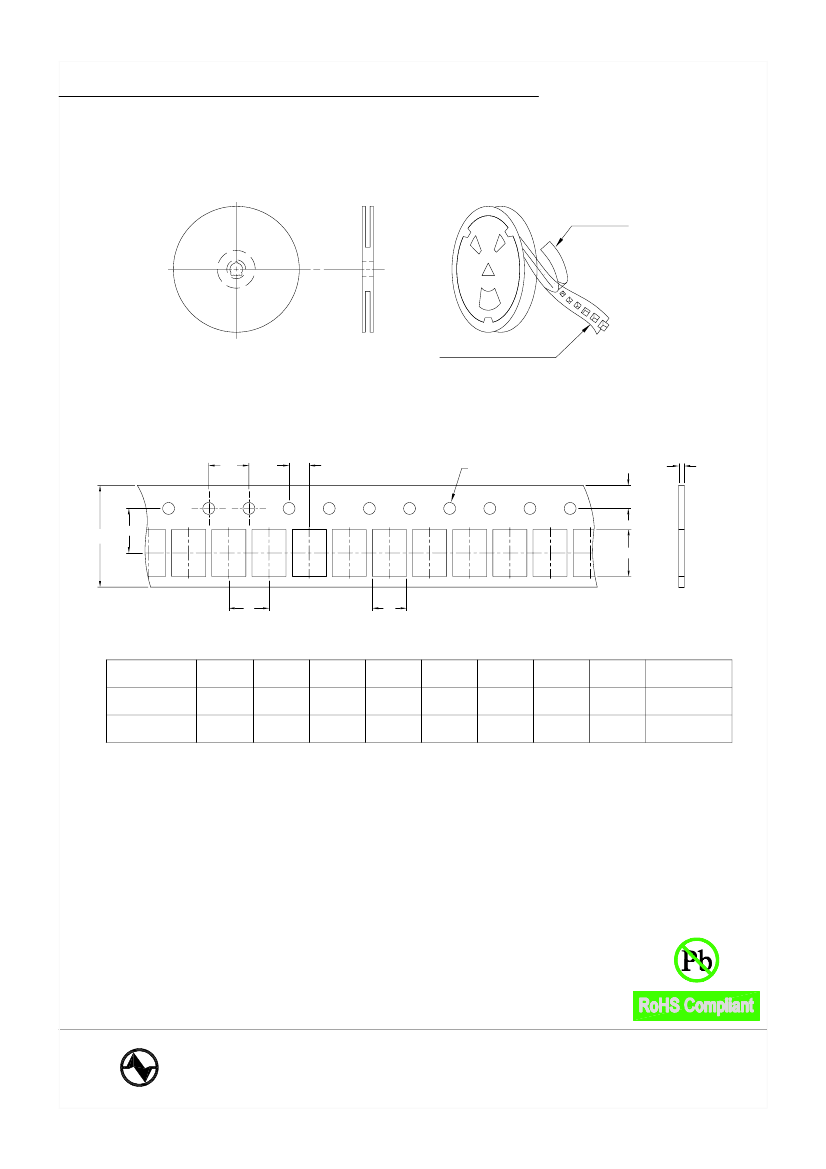

Reel Configuration :
SCI0805S SERIES
COVER TAPE
EMBOSSED CARRIER
Paper Tape :
1.75±0.1
P0
P1
Ø1.5
H
W
F
P
Dimension (unit: mm)
Series
SCI0402S
SCI0603S
A
0.72
1.35
B
1.19
1.95
H
0.60
0.95
A
F
3.50
3.50
P
4.00
4.00
P0
4.00
4.00
P1
2.00
2.00
W
8.00
8.00
B
Qty
4000pcs / reel
4000pcs / reel
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
WIREWOUND CHIP INDUCTORS
SCI0805S SERIES

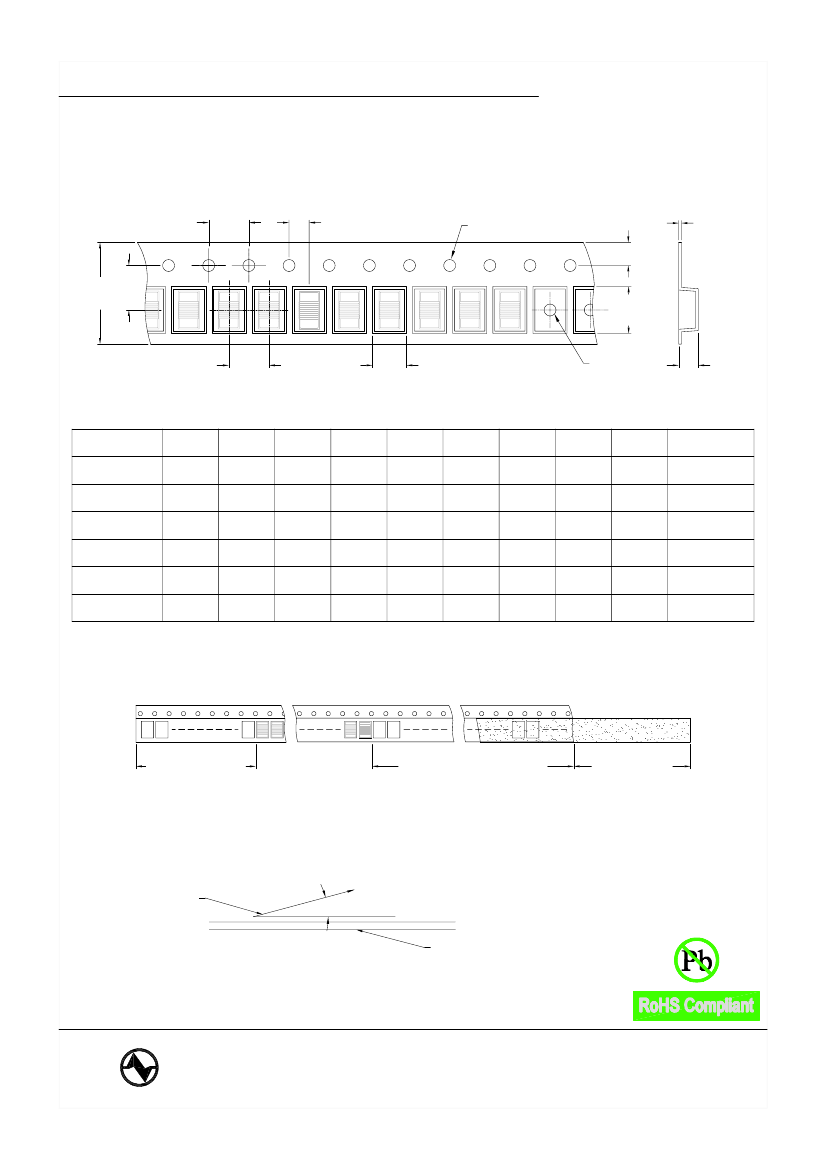

Embossed Carrier Tape :
F±0.1
4±0.1
G±0.05
Ø1.5
J±0.05
A±0.2
E±0.05
C±0.1
B±0.1
Ø1.5
Dimension (unit: mm)
Series
SCI0805S
SCI0805LP
SCI0805HQ
SCI1008S
SCI1008LP
SCI1008HQ
A
8
8
8
8
8
8
B
1.85
1.80
1.85
2.70
2.70
2.70
C
4
4
4
4
4
4
D
2.30
2.30
2.30
2.80
2.80
2.80
E
3.5
3.5
3.5
3.5
3.5
3.5
F
1.75
1.75
1.75
1.75
1.75
1.75
G
2
2
2
2
2
2
H
1.45
0.90
1.45
2.00
1.50
2.00
J
0.23
0.23
0.23
0.23
0.23
0.23
Qty
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
Leader/Trailer Tape :
Trailer End
Leader End
Trailer (80mm min.)
Empty compartments
with cover tape (100mm min.)
Cover tape only
(250mm min.)
Peel-off Force :
Peel-off force should be in the range of 0.1N~0.7N at a peel-off speed of 300±10mm/min.
Peeling Direction
Top cover tape
<1 0
°
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
D±0.1
H±0.05
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
