CBC20J00-008WDV2-6-1: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Plug,; CategoryThe connector The connector; File Size43KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CBC20J00-008WDV2-6-1 Overview

Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Plug,

CBC20J00-008WDV2-6-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: IEC 61076-4-104; IEC 917, POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

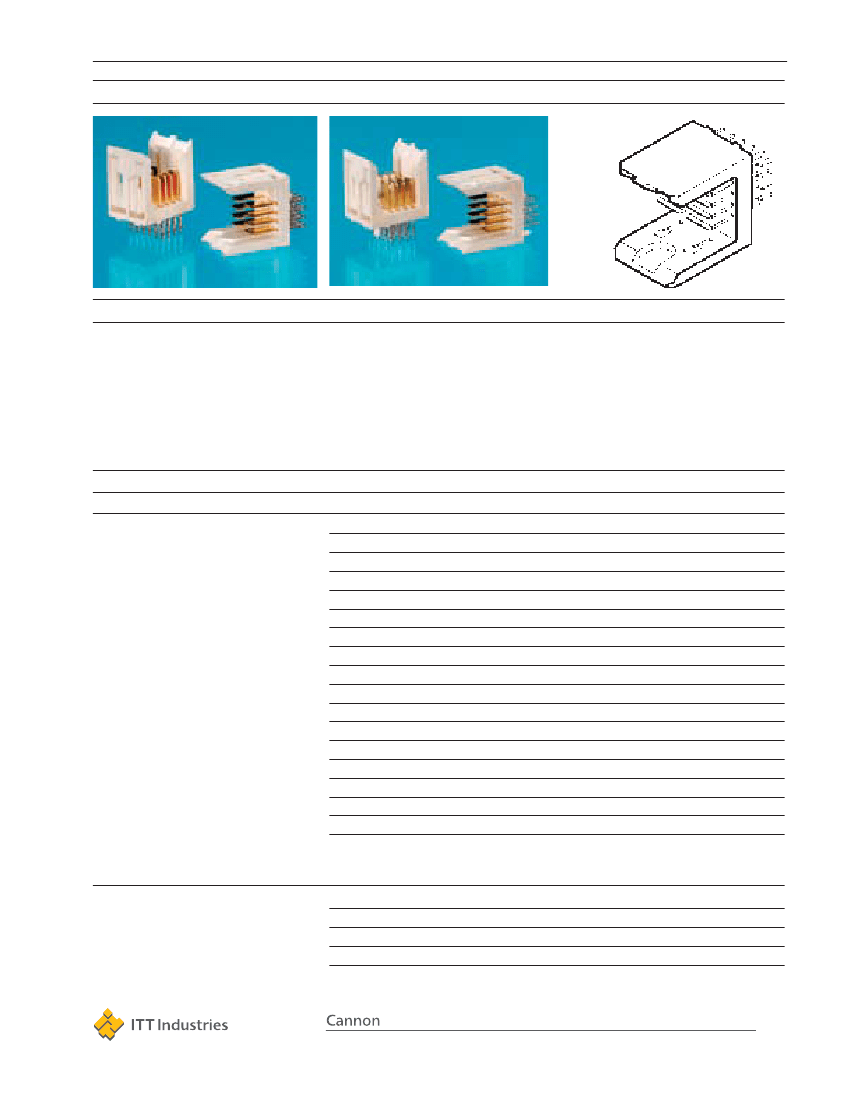

2 mm Interconnect

Male Power Modules - Wide Wall - Solder or Pressfit Termination - 4 Row

Tempus CBC 20

Features

•

Designed to conform with

IEC61076-4-104, EIAis64,

IEEE P896 Futurebus+,

IEEE P1596 SCI and IEC 917

metric modular order

•

Sequential mating provides live

insertion capability

High performance contacts, high

hertz stress, 1000 cycles minimum

High I/O, eight power contacts in a

12 mm module

•

High temperature materials, not

affected by reflow solder process

Wide wall design for system tolerant

2,50 (.098) out-of-centre board

insertion

•

Stackable with other TEMPUS

modules, with no loss of positions

Technical Data

Mechanical Data

Contact Pitch

Polarisation

Coding

Housing Material

Termination Solder

Termination p.t.h. (solder)

Termination Press-fit

Termination p.t.h. (press-fit)

Board Guiding Left to Right

Top to Bottom

Board Slot Pitch

Contact Material

Hertz Stress

Class 1

Plating

Insertion Force

Withdrawal Force

2,00 x 2,00 (.079 x .079)

By design

With coding key, see page 64

Liquid Crystal Polymer, UL94V-0 or PPS, UL94V-0

Solder tail, tin/lead plated

ø 0,60 (.024)

Eye of needle compliant section, tin/lead plated

ø 0,70 (.028), refer to page 73

2,50 - 2,50 (.100 - .100)

1,50 - 1,50 (.060 - .060)

16,00 (.630) min.

Press-fit contact: Phosphor bronze, Solder contact: Brass

1200 MPa (174 klbf / sq. in.)

1000 cycles minimum

Palladium Nickel plus Gold over Nickel

1,50 N (5,3 oz) max. per contact

0,30 N (1,0 oz) min. per contact

Electrical Data

Current Rating

Withstanding Voltage

Insulation Resistance

Contact Resistance

4,00 A at 25°C, 3,00 A at 70°C

1000 Vrms

Initial: 5000MΩ, after climatic test: 1000 MΩ

25 mΩ maximum

Dimensions are shown mm (inch)

Dimensions subject to change
