CGKS7T22N55SD datasheet, PDF - EEWORLD Datasheet

CGKS7T22N55SD: DescriptionMIL Series Connector, 55 Contact(s), Aluminum Alloy, Female, Crimp and Solder Terminal, Receptacle; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CGKS7T22N55SD Overview

MIL Series Connector, 55 Contact(s), Aluminum Alloy, Female, Crimp and Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FIRE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	CGKS7T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	WATERPROOF
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP AND SOLDER
Total number of contacts	55

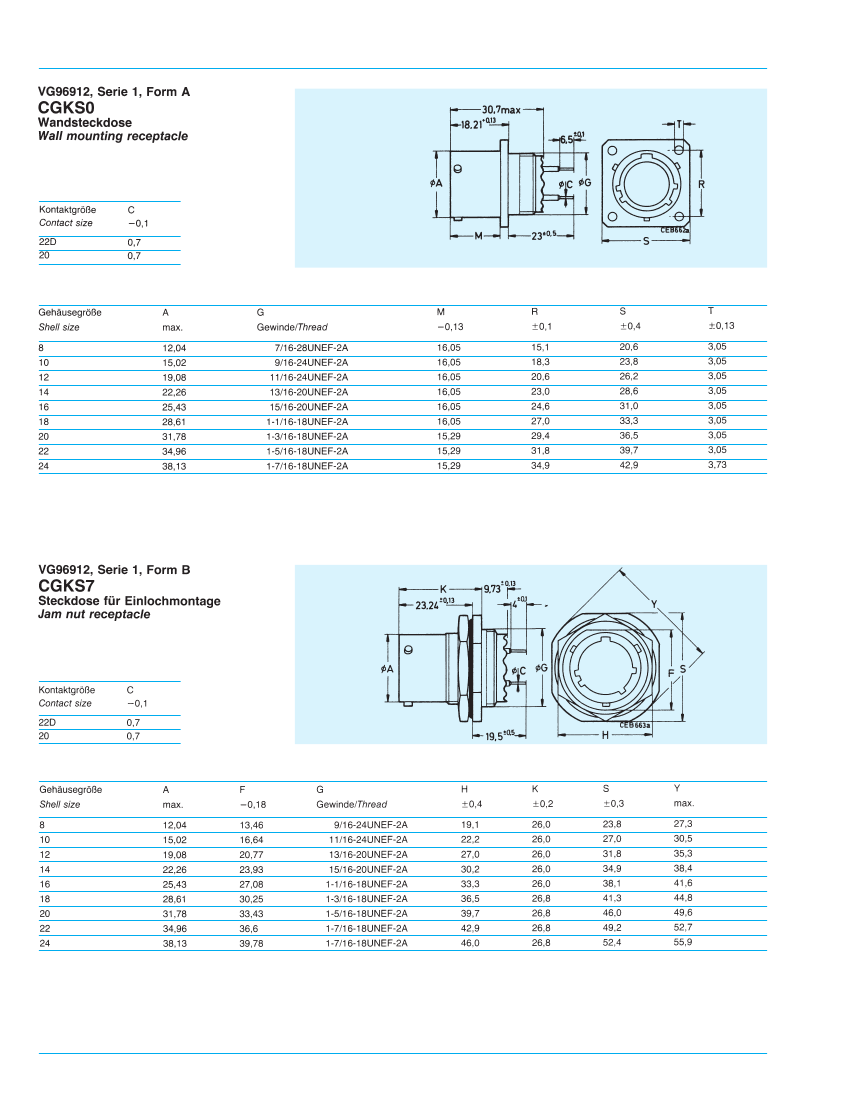

CGK

Änderungen vorbehalten / Subject to changes
