WIREWOUND CHIP INDUCTORS
1. PART NO. EXPRESSION :
SCI1008HQ SERIES
SCI1008HQ-3N0JF
(a)
(b)
(c)
(d) (e)(f)
(a) Series code
(b) Dimension code
(c) Type code : HQ ( High Q factor )
(d) Inductance code : 3N0 = 3.0nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : RoHS Compliant

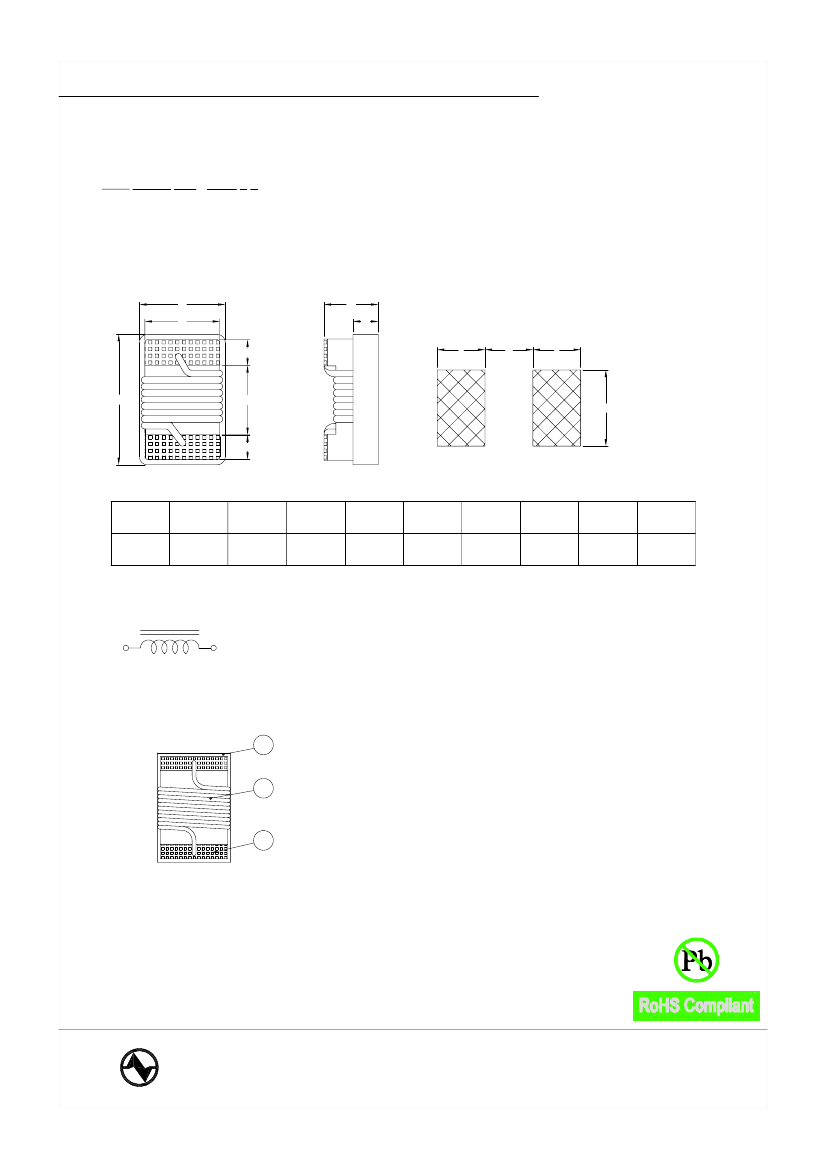

2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
A
G
F
F
PCB Pattern
Unit:m/m
A
B
C
D
0.65 Ref.
E
2.03 Ref.
F
0.51 Ref.
G
1.52 Ref.
H
2.54 Ref.
I
1.02 Ref.
J
1.27 Ref.
2.92 Max. 2.79 Max. 2.03 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
WIREWOUND CHIP INDUCTORS
5. GENERAL SPECIFICATION :
a) Storage temp. : -25°C to +80°C
b) Operating temp. : -40°C to +125°C
c) Temperature rise : 40°C Max.
d) Rated current : Base on temp. rise & L/L0A=10% Max.
e) Resistance to solder heat : 260°C.10sec
SCI1008HQ SERIES
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI1008HQ-3N0 F
SCI1008HQ-4N1 F
SCI1008HQ-7N8 F
SCI1008HQ-10N F
SCI1008HQ-12N F
SCI1008HQ-18N F
SCI1008HQ-22N F
SCI1008HQ-33N F
SCI1008HQ-39N F
SCI1008HQ-47N F
SCI1008HQ-56N F
SCI1008HQ-68N F
SCI1008HQ-82N F
SCI1008HQ-R10 F
Inductance tolerance :
: G : ±2%
J : ±5%
K : ±10%
Tolerance
Available
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
3.0
4.1
7.8
10
12
18
22
33
39
47
56
68
82
100
Test
Freq
( MHz )
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Q
Min.
70
75
75
60
70
62
62
75
75
75
75
80
80
62
Q Test
Freq
( MHz )
1500
1500
500
500
500
350
350
350
350
350
350
350
350
350
SRF
( MHz )
Min.
6000
6000
3800
3600
2800
2700
2050
1700
1300
1450
1230
1150
1060
820
DCR
( )
Max.
0.040
0.050
0.050
0.060
0.060
0.070
0.070
0.090
0.090
0.120
0.120
0.130
0.160
0.160
IDC
(mA)
Max.
1600
1600
1600
1600
1500
1400
1400
1300
1300
1200
1200
1100
1100
1000
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
WIREWOUND CHIP INDUCTORS

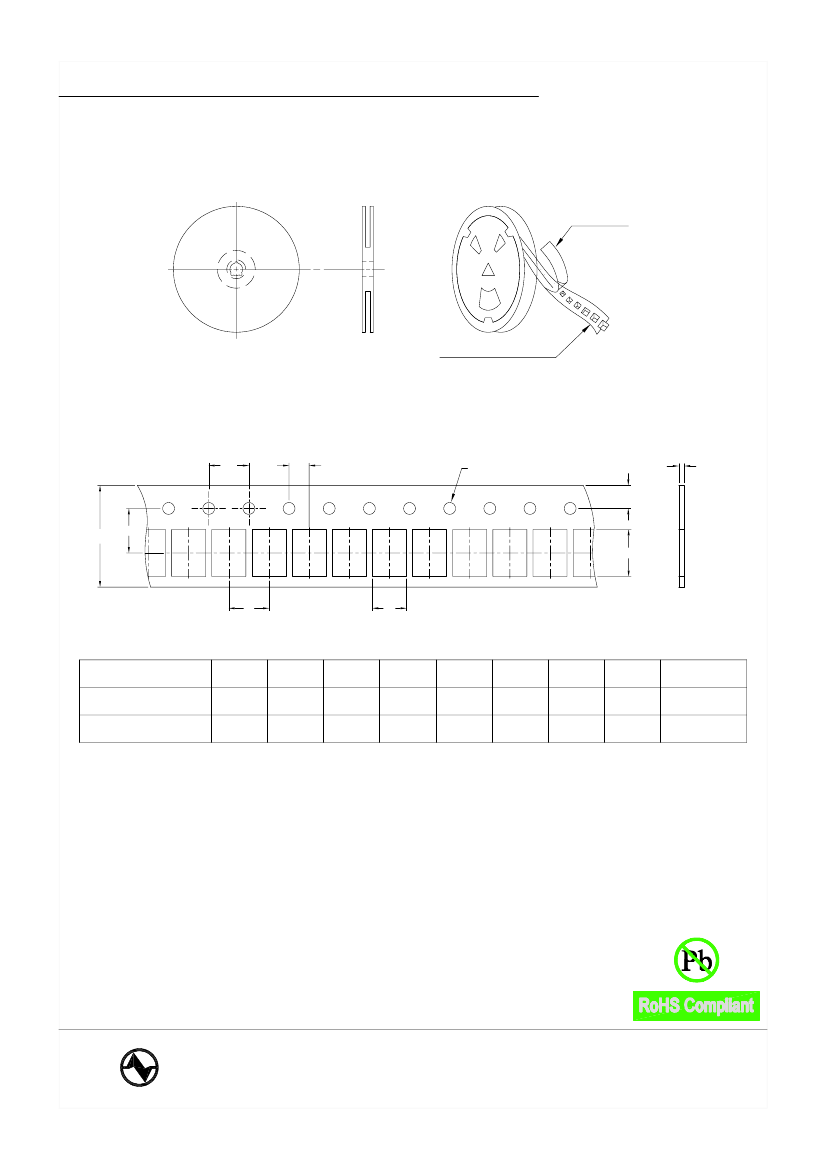

7. PACKAGING INFORMATION :
Reel Configuration :
SCI1008HQ SERIES
COVER TAPE
EMBOSSED CARRIER
Paper Tape :
1.75±0.1
P0
P1
Ø1.5
H
W
F
P
Dimension (unit: mm)
Series
SCI0402S
SCI0603S
A
0.72
1.35
B
1.19
1.95
H
0.60
0.95
A
F
3.50
3.50
P
4.00
4.00
P0
4.00
4.00
P1
2.00
2.00
B
W
8.00
8.00
Qty
4000pcs / reel
4000pcs / reel
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
WIREWOUND CHIP INDUCTORS
SCI1008HQ SERIES

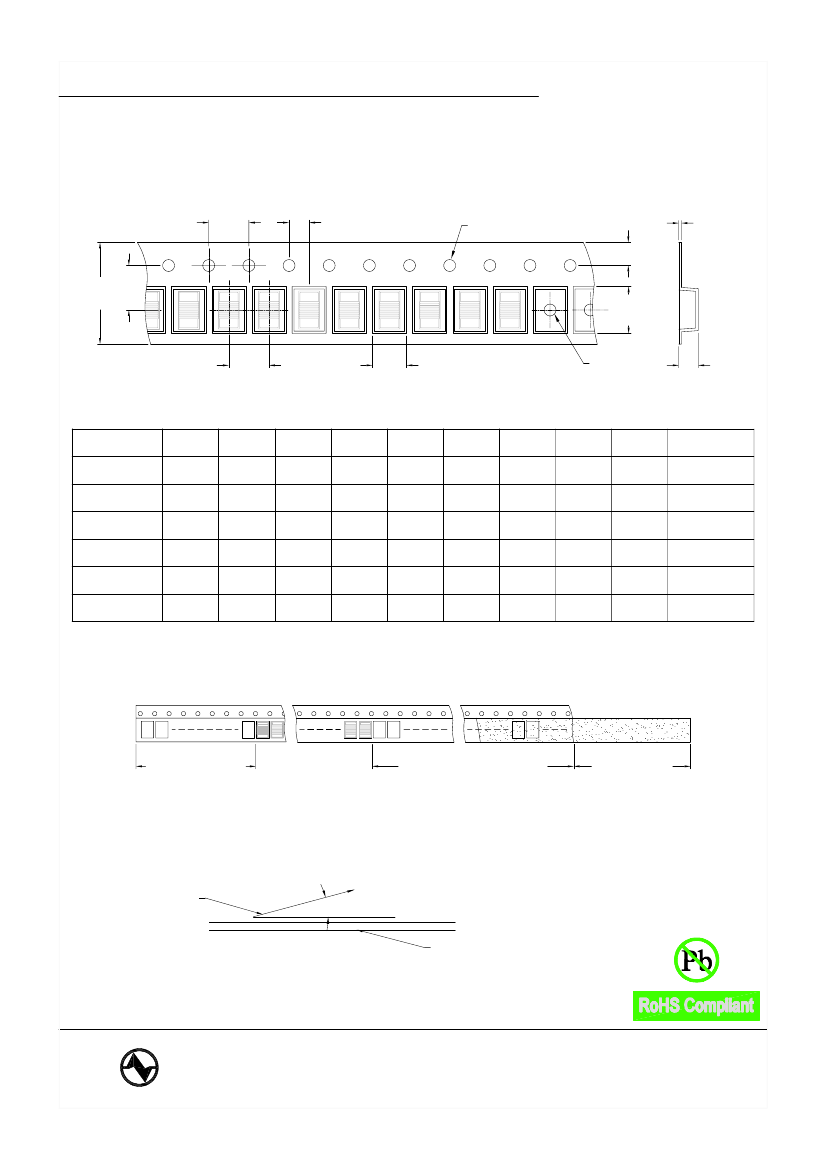

Embossed Carrier Tape :
F±0.1
4±0.1
G±0.05
Ø1.5
J±0.05
A±0.2
E±0.05
C±0.1
B±0.1
Ø1.5
Dimension (unit: mm)
Series
SCI0805S
SCI0805LP
SCI0805HQ
SCI1008S
SCI1008LP
SCI1008HQ
A
8
8
8
8
8
8
B
1.85
1.80
1.85
2.70
2.70
2.70
C
4
4
4
4
4
4
D
2.30
2.30
2.30
2.80
2.80
2.80
E
3.5
3.5
3.5
3.5
3.5
3.5
F
1.75
1.75
1.75
1.75
1.75
1.75
G
2
2
2
2
2
2
H
1.45
0.90
1.45
2.00
1.50
2.00
J
0.23
0.23
0.23
0.23
0.23
0.23
Qty
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
Leader/Trailer Tape :
Trailer End
Leader End
Trailer (80mm min.)
Empty compartments
with cover tape (100mm min.)
Cover tape only
(250mm min.)
Peel-off Force :
Peel-off force should be in the range of 0.1N~0.7N at a peel-off speed of 300±10mm/min.
Peeling Direction
Top cover tape
<1 0
°
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
D±0.1
H±0.05
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
WIREWOUND CHIP INDUCTORS
8. ENVIRONMENTAL CHARACTERISTICS :
Electrical Performance Test :
SCI1008HQ SERIES
ITEM
1
Inductance
SPECIFICATION
TEST CONDITIONS / TEST METHODS
HP4291B
2
Q
Refer to Electrcal
Characteristics List
HP4291B
3
SRF
HP8753D
4
DC Resistance Rdc
Mico-Ohmmeter (GOM-801G)
5
Rated Current IDC
The device should be REFLOW soldered (230±5°C for
10 seconds) to a tinned copper subs rate. A dynamiter
6
Over Load Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
Applied 2 times of rated allowed DC current to inductor
for a period of 5 minute.
7
Withstanding
Voltage Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
AC voltage of 500VAC applied between inductors
terminal and case for 1 minute.
8
Insulation
Resistance Test
1000 MOhm min.
100VDC applied between inductor terminal and case
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
