ARINC 404
DPXA - Single Shell DPX
DPXA connectors are one-piece shell miniature
rack/panel connectors. The construction offers
high strength and maximum utilization of insert area
for contact arrangements accommodating up to 106
contacts. Shells are keystone-shaped for polar-
ization. Operating temperature for the DPXA is
-54.2˚C to +125˚C (-67˚F to +257˚F).
DPXB - Polarized ARINC Shell
DPXB connectors are DPXA connectors with an
ARINC B shelf. Additional polarization is provided
by three hexagonal polarizing posts.

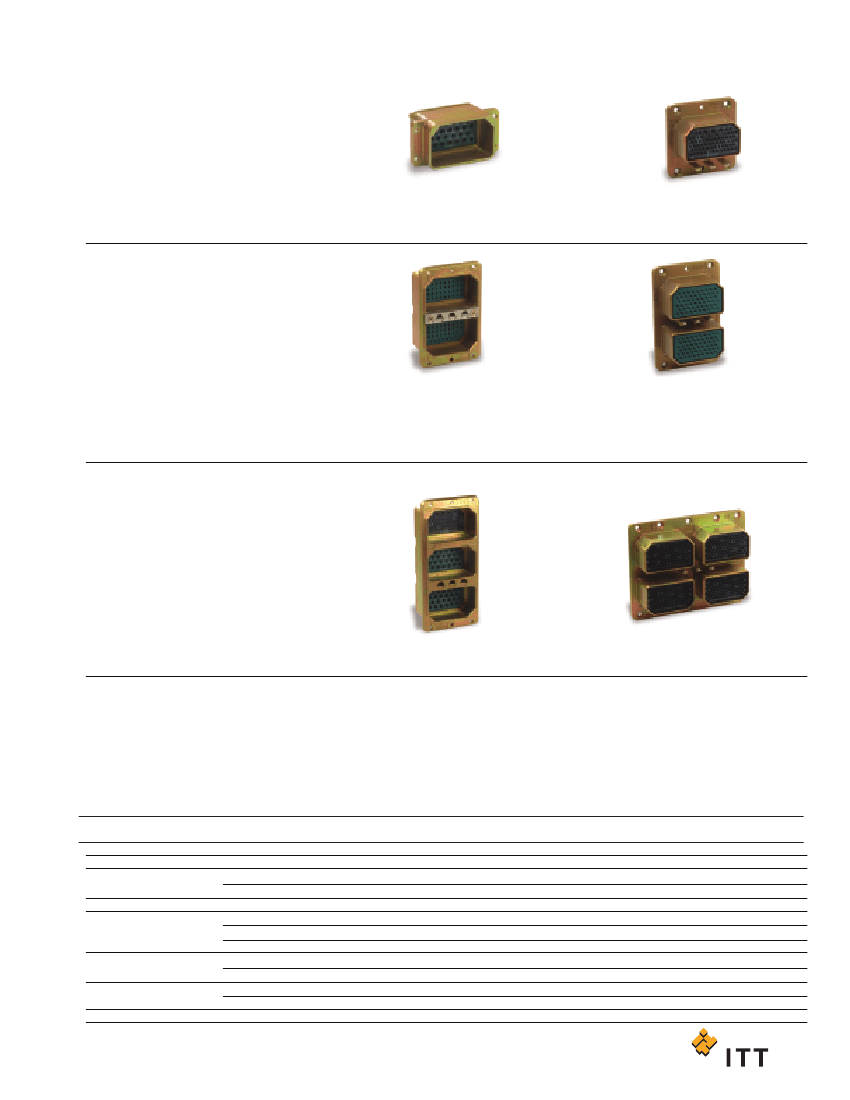

DPX

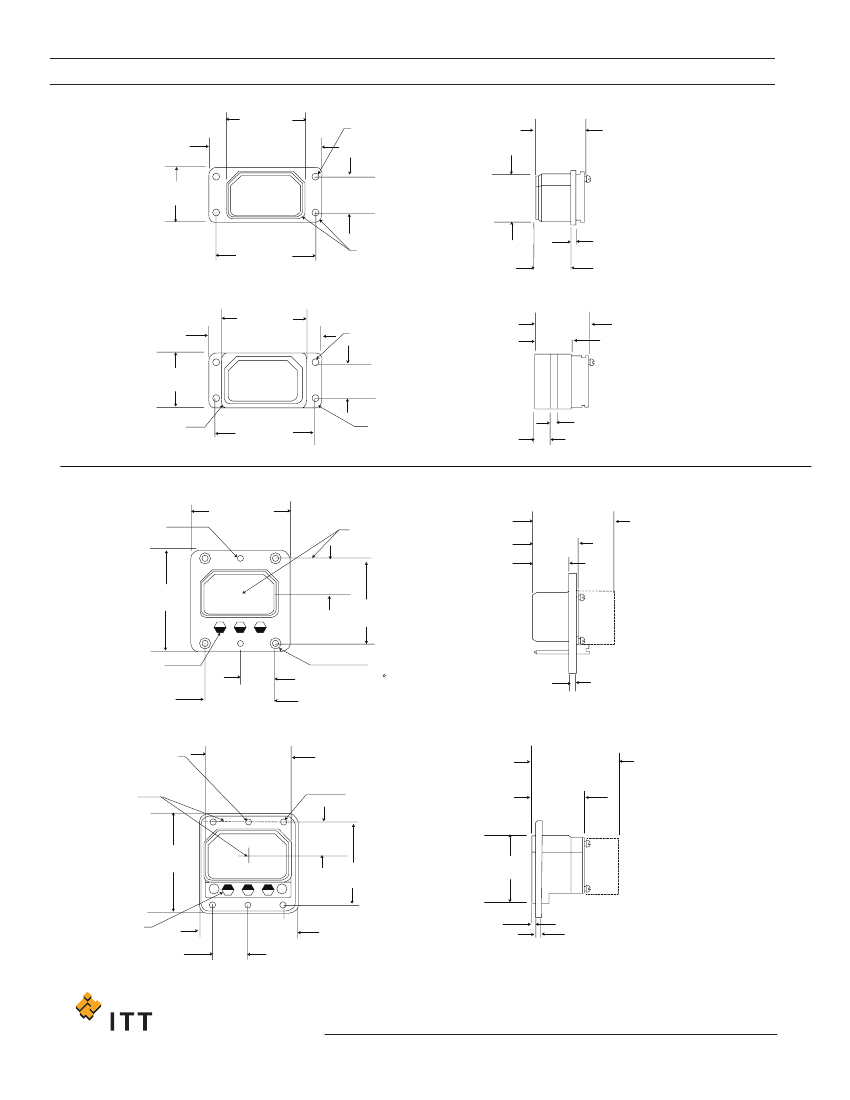

DPXA-34
DPXB-33
DPX2 - Two Gang DPX Series
DPX2 connectors are the original two-gang versions
of the DPX, and are made of the same materials and
accommodate the same contact arrangements.
Keystone shaped shells accommodate two DPX
inserts with up to 212 contacts. The DPX2 has
three polarizing posts with 99 polarizing positions.
DPX2 - A - ARINC A Shell
DPX2-A connectors are DPX2 connectors with an
ARINC A shell. This shell type has the receptacle
flange placed .344 (8.74) from the front of the
engaging portion of the shell, and short aluminum
alloy polarizing posts permit polarization before
contacts engage.
DPX3 - Three Gang DPX Series
DPX3 connectors are three-gang versions of the
DPX, made of the same materials, and accommo-
date the same contact arrangements. The three-
gang version can therefore accommodate up to a
total of 318 in the keystone shaped shells, with
three polarizing posts that are capable of providing
up to 99 polarizing positions.
DPX4 - Four Gang DPX Series
DPX4 connectors are four gang versions of the DPX,
made of the same materials, and can accommodate
four separate arrangements that can total up to
424 contacts. The DPX4 has three polarizing posts
with 99 polarizing positions.

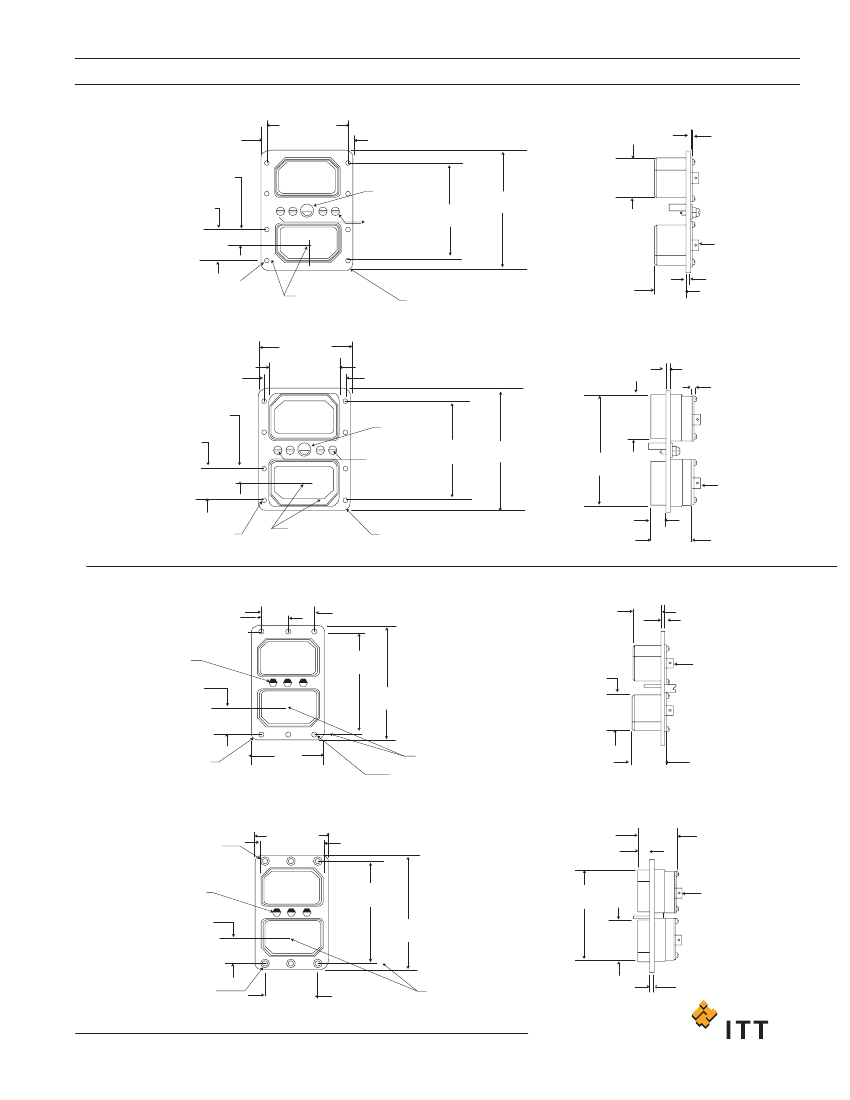

DPX2-34B
DPX2-33B
DPX2-B - ARINC B Shell
DPX2-B connectors supersede the DPX2-A and
have an ARINC B Shell. This Shell type has the
receptacle flange placed .060 (1.52) from the front
of the engaging portion of the shell, and polarizing
posts permit polarization before the shells engage.
DPX3-34
DPX4-33
DPX*MA - LITTLE CAESAR' Contact Assembly
DPX*MA connectors are DPX connectors with the
LITTLE CAESAR contact assembly for rear in-
sertion, release, and extraction of crimp type con-
tacts. Insertion requires no tool; extraction requires
an expendable plastic tool. A hard dielectric,
closed-entry socket insert has lead-in chamfers for
positive mating of contacts. Contacts are crimpable
with the M22501 tool.
DPX*ME - Environmental with LITTLE CAESAR
Contact Assembly
DPX*ME connectors are DPXMA connectors with
environmental interfacial and grommet seals, and
olive drab shell finish.
Performance and Material Specifications (DPXA/DPXB/DPX*MA/DPX*ME)
DPXA/DPXB/DPX2
Shell
Insulator
Contacts
Material
Finish
Material
Material
Finish
Termination
Polarizing Posts
Screws & Lockwashers
Seals
Material
Finish
Material
Finish
Material
Aluminum alloy
Cadmium plate with yellow chromate
Melamine or Phenolic
Copper alloy
Gold
Solder Pot
Die Cast
Cadmium
Steel
Cadmium Plate
N/A
DPX*MA/DPX2*MA/ME
Aluminum alloy
Cadmium plate with yellow chromate for MA: olive drab for ME
Diallyl phthalate or epoxy
Copper alloy
Gold
Crimp
Die cast
Cadmium
Steel
Cadmium plate
Silicone
QQ-P-416
QQS-630-637
QQ-P-416
N/A
Specifications
QQ- A-591/A380
QQ-P-416
MIL-M-14
QQ-C-533
MIL-G-45204
N/A
www.ittcannon.com
43
ARINC 404
How to Order
DPXA/DPXB
DPX
DPX
A
B
R
MA -
32C2
67
- 34
- 33
P
S
DPX
-1
- 00
01
- F0
SERIES PREFIX
SHELL STYLE
RoHS
CLASS
CONTACT ARRANGEMENT
SHELL TYPE
CONTACT TYPE
MODIFICATION
POLARIZING POSITION
LESS CONTACTS*
SERIES PREFIX
DPX - ITT designation
SHELL STYLE
A - Single shell
B - Polarized ARINC shell
RoHS version
R - RoHS compatible
CLASS
No designator - Solder type
MA - Crimp type with LITTLE CAESAR contact
assembly
ME - Environmental crimp type
MB - Wire seperator
MK - Mounting springs
CONTACT ARRANGEMENT
2 thru 106 (see pages 52-56)
SHELL TYPE
33 for plug; 34 for receptacle
CONTACT TYPE
P for pin: S for socket
MODIFICATION
DPXA - See page 68-71
DPXB - See pages 68-71
POLARIZING POSTION
For DPXB shell style only
DPX2
DPX
DPX
DPX
2
2
2
R
MA
MA
57
57
57
P
P
P
- 57
- 57
- 57
P
P
P
- 33
- 33
- 34
B
A
B
- 00 01
- 03 01
- 02 01
- F0
SERIES PREFIX
TWO GANG SHELL
RoHS
CLASS
CONTACT ARRANGEMENT
(Side A)
CONTACT TYPE
CONTACT ARRANGEMENT
(Side B)
CONTACT TYPE
SHELL TYPE
SHELL STYLE
MODIFICATION NUMBER
POLARZING POSITION
LESS CONTACTS*
SERIES PREFIX
DPX - ITT Cannon designation
SHELL
2 - Two gang
RoHS
R - RoHS compatible
CLASS
No designator - Solder type
MA - Crimp type with LITTLE CAESAR contact
CONTACT ARRANGEMENT
2 thru 106 (see pages 52-56)
CONTACT TYPE
P for pin; S for socket
SHELL TYPE
33 for plug; 34 for receptacle
SHELL STYLE
No designator - original two-gang DPX
A - ARINC A shell
B - ARINC B shell
MODIFICATION
See pages 68-71
POLARIZING POSITION
See pages 71-72
www.ittcannon.com
44
ARINC 404
How to Order
DPX3/DPX4
SERIES PREFIX
SHELL
CLASS
CONTACT ARRANGEMENT
(Side A)
CONTACT TYPE
CONTACT ARRANGEMENT
(Side B)
CONTACT TYPE
SERIES PREFIX
DPX - ITT designation
SHELL
3 - Three gang
CLASS
MA - Crimp type contacts in LITTLE CAESAR
contact assembly
ME - Environment- resistant, crimp type contacts
*CONTACT ARRANGEMENT
See pages 52-56 for applicable arrangements.
Please specify each arrangement number as in-
dicated in ordering nomenclature for 3 or 4 gang if
not listed below.
4 - Four gang
CONTACT ARRANGEMENT
(Side C)
CONTACT TYPE
CONTACT ARRANGEMENT
(Side 0)
CONTACT TYPE
SHELL TYPE
MODIFICATION NUMBER
POLARIZING POSITION
**CONTACT TYPE
P for pin; S for socket. Designation follows each
arrangement as ordered for 3 or 4 gang versions.
SHELL TYPE
33 for plug; 34 for receptacle
MODIFICATION
See pages 68-71
POLARIZING POSITION
See pages 71-72
DPX
DPX
3
4
ME
ME
- 57
- 57
P
P
- 57
- 57
P
P
- 57
- 57
P
P
- 57
P
DPX
- 34
- 34
- 00
- 00
01
01
DPXMA/ME
DPXMA/DPXME - 0PX - 3 Shell Layouts
Insert - Used in shell position as noted
MA:
Layout
*E24
*F122
G122
*E142
*A166
171
201
*C205
B240
C240
*D244
A279
A318
*Applicable to "ME" only. Consult factory for similar layouts application to "MA."
NOTE: For pictorial views of above layouts see pages 52-56.
C
C
C
ME:
W8
AW8
A,B,C
A,B
B
C
C
A,B,C
A,B,C
A
A,C
A,B
B
B
C
A,B
A,B
A,B,C
A,C
A,B
A,B
C
32W4
A32W4
57
57
67
67
A106
A106
DPXMA/DPXME - 0PX - 4 Shell Layouts
Insert - Used in shell position as noted
MA:
Layout
145
*B148
B150
*181
*B189
*A198
268
*E287
*220
*A233
279
*F287
*E326
A346
B346
385
A424
B
B
C,D
A,B
A
D
B
A
B,C,D
A
A
C,D
C,D
A,C,D
A,B
C,D
B,C,D
A,B,C,D
B
C,D
A,B
B
C,D
C,D
A,B,C
ME:
W8
AW8
26
26
A,B,C
B
A,C
C,D
A
B
A,B
A,B,C,D
B
A,C
C,D
A
C
A
D
32W4
A32W4
57
57
67
67
D
A
A106
A106
None
None
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
45
