SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SDB1608 SERIES
(d) Tolerance code : K = ±10%, M = ±20%
(e) F : RoHS Compliant
(f) 11 ~ 99 : Internal controlled number
SDB1608-1R0MF-
(a)
(b)
(c)
(d)(e)
(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 1R0 = 1.0uH

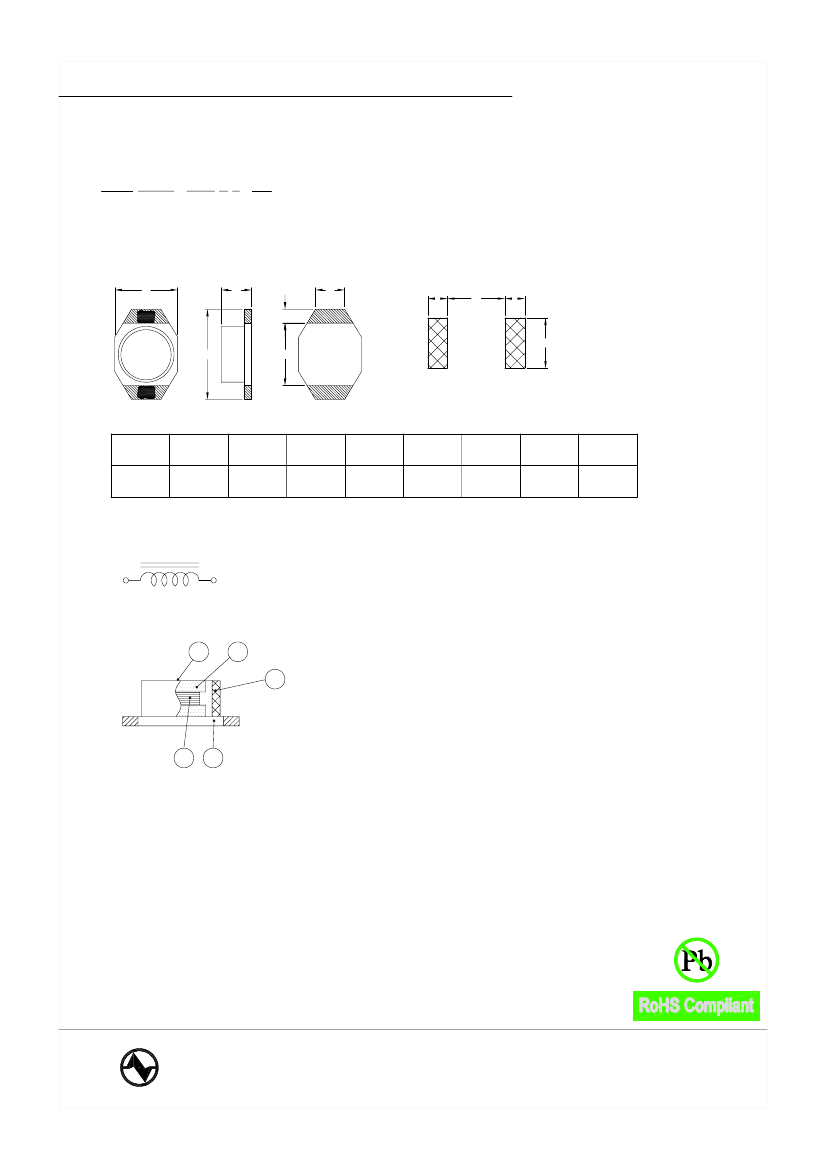

2. CONFIGURATION & DIMENSIONS :
B
C
F
E
I
G
I
101
D
A
PCB Pattern
Unit:m/m
A
B
C
D
4.32 Ref.
E
1.27 Ref.
F
1.02 Ref.
G
4.06 Ref.
H
3.56 Ref.
I
1.40 Ref.
6.60 Max. 4.45 Max. 2.92 Max.
3. SCHEMATIC :
4. MATERIALS :
f
a
b
(a) Core : DR Ferrite Core
(b) Core : RI Ferrite Core
(c) Wire : Enamelled Copper Wire
(d) Base : Ceramic Base
(e) Adhesive : Epoxy
c
d
(f) Ink : Bon Margue
5. GENERAL SPECIFICATION :
a) Ambient temp. : 20°C
b) Temp. rise : 40°C Max.
c) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
18.10.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SDB1608-1R0MF-
SDB1608-1R5MF-
SDB1608-2R2MF-
SDB1608-3R3MF-
SDB1608-4R7MF-
SDB1608-6R8MF-
SDB1608-100MF-
SDB1608-150MF-
SDB1608-220MF-
SDB1608-330MF-
SDB1608-470MF-
SDB1608-680MF-
SDB1608-101KF-
SDB1608-151KF-
SDB1608-221KF-
SDB1608-331KF-
SDB1608-471KF-
SDB1608-681KF-
SDB1608-102KF-
SDB1608-152KF-
SDB1608-222KF-
SDB1608-332KF-
SDB1608-472KF-
SDB1608-682KF-
SDB1608-103KF-
Inductance
( µH )
1.0±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
1500.0±10%
2200.0±10%
3300.0±10%
4700.0±10%
6800.0±10%
10000.0±10%
Test
Frequency
( Hz )
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
Q
Min.
30
30
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
50
50
50
50
50
50
Test
Frequency
( Hz )
0.1V / 200K
0.1V / 200K
0.1V / 200K
0.1V / 200K
0.1V / 200K
0.1V / 200K
0.1V / 200K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
0.1V / 100K
SDB1608 SERIES
SRF
( MHz )
Typ.
250
125
120
120
105
50
38
33
25
20
20
15
10
9
6
5
4
3
2
2
2
1
1
1
0.8
RDC
( )
Max.
0.040
0.045
0.050
0.055
0.060
0.065
0.075
0.090
0.110
0.190
0.230
0.290
0.480
0.590
0.900
1.400
1.800
2.200
3.400
4.200
8.500
11.000
13.900
25.000
32.800
Irms
(A)
3.0
2.3
1.8
1.6
1.4
1.2
1.0
0.80
0.70
0.60
0.50
0.40
0.30
0.26
0.22
0.20
0.19
0.18
0.15
0.12
0.10
0.08
0.06
0.04
0.02
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.10.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

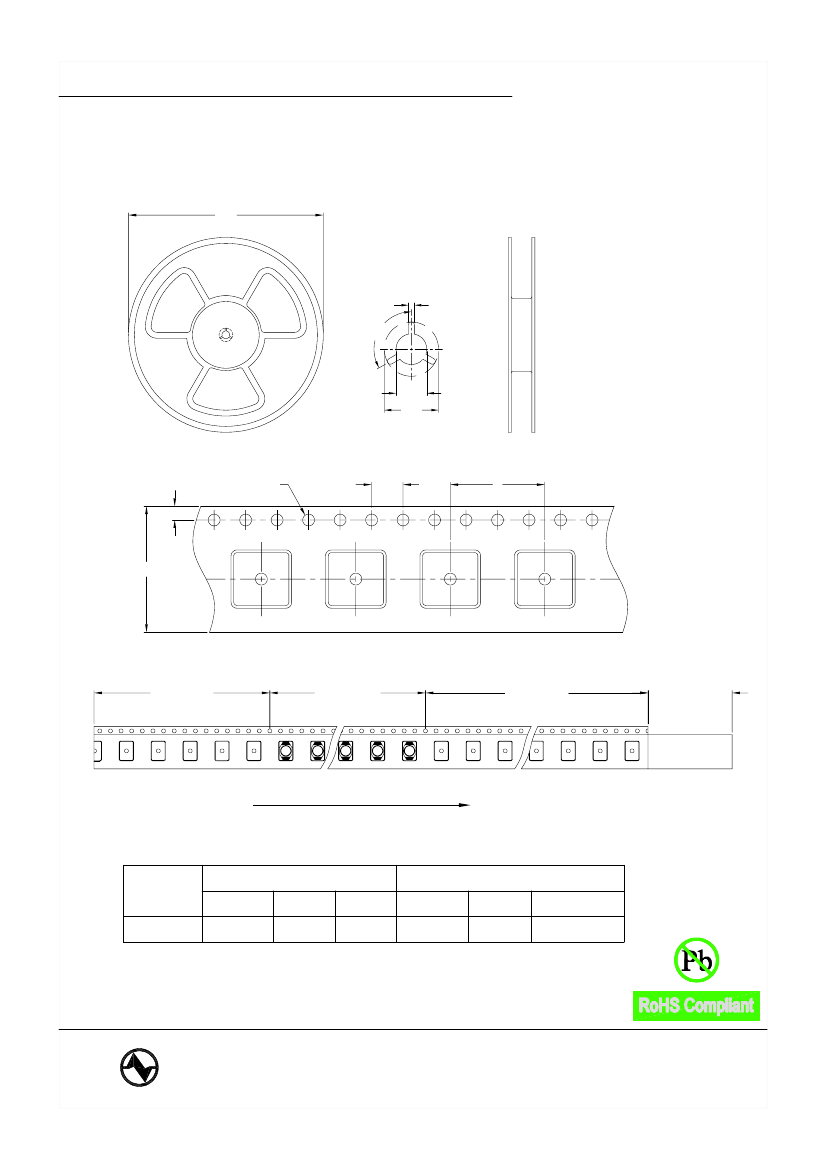

7. PACKAGING INFORMATION : ( Unit : mm )
7-1. Reel & Tape Dimension
330
SDB1608 SERIES
2.5±0.5
12
0°
13±1
23±1
1.50
+0.10
-0.00
4±0.1
8
Tape trailer
160mm Min.
1.75±0.1
16
Components
Tape leader
388mm Min.
Cover tape
250mm Min.
101
101
Direction of feed
101
101
101
7-2. Quantity & G.W. per package
INNER : REEL
SERIES
SDB1608
Q'TY (PCS)
2000
G.W. (Kg)
0.82
STYLE
13-16
OUTER : CARTON
Q'TY (PCS)
32000
G.W. (Kg)
17
SIZE (cm)
36 x 36 x 40
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.10.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
SDB1608 SERIES
7-3. Tearing Off Force
F
165° to 180°
Top cover tape
The force for tearing off cover tape is 10 to 60 grams
in the arrow direction.
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.10.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
