SR10200S
Elektronische Bauelemente
Voltage 200 V
10 Amp Schottky Barrier Rectifiers
RoHS compliant product
A suffix of “-C” specifies halogen free
FEATURES
TO-220A
High current capability
High reliability
High surge current capability
Epitaxial construction
Low forward voltage drop
1
B
N
D
E
2
M
3
A
H
O
J
K
L
C
G
F
MECHANICAL DATA
Case: Molded plastic
Epoxy: UL94V-0 rate flame retardant
Lead: Lead solderable per MIL-STD-202
method 208 guaranteed
Polarity: As Marked
Mounting position: Any
Weight: 1.933 grams (Approximately)
L
Dimensions in millimeters
REF.
A
B
C
D
E
F
G
Millimeter
Min.
Max.
14.68
15.50
9.7
10.4
13.06
14.62
4.22
4.98
1.14
1.38
2.20
2.98
0.27
0.55
REF.
H
J
K
L
M
N
O
Millimeter
Min.
Max.
3.57
4.03
-
1.30
0.72
0.96
4.84
5.32
2.48
2.98
3.7
3.9
1.12
1.37
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms single half sine-wave
Superimposed on rated load (JEDEC method)
I
F
=10,T
F
= 25
°
C
Maximum Instantaneous Forward Voltage
I
F
=10,T
F
= 125
°
C
Maximum DC Reverse Current at Rated DC
T
A
= 25
°
C
Blocking Voltage
3
T
A
= 125
°
C
Typical Junction Capacitance
1
Typical Thermal Resistance
2
Operating Temperature Range T
J
Storage Temperature Range T
STG
Notes:
1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.
2. Thermal Resistance Junction to Case.
3.
Pulse test: 300uS pulse width, 2% duty cycle
Symbol
V
RRM
V
RSM
V
DC
I
F
I
FSM
V
F
I
R
C
J
R
JC
T
J
T
STG
Rating
200
200
200
10
180
0.92
0.8
0.02
5
250
4.0
-50~150
-65~175
Unit
V
V
V
A
A
V
mA
pF
°
C / W
°
C
°
C
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
09-Mar-2011 Rev. A
Page 1 of 2
SR10200S
Elektronische Bauelemente
Voltage 200 V
10 Amp Schottky Barrier Rectifiers

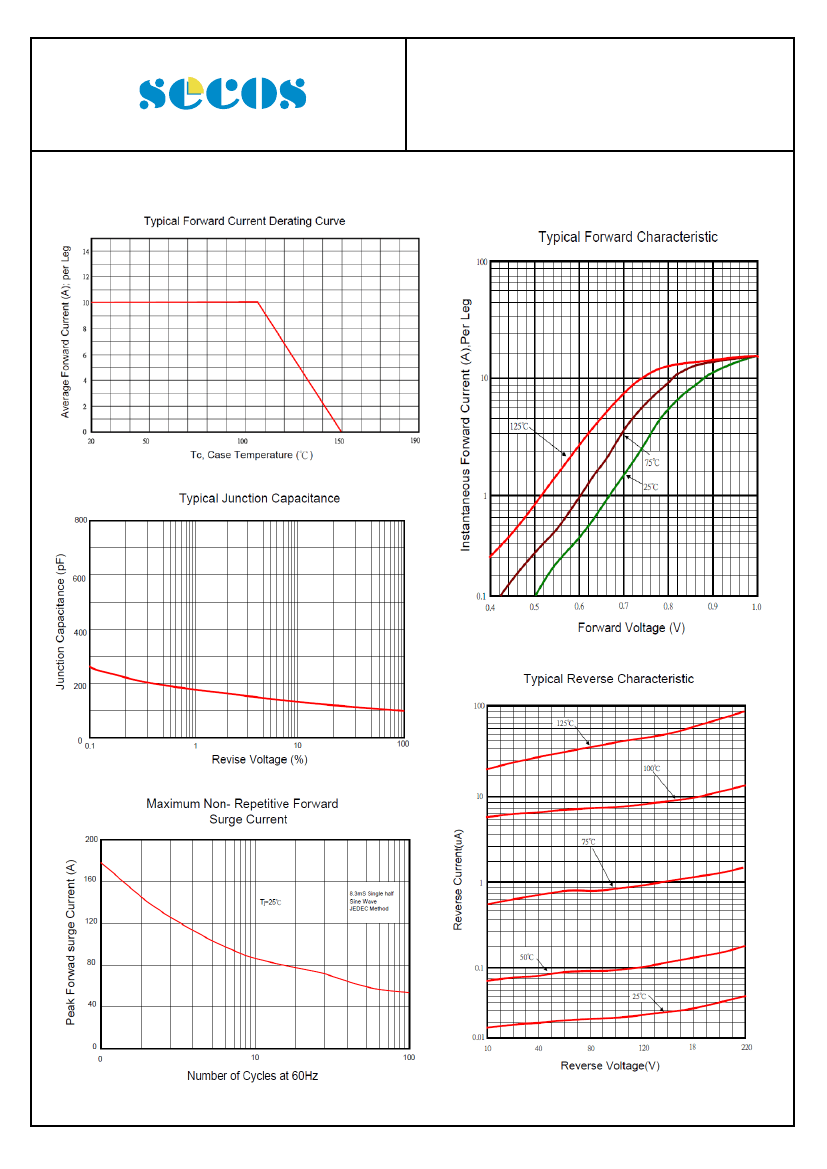

RATINGS AND CHARACTERISTIC CURVES
