BGA771N16 - Low Power Dual-Band UMTS LNA
Table of Contents
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.9.1
2.9.2
2.10
2.10.1
2.10.2
2.10.3
2.11
2.12
2.13
2.14
2.15
2.16
2.17
2.18
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ESD Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Band Select / Gain Control Truth Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Supply current characteristics;
T
A
= 25 °C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Logic Signal Characteristics;
T
A
= 25 °C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Measured RF Characteristics Low Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Measured RF Characteristics UMTS Bands V / VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Measured RF Characteristics UMTS Band VIII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Measured RF Characteristics Mid Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Measured RF Characteristics UMTS Band II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Measured RF Characteristics UMTS Bands III / IX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Measured RF Characteristics UMTS Band IV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Measured Performance Low Band (Band V) High Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . 15
Measured Performance Low Band (Band V) High Gain Mode vs. Temperature . . . . . . . . . . . . . . . . 16
Measured Performance Low Band (Band V) Low Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . 17
Measured Performance Low Band (Band V) Low Gain Mode vs. Temperature . . . . . . . . . . . . . . . . . 19
Measured Performance Mid Band (Band II) High Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . . 20
Measured Performance Mid Band (Band II) High Gain Mode vs. Temperature . . . . . . . . . . . . . . . . . 21
Measured Performance Mid Band (Band II) Low Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . . 22
Measured Performance Mid Band (Band II) Low Gain Mode vs. Temperature . . . . . . . . . . . . . . . . . 24
Application Circuit and Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UMTS bands II and V Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UMTS bands III and VIII Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UMTS bands IV and VIII Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
25
26
27
28
29
Physical Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Package Footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Data Sheet
4
V3.1, 2010-03-16
BGA771N16 - Low Power Dual-Band UMTS LNA
Description
1
Description
The BGA771N16 is a highly flexible, high linearity dual-band (1900/1800/2100, 800/900 MHz) low noise amplifier
MMIC for worldwide use. Based on Infineon’s proprietary and cost-effective SiGe:C technology, the BGA771N16
uses an advanced biasing concept in order to achieve high linearity.
The device features dynamic gain control, temperature stabilization, standby mode, and 2 kV ESD protection on-
chip as well as matching off chip. Because the matching is off chip, different UMTS bands can be easily applied.
For example, the 1900 MHz path can be converted into a 1800 MHz or a 2100 MHz path by optimizing the input
and output matching network.
Note: UMTS bands II / V is the standard band combination for this product requiring no external output matching
network.
Features
• Gain: 16 / -7.5 dB in high / low gain mode (all bands)
• Noise figure: 1.1 / 1.1 dB in high gain mode
(800 MHz / 1900 MHz)
• Supply current: 3.4 / 0.65 mA in high / low gain mode (all bands)
• Standby mode (< 2
µA
typ.)
• Output internally matched to 50
Ω
• Inputs pre-matched to 50
Ω
• 2kV HBM ESD protection
• Low external component count
• Small leadless PG-TSNP-16-1 package (2.3 x 2.3 x 0.39 mm)
• Pb-free (RoHS compliant) package
PG-TSNP-16-1 package

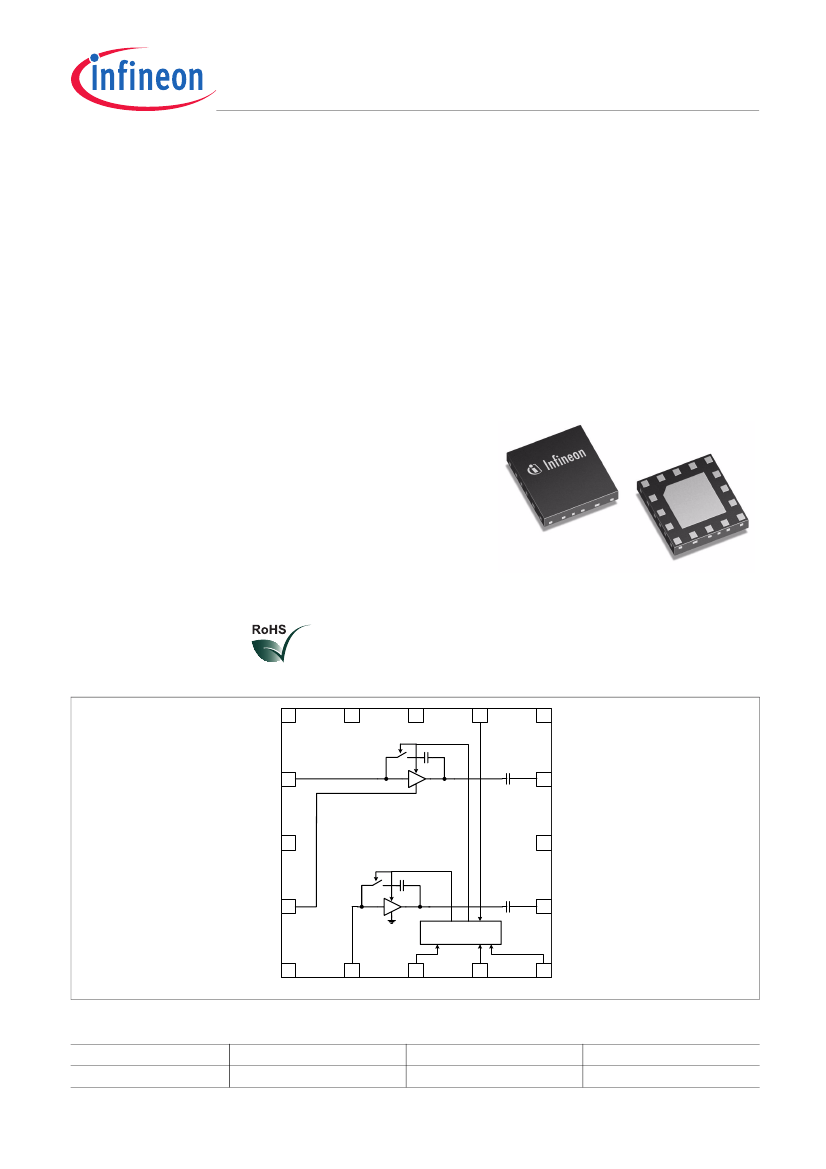

Figure 1
Type
BGA771N16
Data Sheet
Block diagram of dual-band LNA
Package
PG-TSNP-16-1
Marking
BGA771
5
Chip
T1530
V3.1, 2010-03-16
