HE15FGTL: Description15 A, 400 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size280KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

HE15FGTL Overview

15 A, 400 V, SILICON, RECTIFIER DIODE

HE15FGTL Parametric

Parameter Name	Attribute value
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	700 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

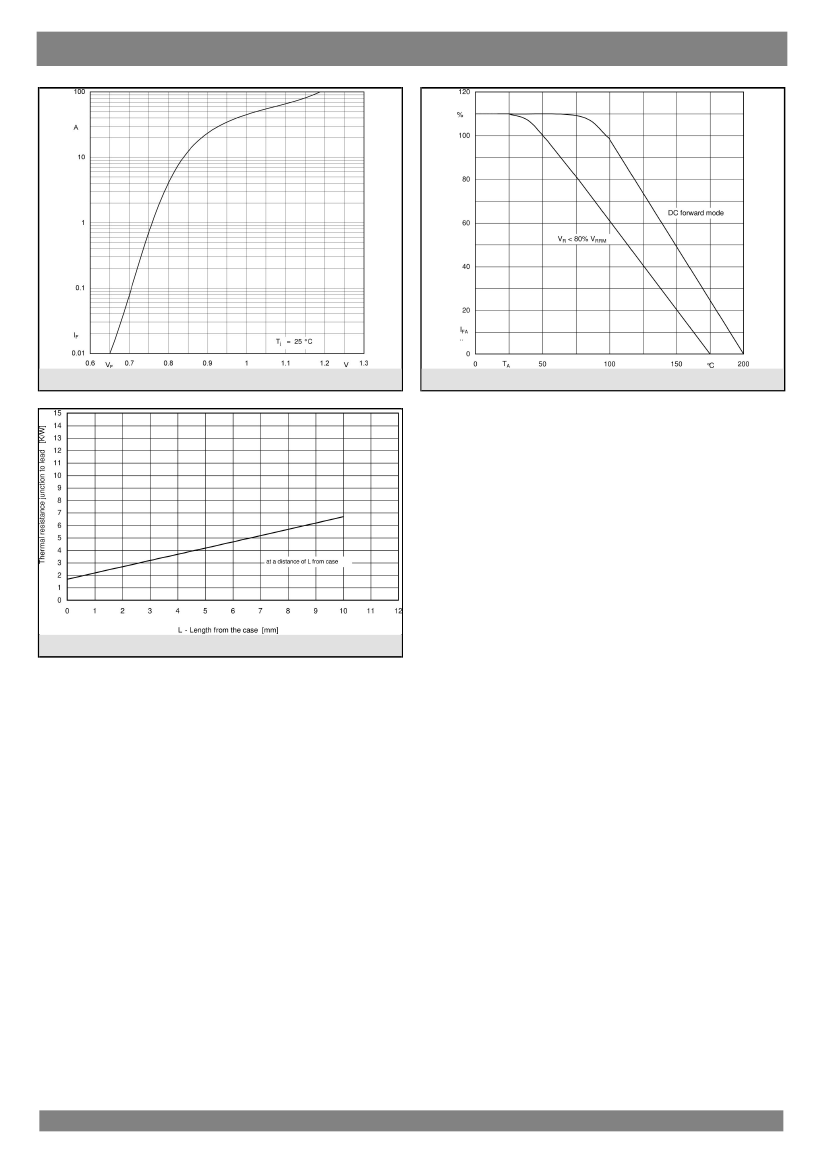

HE15FATL...HE15FGTL

Axial lead diode

High efficiency fast silicon

rectifier diode

HE15FATL...HE15FGTL

Forward Current: 15 A

Reverse Voltage: 50 to 400 V

Preliminary Data

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Characteristics

Symbol Conditions

Mechanical Data

Values

Units

1)

Dimensions in mm

2)

3)

4)

5)

1

10-08-2010 MAM

HE15FGTL Related Products

	HE15FGTL	HE15FATL	HE15FBTL	HE15FDTL
Description	15 A, 400 V, SILICON, RECTIFIER DIODE	15 A, 50 V, SILICON, RECTIFIER DIODE	15 A, 100 V, SILICON, RECTIFIER DIODE	15 A, 200 V, SILICON, RECTIFIER DIODE
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	-
Contacts	2	2	2	-
Reach Compliance Code	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	-
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	-
Configuration	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	-
Maximum non-repetitive peak forward current	700 A	700 A	700 A	-
Number of components	1	1	1	-
Phase	1	1	1	-
Number of terminals	2	2	2	-
Maximum operating temperature	175 °C	175 °C	175 °C	-
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-
Maximum output current	15 A	15 A	15 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	ROUND	ROUND	ROUND	-
Package form	LONG FORM	LONG FORM	LONG FORM	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	400 V	50 V	100 V	-
surface mount	NO	NO	NO	-
Terminal form	WIRE	WIRE	WIRE	-
Terminal location	AXIAL	AXIAL	AXIAL	-
Base Number Matches	1	1	1	-
