NJS-9PH028 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> NJS-9PH028

NJS-9PH028: DescriptionRack and Panel Connector, 9 Contact(s), Male, Wire Terminal, Plug; CategoryThe connector The connector; File Size104KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

NJS-9PH028 Overview

Rack and Panel Connector, 9 Contact(s), Male, Wire Terminal, Plug

NJS-9PH028 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
body width	0.165 inch
subject depth	0.138 inch
body length	0.255 inch
Body/casing type	PLUG
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	350VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	NJS
Plug contact pitch	0.03 inch
Match contact row spacing	0.03 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#0-80
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	12 inch
Termination type	WIRE
Total number of contacts	9
Maximum wire diameter	32 AWG
Minimum wire diameter	32 AWG

Preview

Download Datasheet

View All

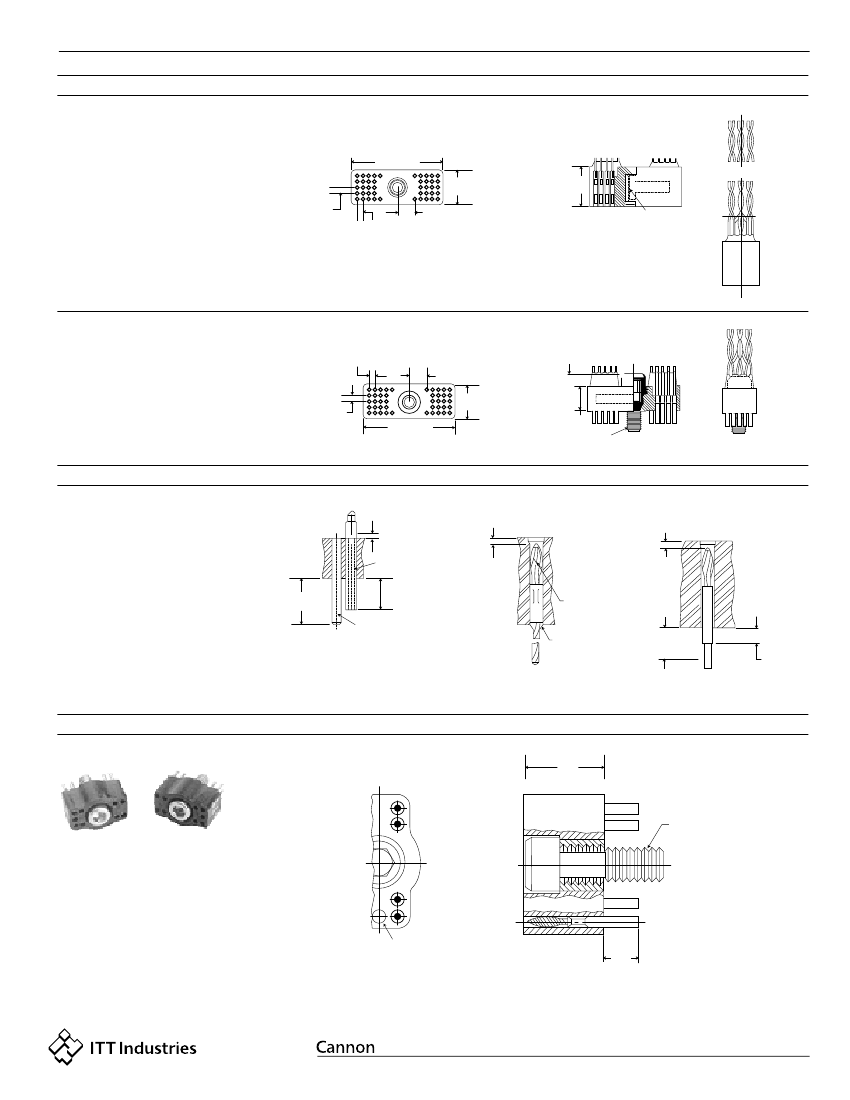

Center Jackscrew - .030" Contact Spacing

How to Order - NJS

NJS - 24

NJS

***

SERIES

CONTACT ARRANGEMENTS

CONTACT TYPE

TERMINATION TYPE

TERMINATION CODE

SERIES

NJS

- Nano center jackscrew rectangular (9,

24, 44)

NJSC - Nano center jackscrew circular (27, 72

266)

CONTACT ARRANGEMENTS

9, 24, 27, 44, 72, 266

CONTACT TYPE

P = Pin (Plug)

S = Socket (Receptacle)

TERMINATION TYPE

H = Insulated harness wire

L = Solid uninsulated wire

T = One piece contact/Lead

* See Termination Codes shown below for additional length modification codes.

TERMINATION CODE*

(H) 001 = 18" #32 AWG 7/40 strd. Type

"ET" Teflon per MIL-W-16878/6,

color yellow.

(H) 003 = 18" #32 AWG 7/40 strd. Type

"ET" Teflon per MIL-W-16878/6

color coded to MIL-STD-681, Sys-

tem 1.

(L) 1 = 1/2" uninsulated solid #30 AWG

gold plated copper.

(L) 2 = 1" uninsulated solid #30 AWG gold

plated copper

(T)* = Consult factory

Standard Wire Termination Codes

The following termination codes are listed for your information. For lengths not shown, consult factory for proper modification code. All wire lengths are minimum.

Harness Type (H)

#32 AWG, 7/40 stranded, Type "ET" per MIL-W-16878/6

Length

3 (76.2)

6 (152.4)

8 (203.2)

10 (254.0)

12 (304.8)

18 (457.2)

20 (508.0)

All Yellow

H 020

H 019

H 026

H 029

H 028

H 001

H 038

Color Coded

H 027

H 016

H 034

H 025

H 002

H 003

H 023

Length

24 (609.6)

30 (762.0)

36 (914.4)

48 (1219.2)

72 (1828.8)

120 (3048.0)

All Yellow

H 009

H 010

H 011

H 013

H 017

H 042

Color Coded

H 004

H 005

H 006

H 048

H 046

H 041

Solid Uninsulated Type (L)

#32 AWG gold plated copper.

Code

L61

L56

L57

L39

L58

Length

.125 (3.18)

.150 (3.81)

.190 (4.83)

.250 (6.35)

.375 (9.53)

.500 (12.70)

Code

L14

L16

L10

Length

.750 (19.05)

1.000 (25.40)

1.500 (38.10)

2.000 (50.80)

2.500 (63.50)

3.000 (76.20)

Center Jackscrew/Rectangular

NJS-9 & NJS-24

0-80 UNF-2B

THREADED INSERT

Face View Pin Insert

Max.

.255 (6.48)

.435 (11.05)

Receptacle Side View

Max.

.165 (4.19)

+.005 (0.13)

.138 (3.51)

.078 (1.98)

.138 (3.51)

.078 (1.98)

Plug Side View

+.005 (0.13)

.116 (2.95)

Part Number

NJS-9P*

NJS-9S*

NJS-24P*

NJS-24S*

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

294
