195-4MS-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 195-4MS-N

195-4MS-N: DescriptionPiano Dip Switch, 4 Switches, SPST, 0.05A, 24VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size561KB，2 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

195-4MS-N Overview

Piano Dip Switch, 4 Switches, SPST, 0.05A, 24VDC, Solder Terminal, Through Hole-straight

195-4MS-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Actuator angle
Actuator length	0.045 inch
Actuator type	PIANO
Other features	SHIP AT ON POSITION
body width	9.779 mm
body height	7.8994 mm
Body length or diameter	12.3444 mm
center contact material	COPPER ALLOY
Center contact plating	TIN
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@24VDC
Contact resistance	0.5 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	TIN
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	195
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	EPOXY
surface mount	NO
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal surface	Tin (Sn)
Terminal length	0.15 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

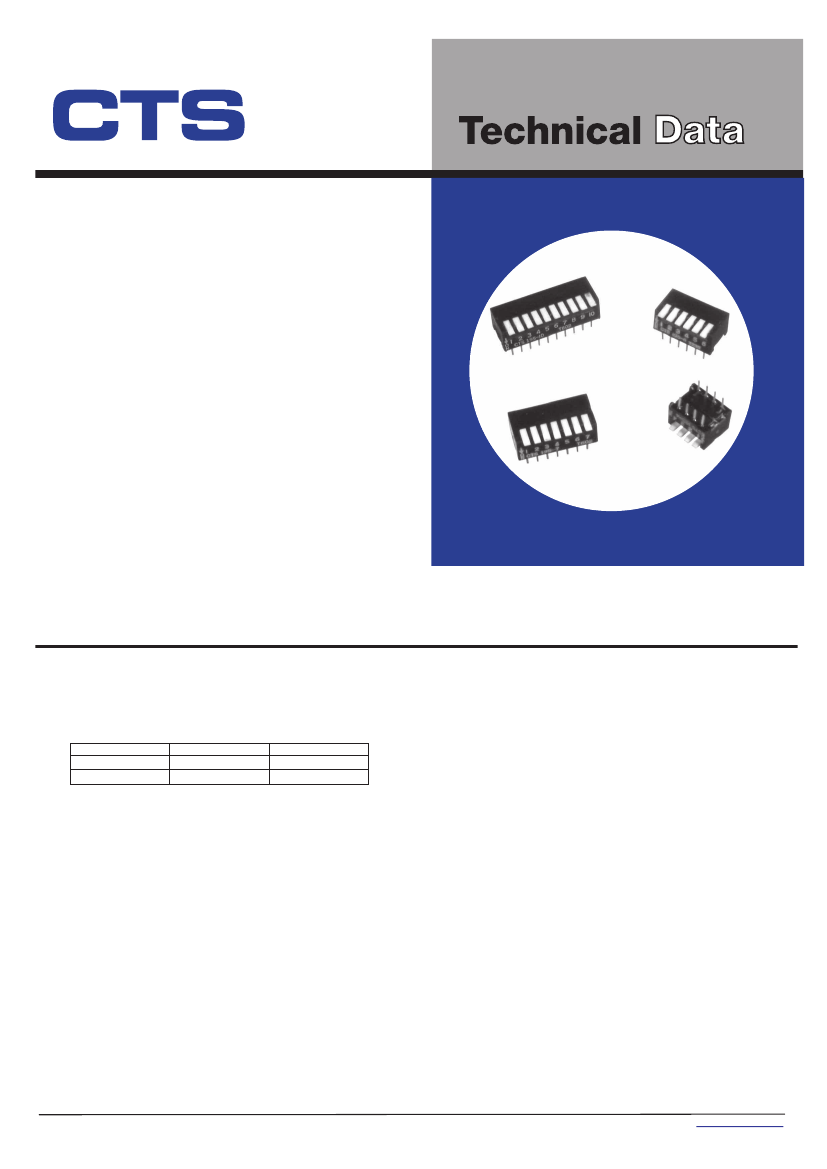

Series 194/195 DIP

Side Actuated,

Through Hole

DIP Switches

Features

Optimized Mechanical Features

• Enclosed actuators shield contacts from

foreign particles throughout life of switch

• Standard 2.54mm (.100") x 7.62mm (.300") DIP center

Optimized Contact System

• Contact wiping action on make and break

• Integral terminal and contact locked into thermoset base

• Lock-over-center design provides positive detent action

• Optimized, active contact design incorporating a dimple-

to-flat surface wiping interface with high contact force

Materials

• All UL 94V-0 plastics used

• Series 194 – gold plated, copper alloy contacts and

solder coated terminals

• Series 195 – tin plated, copper alloy contacts and

solder coated terminals

• RoHS compliant

Series 194 – Premium Programmable DIP switch

Series 195 – Economical Programmable DIP switch

Electrical and Mechanical Specifications

Switch Function

SPST-2 through 10 positions

Switch Contact Resistance

Switch Series

194

195

Initial, max.

50 milliohms

100 milliohms

End of life, max.

100 millohms

500 millohms

Insulation Resistance

1,000 megohms minimum across open switch

1,000 megohms minimum between adjacent

closed switches

Dielectric Strength

500 VAC minimum for 1 minute between adjacent

switches

Nonswitching Rating

100 mA or 50 VDC maximum

Switch Capacitance

5.0 pF maximum between adjacent switches

Operating Temperature

–40°C to +85°C

Actuation Life

Series 194 – 7,000 cycles switching 50 mA @ 24 VDC

Series 195 – 2,000 cycles switching 50 mA @ 24 VDC

Allowable Solder Time

Up to 5 seconds with 260°C

Vibration

Per MIL-STD-202F, method 204D, condition B

(.06" or 15G’S between 10 HZ to 2K HZ) with no

contact inconsistencies

Shock

Per MIL-STD-202F, method 213B, condition A

(25G’S) with no contact inconsistencies

Sealing

Standard bottom epoxy seal

Optional top tape seal

Marking

Special side or top marking available-consult CTS

Packaging

Standard : Anti-Static tube packaging

1-2

CTS Electronic Components

www.ctscorp.com

7/31/06
