ZDASFE15P-SR-AB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ZDASFE15P-SR-AB

Preview

ZDASFE15P-SR-AB: DescriptionD Subminiature Connector, 15 Contact(s), Male, IDC Terminal, Plug,; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

ZDASFE15P-SR-AB Overview

D Subminiature Connector, 15 Contact(s), Male, IDC Terminal, Plug,

ZDASFE15P-SR-AB Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	PANEL MOUNTABLE
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	ZD
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	2/A
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

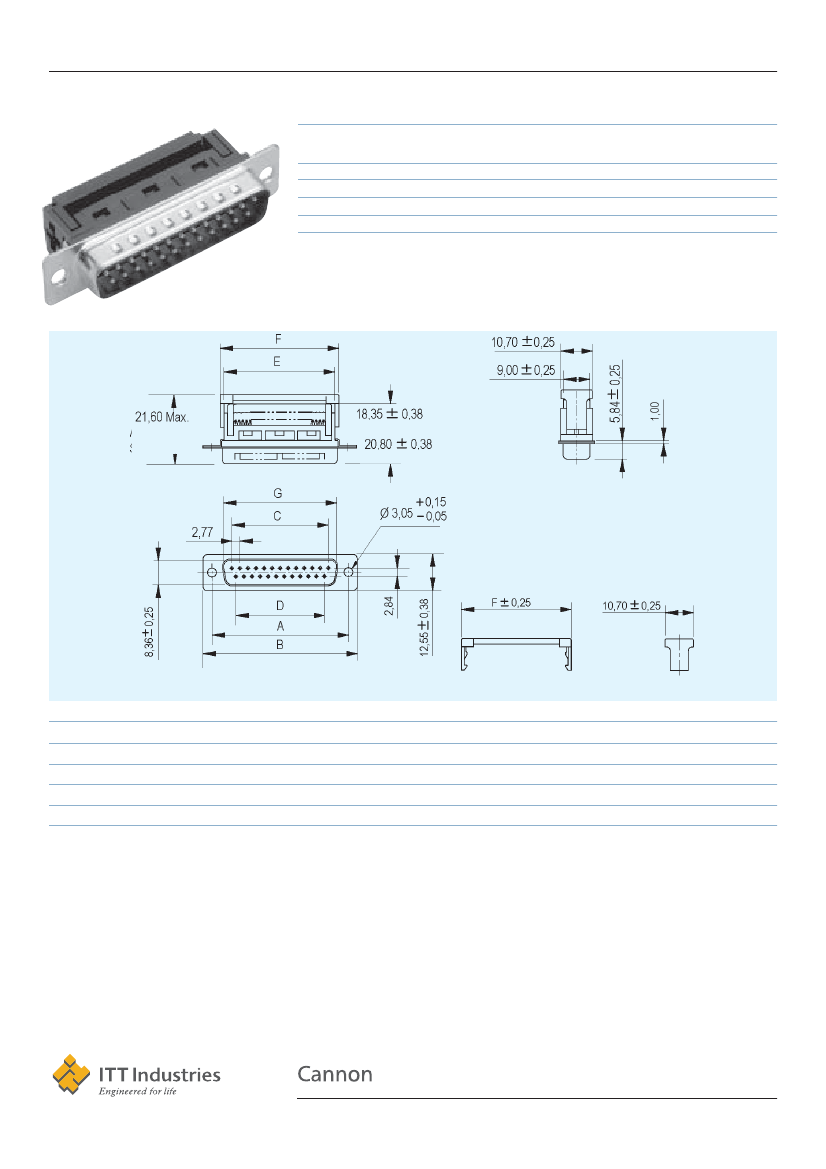

ZD Connectors

Plug 9 – 15 – 25 – 37 contacts

Designation

Shell size /

Arrangement

E

A

B

C

/

9

15

25

37

Throug hole

ZDESF9P-SR

ZDASF15P-SR

ZDBSF25P-SR

ZDCSF37P-SR

ZD* SF IDC for ribbon cable

Rivnut

thread 4-40

ZDESFE9P-SR

ZDASFE15P-SR

ZDBSFE25P-SR

ZDCSFE37P-SR

Screwlock

thread 4-40

ZDESFE9P-SR-AB

ZDASFE15P-SR-AB

ZDBSFE25P-SR-AB

ZDCSFE37P-SR-AB

Note:

Class 2 - Add suffix A191

Example: ZDESF9P-A191-SR

All the IDC connectors are supplied with a plastic strain relief (code SR)

To order the connectors without the plastic strain relief, suppress the code SR in the

designation.

Example: ZDESF9P

After crimp

process

After crimp process

Before crimp process

Plastic strain relief

Shell

E

A

B

C

A

± 0,13

24,99

33,32

47,04

63,50

B

± 0,25

30,80

39,10

53,09

69,40

C

± 0,13

11,08

19,39

33,24

49,86

see page 44

see page 45

see page 35, 36, 37, 38

D

± 0,13

8,31

16,62

30,47

47,09

E

± 0,25

16,10

24,00

38,14

54,60

F

± 0,25

18,60

26,60

40,90

57,10

±0.13

G

± 0,20

16,92

25,25

38,96

55,45

•

Mounting options

Panel cutouts

Accessories

Dimensions are shown in mm

Dimensions subject to change

20

www.ittcannon.com
