ZDBAE44POL2

Description
D Subminiature Connector, 44 Contact(s), Male, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size54KB,1 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Download Datasheet Parametric View All

ZDBAE44POL2 Overview

D Subminiature Connector, 44 Contact(s), Male, Solder Terminal, Plug,

ZDBAE44POL2 Parametric

Parameter NameAttribute value
MakerITT
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Manufacturer's serial numberZDBA
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Termination typeSOLDER
Total number of contacts44
UL Flammability Code94V-0

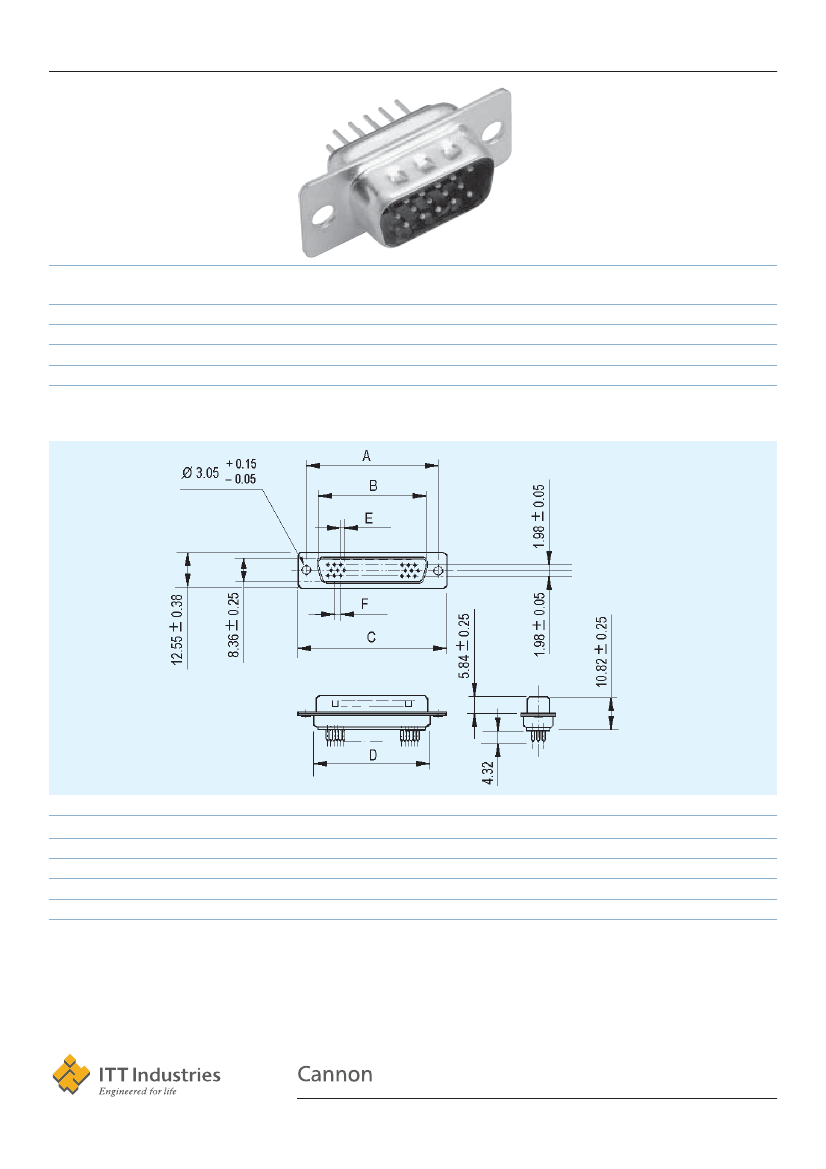

ZD Connectors
Plug
15 – 26 – 44 - 62 contacts
ZD*A OL2 High density, straight PCB
Designation
Shell size /
Arrangement
E / 15
A / 26
B / 44
C / 62
Through hole
ZDEA15POL2
ZDAA26POL2
ZDBA44POL2
ZDCA62POL2
Rivnut
4 - 40 2B
ZDEAE15POL2
ZDAAE26POL2
ZDBAE44POL2
ZDCAE62POL2
Screwlock
4 - 40 2B
ZDEAE15POL2-AB
ZDAAE26POL2-AB
ZDBAE44POL2-AB
ZDCAE62POL2-AB
Boardlock and thread
4 - 40 2B
ZDEAE15POL2-146
ZDAAE26POL2-146
ZDBAE44POL2-146
ZDCAE62POL2-146
Boardlock and
screwlock 4 - 40 2B
ZDEAE15POL2-AB-146
ZDAAE26POL2-AB-146
ZDBAE44POL2-AB-146
ZDCAE62POL2-AB-146
Note: Class 2 - Add suffix A191
Example: ZDEA15POL2-A191
Shell
E
A
B
C
A
± 0,13
24,99
33,32
47,04
63,50
B
± 0,25
16,92
25,25
38,96
55,25
see page 44
see page 41
see page 45
C
± 0,38
30,89
39,10
53,09
69,40
D
± 0,25
19,28
27,51
41,30
57,71
E
± 0,05
1,145
1,145
1,145
1,145
F
± 0,05
2,29
2,29
2,29
2,29
Mounting options
PCB hole pattern
Panel cut outs
Dimensions are shown in mm
Dimensions subject to change
26
www.ittcannon.com
