ZDDAE78S-F0: DescriptionD Subminiature Connector, 78 Contact(s), Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

ZDDAE78S-F0 Overview

D Subminiature Connector, 78 Contact(s), Female, Crimp Terminal, Receptacle,

ZDDAE78S-F0 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: 980-2000-926; 980-2000-925; ZD110238-1010; ZD110238-1009, PANEL MOUNTABLE
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	ZD
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	5/D
Termination type	CRIMP
Total number of contacts	78
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

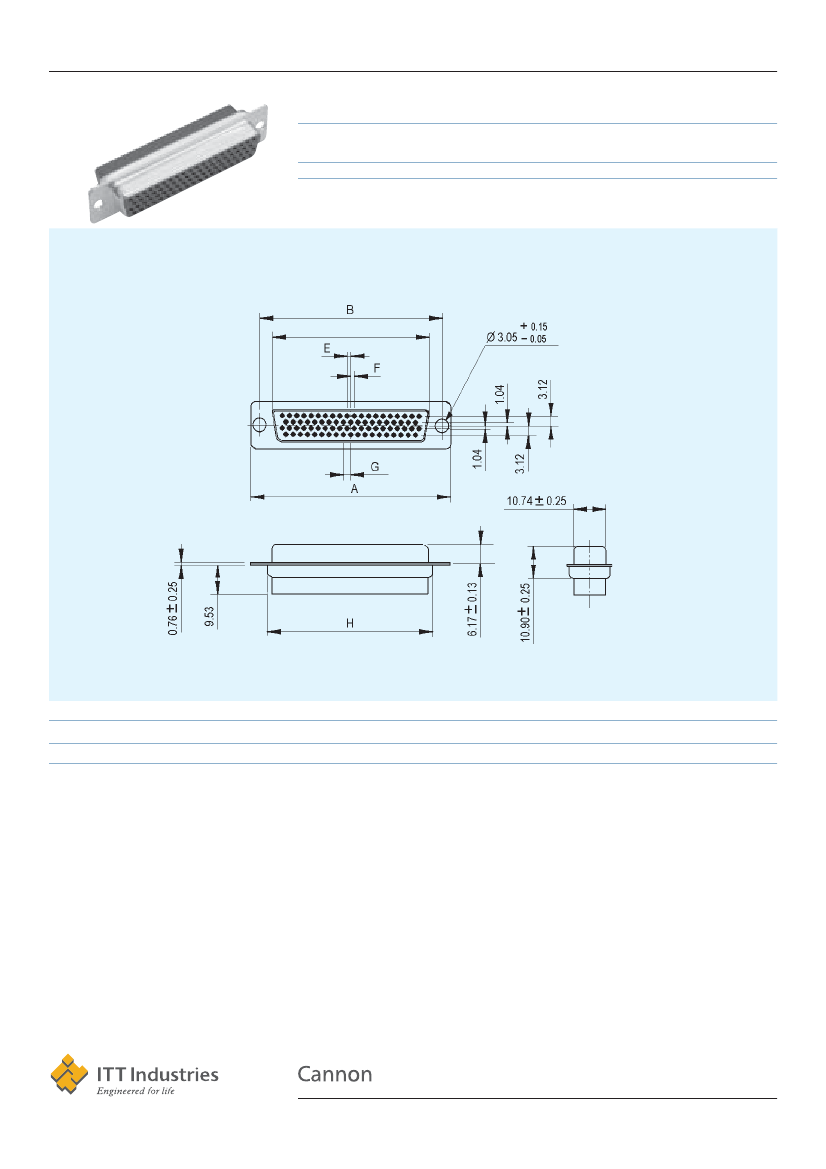

ZD Connectors

Receptacle 78 contacts

Designation

Shell size /

Arrangement

D / 78

Through hole

ZDDA78S-FO

ZD*A F0 High density, crimp cable

Rivnut

thread 4-40

ZDDAE78S-FO

Screwlock

thread 4-40

ZDDAE78S-AB-FO

Connectors supplied without contacts

C

Shell

D

A

±

0,38

66,93

B

±

0,13

61,11

see page 39

see page 44

see page 45

C

±

0,25

52,43

E

1,21

F

1,21

G

±

0,05

2,41

H

±

0,25

55,32

•

Reeled contacts

Mounting options

Panel cutouts

Accessories

see page 35, 36, 37, 38

Dimensions are shown in mm

Dimensions subject to change

19

www.ittcannon.com

ZDDAE78S-F0 Related Products

	ZDDAE78S-F0	ZDDA78S-F0	ZDDAE78S-AB-F0
Description	D Subminiature Connector, 78 Contact(s), Female, Crimp Terminal, Receptacle,	D Subminiature Connector, 78 Contact(s), Female, Crimp Terminal, Receptacle,	D Subminiature Connector, 78 Contact(s), Female, Crimp Terminal, Receptacle,
Maker	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant
Other features	COMPATIBLE CONTACTS: 980-2000-926; 980-2000-925; ZD110238-1010; ZD110238-1009, PANEL MOUNTABLE	COMPATIBLE CONTACTS: 980-2000-926; 980-2000-925; ZD110238-1010; ZD110238-1009, PANEL MOUNTABLE	COMPATIBLE CONTACTS: 980-2000-926; 980-2000-925; ZD110238-1010; ZD110238-1009, PANEL MOUNTABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO
Manufacturer's serial number	ZD	ZD	ZD
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	78	78	78
UL Flammability Code	94V-0	94V-0	94V-0
