ZDDE50P-AB: DescriptionD Subminiature Connector, 50 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

ZDDE50P-AB Overview

D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, Plug,

ZDDE50P-AB Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	ZD
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

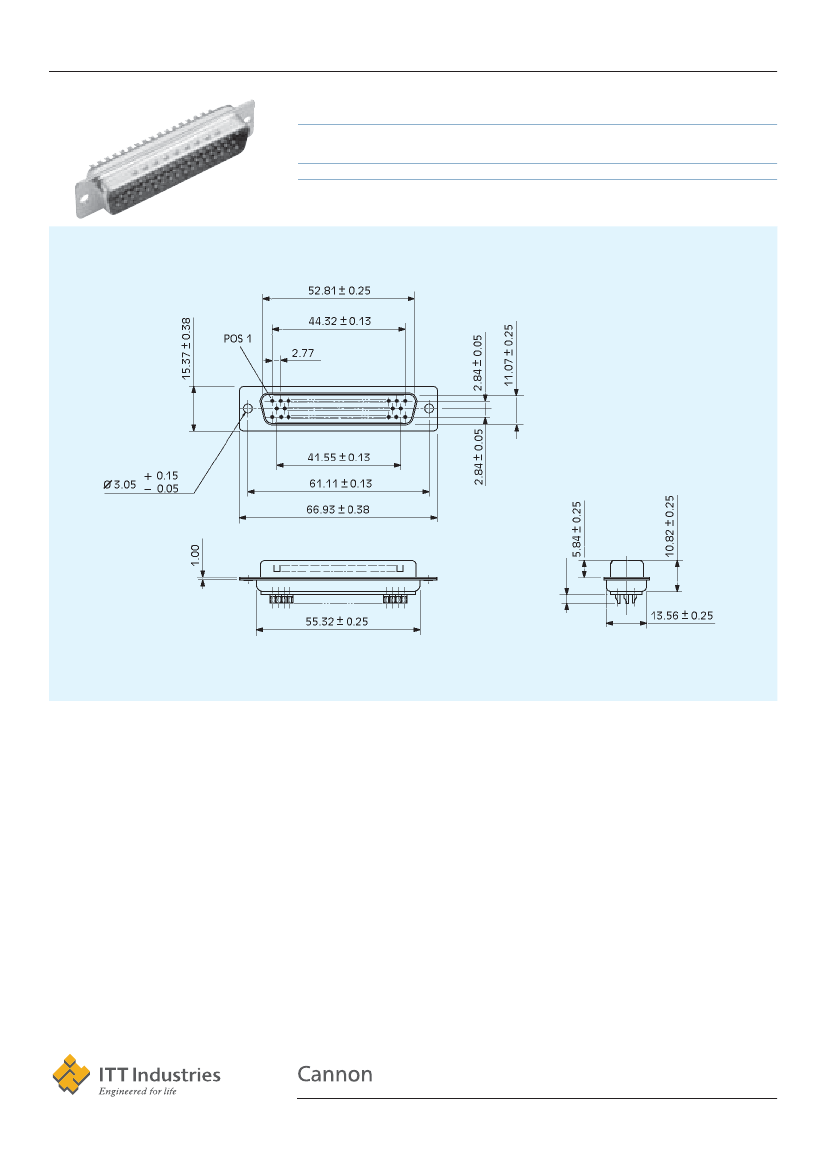

Preview

Download Datasheet

View All

ZD Connectors

Plug 50 contacts

Designation

Shell size /

Arrangement

D / 50

Through hole

ZDD50P

Rivnut

thread 4-40

ZDDE50P

Example: ZDD50P-A191

ZD* Solder cup

Screwlock

thread 4-40

ZDDE50P-AB

Note: Class 2 - Add suffix A191

•

Mounting options

Panel cutouts

Accessories

see page 44

see page 45

see page 35, 36, 37, 38

(3.00)

Dimensions are shown in mm

Dimensions subject to change

6

www.ittcannon.com

ZDDE50P-AB Related Products

	ZDDE50P-AB	ZDD50P	ZDDE50P
Description	D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 50 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Plug,	D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, Plug,
Maker	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	PANEL	CABLE AND PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	50	50	50
UL Flammability Code	94V-0	94V-0	94V-0
