MLAS156-19 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MLAS156-19

MLAS156-19: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerITW Switches

Download Datasheet Parametric View All

MLAS156-19 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

MLAS156-19 Parametric

Parameter Name	Attribute value
Maker	ITW Switches
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

MAS-CON

Serie MF/ML/MP 156

Series MF/ML/MP 156

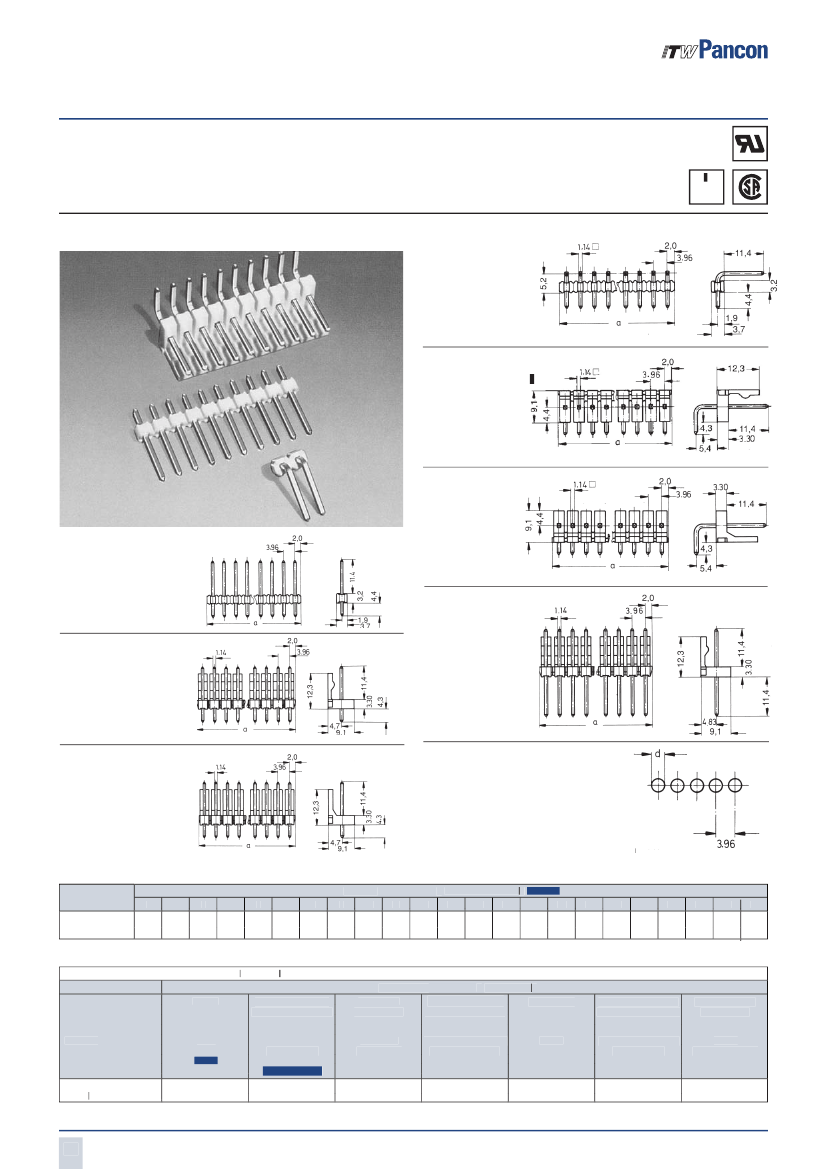

2- bis 24- polige Stiftleisten im Raster 3,96 mm (brechbar).

3.96 mm Headers available in 2 - 24 circuits (breakable).

Série MF/ML/MP 156

Serie MF/ML/MP 156

Connecteurs mâles au pas de 3.96mm

de 2 à 24 points (à rompre).

Passo 3,96 mm. Connettori di testa e

passanti (divisibile).

.156

MFAS156…

Abgewinkelt

Angled

Coudé

Piegato a 90°

MLAS156…

Abgewinkelt mit Verriegelung

und Polarisierung

Angled Locking

and Polarization

Coudé avec verrouillage

et détrompage

Piegato a 90° con blocco

e polarizzazione

MPAS156…

MFSS156…

Gerade

Straight

Droit

Diritto

Abgewinkelt mit Polari-

sierung

Angled Polarising

Coudé avec détrompage

Piegato a 90° con

polarizzazione

MWWS156…

MLSS156…

Gerade mit Verriegelung

und Polarisierung

Straight with Locking

and Polarization

Droit avec verrouillage

et détrompage

Diritto con blocco e polarizzazione

Übergabestecker für

fliegende Verbindungen

In-line Splice

Connecteurs allongés

pour prolongateur

Diritto per connessioni

volanti

MPSS156…

Gerade mit Polarisierung

Straight Polarizing

Droit avec détrompage

Diritto con polarizzazione

Lochbild

– Raster 3,96 mm

Leiterplattenstärke = 1,6 mm

Printed Circuit Layout

PCB thickness = 1,6 mm

Perçage du circuit imprimé

épaisseur du circuit = 1,6 mm

Disegno Circuito Stampato

d = für quadratische Stifte d = 1,85

±0,08

Spessore PCB = 1,6 mm

d = for square posts d = 1,85

±0,08

d = pour contact carré 1.85

±0,08

d = per contatti quadrati 1,85

±0,08

Abmessungen /

Dimensions

Dimensions /

Dimensioni

(mm)

7,92

Polzahl /

No. of Circuits

Nombre de circuits

No. Poli

11,89 15,85 19,81 23,77 27,74 31,70 35,66 39,62 43,59 47,55 51,51 55,47 59,44 63,40 67,36 71,32 75,29 79,25 83,21 87,17 91,14 95,10

Bestell-Nummern

Part Number

Références

Codice Prodotto

Polzahl /

No. of Circuits

Nombre de circuits

No. Poli

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24

Ausführung /

Description

Désignation

Descrizione

Stifte

Gerade

Gerade mit Verriege-

Gerade mit

Übergabestecker für

Abgewinkelt

Abgewinkelt mit Verrie-

Abgewinkelt mit

lung und Polarisierung

Polarisierung

fliegende Verbindung

gelung und Polarisierung

Polarisierung

Contacts

Straight

Straight Locking

Straight Polarizing

In-line Splice

Angled

Angled Locking

Angled Polarising

and Polarizing

and Polarising

Contacts

Droit

Droit avec verrouillage

Droit avec

Connecteurs allongés

Coudé

Coudé avec verrouillage

Coudé

et détrompage

détrompage

pour prolongateur

et détrompage

avec détrompage

Contatti

Diritto

Diritto con blocco

Diritto con

Diritto per

Piegato a 90°

Piegato a 90° con

Piegato a 90°

e polarizzazione

polarizzazione

connessioni volanti con contatti allungati blocco e polarizzazione con polarizzazione

Quadrat /

Square Post

carrés

quadrati

MFSS156-

MLSS156-

MPSS156-

MWWS156-

MFAS156-

MLAS156-

MPAS156-

Hinweise siehe Seite 31

Notes see page 31

Note voir la page 31

Note vedi pagina 31
