ARINC 600
Backshells
527-025
Strain Relief Backshell
for Size 2 ARINC 600 Series Connectors
527-025 NF P1 A08 C12 D12 T S
Basic Part No.
Finish (Table II)
Connector Designator (Table III)
Entry Location (A, B, C, D, E, F, G, H, J, K, L)
and Dash No. (Table I), 3 Entry Combinations Max

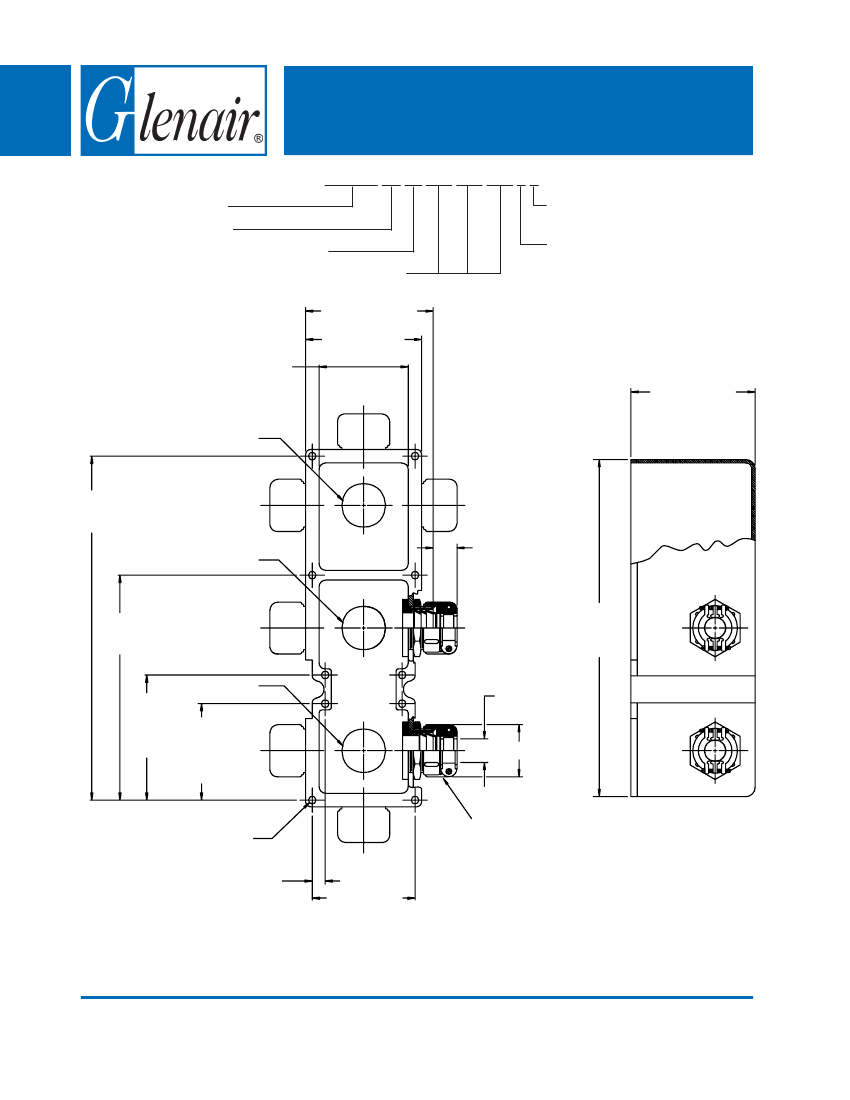

2.54 (64.5) Max
1.79 (45.5)
1.082 (27.5)
1.067 (27.1)
“L” Entry
“A” Entry
S = Safety Wire Holes on Hex
Locknuts, Omit For None
Termination Style (Note 2)
D = 2 Ring, T = 3 Ring
2.09 (53.1)
“K” Entry
5.355 (136.0)
5.345 (135.8)
“B” Entry
A
“D” Entry
3.770 (95.8)
3.760 (95.5)
“J” Entry
“E” Entry
3 Ring Term.
Shown (Note 2)
5.61
(142.5)
“C” Entry
2.004
(50.9)
1.994
(50.6)
1.258
(32.0)
1.248
(31.7)
“H”
Entry
“F” Entry
Cable Range
Typ.
B Typ.
.125 (3.2) Dia
10 Places
.168 (4.3)
.158 (4.0)
Typ.
“G” Entry
1.415 (35.9)
1.405 (35.7)
2 Ring Term.
Shown
(Note 2)
Metric dimensions (mm) are indicated in parentheses.
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
F-6
527-025
Strain Relief Backshell
for Size 2 ARINC 600 Series Connectors
TABLE I: CABLE ENTRY
Dash
No.
03
04
06
08
10
12
16
A
Max
.760 (19.3)
.760 (19.3)
.760 (19.3)
.760 (19.3)
.760 (19.3)
.760 (19.3)
1.073 (27.3)
B
Max
.844 (21.4)
.906 (23.0)
1.093 (27.8)
1.187 (30.1)
1.281 (32.5)
1.500 (38.1)
1.719 (43.7)
Cable Range
Min
Max
.157 (4.0) .250 (6.4)
.187 (4.7) .312 (7.9)
.281 (7.1) .437 (11.1)
.344 (8.7) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.562 (14.3) .938 (23.8)
Symbol
B
C*
G*
J
LF
M
N
TABLE II: FINISH OPTIONS
Finish
Symbol Finish
Cadmium Plate/Olive Drab
NC
Zinc Cobalt/Dark Olive Drab
Black Anodize
NF
Cadmium Plate/Olive Drab over
Anodic Hard Coat
Electroless Nickel
Gold Iridite over Cadmium Plate
T
Cadmium Plate/Bright over
over Electroless Nickel
Electroless Nickel
Cadmium Plate/Bright over
U**
Cadmium Plate/Black
Electroless Nickel
ZN
Zinc-Nickel Alloy/Olive Drab
*Anodize finish is not suitable for EMI shielding or grounding
Electroless Nickel
Cadmium Plate/Olive Drab over
applications. to corrosion resisting steel backshells and
**Applicable
Electroless Nickel
accessories. Consult factory for other available finishes.
TABLE III: CONNECTOR DESIGNATOR
ARINC 600 series connector backshells are designed to replace the
insert retainer plates. Due to non-standard modifications by the
connector manufacturer, the backshell may require special design
alterations to mate properly. The following should be used to
determine if a backshell modification is required. Prior to ordering,
consult factory with connector part numbers not shown to ensure a
proper fit.
Connector
Designator
P
Connector Description
All Manufacturer’s Plug and Receptacle Shells, Except
for Those Listed Below (Prior to ordering, consult factory
with connector part numbers not listed below to ensure a
proper fit.)
Cannon BKAD****322 Series Plug
Cannon/Radiall Environmental Plug
Cannon/Boeing BACC 66 Plug
Radiall/Boeing BACC66 Plug
Cannon BKAC & BKAE XXX322 Series Environmental
Plug
P1
P2
P3
P5
P6
1. Metric dimensions (mm) are indicated in parentheses.
2. Designate Symbol “T” (3 ring termination) for termination of
individual and overall braid. Designate symbol “D” (2 ring
termination) for termination of individual or overall braid.
3. Material/Finish:
Backshell, Nuts, Clamps, Ferrule = Al Alloy/See Table II
Hardware = SST/Passivate
