527-047

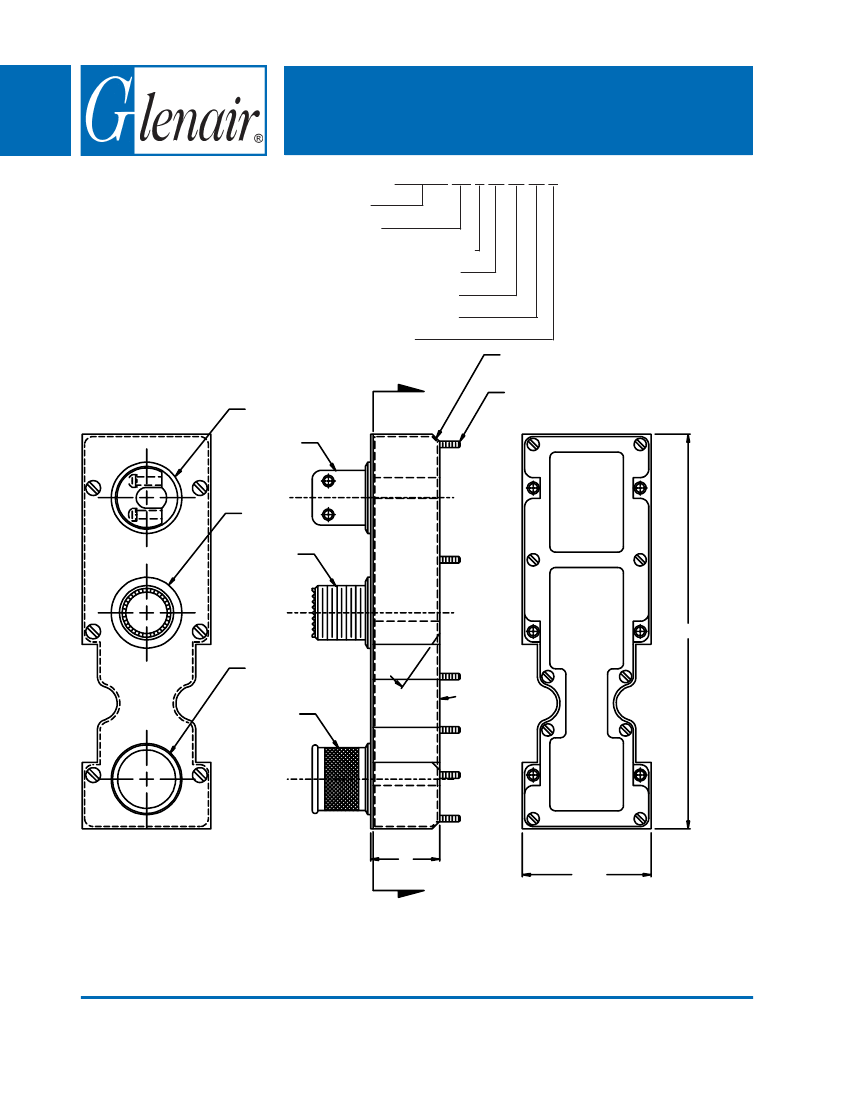

Multi-Function Backshell
for Size 2 ARINC 600 Series Connector
527-047 NF P 01 03 05 A
Basic Part No.
Finish (Table III)
Connector Designator (Table IV)
Dash No. (Table I) Position 1
Dash No. (Table I) Position 2
Dash No. (Table I) Position 3
Height Code (Table II)
45° Chamfer
Both Ends
ARINC 600
Backshells
A
Outlet Type C
Shown
Position 3
Mounting Hardware
Supplied - 10 Places
Outlet
Type H
Shown
Position 2
5.61 (142.5)
Outlet Type B
(Accomodates
600-052 Bands)
35°
Position 1
Chamfer
4 Places
H
A
Metric dimensions (mm) are indicated in parentheses.
1.79
(45.5)
View A-A
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
F-8
for Size 2 ARINC 600 Series Connector
TABLE I: CABLE ENTRY
Outlet
Type
B
B
H
H
C
C
Omit
Dash
No.
01
02
03*
04**
05
06
07
Cable Entry
Max
.500 (12.7)
1.000 (25.4)
.346 (8.8)
.840 (21.3)
.312 (7.9)
.594 (15.1)
N/A
1. Metric dimensions (mm) are indicated in parentheses.
2. Material/Finish:
Backshell and Fittings = Al Alloy/See Table II
Hardware = SST/Passivate
3. Height code C not available with P2 or P6 connectors.
* Dash No. 03 mates with MIL-C-38999
Series III and IV Size 09 Accessories
** Dash No. 04 mates with MIL-C-38999
Series III and IV Size 17 Accessories
TABLE III: FINISH OPTIONS
Symbol
B
C*
G*
J
LF
M
N
Finish
Cadmium Plate/Olive Drab
Black Anodize
Anodic Hard Coat
Gold Iridite over Cadmium Plate
over Electroless Nickel
Cadmium Plate/Bright over
Electroless Nickel
Electroless Nickel
Cadmium Plate/Olive Drab over
Electroless Nickel
Symbol
NC
NF
T
U**
ZN
Finish
Zinc Cobalt/Dark Olive Drab
Cadmium Plate/Olive Drab over
Electroless Nickel
Cadmium Plate/Bright over
Electroless Nickel
Cadmium Plate/Black
Zinc-Nickel Alloy/Olive Drab
TABLE II
Height
Code
A
B
C
D
1.00
1.25
.44
.84
H
(25.4)
(31.8)
(11.2)
(21.3)
*Anodize finish is not suitable for EMI shielding or grounding
applications.
**Applicable to corrosion resisting steel backshells and
accessories. Consult factory for other available finishes.
TABLE IV: CONNECTOR DESIGNATOR
ARINC 600 series connector backshells are designed to replace
the insert retainer plates. Due to non-standard modifications by
the connector manufacturer, the backshell may require special
design alterations to mate properly. The following should be used to
determine if a backshell modification is required. Prior to ordering,
consult factory with connector part numbers not shown to ensure a
proper fit.
Connector
Designator
P
Connector Description
All Manufacturer’s Plug and Receptacle Shells, Except
for Those Listed Below (Prior to ordering, consult factory
with connector part numbers not listed below to ensure
a proper fit.)
Cannon BKAD****322 Series Plug
Cannon/Radiall Environmental Plug
Cannon/Boeing BACC 66 Plug
Radiall/Boeing BACC66 Plug
Cannon BKAC & BKAE XXX322 Series Environmental
Plug
