5697CR45A0360S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 5697CR45A0360S

5697CR45A0360S: DescriptionCeramic BPF,; CategoryAnalog mixed-signal IC filter; File Size681KB，5 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric Compare View All

5697CR45A0360S Overview

Ceramic BPF,

5697CR45A0360S Parametric

Parameter Name	Attribute value
Maker	Johanson Dielectrics
Reach Compliance Code	compliant
filter type	CERAMIC BPF

Preview

Download Datasheet

View All

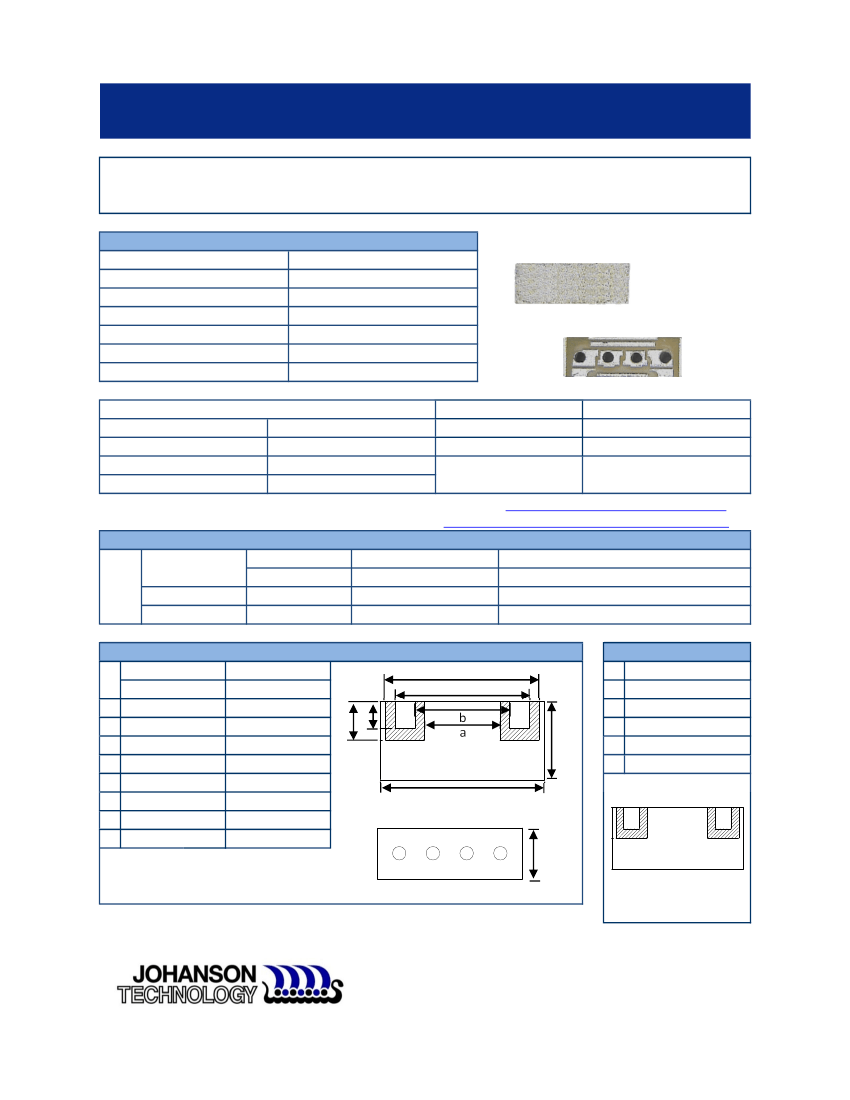

"High Frequency Ceramic Solutions"

5.67GHz High Rejection UNII-High, Band Pass Filter

Detail Specification:

1/7/2019

P/N 5697CR45A0360

Page 1 of 5

General Specifications

Part Number

Operating Passband Freq.

Insertion loss (5490-5670MHz)

Insertion loss 2 (5670-5850MHz)

Return Loss (dB)

Ripple in bandwidth (dB)

Power Capacity (W)

Attenuation (dB)

30 - 2700 MHz

3453 - 3547 MHz

3667 - 3883 MHz

5150 - 5330 MHz

48 typ. (43 min.)

45 typ. (42 min.)

45 typ. (40 min.)

52 typ. (50 min.)

5697CR45A0360

5490 - 5850 MHz

1.7 typ. (2.5 max.) dB

0.8 typ. (1.5 max.) dB

10 min.

1.3 max.

1 max. (CW)

Reel Quantity

Operating Temperature

Storage Temperature

Recommended Storage

Conditions for unused T&R

product

J5R7AX

Top View

Side View

1,000 pcs

-40 to +100°C

+5 ~ +35 °C, Humidity 45~75%RH, 18

months. 1 week max after opened.

For more info go to

https://www.johansontechnology.com/silverleads

You can download measured s-parameters of this component at:

https://www.johansontechnology.com/band-pass-filters

Part Number Explanation

P/N

Suffix Termination Style

Evaluation Board

Packaging Style

Bulk

T&R

Silver

50Ω SMA

Suffix = S

Suffix = E

Suffix = None

Suffix = EB1SMA

E.g. 5697CR45A0360S

E.g. 5697CR45A0360E

E.g. 5697CR45A0360(E or S)

E.g. 5697CR45A0360-EB1SMA

Terminal Configuration

Mechanical Dimensions

0.337 ± 0.010

0.128 ± 0.010

0.114 ± 0.010

0.156 ± 0.010

0.195 ± 0.010

0.278 ± 0.010

0.317 ± 0.010

0.053 ± 0.010

0.077 ± 0.010

8.56 ± 0.25

3.25 ± 0.25

2.90 ± 0.25

3.95 ± 0.25

4.95 ± 0.25

7.05 ± 0.25

8.05 ± 0.25

1.35 ± 0.25

1.95 ± 0.25

No.

Function

IN/OUT

GND

IN/OUT

①







②

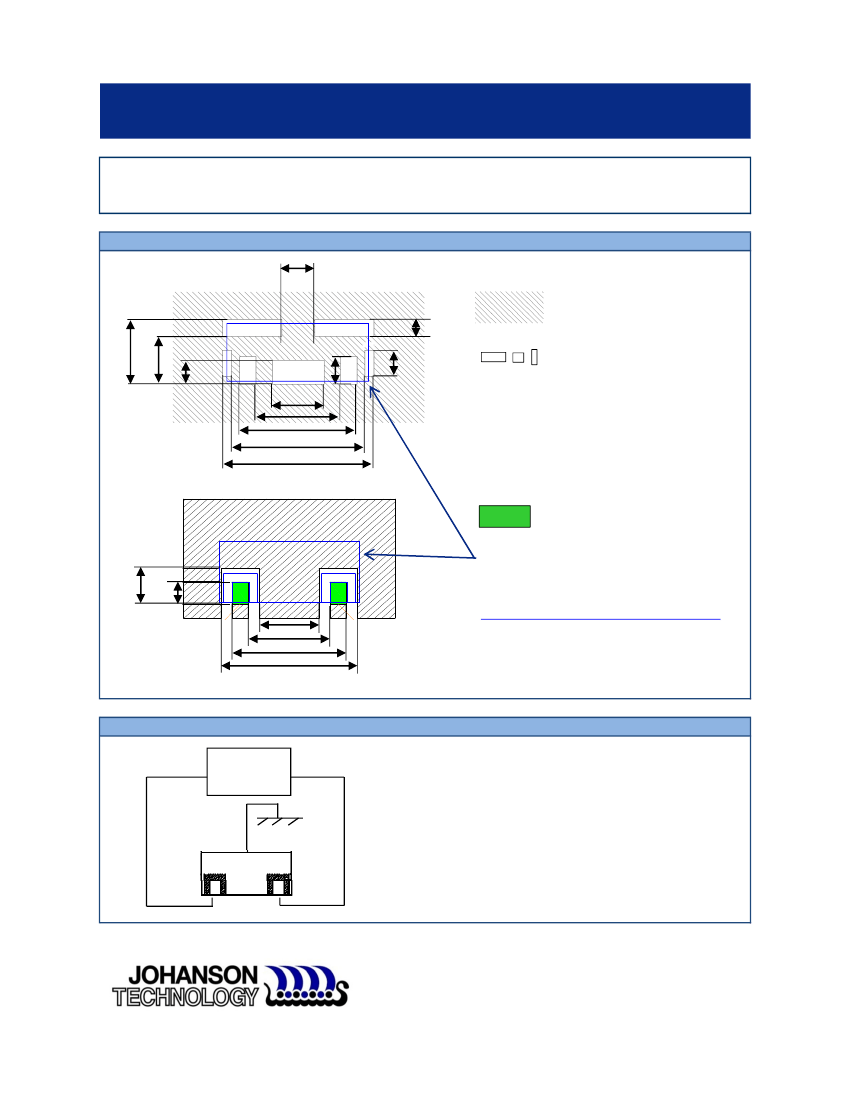

Pins 2, 3, and 4 share the same

metallized pad along the bottom of

the component, see page 2 for

layout details

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

https://www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012, USA • TEL +1.805.389.1166

Ver. 2.1

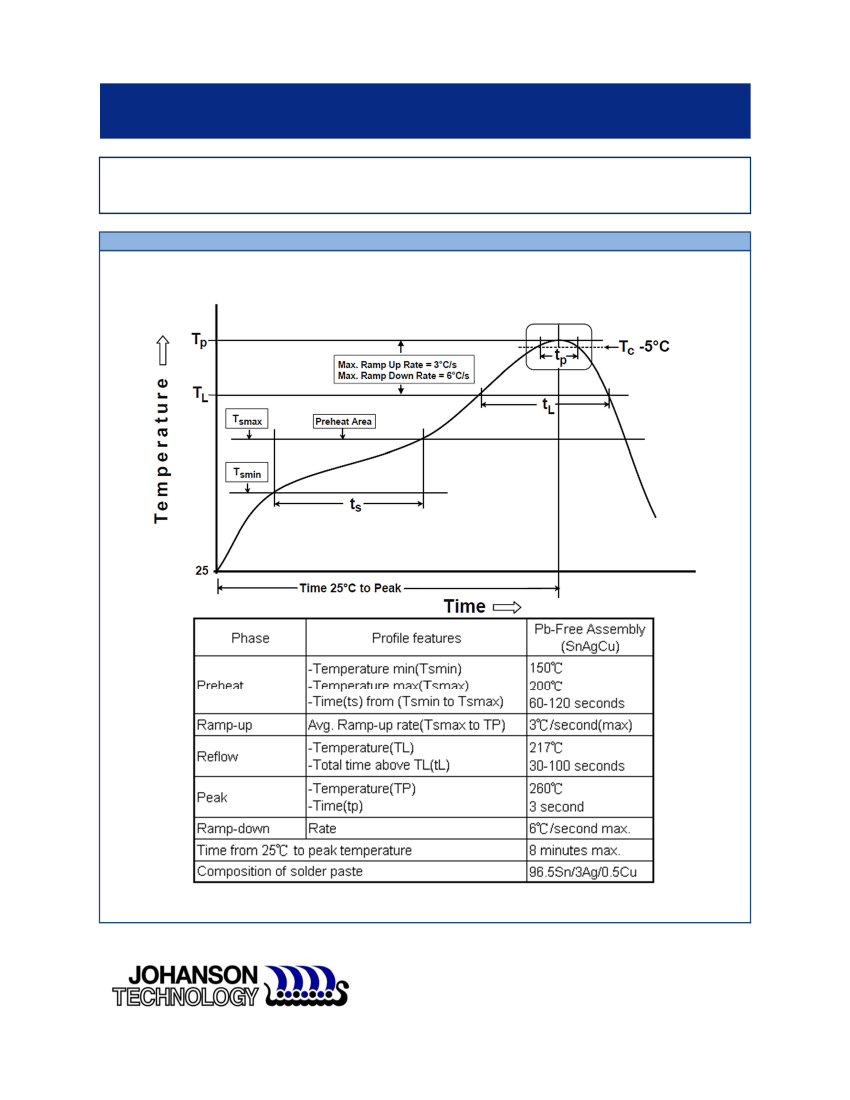

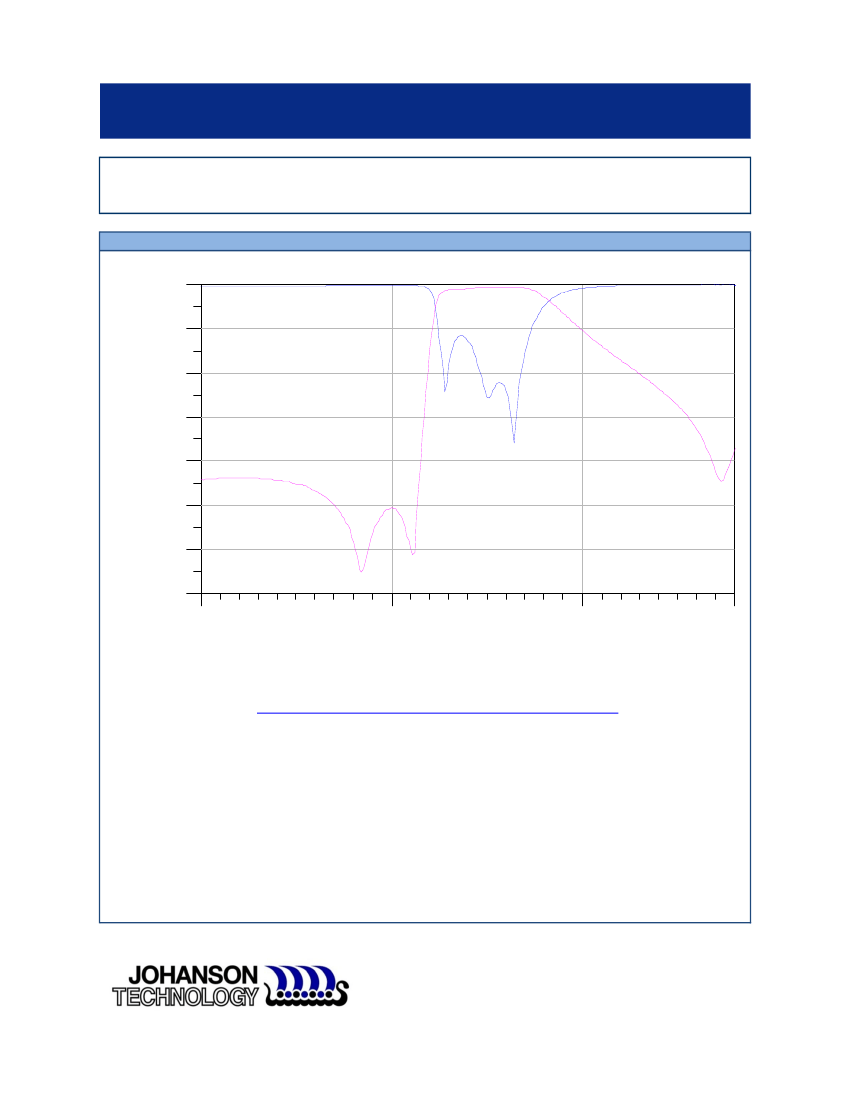

5697CR45A0360S Related Products

	5697CR45A0360S	5697CR45A0360	5697CR45A0360E
Description	Ceramic BPF,	Ceramic BPF,	Ceramic BPF,
Maker	Johanson Dielectrics	Johanson Dielectrics	Johanson Dielectrics
Reach Compliance Code	compliant	compliant	compliant
filter type	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF
