JDV-R25LB-10-1

Description
Board Connector, 25 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size130KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

JDV-R25LB-10-1 Overview

Board Connector, 25 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,

JDV-R25LB-10-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerJST
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberJDV
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.5 mm
Termination typeSOLDER
Total number of contacts25
UL Flammability Code94V-0
JDV
CONNECTOR
1.5mm pitch/Hinge type Board - to - board Connectors
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m
max.
After environmental testing/50m
max.
• Insulation resistance:
800M
min.
• Withstanding voltage: 300V AC/minute
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

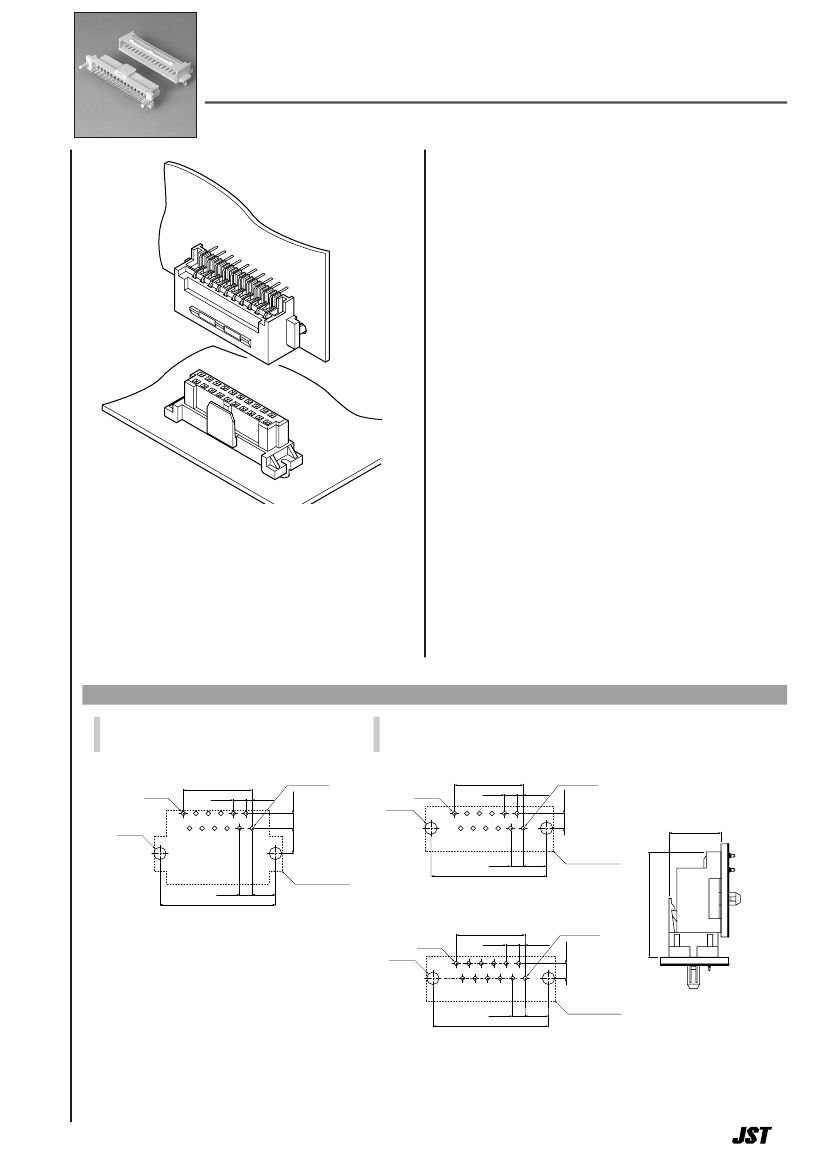

The JDV connector is designed for board-
to-board connection with locking device,
and highly resistant to equipment
vibration and shock.
• Two type Locking device
• Staggered Solder Tails
• Positioning boss (projection)
Standards ––––––––––––––––––––––
1
Certified LR20812
Receptacle
Resin hook type
0
Recognized E60389

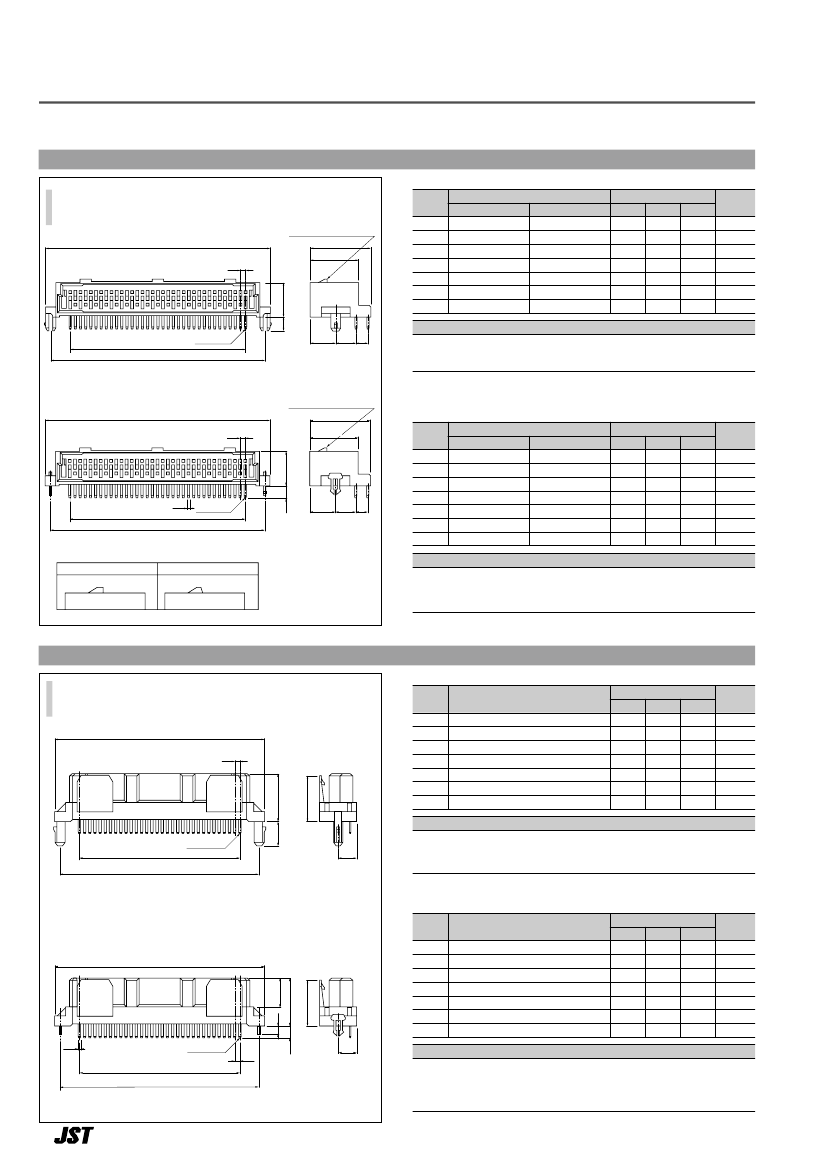

PC board layout (viewed from component side) and Assembly layout
Plug
3.5
±0.05
1.5
±0.05
φ3.0
±0.05
3.5
±0.05
+0.1
φ1.0
 0
A
±0.05
3.0
±0.05
Circuit No.1
+0.1
φ1.0
 0
A
±0.05
3.0
±0.05
Circuit No.1
1.5
±0.05
6.0
±0.05
φ2.8
±0.05
11.6
3.0
±0.05
C
±0.05
Housing outline
3.0
±0.05
C
±0.05
5.6
±0.05
5.6
±0.05
Housing outline
Metal hook type
3.5
±0.05
φ1.0
φ2.8
±0.05
+0.1
 0
A
±0.05
3.0
±0.05
Circuit No.1
1.5
±0.05
3.0
±0.05
C
±0.05
5.6
±0.05
Housing outline
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
23.3
