04052-041 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 04052-041

04052-041: DescriptionTantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917; CategoryPassive components capacitor; File Size87KB，2 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

04052-041 Overview

Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917

04052-041 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	, 2917
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	330 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	10 mΩ
high	4 mm
length	7.3 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	2917
width	4.3 mm

Preview

Download Datasheet

View All

Product Bulletin

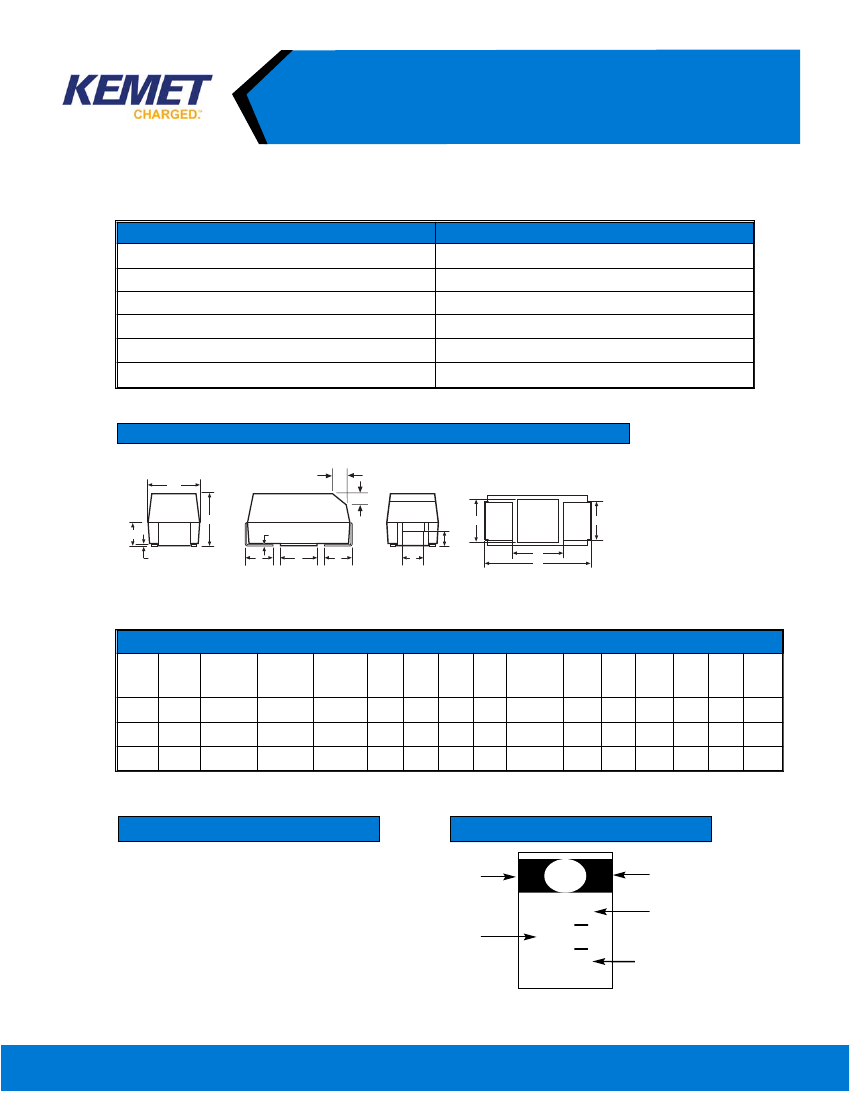

T530 Series - High Capacitance/Ultra-Low ESR Tantalum Surface Mount Capacitor

DSCC Dwg. 04052 Approved

Features

Polymer Cathode Technology

Extremely Low ESR

High Frequency Capacitance Retention

Non-Ignition Failure Mode

Use up to 90% of Rated Voltage (10% Derating)

Operating Temperature -55°C to +125°C

100% Accelerated Steady State Aging

100% Surge Current Testing

Utilizes Multiple Tantalum Anode Technology

Volumetrically Efficient

Self-Healing Mechanism

Available tested per DSCC Dwg. 04052

Outline Drawing

CATHODE (-) END

VIEW

SIDE VIEW

Termination

cutout at

KEMETs

Option,

either end

ANODE (+) END

VIEW

BOTTOM VIEW

Dimensions – Millimeters

KEMET

Size

Code

EIA Size

Code

Length

7.3 ± 0.30

(.287 ± .012)

7.3 ± 0.30

(.287 ± .012)

7.3 ± 0.30

(.287 ± .012)

Width

Height

±0.20

±(.008)

1.5

(.059)

1.9

(.075)

2.3

(.090)

±0.10

±(.004)

2.4

(.094)

2.4

(.094)

2.4

(.094)

B(Ref)

±0.30

±0.15

±(.012) ±(.006)

1.3

(.051)

1.3

(.051)

1.3

(.051)

0.5

(.020)

----

(Ref)

0.10 ± 0.10

(.004 ± .004)

0.10 ± 0.10

(.004 ± .004)

0.10 ± 0.10

(.004 ± .004)

(Ref)

0.9

(.035)

----

(Ref)

1.0

(.039)

----

(Ref)

0.13

(.005)

0.13

(.005)

0.13

(.005)

(Min)

3.8

(.150)

3.8

(.150)

3.8

(.150)

(Ref)

3.5

(.138)

3.5

(.138)

3.5

(.138)

(Ref)

3.5

(.138)

3.5

(.138)

3.5

(.138)

7343-31

7343-40

4.3 ± 0.30

2.8 ± 0.30

(.169 ± .012) (.110 ± .012)

4.3 ± 0.30

(.169 ± .012)

4.0 max.

4.3 ± 0.30

4.0 ± 0.30

(.169 ± .012) (.157 ± .012)

Construction

High

Capacitance

Ultra-low ESR

Device

Rated

Voltage

Component Marking

Polarity

Indicator (+)

(Solid Stripe)

Picofarad

Code

Print Week Code

1st Digit = Year

2nd & 3rd Digits = Week

“610” = 10th Week of 2006

158

610

F-9077A 01/08

04052-041 Related Products

	04052-041	04052-034	04052-037
Description	Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917	CAP,TANTALUM / TA2O5,150UF,10VDC,20% -TOL,20% +TOL	Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 220uF, 2917
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	KEMET	KEMET	KEMET
package instruction	, 2917	, 2917	CHIP
Reach Compliance Code	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99
capacitance	330 µF	150 µF	220 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)	TANTALUM (SOLID POLYMER)	TANTALUM (SOLID POLYMER)
ESR	10 mΩ	5 mΩ	10 mΩ
high	4 mm	2.8 mm	2.8 mm
length	7.3 mm	7.3 mm	7.3 mm
negative tolerance	20%	20%	20%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT
polarity	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	10 V	10 V
size code	2917	2917	2917
width	4.3 mm	4.3 mm	4.3 mm
