A700V127M002ATE0257280: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2V, 20% +Tol, 20% -Tol, 120uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，19 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

A700V127M002ATE0257280 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2V, 20% +Tol, 20% -Tol, 120uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT

A700V127M002ATE0257280 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	120 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	25 mΩ
high	2 mm
JESD-609 code	e3
leakage current	0.014 mA
length	7.3 mm
Manufacturer's serial number	A700
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2 V
ripple current	3300 mA
series	A700
size code	2917
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND
width	4.3 mm

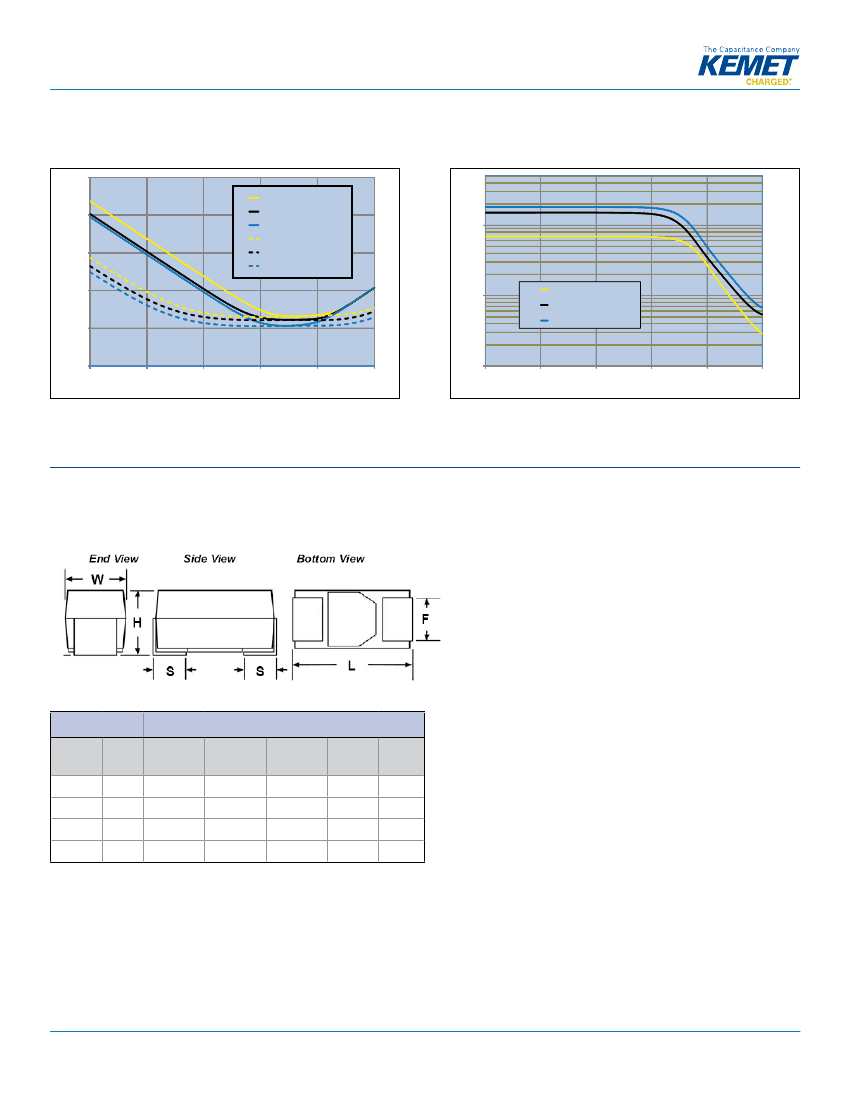

Preview

Download Datasheet

View All

Aluminum Organic Capacitor (AO-CAP)

A700 Series Polymer Aluminum

Overview

The KEMET Aluminum Organic Capacitor (AO-CAP) is a solid

state aluminum capacitor with an aluminum oxide dielectric and

conductive polymer cathode. The use of the conductive polymer

cathode results in very low ESR and improved capacitance

retention at high frequency. AO-CAP's may be operated at

steady state voltages up to 100% of rated voltage (no derating)

with equivalent or better reliability than tantalum capacitors

operating at the recommended derated voltage.

The A700 Series AO-CAP offers the same advantages as the

polymer tantalum capacitors but also has the added advantages

of 125°C performance capability, higher ripple current handling

capability and a lower ESR range. Packaged with multiple anodes/

elements to reduce the depth that the signal must penetrate, this

parallel arrangement reduces the ESR further still to achieve

lower ESR than other types of surface mount capacitors with

similar capacitance ranges. With reduced ESR, the enhanced

capacitance retention at higher frequencies provides the

lowest total capacitance and an economical solution for power

applications.

Benefits

•

ESR: 6 mΩ to 70 mΩ

Voltage: 2 V to 16 V

Capacitance: 6.8 µF to 470 µF

Operating Temperature: -55°C to 125°C

Polymer cathode technology

High frequency capacitance retention

Non-ignition failure mode

100% accelerated steady state aging

100% surge current tested

Volumetric efficiency

Self-healing mechanism

EIA standard case sizes

Applications

Typical applications include DC/DC converters, notebook PCs,

telecommunications, displays, and industrial applications.

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.

One world. One KEMET

T2020_A700 • 2/12/2013
