171-001-6TS-P1CLMH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 171-001-6TS-P1CLMH

171-001-6TS-P1CLMH: Description6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size608KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

171-001-6TS-P1CLMH Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, SOLDER, SOCKET

171-001-6TS-P1CLMH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	171-001
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

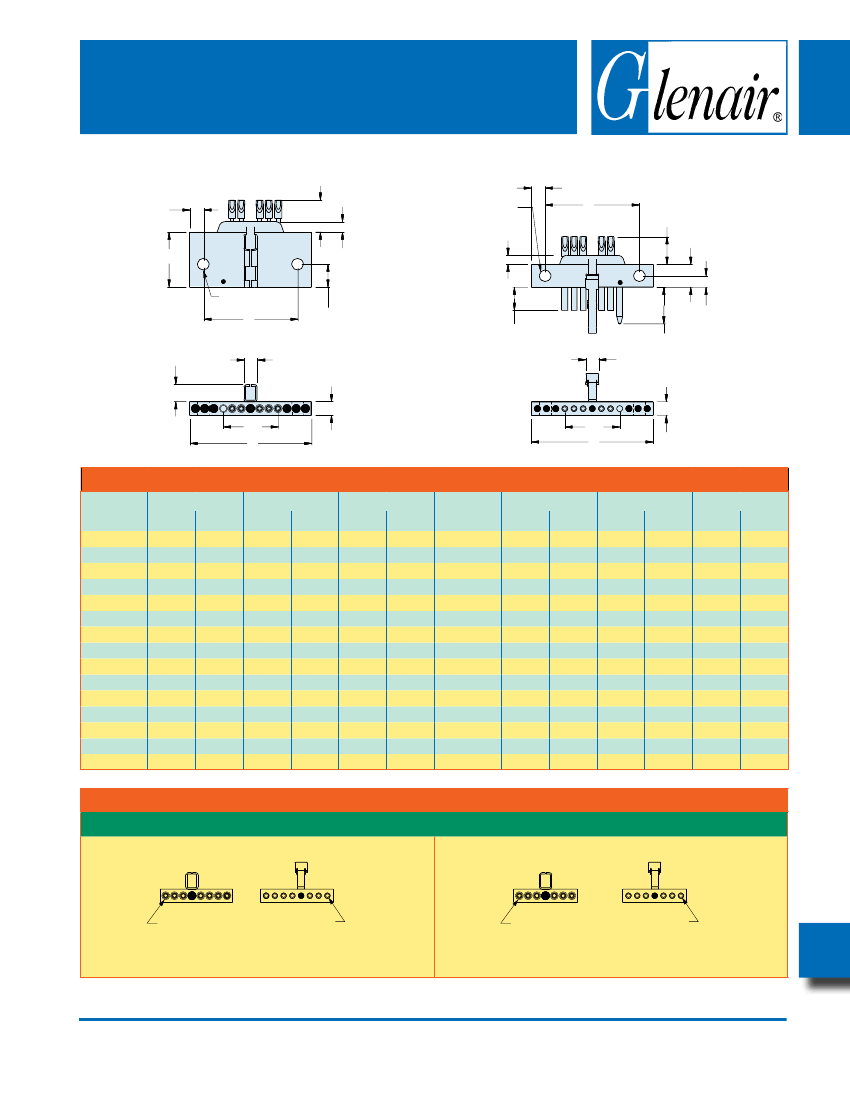

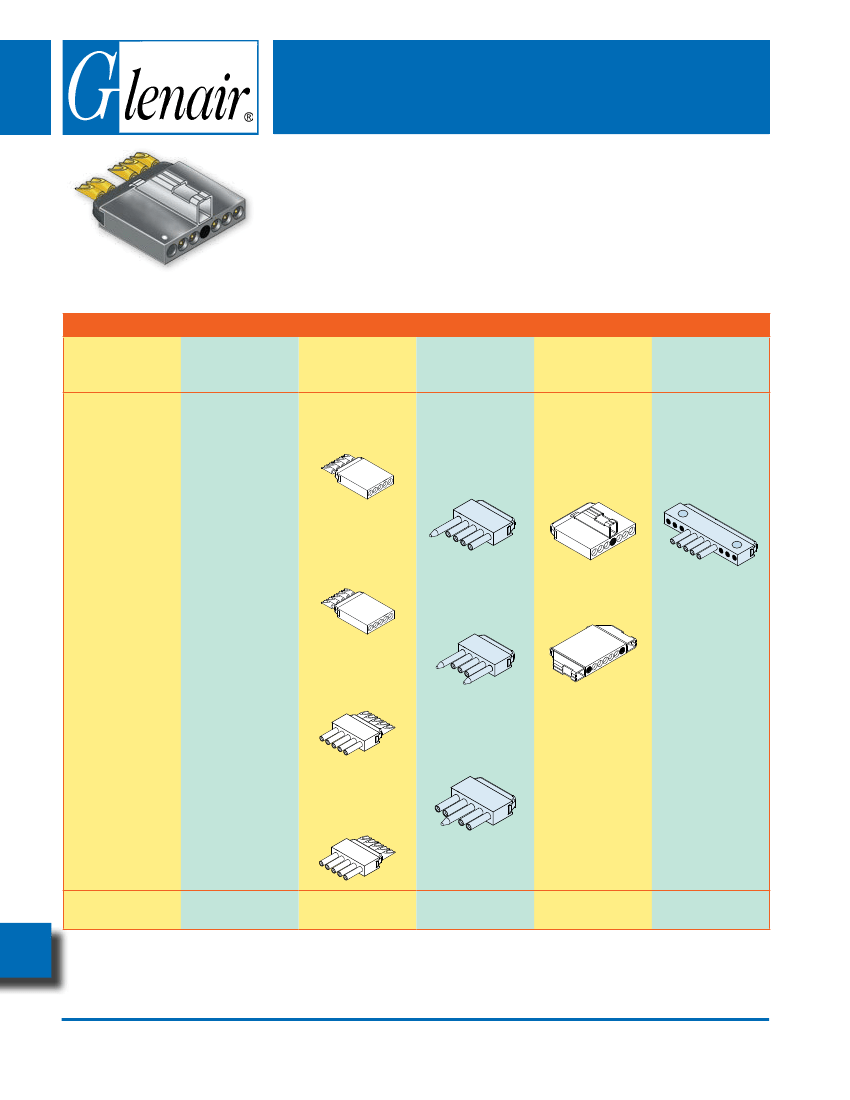

Series 171 MicroStrips

Single Row Strips with Solder Cups

171-001

Micro-D

Latching

MicroStri ps

171-001-7PS-P1CL

Single Row Solder Cup MicroStrips

These .050" pitch single row solder cup microstrips accept #26 to #30 gage

wire with standard contacts and up to size #24 wire with "large bore" contacts.

Contacts are factory-installed and potted. Available with 1 to 30 contacts. Optional

stainless steel latching mechanism prevents de-mating. Guide pins provide circuit

polarization. Contacts are twistpin type and are gold-plated. Housing is molded

LCP thermoplastic. Suitable for high-reliability applications where long-term

resistance to fretting corrosion is a necessity. 3 A., 600 Vac, -55C to +150C.

How To Order Solder Cup Microstrips

Series

Number of

Cavities

Contact Gender

and Solder Cup

Size

Pin Contacts, Size

#26 Solder Cup

Optional

Guide

For No Guide Pin

Optional

Latch

Optional

Mounting

Holes

For No Mounting

Holes

Mounting Holes

Single Row

MicroStrip, .050"

Contact Spacing,

Solder Cup Contacts

171-001

Total number of

cavities including

guide pins,latches

and mounting

holes.

The number of

cavities equals the

number of electrical

circuits plus 1

cavity for each

guide pin and latch,

plus 6 cavities for

the mounting hole

option.

-1

-30

Omit

-P1

For No Latch

Omit

Guide Pin in Cav. #1

Center Latch

Pin Contacts, Size

#24 Solder Cup

Guide Pin at Both

Ends

-PB

Latch at Both Ends

Socket Contacts,

Size #26 Solder Cup

The three cavities

on each end are

filled with epoxy.

Two .062" (1.57mm)

holes are cross-

drilled to allow for

attachment to a

mounting surface.

Replace (X) with

guide pin location.

P3 shown below:

-P(X)

Socket Contacts,

Size #24 Solder Cup

Sample Part Number

171-001

-7

- P1

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Q-4
