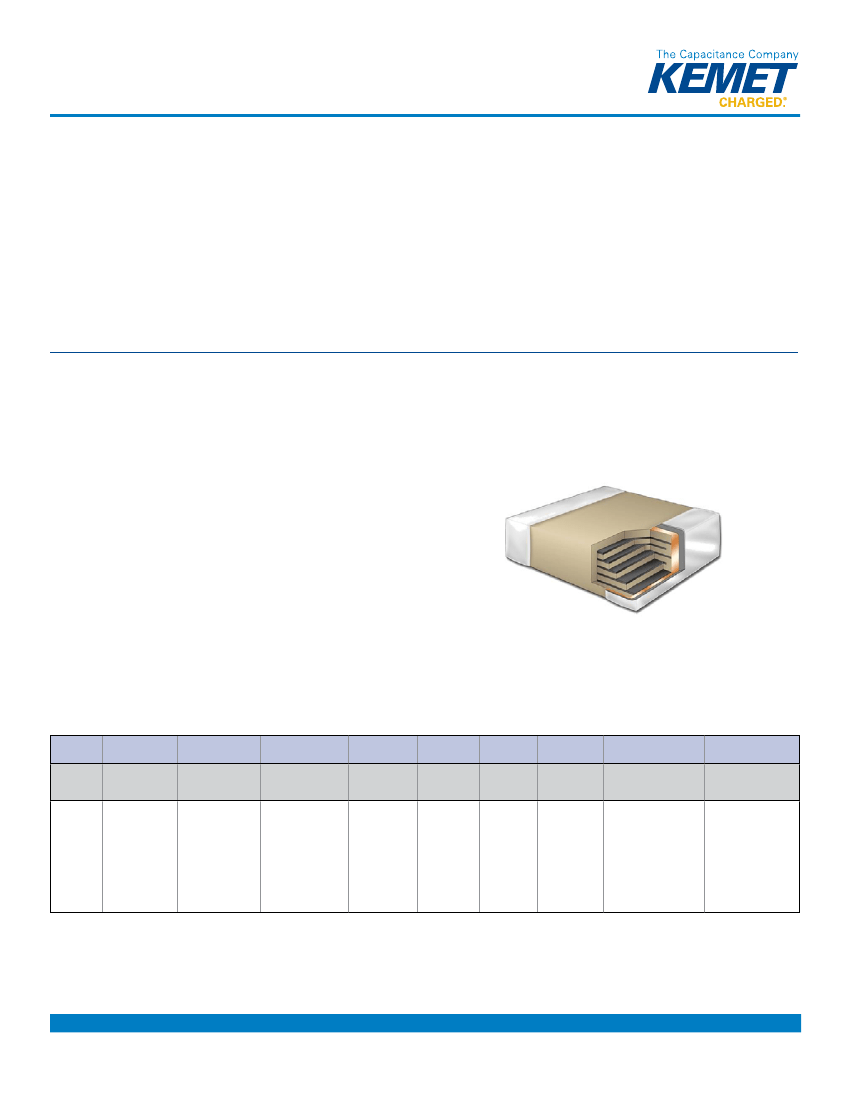

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
X5R Dielectric, 4 – 50 VDC (Commercial Grade)
Overview
KEMET’s X5R dielectric features an 85°C maximum operating
temperature and is considered “semi-stable.” The Electronics
Components, Assemblies & Materials Association (EIA)
characterizes X5R dielectric as a Class II material. Components
of this classification are fixed, ceramic dielectric capacitors
suited for bypass and decoupling applications or for frequency
discriminating circuits where Q and stability of capacitance
characteristics are not critical. X5R exhibits a predictable change
in capacitance with respect to time and voltage and boasts
a minimal change in capacitance with reference to ambient
temperature. Capacitance change is limited to ±15% from -55°C
to +85°C.
Benefits
•
•
•
•
•
•
•
•
•
-55°C to +85°C operating temperature range
Pb-Free and RoHS Compliant
Temperature stable dielectric
EIA 0201, 0402, 0603, 0805, 1206, and 1210 case sizes
DC voltage ratings of 4 V, 6.3 V, 10 V, 16 V, 25 V, 35 V, and 50 V
Capacitance offerings ranging from 0.01 μF to 100 μF
Available capacitance tolerances of ±10% and ±20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for
excellent solderability
Applications
Typical applications include decoupling, bypass, and filtering.
Ordering Information
C
Ceramic
1206
Case Size
(L" x W")
0201
0402
0603
0805
1206
1210
C
107
M
9
Voltage
7=4V
9 = 6.3 V
8 = 10 V
4 = 16 V
3 = 25 V
6 = 35 V
5 = 50 V
P
Dielectric
P = X5R
A
C
TU
Packaging/Grade
(C–Spec)
2
Specification/ Capacitance Code
Capacitance
Series
(pF)
Tolerance
C = Standard
2 Significant
Digits + Number
of Zeros
K = ±10%
M = ±20%
Failure Rate/
Termination Finish
1
Design
A = N/A
C = 100% Matte Sn Blank = Bulk
TU = 7" Reel
Unmarked
TM = 7" Reel
Marked
1
2
Additional termination finish options may be available. Contact KEMET for details.
Additional reeling or packaging options may be available. Contact KEMET for details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1006_X5R_SMD • 2/27/2013
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Commercial Grade)
Dimensions – Millimeters (Inches)
W
T
S
L
B
Nickel Plate
Electrodes
Conductive Metalization
100% Tin or SnPb Plate
EIA
Size
Code
0201
0402
0603
0805
1206
1210
1
1
Metric
Size
Code
0603
1005
1608
2012
3216
3225
L
Length
W
Width
T
Thickness
B
Bandwidth
0.15 (.006) ± 0.05 (.002)
0.30 (.012) ± 0.10 (.004)
S
Separation
Minimum
N/A
0.30 (.012)
0.70 (.028)
0.75 (.030)
N/A
Mounting
Technique
Solder Reflow Only
0.60 (.024) ± 0.03 (.001) 0.30 (.012) ± 0.03 (.001)
1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002)
1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006) See Table 2 for 0.35 (.014) ± 0.15 (.006)
Thickness 0.50 (0.02) ± 0.25 (.010)
2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)
3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008)
3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008)
0.50 (0.02) ± 0.25 (.010)
Solder Wave or
Solder Reflow
Solder Reflow Only
For capacitance values ≥ 22 µF add 0.10 (0.004) to the length and width tolerance dimension and add 0.15 (0.006) to the positive bandwidth tolerance dimension.
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in
Table 4, Performance & Reliability.
Environmental Compliance
Pb-Free and RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Ceramic Surface Mount
0.50 (0.02) ± 0.25 (.010)
C1006_X5R_SMD • 2/27/2013
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Commercial Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +85°C
±15%
4.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
See Dissipation Factor Limit Table
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 48 or 1,000 hours. Please refer to a part number specific
datasheet for referee time details.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X5R
25
< 25
< 25
Capacitance
Value
All
< 0.56 µF
≥ 0.56 µF
Dissipation Factor
(Maximum %)
3.0
7.5
7.5
12.0
±20%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
Dissipation Factor Limit Table
Rated DC Voltage
50 – 200 V
25 V
< 25 V
< 25 V
Capacitance
All
All
< 0.56 µF
≥ 0.56 µF
Dissipation Factor
3%
5%
5%
10%
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1006_X5R_SMD • 2/27/2013
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Commercial Grade)
Insulation Resistance Limit Table
EIA Case Size
0201
0402
0603
0805
1206
1210
1,000 Megohm
Microfarads or 100 GΩ
N/A
< 0.012 µF
< 0.047 µF
< 0.047 µF
< 0.22 µF
< 0.39 µF
500 Megohm
Microfarads or 10 GΩ
ALL
≥ 0.012 µF
≥ 0.047 µF
≥ 0.047 µF
≥ 0.22 µF
≥ 0.39 µF
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1006_X5R_SMD • 2/27/2013
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Commercial Grade)
Table 1 – Capacitance Range/Selection Waterfall (1005 – 1210 Case Sizes)
Cap
10,000 pF
12,000 pF
15,000 pF
18,000 pF
22,000 pF
27,000 pF
33,000 pF
39,000 pF
47,000 pF
56,000 pF
68,000 pF
82,000 pF
0.10 uF
0.12 uF
0.15 uF
0.18 uF
0.22 uF
0.27 uF
0.33 uF
0.39 uF
0.47 uF
0.56 uF
0.68 uF
0.82 uF
1.0 uF
1.2 uF
1.5 uF
1.8 uF
2.2 uF
2.7 uF
3.3 uF
3.9 uF
4.7 uF
5.6 uF
6.8 uF
8.2 uF
10 uF
12 uF
15 uF
18 uF
22 uF
27 uF
33 uF
39 uF
47 uF
100 uF
Cap
Code
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
125
155
185
225
275
335
395
475
565
685
825
106
126
156
186
226
276
336
396
476
107
Series
Voltage Code
Voltage DC
Cap Tolerance
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
7
4
C0201
9
6.3
8
10
4
16
7
4
9
6.3
C0402
8
10
4
16
3
25
5
50
7
4
9
6.3
C0603
8
10
4
16
3
25
5
50
7
4
9
6.3
C0805
8
10
4
16
3
25
5
50
9
6.3
C1206
8
10
4
16
3
25
5
50
9
6.3
8
10
C1210
4
16
3
25
6
35
FT¹
35
6
5
50
50
5
Product Availability and Chip Thickness Codes – See Table 2 for Chip Thickness Dimensions
AB AB AB AB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
AB AB
BB BB
BB BB
BB BB BB
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
BB¹ BB¹ BB¹
BB¹
BC¹
CC CC CC CC
CC¹ CC¹
CC CC CC
DC
DD
DE
DF
DG
DC
DC
DD
DG
DL
DL
DG
DG
DG
DG
DC
DD
DE
DF
DG
DC
DC
DD
DG
DL
DL
DG
DG
DG
DG
DC
DD
DE
DF
DG
DC
DC
DD
DG
DL
DL
DG
DH
DG
DG
DC
DD
DE
DF
DG
DC
DC
DD
DG
DL
DG
DG
DH
DC
DD
DE
DF
DG
DG
CC¹ CC¹
DG DG DG DG
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EH
ED
EH
EK
EK
ED
EH
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EH
ED
EH
EK
EK
ED
EH
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EH
ED
EH
EH
EH
EH
EH
EB
EB
EB
EC
ED
EE
EF
EG
EC
EC
EC
EE
EF
EH
ED
EH
EH
DG¹ DG¹
EH EH¹
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FT
FD¹
FF
FG
FH
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FT
FD
FF
FG
FH
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FT
FG
FG
FH
FJ
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FE
FJ
FG
FH
FD
FD
FD
FD
FF
FH FH
FS¹
DH¹ DG¹
6.3
6.3
6.3
6.3
50
50
50
25
25
25
10
16
10
16
10
16
10
16
4
4
4
4
EH¹ EH¹
EH¹
6.3
50
25
10
16
8
4
3
5
9
8
4
3
5
FS¹ FS¹ FS¹
FS¹
6.3
9
8
4
25
3
10
16
Voltage DC
Cap
Cap Code
Voltage Code
7
9
8
4
7
9
8
3
5
4
7
9
8
4
3
5
7
9
Series
C0201
C0402
C0603
C0805
C1206
C1210
xx¹ Available only in M tolerance.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1006_X5R_SMD • 2/27/2013
5
