177-704H21S6J118 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 177-704H21S6J118

177-704H21S6J118: Description21 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR; CategoryThe connector The connector; File Size393KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

177-704H21S6J118 Overview

21 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR

177-704H21S6J118 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	177-704H
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	HERMETIC
Shell surface	NICKEL
Shell material	FERROUS ALLOY
Housing size	C
Total number of contacts	21
Base Number Matches	1

Preview

Download Datasheet

View All

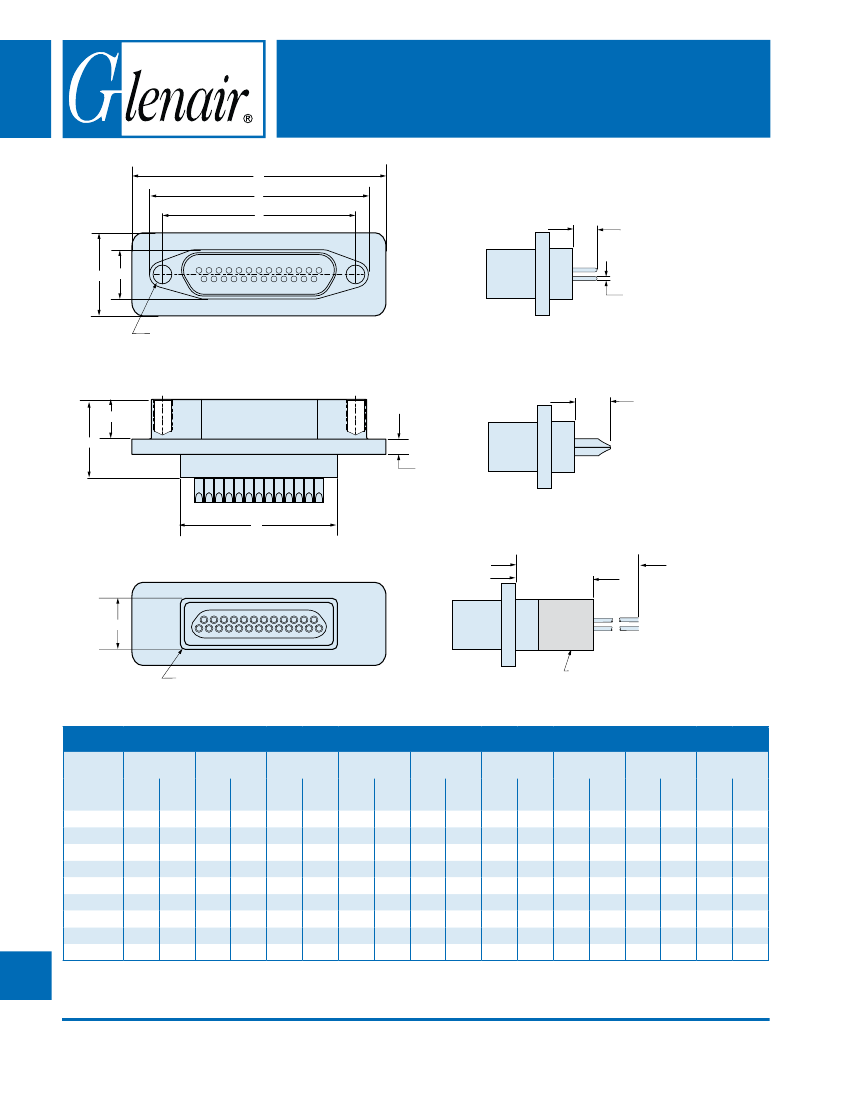

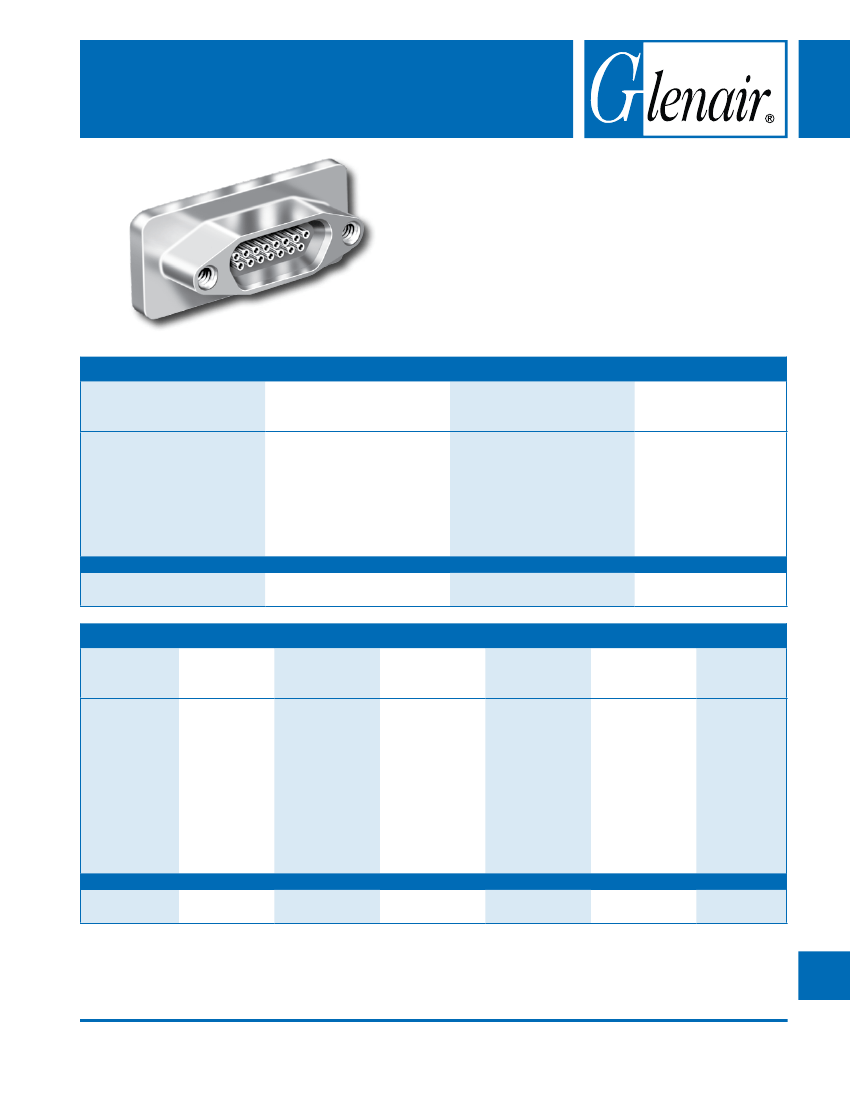

177-140H and 177-704H

MIL-DTL-83513 Type Micro-D Hermetic Connectors

Solder Mount

Solder, Braze or Weld

these 177-140 hermetic Micro-D

connectors. Featuring a matched glass-to-metal seal,

these socket receptacles are designed for panel mounting.

Kovar

Shells and Contacts

comply with applicable MIL-

DTL-83513 requirements and are 100% intermateable

with standard connectors.

Choose 9 to 100 Contacts,

with gold-plated contacts and

nickel-plated shells. These connectors feature integral

female jackposts.

HOW TO ORDER SOLDER CUP AND PC TAIL CONNECTORS

Series

177-140H

Micro-D Hermetic Socket

Receptacle, Solder or Weld

Mounting

Layout

Number of Contacts

100

Contact Type

– Socket

Termination Type

–

Solder Cup

–

PC Tail

Sample Part Number

177-140H

HOW TO ORDER PRE-WIRED CONNECTORS

Series

177-704H

Layout

100

Contact Type

–

Socket

Wire Gage

(AWG)

– #26

– #28

– #30

Wire Type

–

M22759/11

600 Vrms

Teflon

(TFE)

(Not Available

in #30 AWG)

Wire Color

–

White

–

Yellow

–

Color-Coded

Wire Length

Inches

–

M22759/33

600 Vrms

Modified

Cross-Linked

Tefzel

(ETFE)

Stripes Per

MIL-STD-681

(#26 gage

only)

–

Ten Color

Repeat

Wire Length

In Inches. “18”

Specifies 18 Inches.

Sample Part Number

177-704H

– 18

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

I-5
