T513D107M016BK6410

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 100uF, 2917
CategoryPassive components    capacitor
File Size960KB，16 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

T513D107M016BK6410 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 100uF, 2917

T513D107M016BK6410 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKEMET
package instruction, 2917
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresESR IS MEASURED AT 100 KHZ
capacitance100 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR75 mΩ
high2.8 mm
leakage current0.016 mA
length7.3 mm
Installation featuresSURFACE MOUNT
multi-layerNo
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 7 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
size code2917
surface mountYES
Delta tangent0.06
Terminal shapeJ BEND
width4.3 mm

T513D107M016BK6410 Preview

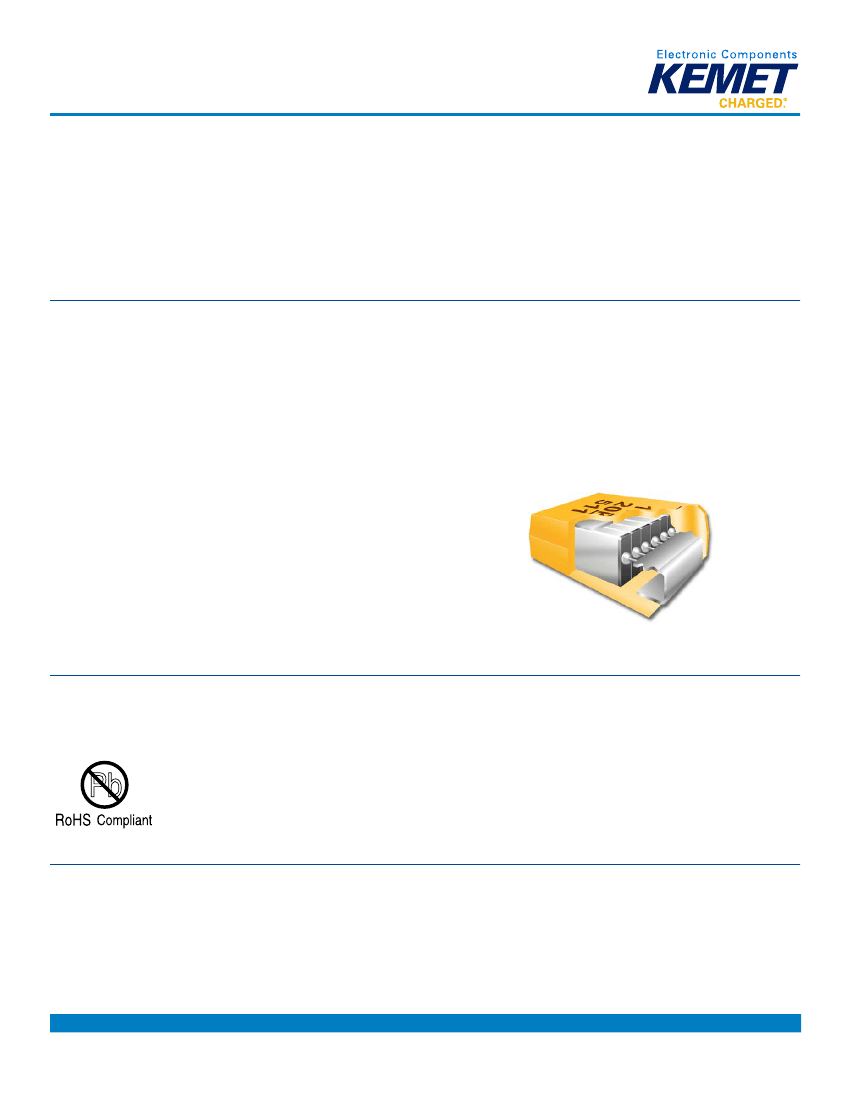

Tantalum Surface Mount Capacitors – High Reliability Commercial Off-the-Shelf (COTS)
T513 Multiple Anode Low ESR COTS MnO
2
Series
Overview
The KEMET T513 Series is suitable for the Commercial Off-
the-Shelf (COTS) requirements of industrial, telecom, defense
and aerospace markets. This surface mount series offers very
low ESR and surge robustness designed for applications that
require high surge current and high ripple current capability.
These benefits are achieved via a multiple anode construction
similar to KEMET's T510 Series. The T513 COTS Series also
offers various options including Weibull Grading, termination finish
and surge current.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Meets or exceeds EIA Standard 535BAAC
Taped and reeled per EIA 481–1
High surge current capability
Termination options B, C, H, K, T
High ripple current capability
Surge testing options
100% steady-state accelerated aging
Capacitance values of 15 μF to 1,000 μF
Tolerances of ±10% and ±20%
Voltage rating of 4 – 35 VDC
Case sizes D, E, and X
ESR as low as 10 mΩ
RoHS compliant 100% Sn terminations available
Operating temperature range of -55˚C to +125˚C
Applications
The T513 Series is suitable for the industrial, telecom, defense
and aerospace markets. Typical applications include decoupling
and filtering in radar, sonar, power supply, guidance systems and
other high reliability applications.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder or gold plated.
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2049_T513 • 7/22/2013
1
Tantalum Surface Mount Capacitors – High Reliability Commercial Off-the-Shelf (COTS)
T513 Multiple Anode Low ESR COTS MnO
2
Series
Ordering Information
T
Capacitor
Class
T=
Tantalum
513
Series
Multiple
Anode
COTS
X
Case
Size
D, E,
X
108
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
K
Capacitance
Tolerance
K = ±10%
M = ±20%
004
Voltage
004 = 4 V
006 = 6.3 V
010 = 10 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
B
Failure Rate/
Design
H
Lead Material
61
Surge
61 = None
62 = 10 cycles, 25°C
after Weibull
63 = 10 cycles, -55°C
& 85°C after Weibull
64 = 10 cycles,
-55°C & 85°C before
Weibull
10
ESR
10 = Standard
ESR
20 = Low ESR
30 = Ultra Low
ESR
A = N/A
C = Hot Solder
B = 0.1%/1,000 Dipped
hours
H = Standard
Solder Coated
(SnPb 5% Pb
minimum)
B = Gold Plated
K = Solder Fused
T = 100% Tin
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 125°C
15 – 1,000 μF @ 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
4 – 35 VDC
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (μA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2049_T513 • 7/22/2013
2
Tantalum Surface Mount Capacitors – High Reliability Commercial Off-the-Shelf (COTS)
T513 Multiple Anode Low ESR COTS MnO
2
Series
Qualification
Test
Endurance
Condition
Δ C/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted, -55°C to
125°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25°C,
-55°C, +25°C, +85°C, +125°C, +25°C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10 of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
Additional Qualification Tests
per MIL–PRF–55365/8
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Please contact KEMET for more information.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2049_T513 • 7/22/2013
3
Tantalum Surface Mount Capacitors – High Reliability Commercial Off-the-Shelf (COTS)
T513 Multiple Anode Low ESR COTS MnO
2
Series
Dimensions – Millimeters (Inches)
Metric will govern
Termination
cutout at
KEMET’s
option,
either end
Case Size
KEMET
D
X
E
Component
L*
W*
H*
2.8 ±0.3
(0.110 ±.012)
EIA
F* ±0.1
S* ±0.3 B* ±0.15
±(.004) ±(.012) (Ref) ±.006
2.4 (.095)
1.3 (.051)
1.3 (.051)
1.3 (.051)
0.5 (.020)
0.5 (.020)
0.5 (.020)
X (Ref)
0.10 ±0.10
(.004 ±.004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
P (Ref)
0.9 (.035)
1.7 (.067)
0.9 (.035)
R (Ref)
1.0 (.039)
1.0 (.039)
1.0 (.039)
T (Ref)
0.13 (.005)
0.13 (.005)
0.13 (.005)
A (Min) G (Ref) E (Ref)
3.8 (.150)
3.8 (.150)
3.8 (.150)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
7.3 ±0.3
4.3 ±0.3
7343-31 (0.287 ±.012) (0.169 ±.012)
7343–43
7360–38
7.3 ±0.3
4.3 ±0.3
4.0 ±0.3
2.4 (.094)
(0.287 ±0.012) (0.169 ±0.012) (0.157 ±0.012)
7.3 ±0.3
6.0 ±0.3
3.6 ±0.2
(0.287 ±0.012) (0.236 ± .012) (0.142 ±0.008)
4.1 (.161)
Notes: (Ref) – Dimensions provided for reference only. No dimensions are provided for B, P or R because low profile cases do not have a bevel or a notch.
* MIL–PRF–55365/8 specified dimensions
Table 1 – Ratings & Part Number Reference
Rated
Voltage
VDC
4
4
4
6.3
6.3
6.3
10
16
16
16
20
25
25
35
35
35
VDC
Rated
Cap
µF
680
1000
1000
470
680
680
330
100
150
220
100
68
100
15
33
47
µF
Case Code/
Case Size
KEMET/EIA
X/7343-43
X/7343-43
E/7360-38
X/7343-43
X/7343-43
E/7360-38
X/7343-43
D/7343-31
X/7343-43
X/7343-43
X/7343-43
X/7343-43
E/7360-38
D/7343-31
X/7343-43
X/7343-43
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T513X687(1)004(2)(3)(4)(5)
T513X108(1)004(2)(3)(4)(5)
T513E108(1)004(2)(3)(4)(5)
T513X477(1)006(2)(3)(4)(5)
T513X687(1)006(2)(3)(4)(5)
T513E687(1)006(2)(3)(4)(5)
T513X337(1)010(2)(3)(4)(5)
T513D107(1)016(2)(3)(4)(5)
T513X157(1)016(2)(3)(4)(5)
T513X227(1)016(2)(3)(4)(5)
T513X107(1)020(2)(3)(4)(5)
T513X686(1)025(2)(3)(4)(5)
T513E107(1)025(2)(3)(4)(5)
T513D156(1)035(2)(3)(4)(5)
T513X336(1)035(2)(3)(4)(5)
T513X476(1)035(2)(3)(4)(5)
(See below for
part options)
DC
Leakage
μA @ +20ºC
Max/5 Min
27.2
40.0
40.0
29.6
42.8
42.8
33.0
16.0
24.0
35.2
20.0
17.0
25.0
5.3
11.6
16.5
μA @ +20ºC
Max/5 Min
DF
% @ +20ºC
120 Hz Max
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
10.0
8.0
8.0
8.0
6.0
6.0
8.0
% @ +20ºC
120 Hz Max
Standard
ESR
mΩ @ +20ºC
100 kHz Max
30
23
18
30
45
23
35
75
40
40
45
45
50
100
65
65
mΩ @ +20ºC
100 kHz Max
Low ESR
mΩ @ +20ºC
100 kHz Max
N/A
18
10
N/A
23
12
N/A
N/A
30
25
40
N/A
N/A
N/A
55
55
mΩ @ +20ºC
100 kHz Max
Ultra-low
ESR
mΩ @ +20ºC
100 kHz Max
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
35
N/A
N/A
N/A
N/A
N/A
mΩ @ +20ºC
100 kHz Max
Rated Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part Number
DC
Leakage
DF
Standard ESR
Low ESR
Ultra-low ESR
(1) To complete KEMET part number, insert M for ±20%, K for ±10%. Designates Capacitance tolerance.
(2) To complete KEMET part number, insert B (0.1%/1,000 hours), or A = N/A. Designates Reliability Level.
(3) To complete KEMET part number, insert B = Gold Plated, C = Hot solder dipped, H = Solder Plated, K = Solder Fused or T = 100% Tin (Sn). Designates
Termination Finish.
15
(4) To complete KEMET part number, insert 61 = None, 62 = 10 cycles +25°C, 63 = 10 cycles -55°C +85°C after Weibull or 64 = 10 cycles -55°C +85°C before
Weibull. Designates Surge current option.
(5) To complete KEMET part number, insert 10 = Standard ESR, 20 = Low ESR or 30 = Ultra Low ESR. Designates ESR option.
Refer to Ordering Information for additional detail.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2049_T513 • 7/22/2013
4
Roll Over for
Order Info.
Tantalum Surface Mount Capacitors – High Reliability Commercial Off-the-Shelf (COTS)
T513 Multiple Anode Low ESR COTS MnO
2
Series
Recommended Voltage Derating Guidelines
-55°C to 85°C
% Change in Working DC
Voltage with Temperature
Recommended Maximum
Application Voltage
V
R
50% of V
R
85°C to 125°C
% Working Voltage
120%
100%
80%
60%
40%
20%
0%
% Change in Working DC Voltage
with Temperature
67% of V
R
33% of V
R
67%
Recommended Maximum
Application Voltage (As %
of Rated Voltage)
33%
-55
25
Temperature (ºC)
85
125
Ripple Current/Ripple Voltage
Permissible AC ripple voltage and current are related to equivalent
series resistance (ESR) and the power dissipation capabilities of
the device. Permissible AC ripple voltage which may be applied is
limited by two criteria:
1. The positive peak AC voltage plus the DC bias voltage, if any,
must not exceed the DC voltage rating of the capacitor.
2. The negative peak AC voltage in combination with bias
voltage, if any, must not exceed the allowable limits specified for
reverse voltage. See the Reverse Voltage section for allowable
limits.
The maximum power dissipation by case size can be determined
using the table at right. The maximum power dissipation rating
stated in the table must be reduced with increasing environmental
operating temperatures. Refer to the table below for temperature
compensation requirements.
Temperature Compensation Multipliers
for Maximum Power Dissipation
85°C
0.90
KEMET
Case Code
A
B
C
D
X
E
S
T
U
V
T510X
T510E
EIA
Case Code
3216–18
3528–21
6032–28
7343–31
7343–43
7360–38
3216–12
3528–12
6032–15
7343–20
7343–43
7360–38
Maximum Power
Dissipation (P max)
mWatts @ 25°C
w/+20°C Rise
75
85
110
150
165
200
60
70
90
125
270
285
≤ 25°C
1.00
125°C
0.40
The maximum power dissipation rating must be reduced with increasing
environmental operating temperatures. Refer to the Temperature
Compensation Multiplier table for details.
T= Environmental Temperature
Using the P max of the device, the maximum allowable rms ripple
current or voltage may be determined.
I(max) = √P
max/R
E(max) = Z √P
max/R
I = rms ripple current (amperes)
E = rms ripple voltage (volts)
P max = maximum power dissipation (watts)
R = ESR at specified frequency (ohms)
Z = Impedance at specified frequency (ohms)
T2049_T513 • 7/22/2013
5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

STK060 power amplifier circuit diagram

60W and 225W to 400MHz fast band amplifier circuits

TC7662B typical application circuit diagram

Passive tone control circuit.gif

Tossing point circuit

Sound and light dual-control two-way flowing water lantern accompanied by music sound generation circuit

How to eliminate glitch in DAC conversion result?
I have been working on the ADC of MSP430 and the DAC of DAC0832 for more than half a month. I have encountered many problems and solved them one by one. Tonight, I used an oscilloscope to observe the ...
eemingtian Microcontroller MCU
SIMATIC NET Route Manager
After the computer is turned on, a dialog box pops up: titled (SIMATIC NET Route Manager), the dialog box prompts (T-Getway Fatal Error: Can't connect to Station Manager, Shutdown), and then I open th...
张无忌1987 Industrial Control Electronics
【TI course sharing】C2000 basics
[size=2]Course link: [url]https://training.eeworld.com.cn/TI/show/course/3580[/url][/size] [size=2]Video screenshots: [/size]Recommended reason: TI C2000 series MCU is one of TI's flagship products. I...
hanyeguxingwo TI Technology Forum
How to understand and become familiar with the booting, loading, and cutting of embedded systems (such as arm linux) in the shortest time
What books and resources (preferably free and downloadable resources) should I read to understand boot loader tailoring for embedded systems (such as arm linux)?...
cd0054115 Linux and Android
Pass a Zhou Gong's information, detailed explanation of the starting code
Zhou Gong's startup codes are all similar. You can modify them according to your needs. A netizen added a very detailed comment...
gina MCU
About SPI
I've recently learned about SPI, one master and multiple slaves. Can the master's SPI interrupt send data to the slave and read data from the slave at the same time? For example, use the following two...
ydw621 Microchip MCU
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. 1N4616-BK
  2. AL05-101-JAQ
  3. W200TB5-24V/20
  4. SST-1007-S-31-L
  5. TKFD80B-D2E121MY
  6. PCF1206-25-18K2CI
  7. WBDDQSC-B-03-3200-C-C
  8. 1825A0250331GCR
  9. 3.0SMCJ120CA
  10. BD3200YT
  11. P6SMBJ5.0-AU_R1_000A1
  12. A2547WR-N-2x4P-BL

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Videos 77: DS18B20 Protocol Trigger
  2. The composition of the megohmmeter
  3. PIC16 MCU LCD1602 Driver PIC16F877A PIC16F887
  4. Hechuang Capital: Helping semiconductor technology companies win the battle of domestic substitution
  5. B001 - Atmega16 - Assembly - Address space allocation
  6. Samsung showcases multiple foldable screen prototype devices: Flex Note, Flex S/G, Flex Slidable
  7. At the juncture of technological change, what will be the trend of display panel technology and market?
  8. Selection of internal and external connection methods of ammeter
  9. What happened to my digital multimeter?
  10. Android 13 will natively support adjusting the brightness of the phone's flashlight

Technical ResourceMore

  1. Design of ferrite core high frequency transformer
  2. Research on independent photovoltaic power generation system and its MPPT
  3. STBLESensor
  4. [RVB2601 Creative Application Development] + Music Spectrum
  5. Front-end and back-end design written test questions complete version
  6. Sequence signal detector based on Verilog
  7. Use B_L475E_IOT01A Discovery Kit to connect to AWS IOT platform
  8. How to realize the timing and timer operation functions of the Dacai serial port screen
  9. Linux basic operation video explanation
  10. Complementary filter algorithm attitude solution

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 351  884  1921  458  2153  8  18  39  10  44
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
