SURFACE MOUNT DISPLAY
APSC03-41EWW
HIGH EFFICIENCY RED
Features
!
0.3
Description
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
INCH DIGIT HEIGHT.
CURRENT OPERATION.
CHARACTER APPEARANCE.
!
LOW
!
EXCELLENT
!
I.C. COMPATIBLE.
!
MECHANICALLY
!
WHITE
RUGGED.
FACE,WHITE SEGMENT.
!
PACKAGE:1100PCS/REEL.

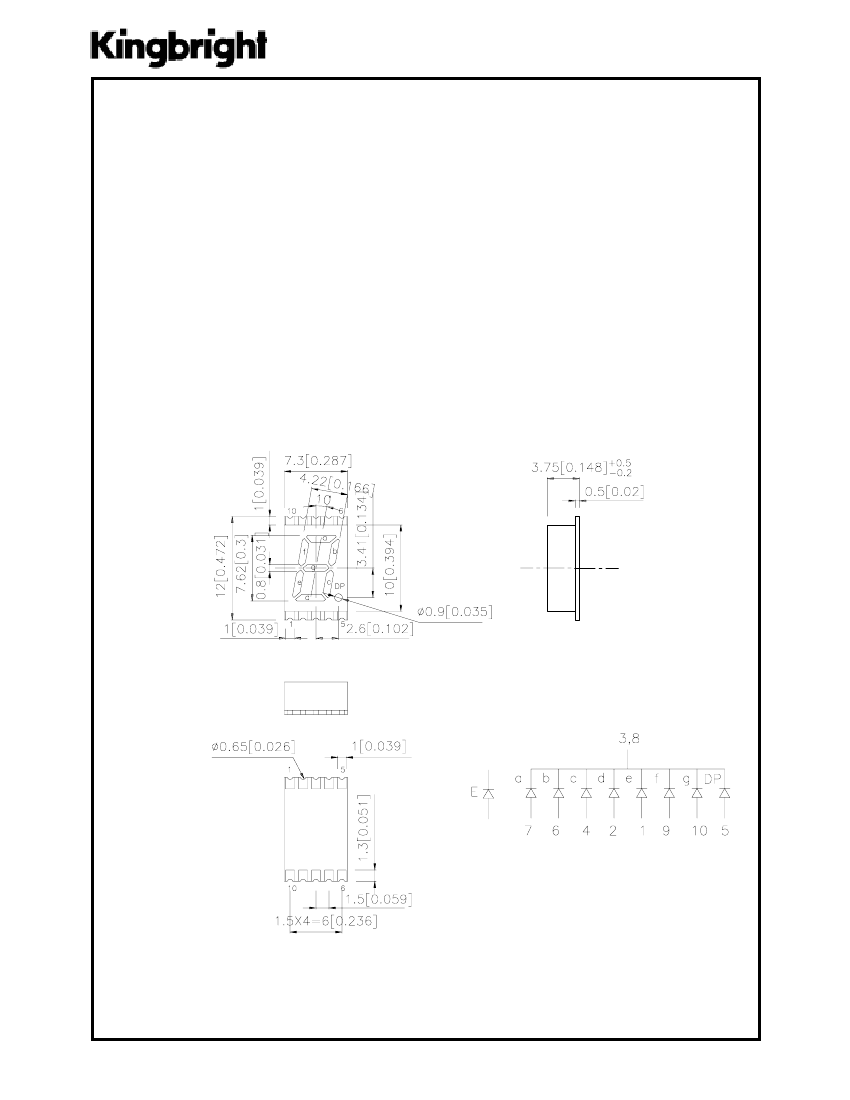

Package Dimensions
& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAB0115
APPROVED : J. Lu
REV NO: V.2
CHECKED :Joe Lee
DATE: APR/17/2002
DRAWN:Y.G
PAGE: 1 OF 5
Selection Guide
Iv (m c d )
@ 10 m A
Min .
APSC03-41EWW
HIGH EFFICIENCY RED (GaAsP/GaP)
WHITE DIFFUSED
1.9
Ty p .
4.21
Common Cathode,
Rt. Hand Decimal
P ar t N o .
Dic e
L en s Ty p e
D es c r i p t i o n
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
D ev i c e
High Efficiency Red
High Efficiency Red
Ty p .
627
625
45
15
2.0
2.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
Spectral Line Half-width High Efficiency Red
Capacitance
Forward Voltage
Reverse Current
High Efficiency Red
High Efficiency Red
High Efficiency Red
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y R ed
105
30
160
5
-40
°
C To +85
°C
Un its
mW
mA
mA
V
SPEC NO: DSAB0115
APPROVED : J. Lu
REV NO: V.2
CHECKED :Joe Lee
DATE: APR/17/2002
DRAWN:Y.G
PAGE: 2 OF 5

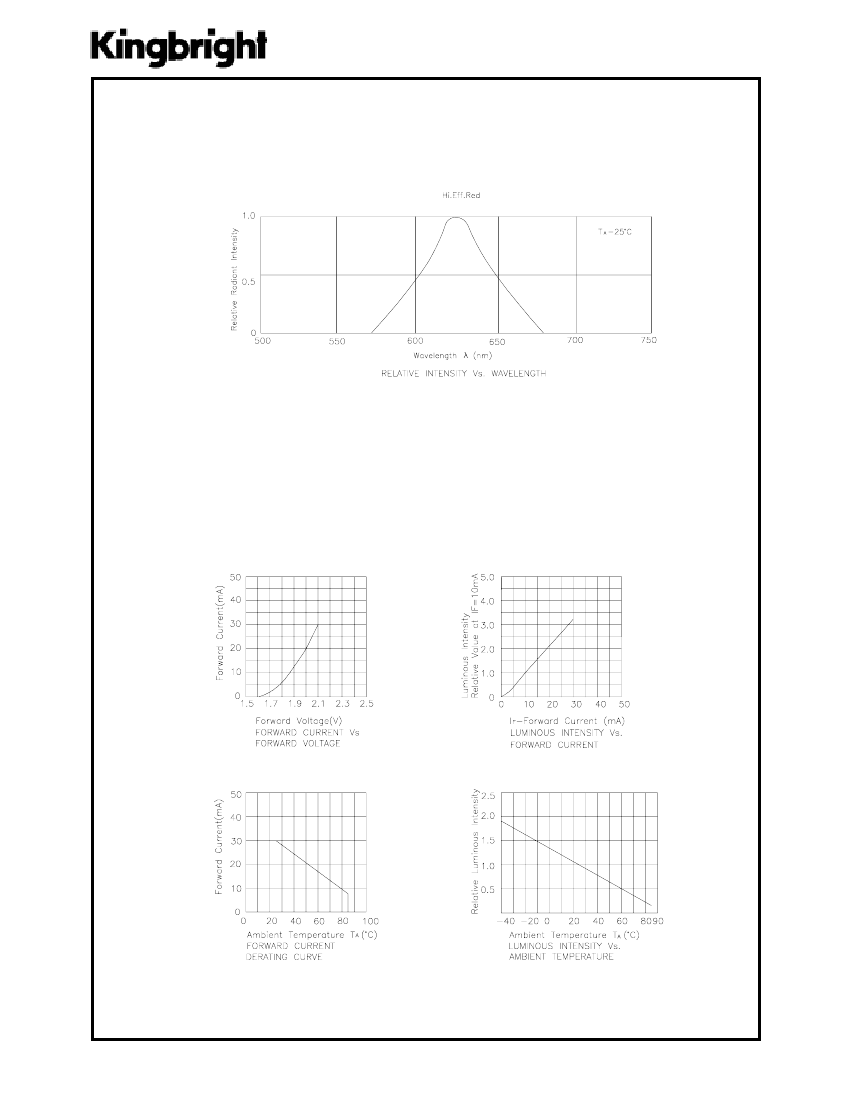

High Efficiency Red
APSC03-41EWW
SPEC NO: DSAB0115
APPROVED : J. Lu
REV NO: V.2
CHECKED :Joe Lee
DATE: APR/17/2002
DRAWN:Y.G
PAGE: 3 OF 5
APSC03-41EWW
SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
SPEC NO: DSAB0115
APPROVED : J. Lu
REV NO: V.2
CHECKED :Joe Lee
DATE: APR/17/2002
DRAWN:Y.G
PAGE: 4 OF 5
Tape Specification
(Units : mm)
SPEC NO: DSAB0115
APPROVED : J. Lu
REV NO: V.2
CHECKED :Joe Lee
DATE: APR/17/2002
DRAWN:Y.G
PAGE: 5 OF 5
