Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads; Solderable per MIL-
STD-202, Method 208
Weight: 0.015 grams (Approximate)
ADVANCE INFORMATION
NPN Transistor
BV
CEO
> 15V
I
C
= 1.5A Continuous Collector Current
Low Saturation Voltage (100mV max @ 1A)
R
SAT
= 135mΩ @1.5A for a Low Equivalent On-Resistance
PNP Transistor
BV
CEO
> -12V
I
C
= -1.25A Continuous Collector Current
Low Saturation Voltage (-140mV max @ -1A)
R
SAT
= 150mΩ @ 1.2A for a Low Equivalent On-
Resistance
Applications
Efficient Driving Functions including Motors, Lamps, Relays and
Solenoids
High Output Current Switches

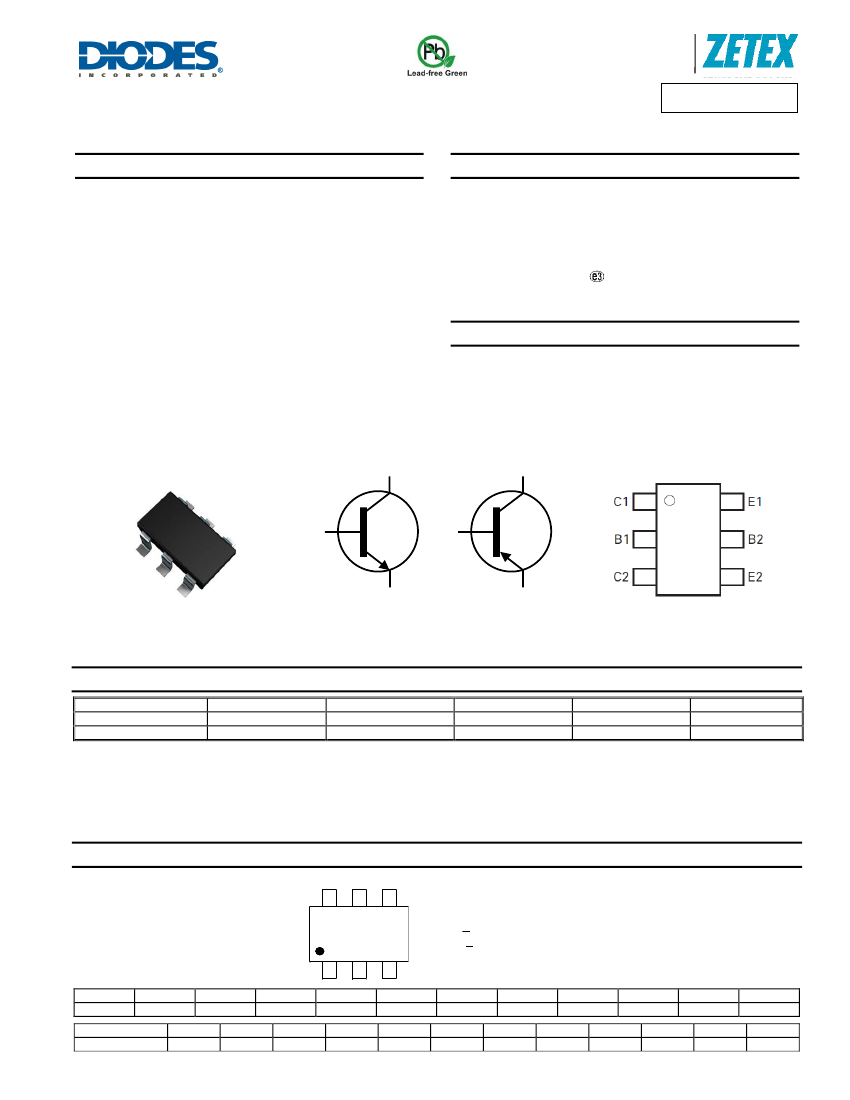

SOT26
C1
C2
B1
B2
E1
Top View
NPN Transistor
Device Symbol
E2
PNP Transistor
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
ZXTD6717E6TA
ZXTD6717E6QTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
6717
6717
Reel size (inches)
7
7
Tape width (mm)
8
8
Quantity per reel
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
