ZXTN2007G
30V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223
Features
BV
CEO
> 30V
I
C
= 7A Continuous Collector Current
I
CM
= 20A Peak Pulse Current
Low Saturation Voltage V
CE(SAT)
< 50mV Max @ 1A
R
SAT
= 28mΩ @ 6.5A for Low Equivalent On-Resistance
h
FE
Specified up to 20A for High Gain Hold Up
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads. Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
DC-DC Converters
MOSFET Gate Drivers
Charging Circuits
Power Switches
Motor Control
SOT223
Top View
Device Schematic
Pin-Out Top View
Ordering Information
(Note 4)
Part Number
ZXTN2007GTA
Notes:
Marking
ZXTN2007
Reel Size (inches)
7
Tape Width (mm)
12
Quantity per Reel
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
ZXTN
2007
YWW
ZXTN 2007 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5 = 2015)
WW or WW = Week Code (01 - 53)
ZXTN2007G
Document number: DS33657 Rev. 3 - 2
1 of 7
www.diodes.com
December 2015
© Diodes Incorporated
ZXTN2007G
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
Value
80
30
7
7
20
Unit
V
V
V
A
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Linear Derating Factor
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Lead
Operating and Storage Temperature Range
(Note 5)
P
D
(Note 6)
(Note 5)
(Note 6)
(Note 7)
R
θJA
R
θJA
R
θJL
T
J,
T
STG
Symbol
Value
3.0
24
1.6
12.8
42
78
8.8
-55 to +150
Unit
W
mW/°C
°C/W
°C
ESD Ratings
(Note 8)
Characteristic
Electrostatic Discharge – Human Body Model
Electrostatic Discharge – Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with the collector lead on 52mm x 52mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
6. Same as Note 5, except the device is mounted on 25mm x 25mm 1oz copper.
7. Thermal resistance from junction to solder-point (at the end of the collector lead).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
ZXTN2007G
Document number: DS33657 Rev. 3 - 2
2 of 7
www.diodes.com
December 2015
© Diodes Incorporated
ZXTN2007G

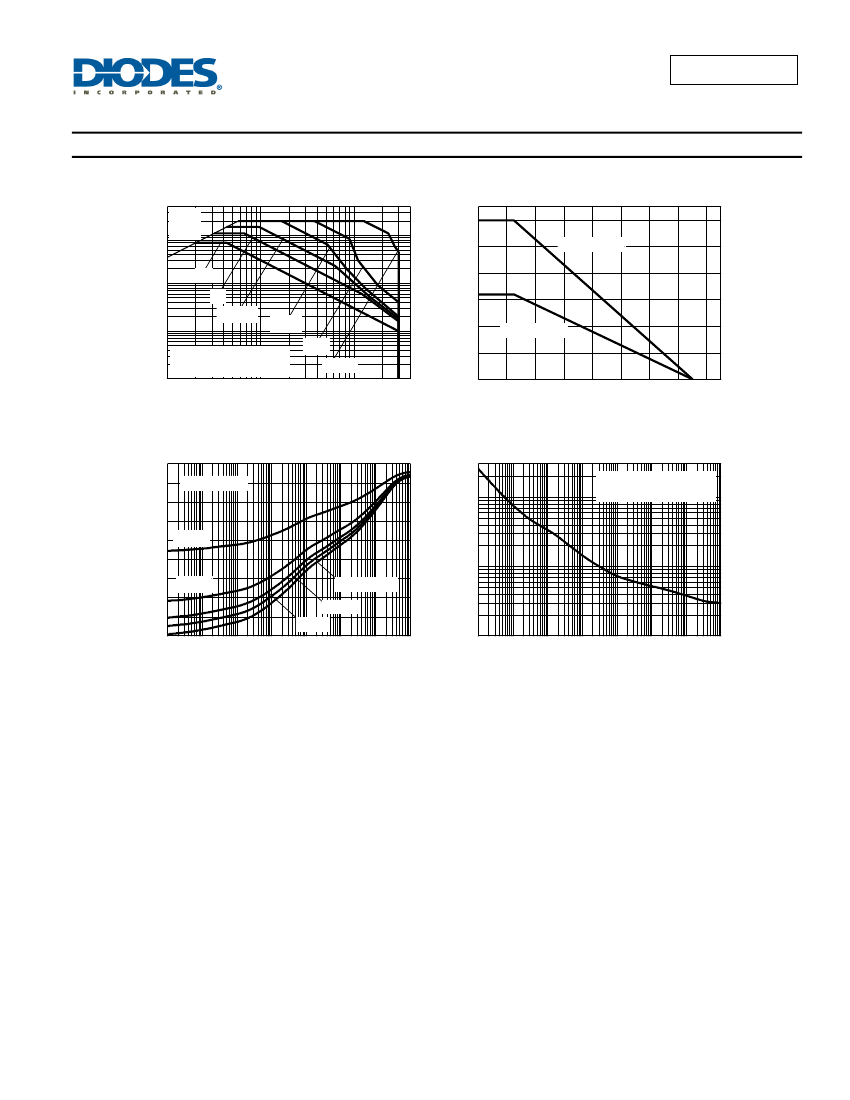

Thermal Characteristics and Derating Information
I
C
Collector Current (A)
10
Limit
Max Power Dissipation (W)
V
CE(sat)
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100 120 140 160
See note (6)
See note (5)
1
DC
1s
100ms
10ms
Single Pulse. T
amb
=25°C
See note (5)
1ms
100µs
100m
10m
100m
V
CE
Collector-Emitter Voltage (V)
1
10
Temperature (°C)
Safe Operating Area
Derating Curve
Thermal Resistance (°C/W)
40
30
See note (5)
Max Power Dissipation (W)
Single Pulse. T
amb
=25°C
100
See note (5)
D=0.5
20
D=0.2
Single Pulse
D=0.05
D=0.1
10
10
0
100µ
1m
10m 100m
Pulse Width (s)
1
10
100
1k
1
100µ
1m
10m 100m
Pulse Width (s)
1
10
100
1k
Transient Thermal Impedance
Pulse Power Dissipation
ZXTN2007G
Document number: DS33657 Rev. 3 - 2
3 of 7
www.diodes.com
December 2015
© Diodes Incorporated
ZXTN2007G
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
BV
CBO
BV
CER
BV
CEO
BV
EBO
I
CBO
R≤1k
Ω
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
Min
80
80
30
7
—
—
—
—
—
Typ
125
125
40
8.1
<1
—
<1
—
<1
25
35
50
100
185
1.03
0.92
175
200
150
30
140
48
37
425
Max
—
—
—
—
50
0.5
100
0.5
10
35
50
65
125
220
1.13
1
300
Unit
V
V
V
V
nA
µA
nA
µA
nA
I
CER
I
EBO
Collector-Emitter Saturation Voltage (Note 9)
V
CE(SAT)
—
mV
Base-Emitter Saturation Voltage (Note 9)
Base-Emitter Turn-On Voltage (Note 9)
DC Current Gain (Note 9)
V
BE(SAT)
V
BE(ON)
h
FE
—
—
100
100
100
20
—
—
—
—
V
V
—
Transition Frequency
Output Capacitance (Note 9)
Switching Times
Note:
f
T
C
OBO
t
ON
t
OFF
—
—
—
—
MHz
pF
ns
Test Condition
I
C
= 100µA
I
C
= 1µA, RB ≤ 1kΩ
I
C
= 10mA
I
E
= 100µA
V
CB
= 70V
V
CB
= 70V, T
A
= +100°C
V
CB
= 70V
V
CB
= 70V, T
A
= +100°C
V
EB
= 6V
I
C
= 500mA, I
B
= 20mA
I
C
= 1A, I
B
= 100mA
I
C
= 1A, I
B
= 20mA
I
C
= 2A, I
B
= 20mA
I
C
= 6.5A, I
B
= 300mA
I
C
= 6.5A, I
B
= 150mA
I
C
= 6.5A, V
CE
= 1V
I
C
= 10mA, V
CE
= 1V
I
C
= 1A, V
CE
= 1V
I
C
= 7A, V
CE
= 1V
I
C
= 20A, V
CE
= 1V
V
CE
= 10V, I
C
= 100mA,
f = 50MHz
V
CB
= 10V, f = 1MHz
V
CC
= 10V, I
C
= 1A,
I
B1
= -I
B2
= 100mA
9. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
ZXTN2007G
Document number: DS33657 Rev. 3 - 2
4 of 7
www.diodes.com
December 2015
© Diodes Incorporated
ZXTN2007G

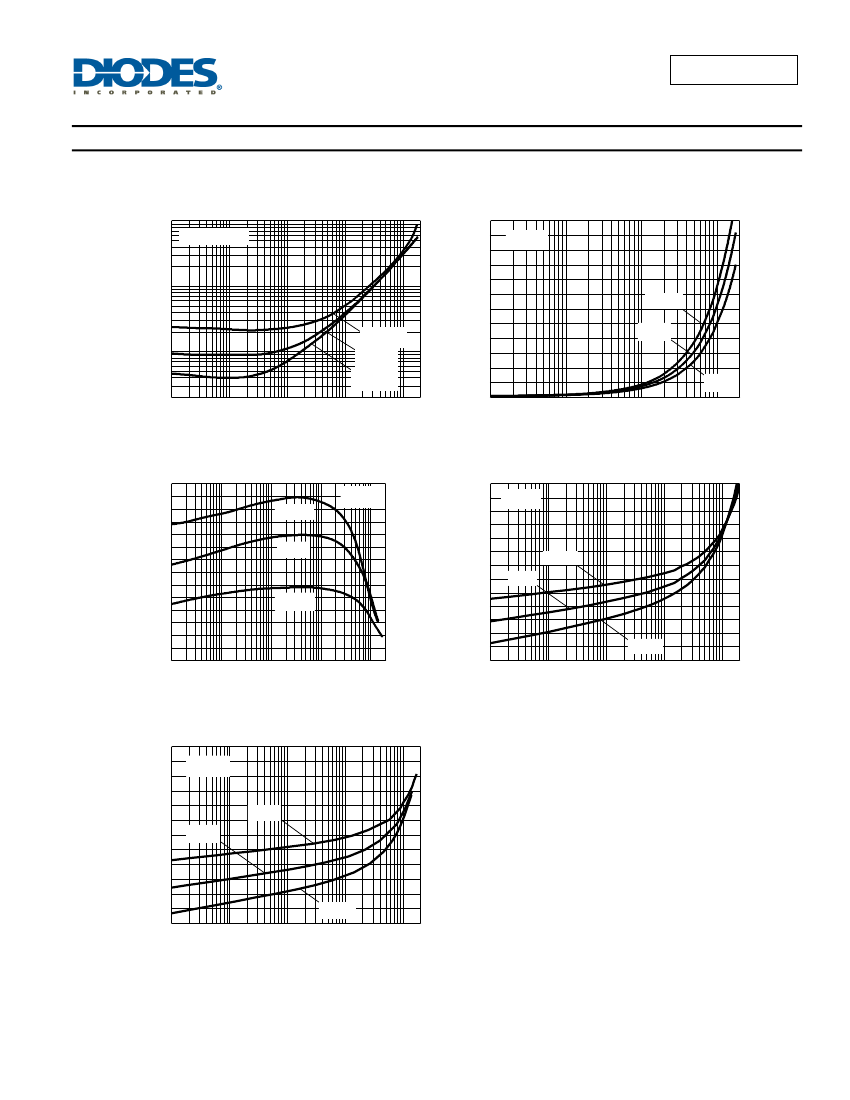

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
1
Tamb=25°C
0.6
0.5
I
C
/I
B
=10
V
CE(SAT)
(V)
V
CE(SAT)
(V)
100m
0.4
0.3
0.2
0.1
-55°C
100°C
25°C
10m
I
C
/I
B
=50
I
C
/I
B
=20
I
C
/I
B
=10
1m
10m
I
C
Collector Current (A)
100m
1
10
0.0
10m
I
C
Collector Current (A)
100m
1
10
V
CE(SAT)
v I
C
1.6
1.2
V
CE
=1V
225
100°C
I
C
/I
B
=10
V
CE(SAT)
v I
C
1.0
0.8
0.6
0.4
0.2
0.0
1m
10m
100m
1
10
-55°C
25°C
175
150
125
100
75
50
25
0
Typical Gain (h
FE
)
200
1.4
1.2
Normalised Gain
V
BE(SAT)
(V)
1.0
25°C
-55°C
0.8
0.6
0.4
1m
10m
100m
100°C
I
C
Collector Current (A)
I
C
Collector Current (A)
1
10
h
FE
v I
C
1.4
1.2
V
CE
=1V
V
BE(SAT)
v I
C
V
BE(ON)
(V)
1.0
25°C
-55°C
0.8
0.6
0.4
1m
10m
100m
100°C
I
C
Collector Current (A)
1
10
V
BE(ON)
v I
C
ZXTN2007G
Document number: DS33657 Rev. 3 - 2
5 of 7
www.diodes.com
December 2015
© Diodes Incorporated
