KSZ8895MQ/RQ/FMQ

Integrated 5-Port 10/100 Managed Ethernet

Switch with MII/RMII interface

Rev. 1.2

General Description

The KSZ8895MQ/RQ/FMQ is a highly-integrated Layer

2 managed five-port switch with optimized design and

plentiful features. It is designed for cost-sensitive

10/100Mbps five-port switch systems with lowest power

consumption, on-chip termination and internal core

power controller. These features will save more system

cost. It supports high-performance memory bandwidth,

shared memory based switch fabric with non-blocking

configuration. It also provides an extensive feature set

such as power management, programmable rate limit

and priority ratio, tag/port-based VLAN, packets filtering,

four queues QoS prioritization, management interfaces

and MIB counters. KSZ8895 family provides multiple

CPU data interfaces to effectively address both current

and emerging fast Ethernet applications when port 5 is

configured to separate MAC5 with SW5-MII/RMII and

PHY5 with P5-MII/RMII interfaces.

The configurations provided by the KSZ8895 family

enables the flexibility to meet different requirements:

•

KSZ8895MQ: Five 10/100Base-T/TX transceivers,

one SW5-MII and one P5-MII interface

KSZ8895RQ: Five 10/100Base-T/TX transceivers,

one SW5-RMII and one P5-RMII interface

KSZ8895FMQ: Three 10/100Base-T/TX transceiver

on Ports 1, 2, 5 and two 100Base-FX transceivers

on Ports 3, 4, one SW5-MII and one P5-MII

interface

All registers of MACs and PHYs units can be managed

by the SPI or the SMI interface. MIIM registers can be

accessed through the MDC/MDIO interface. EEPROM

can set all control registers for the unmanaged mode.

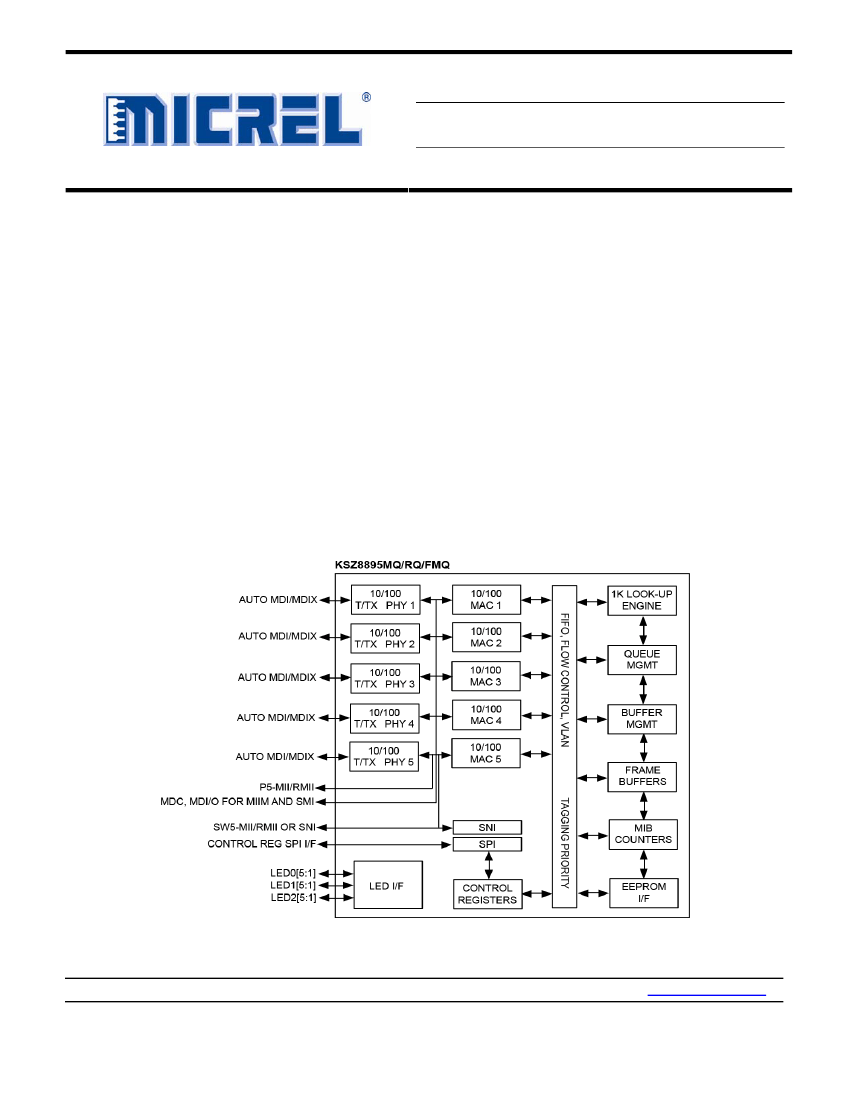

Functional Diagram

Note: SW5 indicates the MAC5 of the switch side, P5 indicates the PHY5 of the Port 5.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

January 2011

M9999-012011-1.2

Micrel, Inc.

KSZ8895MQ/RQ/FMQ

Contents

Pin Configuration ..........................................................................................................................................................13

Pin Description ..............................................................................................................................................................14

Pin for Strap-in Options................................................................................................................................................22

Introduction ...................................................................................................................................................................25

Functional Overview: Physical Layer Transceiver ....................................................................................................25

100BASE-TX Transmit ...............................................................................................................................................25

100BASE-TX Receive ................................................................................................................................................25

PLL Clock Synthesizer................................................................................................................................................26

Scrambler/De-Scrambler (100BASE-TX only)............................................................................................................26

100BASE-FX Operation..............................................................................................................................................26

100BASE-FX Signal Detection ...................................................................................................................................26

100BASE-FX far End fault ..........................................................................................................................................26

10BASE-T Transmit....................................................................................................................................................26

10BASE-T Receive .....................................................................................................................................................26

MDI/MDI-X Auto Crossover ........................................................................................................................................26

Straight Cable .........................................................................................................................................................27

Crossover Cable .....................................................................................................................................................28

Auto-Negotiation .........................................................................................................................................................28

On-chip Termination Resistors ...................................................................................................................................30

Internal 1.2V LDO Controller ......................................................................................................................................30

Functional Overview: Power Management .................................................................................................................30

Normal Operation Mode .............................................................................................................................................30

Energy Detect Mode ...................................................................................................................................................31

Soft Power Down Mode ..............................................................................................................................................31

Power Saving Mode....................................................................................................................................................31

Port based Power Down Mode ...................................................................................................................................31

Functional Overview: Switch Core ..............................................................................................................................31

Address Look-Up ........................................................................................................................................................31

Learning ......................................................................................................................................................................31

Migration .....................................................................................................................................................................32

Aging ...........................................................................................................................................................................32

Forwarding ..................................................................................................................................................................32

Switching Engine ........................................................................................................................................................32

Media Access Controller (MAC) Operation ................................................................................................................32

Inter-Packet Gap (IPG) ...........................................................................................................................................32

Backoff Algorithm....................................................................................................................................................32

Late Collision ..........................................................................................................................................................32

Illegal Frames .........................................................................................................................................................32

Flow Control............................................................................................................................................................33

Half-Duplex Back Pressure ....................................................................................................................................36

Broadcast Storm Protection....................................................................................................................................36

MII Interface Operation ...............................................................................................................................................37

January 2011

M9999-012011-1.2

Micrel, Inc.

KSZ8895MQ/RQ/FMQ

Port 5 PHY 5 P5-MII/RMII Interface............................................................................................................................37

Port 5 MAC 5 SW5-MII Interface for the KSZ8895MQ/FMQ ......................................................................................38

Port 5 MAC 5 Switch SW5-RMII Interface for the KSZ8895RQ .................................................................................39

SNI Interface Operation ..............................................................................................................................................41

Advanced Functionality................................................................................................................................................42

QoS Priority Support ...................................................................................................................................................42

Port-Based Priority..................................................................................................................................................42

802.1p-Based Priority .............................................................................................................................................42

DiffServ-Based Priority ...........................................................................................................................................43

Spanning Tree Support...............................................................................................................................................43

Rapid Spanning Tree Support ....................................................................................................................................44

Tail Tagging Mode ......................................................................................................................................................45

IGMP Support .............................................................................................................................................................46

Port Mirroring Support ................................................................................................................................................46

VLAN Support .............................................................................................................................................................46

Rate Limiting Support .................................................................................................................................................47

Ingress Rate Limit...................................................................................................................................................47

Egress Rate Limit ...................................................................................................................................................48

Transmit Queue Ratio Programming......................................................................................................................48

Filtering for Self-Address, Unknown Unicast/Multicast Address and Unknown VID Packet/IP Multicast ..................48

Configuration Interface ...............................................................................................................................................48

I C Master Serial Bus Configuration .......................................................................................................................48

SPI Slave Serial Bus Configuration ........................................................................................................................49

MII Management Interface (MIIM) ..........................................................................................................................52

Serial Management Interface (SMI)........................................................................................................................52

Register Description .....................................................................................................................................................54

Global Registers .........................................................................................................................................................56

Register 0 (0x00): Chip ID0 ....................................................................................................................................56

Register 1 (0x01): Chip ID1 / Start Switch..............................................................................................................56

Register 2 (0x02): Global Control 0 ........................................................................................................................56

Register 3 (0x03): Global Control 1 ........................................................................................................................57

Register 4 (0x04): Global Control 2 ........................................................................................................................58

Register 5 (0x05): Global Control 3 ........................................................................................................................59

Register 6 (0x07): Global Control 4 ........................................................................................................................60

Register 7 (0x07): Global Control 5 ........................................................................................................................60

Register 8 (0x08): Global Control 6 ........................................................................................................................60

Register 9 (0x09): Global Control 7 ........................................................................................................................61

Register 10 (0x0A): Global Control 8......................................................................................................................62

Register 11 (0x0B): Global Control 9......................................................................................................................62

Register 12 (0x0C): Global Control 10 ...................................................................................................................63

Register 13 (0x0D): Global Control 11 ...................................................................................................................63

Register 14 (0x0E): Power Down Management Control 1 .....................................................................................63

Error! Bookmark not defined.

Port Registers .............................................................................................................................................................65

January 2011

M9999-012011-1.2
