RNS1/8ECVTPA5051B datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RNS1/8ECVTPA5051B

RNS1/8ECVTPA5051B: DescriptionFixed Resistor, Metal Film, 0.125W, 5050ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size96KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

RNS1/8ECVTPA5051B Overview

Fixed Resistor, Metal Film, 0.125W, 5050ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

RNS1/8ECVTPA5051B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Tubular
JESD-609 code	e2
Lead diameter	0.6 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	165 °C
Minimum operating temperature	-55 °C
Package diameter	2.3 mm
Package length	6.35 mm
Package form	Axial
method of packing	Ammo Pack
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	5050 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	0.1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

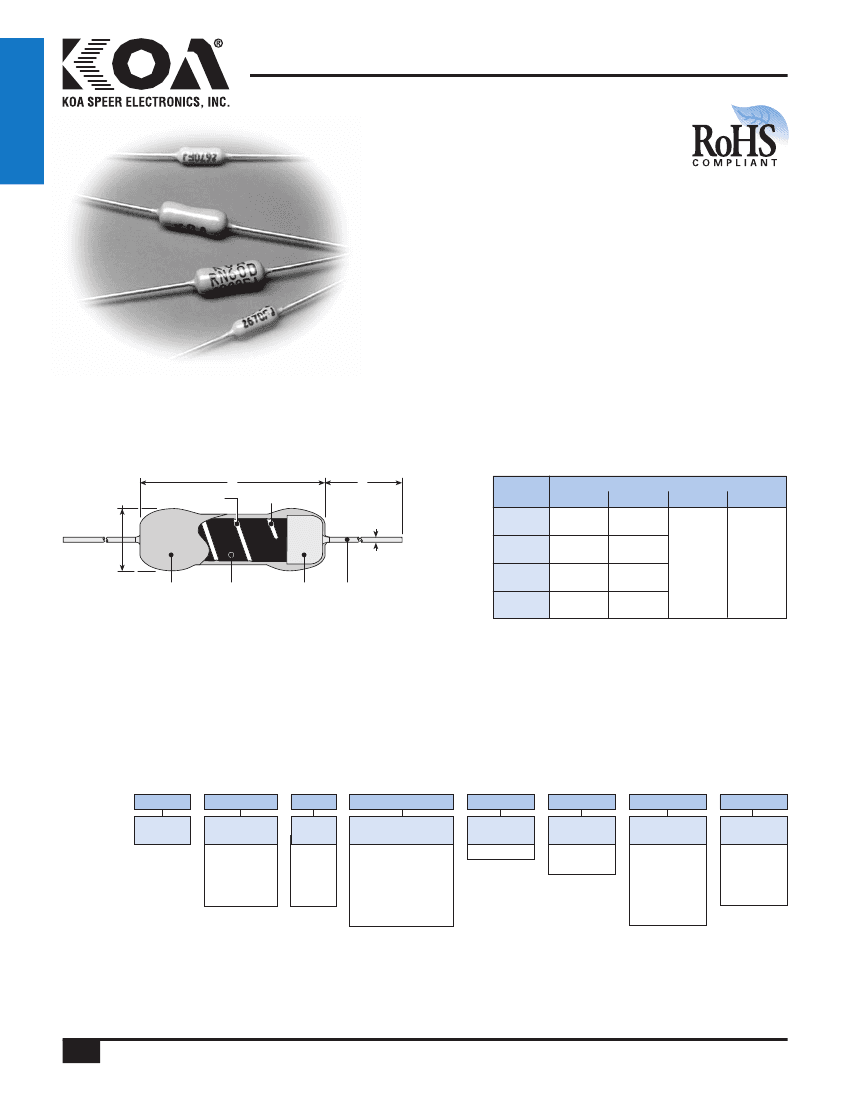

RNS

resistors

MIL approved metal film leaded resistor

features

•

MIL-R-10509 approved and listed on the QPL

•

Suitable for automatic machine insertion

•

Marking: Blue-gray body color with alpha-numeric black

marking per military requirements

•

Products with lead-free terminations meet

RoHS requirements. Pb located in glass material,

electrode and resistor element is exempt per Annex 1,

exemption 5 of EU directive 2005/95/EC

dimensions and construction

Trimming Line

Ceramic Core

Type

RNS1/8

RNS1/4

RNS1/2

Dimensions

inches

(mm)

L (ref.)

.250±.04 .095±.005

(6.35±1) (2.41±0.13)

.374±.04

(9.5±1)

.531±.04

(13.5±1)

.610±.04

(15.5±1)

.130±.02

(3.3±0.51)

.138

(3.5)

.216

(5.5)

.024

(0.6)

1.496

(38)

Insulation

Coating

Resistive

Film

End

Cap

Lead

Wire

RNS1

ordering information

New Part #

RNS

Type

1/8

Power

Rating

1/8: 0.125W

1/4: 0.25W

1/2: 0.5W

1: 1W

T.C.R.

Y: ±5

T: ±10

E: ±25

C: ±50

Termination

Material

C: SnCu

(Other termination

styles may be

available, please

contact factory

for options)

T52

Taping and

Forming

T26, T52

Packaging

A: Ammo

R: Reel

1001

Nominal

Resistance

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

Tolerance

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1.0%

For further information

on packaging, please refer

to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/19/07

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
