MP44X-5000SR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MP44X-5000SR

MP44X-5000SR: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

MP44X-5000SR Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Crimp Terminal, Plug, ROHS COMPLIANT

MP44X-5000SR Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (50)
Contact completed and terminated	GOLD FLASH (50)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MP
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

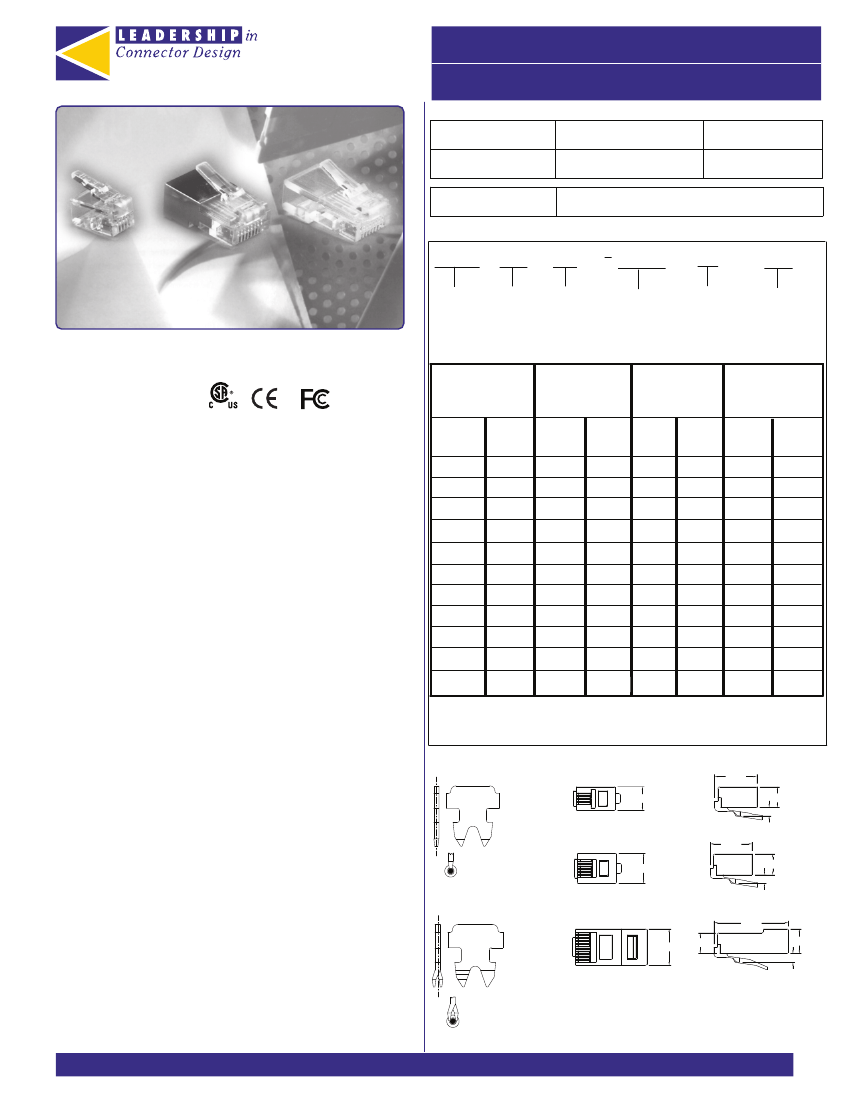

MODULAR JACKS AND PLUGS

KYCON

RoHS

MP Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Kycon Part #

Series

MP42X-1000

Part Number Builder

Number of Cable

Positions Jacket

1000

Plating

Option

Wire

Type

Other

Option

MP Series Modular Plugs

Features

• Licensed From AT&T

• To Mate with W.E. Co. and FCC 68 Jacks

• All Pins From High Strength Copper Alloy JIS C5191R-H

• Available For Flat or Round Cable with Stranded or Solid Wires

• Shielded Version Available

• UL Recognized File No. E134345

• CSA/NRTL Certified File No. LR78160

LR78160

Series

MP - Unshielded Modular Telephone Plug

Gold Flash

1000

5000

50u Gold Flash

Stranded wire

Blank

Flat

Cable

Stranded wire

Gold Flash

Solid Wire

1000S

50u Gold Flash

Solid Wire

Round

Cable

5000S

Blank

Round

Flat

Round Flat

Flat

Round

Cable Cable Cable Cable

Cable

88A*

Performance Specifications

Materials and Finish

Housing Material

Polycarbonate, UL 94V-2 Rated

Contact Material

High Strength Copper Alloy JIS C5191R-H

88A*

88K*

88K

1010

88A*

88K*

88K

1010

1010*

1010K*

88A*

88K*

88K

88K*

88K

1010

1010 1010 1010 1010

1010 1010 1010

1010*

1010K*

1010 1010

1010

Electrical Characteristics

Insulation Resistance

500 Megohms Min

Dielectric Withstanding Voltage

1000V AC for 1 Minute

Contact Resistance

20 Milliohms Max

Current Rating

1.5 Amps

Recommended Wire Gauge

26-28 Awg.

A* - Shifted Crimp Location

K* - Keyed

Stranded wire

(standard)

4 Position Plug

7.6

0.05

13.34

6.6

2.77

0.1

6 Position Plug

9.6±0.05

13.34

6.6

Solid wire

(S option)

8-10 Position Plug

(Keyed Available)

11.65

±0.05

6.60

2.77

±0.1

23.60

7.92

Dimensions in mm

2.77

0.1

2007

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
