Datasheet> All Categories > Passive components> Crystal/resonator> CX3225GBFREQ4B0HEQZ1

Preview

CX3225GBFREQ4B0HEQZ1: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Min, 19.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size81KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

CX3225GBFREQ4B0HEQZ1 Overview

Parallel - Fundamental Quartz Crystal, 16MHz Min, 19.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX3225GBFREQ4B0HEQZ1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	6 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	19.999 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

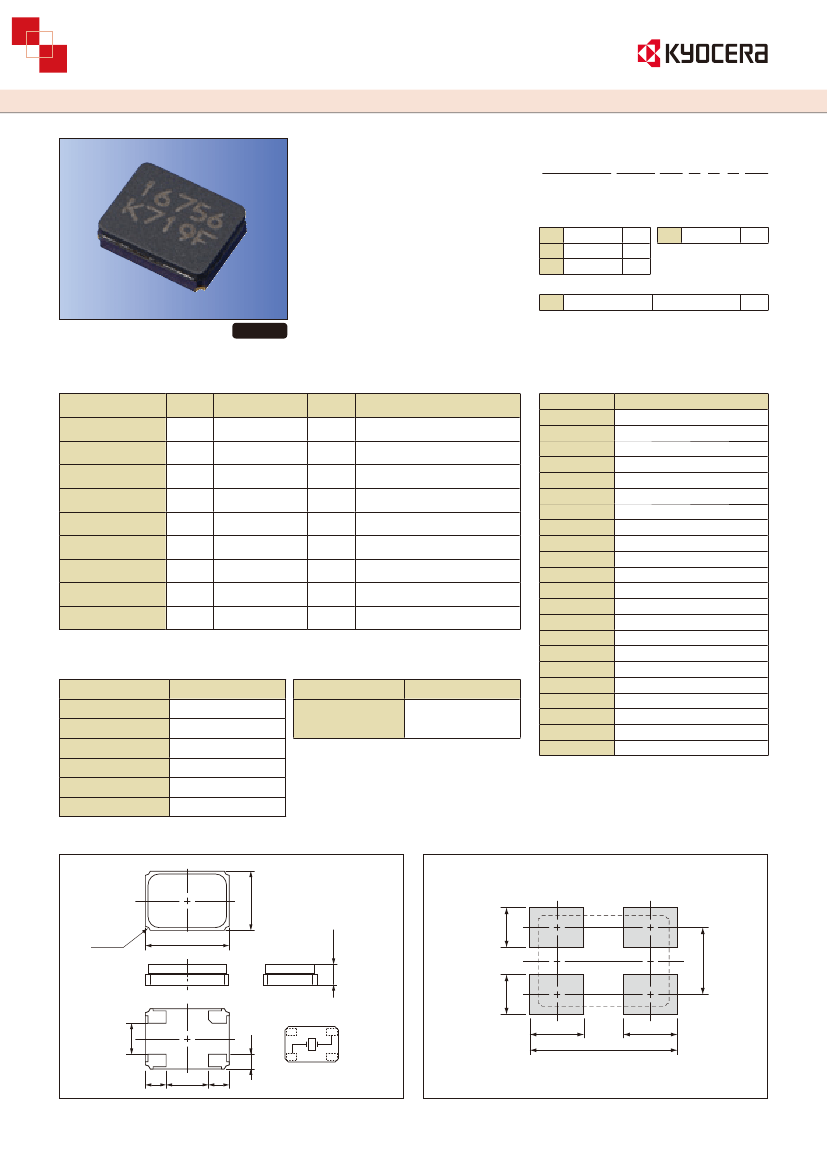

Surface Mount Type CX3225GB

3.2×2.5mm for Consumer Products

Features

• Crystal unit for Consumer Products

• Small and low profile 0.9mm max.

(3.2×2.5×0.8mm)

• Ceramic package

• Product with lead free terminations

• Reflow compatible

How to Order

CX3225GB 27000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

②

Frequency

④

Frequency Stability

H

±20×10

−

6

Std.

①

Series

③

Load Capacitance

B0

D0

F0

EQ

6 pF

8 pF

10 pF

—

Std.

—

Applications

• Digital Electronics

• Consumer Products

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−10

to

+70°C

±30×10

−

6

Std.

RoHS Compliant

⑦

Individual Specification

Packaging (Tape & Reel 3000/ 1000 pcs./ reel)

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

f

_nom

OT

CL

f

_tol

R1

DL

T

_use

T

_stg

f

_tem

Specification

9800 to 54000

Fundamental

8

±20

Table 1

Table 2

−10

to

+70

−40

to

+85

±30

Units

kHz

―

pF

×10

−

6

ohm

μW

°C

×10

−

6

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

10000.000

12000.000

13560.000

14318.180

14745.600

16000.000

18432.000

19200.000

20000.000

22579.200

24000.000

24576.000

25000.000

27000.000

27120.000

30000.000

32000.000

33333.000

38400.000

40000.000

48000.000

54000.000

Part Number

CX3225GB10000D0HEQZ1

CX3225GB12000D0HEQZ1

CX3225GB13560D0HEQZ1

CX3225GB14318D0HEQZ1

CX3225GB14745D0HEQZ1

CX3225GB16000D0HEQZ1

CX3225GB18432D0HEQZ1

CX3225GB19200D0HEQZ1

CX3225GB20000D0HEQZ1

CX3225GB22579D0HEQZ1

CX3225GB24000D0HEQZ1

CX3225GB24576D0HEQZ1

CX3225GB25000D0HEQZ1

CX3225GB27000D0HEQZ1

CX3225GB27120D0HEQZ1

CX3225GB30000D0HEQZ1

CX3225GB32000D0HEQZ1

CX3225GB33333D0HEQZ1

CX3225GB38400D0HEQZ1

CX3225GB40000D0HEQZ1

CX3225GB48000D0HEQZ1

CX3225GB54000D0HEQZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance Table2 Level of Drive

Frequency Range

9800 to 11999kHz

12000 to 13999kHz

14000 to 15999kHz

16000 to 19999kHz

20000 to 26999kHz

27000 to 54000kHz

Motional Series Resistance

300Ω max.

250Ω max.

100Ω max.

80Ω max.

60Ω max.

50Ω max.

(Unit: mm)

Frequency Range

9800 to 54000kHz

Level of Drive

10μW (100μW max.)

Dimensions

Recommended Land Pattern

(Unit: mm)

1.05

1.3

3.6

1.3

1.85

CX3225GBFREQ4B0HEQZ1 Related Products

	CX3225GBFREQ4B0HEQZ1	CX3225GBFREQ5B0HEQZ1
Description	Parallel - Fundamental Quartz Crystal, 16MHz Min, 19.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4	Parallel - Fundamental Quartz Crystal, 20MHz Min, 26.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Kyocera	Kyocera
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW
frequency stability	0.003%	0.003%
frequency tolerance	20 ppm	20 ppm
load capacitance	6 pF	6 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	19.999 MHz	26.999 MHz
Minimum operating frequency	16 MHz	20 MHz
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
physical size	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Series resistance	80 Ω	60 Ω
surface mount	YES	YES
