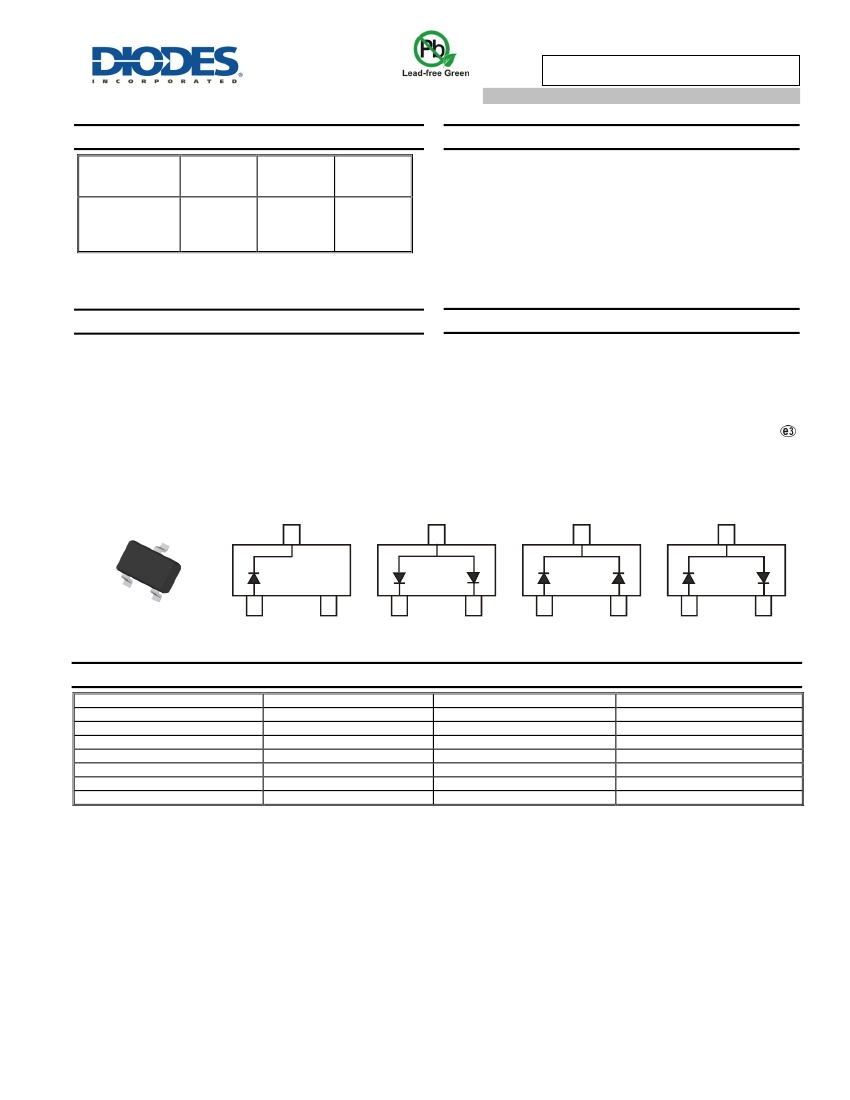

BAT54WQ /AWQ /CWQ /SWQ
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
(@ +25°
C)
V
R
(V)
I
F
(mA)
V
F
Max
(mV)
@ 1mA
320
I
R
Max (µA)
@ 25V
Features and Benefits
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free Finish & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
30
200
2
Applications
SMPS
DC-DC Converter
Freewheeling Diodes
Reverse Polarity Protection
Blocking Diodes
Mechanical Data
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagrams Below
Weight: 0.006 grams (Approximate)
SOT323
Top View
BAT54WQ
BAT54AWQ
BAT54CWQ
BAT54SWQ
Ordering Information
(Note 5)
Part Number
BAT54WQ-7-F
BAT54WQ-13-F
BAT54AWQ-7-F
BAT54AWQ-13-F
BAT54CWQ-7-F
BAT54SWQ-7-F
BAT54SWQ-13-F
Notes:
Compliance
Automotive
Automotive
Automotive
Automotive
Automotive
Automotive
Automotive
Case
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Please refer to https://www.diodes.com/quality/product-compliance-definitions/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
BAT54WQ /AWQ /CWQ /SWQ
Document number: DS38604 Rev. 4 - 2
1 of 5
www.diodes.com
January 2018
© Diodes Incorporated
BAT54WQ /AWQ /CWQ /SWQ
Marking Information
xxx = Product Type Marking Code
KL5 = BAT54W
KL6 = BAT54AW
KL7 = BAT54CW
KL8 = BAT54SW
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
2016
D
Jun
6
2017
E
2018
F
Jul
7
2019
G
Aug
8
2020
H
Sep
9
2021
I
Oct
O
2022
J
2023
K
Nov
N
2024
L
Dec
D
xxx
Date Code Key
Year
2010
Code
X
Month
Code
Jan
1
2011
Y
Feb
2
2012
Z
2013
A
Mar
3
2014
B
Apr
4
YM
2015
C
May
5
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 6)
Repetitive Peak Forward Current (Note 6)
Forward Surge Current (Note 6)
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
I
F
I
FRM
I
FSM
Value
30
200
300
600
Unit
V
mA
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
200
625
-65 to +125
Unit
mW
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Breakdown Voltage (Note 7)
Symbol
V
(BR)R
Min
30
Typ
Max
240
320
400
500
1,000
2.0
10
5.0
Unit
V
Test Condition
I
R
= 100µA
I
F
= 0.1mA
I
F
= 1mA
I
F
= 10mA
I
F
= 30mA
I
F
= 100mA
V
R
= 25V
V
R
= 1.0V, f = 1.0MHz
I
F
= 10mA through I
R
= 10mA
to I
R
= 1.0mA, R
L
= 100Ω
Forward Voltage
V
F
mV
Reverse Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
RR
μA
pF
ns
6. Mounted on FR-4 PC board with recommended pad layout which can be found on our website at http://www.diodes.com/package-outlines.html.
7. Short duration pulse test used to minimize self-heating effect.
BAT54WQ /AWQ /CWQ /SWQ
Document number: DS38604 Rev. 4 - 2
2 of 5
www.diodes.com
January 2018
© Diodes Incorporated
BAT54WQ /AWQ /CWQ /SWQ
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
100
10
0.1
1
0.01
0.1
0.001
0.01
0.0001
0.001
0.4
0.2
0.8
1.0
0
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

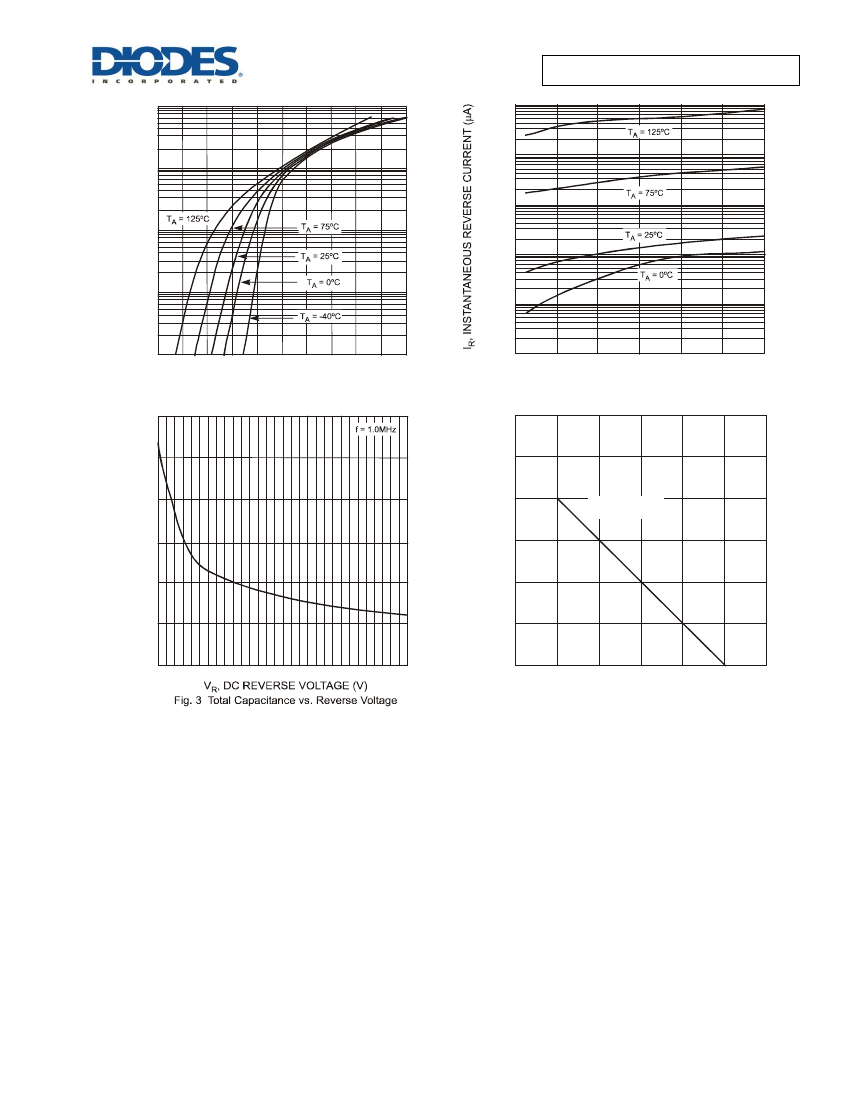

Fig. 1 Typical Forward Characteristics
0
5
10
15
20
30
25
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
12
300
10
C
T
, TOTAL CAPACITANCE (pF)
P
D
, POWER DISSIPATION (mW)
250
8
200
Note 6
6
150
4
100
2
50
0
0
5
10
15
20
25
30
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°
C)
Fig. 4 Power Derating Curve
150
BAT54WQ /AWQ /CWQ /SWQ
Document number: DS38604 Rev. 4 - 2
3 of 5
www.diodes.com
January 2018
© Diodes Incorporated
BAT54WQ /AWQ /CWQ /SWQ

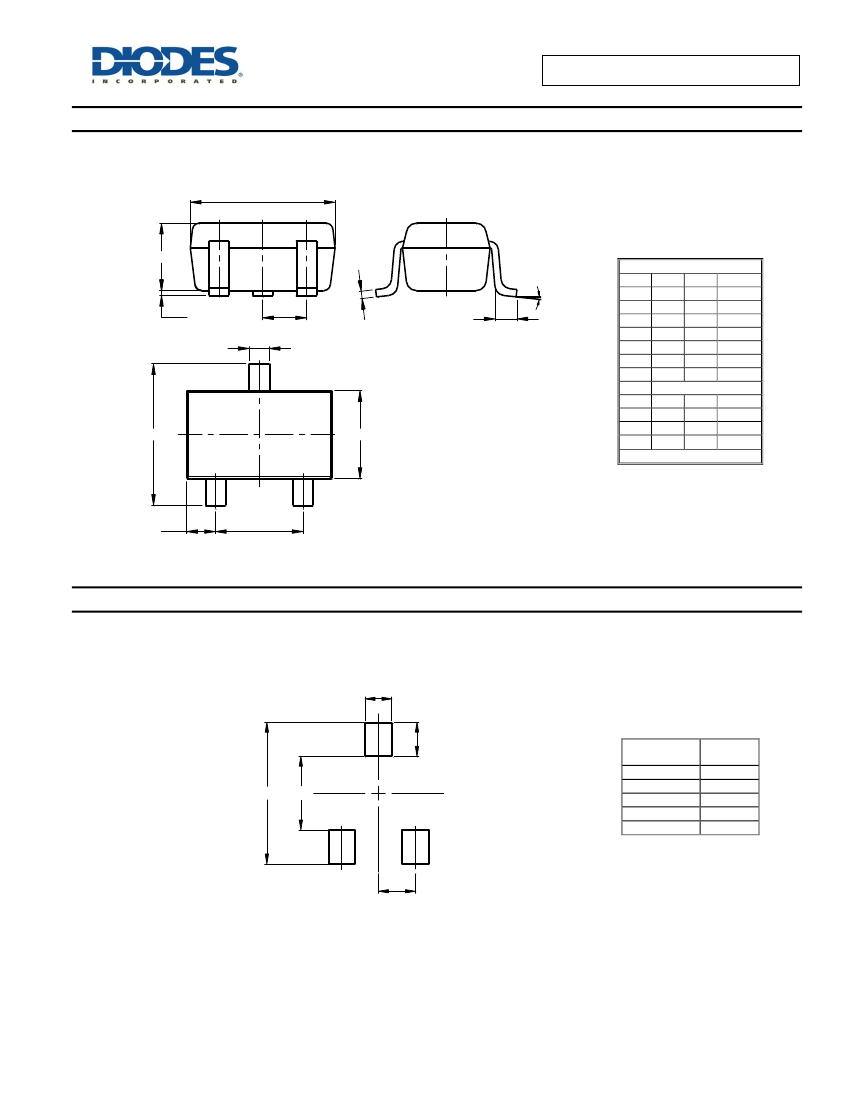

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT323
D
A2
c
A1
b
e
L
a
E
E1
SOT323
Dim Min Max
Typ
A1
0.00 0.10
0.05
A2
0.90 1.00
0.95
b
0.25 0.40
0.30
c
0.10 0.18
0.11
D
1.80 2.20
2.15
E
2.00 2.20
2.10
E1
1.15 1.35
1.30
e
0.650 BSC
e1
1.20 1.40
1.30
F
0.375 0.475 0.425
L
0.25 0.40
0.30
a
0°
8°
--
All Dimensions in mm
F
e1
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT323
X
Y
Dimensions
Y1
G
C
G
X
Y
Y1
Value
(in mm)
0.650
1.300
0.470
0.600
2.500
C
BAT54WQ /AWQ /CWQ /SWQ
Document number: DS38604 Rev. 4 - 2
4 of 5
www.diodes.com
January 2018
© Diodes Incorporated
BAT54WQ /AWQ /CWQ /SWQ
