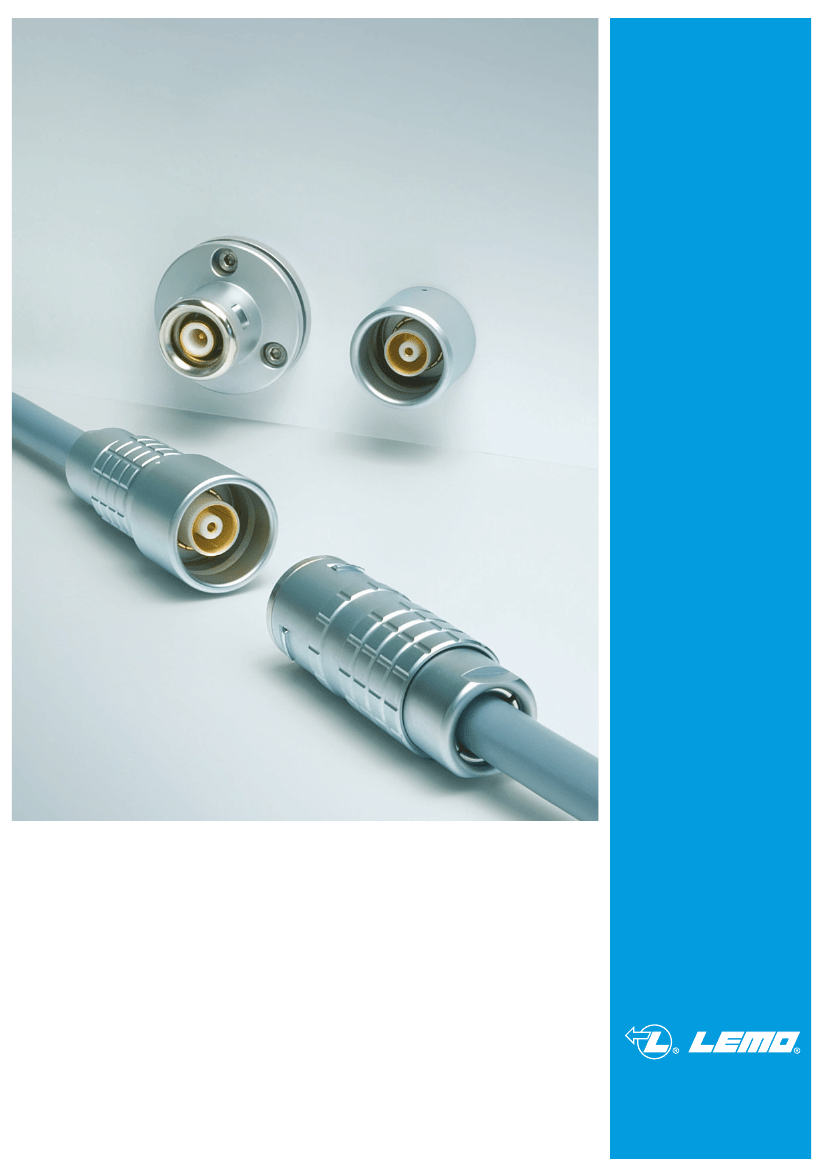

TRIAXIAL CONNECTORS
FOR BROADCASTING
EUROPEAN STANDARD
4E SERIES
4E Series (75
Ω)
for TV camera applications
Designed for harsh environments, the 4E
Series connector guarantees a protection
index of IP66. The 4E Series has blind
mating possibility.
The rugged metallic outer shell provides
superior protection against rough working
conditions as well as outstanding EMC
protection.
Technical Characteristics
Characteristics
Impedance
Operating frequency
VSWR (f= GHz)
Contact resistance
Contact resistance internal screen
Watertightness (mated connectors)
Test voltage
Triax
Standard
Recommended cables
Reference
Belden
Belden
Belden
Belden
Dätwyler
NEK
NEK
NOKIA
NOKIA
NOKIA
8232A
8233A
9192-9232
9267
HF-2426
63990
23860
Triax 8
Triax 11
Triax 14
Basic coaxial cable
RG.59/U
RG.11/U
RG.11/U
RG.59/U
RG.59/U
Cable
groupe
3
7
9
4
3
6
4
4
6
0
75
Ω
–
1.2 GHz
–
1.01 + 0.14 f IEC 60169-1-1
<3m
Ω
IEC 60512-2
<1m
Ω
–
IP66
IEC 60529
1.5 kV AC
IEC 60512-2
FFA
71
50.5
Straight plug with cable collet
Part Number
Cable
groupe
3
4
4
6
9
0
Cable ø
Max
8.0
8.5
9.0
12.0
13.5
15.0
Min
7.6
8.1
8.6
10.6
12.9
14.1
S 19
FFA.4E.675.CTAC80
FFA.4E.675.CTAC85
FFA.4E.675.CTAC90
FFA.4E.675.CTAC11
FFA.4E.675.CTAC13
FFA.4E.675.CTAC15
ø 25
FFA
71
50.5
Straight plug, cable collet
and nut for fitting a bend relief
Part Number
Cable
groupe
3
4
4
6
9
0
Cable ø
Max
8.0
8.5
9.0
12.0
13.5
15.0
Min
7.6
8.1
8.6
10.6
12.9
14.1
ø 25
S 19
Note:
The bend relief must be ordered separately.
FFA.4E.675.CTAC80Z
FFA.4E.675.CTAC85Z
FFA.4E.675.CTAC90Z
FFA.4E.675.CTAC11Z
FFA.4E.675.CTAC13Z
FFA.4E.675.CTAC15Z
61
31
FBE
Fixed plug with round flange and tag,
nut fixing
Part Number
Weight
(g)
230
M25 x 1
ø 35
FBE.4E.675.CTA
13 maxi
FBD
Fixed plug with round flange, screw fixing
~61.5
~33.5
Part Number
ø 27.5
ø 45.8
Weight
(g)
230
FBD.4E.675.CTA
ø8
FBH
Fixed plug with round flange, nut fixing,
with cable collet
~72
31
Part Number
M25 x 1
ø 35
Cable
groupe
3
4
6
9
0
Cable ø
Max
8.0
9.0
12.0
13.5
15.0
Min
7.6
8.6
10.6
12.9
14.1
S 19
13 maxi
FBH.4E.675.CTAC80
FBH.4E.675.CTAC90
FBH.4E.675.CTAC11
FBH.4E.675.CTAC13
FBH.4E.675.CTAC15
Note:
all dimensions are in millimetres.
39
S 36
6.5
ERN
Fixed socket with tag, nut fixing
and visible shell
Part Number
ERN.4E.675.CTL
Weight
(g)
100
M 30 x 1
41.5
10 maxi
S 28.5
ø 37
EHN
Fixed socket, nut fixing and visible shell
39
S 24
24
M 20 x 1
Part Number
ø 30
27.5
Weight
(g)
80
EHN.4E.675.CTL
S 19.3
4 maxi
PCA
Free socket with cable collet
75.5
Part Number
ø 25
ø 29
Cable
groupe
3
4
6
7
9
0
Cable ø
Max
8.0
9.0
12.0
12.8
13.5
15.0
Min
7.6
8.6
10.6
12.1
12.9
14.1
S 19
PCA.4E.675.CTLC80
PCA.4E.675.CTLC90
PCA.4E.675.CTLC11
PCA.4E.675.CTLC12
PCA.4E.675.CTLC13
PCA.4E.675.CTLC15
Note:
This model is also available with a nut for fitting a bend relief, add a «Z» at
the end of the part number. The bend relief must be ordered separately.
75.5
S 36
6.5
PSA
Fixed socket with cable collet,
nut fixing
Part Number
Cable
groupe
3
4
6
7
9
0
Cable ø
Max
8.0
9.0
12.0
12.8
13.5
15.0
Min
7.6
8.6
10.6
12.1
12.9
14.1
M30 x 1
ø 40.5
ø 37
S 19
9 maxi
S 28.5
Note:
This model is also available with a nut for fitting a bend relief, add a «Z» at
the end of the part number. The bend relief must be ordered separately.
PSA.4E.675.CTLC80
PSA.4E.675.CTLC90
PSA.4E.675.CTLC11
PSA.4E.675.CTLC12
PSA.4E.675.CTLC13
PSA.4E.675.CTLC15
RMA
Free coupler
57
ø
30
Part Number
RMA.4E.675.CTM
Weight
(g)
150
43.5
S 24
24
AZA
Adapter, nut fixing, consisting of a LEMO
socket and a triax SMZ socket
ø 30
M 20 x 1
Part Number
AZA.4E.675.CTL
Weight
(g)
83
4 maxi
S 19.3
AZF
64
S 22
44.5
Adapter, consisting of a LEMO plug
with round flange, screw fixing
and a triax SMZ socket
Part Number
Weight
(g)
224
ø 45
27.5
ø8
AZF.4E.675.CTA
Note:
all dimensions are in millimetres.
Accessories
BFA
10
22.5
Plug cap
Part Number
BFA.4E.100.NAS
Weight
(g)
37
120
ø
29
sliding loop
Note:
Body material: Nickel-plated brass (Ni 3µm)
Lanyard material: Stainless steel
Watertightness: IP68 according to IEC 60529
BRE
Blanking caps for fixed and free sockets
20
10
ø
30
Part Number
120
Weight
(g)
51
BRE.4K.200.NAS
30.5
ø 3.2
Note:
Body material: Nickel-plated brass (Ni 3µm)
Lanyard material: Stainless steel
Watertightness: IP68 according to IEC 60529
GMA
Bend relief for FFA, PCA and PSA models
with nut for fitting a bend relief
Part Number
GMA.4B.080.DG
GMA.4B.010.DG
GMA.4B.011.DG
GMA.4B.012.DG
GMA.4B.013.DG
Ref.
A
B
G
Note:
Material: Polyurethane elastomer
Temperature range in dry atmosphere: -40°C +80°C
Colour
blue
white
grey
Dimensions (mm)
Bend relief
Cable ø
A
L
max. min.
8.0
10.0
11.0
12.0
13.5
Ref.
J
M
N
60
60
60
60
60
9.0
10.9
11.9
13.0
14.5
8.0
10.0
11.0
12.0
13.5
Ref.
R
S
V
Colour
red
orange
green
ø
A
L
Colour
yellow
brown
black
Note:
The last letter «G» of the part number indicates the colour grey of the
bend relief. For others colour, refer to the above table and replace letter «G» by
the letter of the colour required.
Cable stripping lengths
18
5.5
Panel cut-outs
FBE, FBH
ø 27.6
+ 0.1
0
AZF
ø 27.6
120°
+ 0.1
0
FBD
ERN, PSA
AZA, EHN
+ 0.1
0
30.1
6.5
6
+ 0.1
0
25.1
ø 39
M4
ø 35
M4
28.6
+ 0.1
0
20.1
+ 0.1
0
120°
19.4
+ 0.1
0
Note:
all dimensions are in millimetres.
LEMO
HEADQUARTERS
SWITZERLAND
LEMO SA
Chemin des Champs-Courbes 28 - P.O. Box 194 - CH-1024 Ecublens
Tel. (+41 21) 695 16 00 - Fax (+41 21) 695 16 02 - e-mail: info@lemo.com
www.lemo.com
CAT.4E.LEN.P0306
CHF 1.50 / EURO 1 / USD 1.1 / RMB 10
Data subject to change, printed in Switzerland, March 2006
