SGBJ50-08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Three-phase rectifier bridge> SGBJ50-08

SGBJ50-08: DescriptionThree-phase rectifier bridge, 800V, 50V, 500A, 1.1V, 25A, 5uA; CategoryAnalog mixed-signal IC Three-phase rectifier bridge; File Size750KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

SGBJ50-08 Overview

Three-phase rectifier bridge, 800V, 50V, 500A, 1.1V, 25A, 5uA

SGBJ50-08 Parametric

Parameter Name	Attribute value
Package	SGBJ
Maximum recurrent peak reverse voltage	800
IAV(V)	50
Peak forward surge current	500
Maximum instantaneous forward voltage	1.1
Maximum average forward rectified current	25
Maximum reverse current	5
TJ(℃）	-55-150

Preview

Download Datasheet

View All

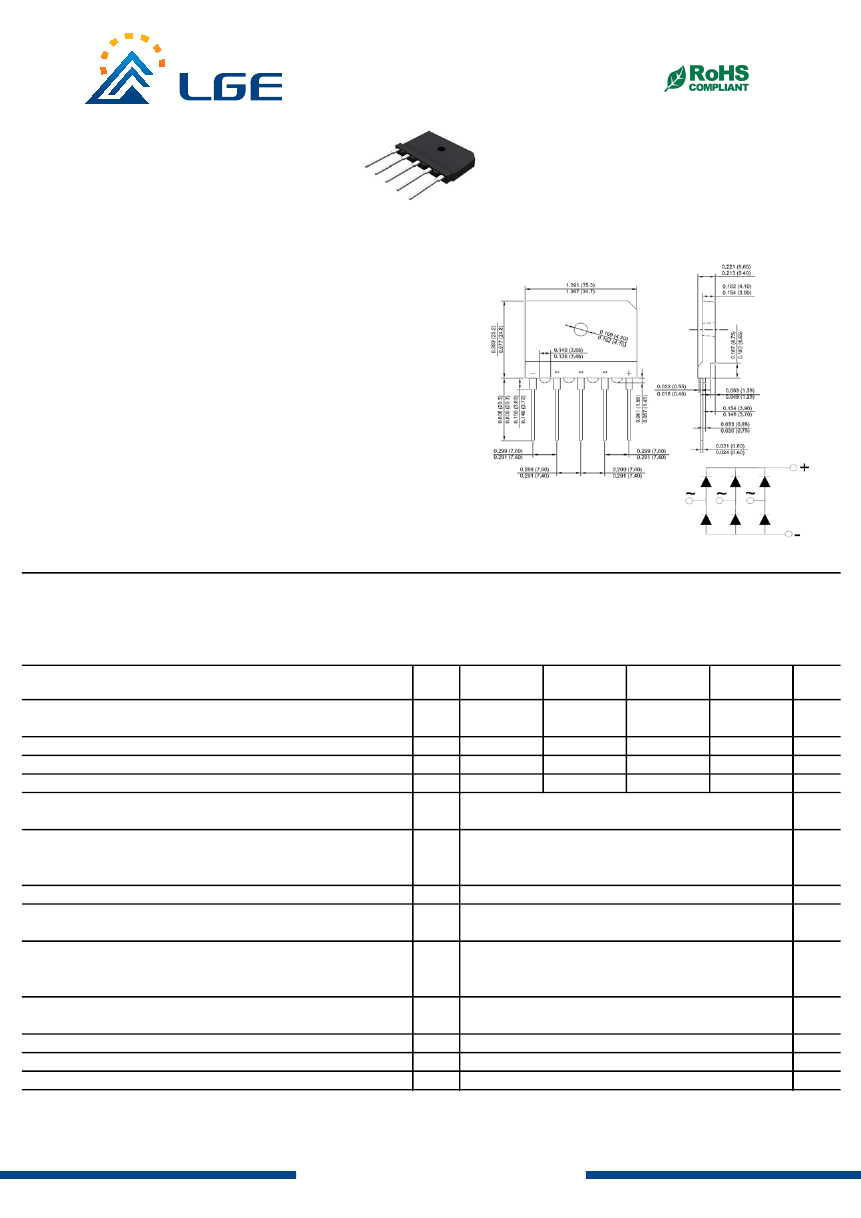

SGBJ50 SERIES

Glass Passivated 3 Phase Bridge Rectifiers

Features

●

Low

Reverse Voltage - 800 to 1600Volts

Forward Current - 50 Amperes

forward voltage drop

●

High current capability

●

High reliability

SGBJ

Mechanical Data

●

Case:

Epoxy case with heat sink

●

Polarity:

Symbol marked on body

●

Mounting position:

●

Bolt pass through the mounting hole of body

then fixto heat sink

Mounting torque (M4)

: 0.8 N.m

●

Maximum

Applications

应用

●

For

use in high power supply inverters,servo

motor and welding machine applications

Package Outline Dimensions in Inches (Millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25℃ ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristics

Maximum Repetitive Peak Reverse

Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Peak Non-Repetitive Reverse Voltage

Maximum Average Forward Rectified Current @T

=110

℃

Peak Forward Surge Current, 8.3mS Single Half Sine-Wave,

Superimposed on Rated Load (JEDEC Method)

t Rating for Fusing (t<8.3mS)

Peak Forward Voltage per Diode at 25A

Maximum DC Reverse Current at Rated @T

=25℃

DC Blocking Voltage per Diode @T

=150℃

Typical Thermal Resistance to

Case

RMS lsolation Voltage from Case to Lead

Operating Junction Temperature Range

Storage Temperature Range

Notes: 1. Surface roughness of Heat sink

＜0.05mm

2. The typical data above is for reference only

Symbol

SGBJ50

-08

RRM

RMS

RSM

(AV)

800

560

800

900

SGBJ50

-10

1000

700

1000

1100

SGBJ50

-12

1200

840

1200

1300

SGBJ50

-16

1600

1120

1600

1700

Unit

FSM

500

1037.5

1.1

A S

μA

℃/W

℃

0.8

2500

-55 to +150

-55 to +125

θJC

ISO

STG

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com

SGBJ50-08 Related Products

	SGBJ50-08	SGBJ50-10	SGBJ50-12	SGBJ50-16
Description	Three-phase rectifier bridge, 800V, 50V, 500A, 1.1V, 25A, 5uA	Three-phase rectifier bridge, 1000V, 50V, 500A, 1.1V, 25A, 5uA	Three-phase rectifier bridge, 1200V, 50V, 500A, 1.1V, 25A, 5uA	Three-phase rectifier bridge, 1600V, 50V, 500A, 1.1V, 25A, 5uA
Package	SGBJ	SGBJ	SGBJ	SGBJ
Maximum recurrent peak reverse voltage	800	1000	1200	1600
IAV(V)	50	50	50	50
Peak forward surge current	500	500	500	500
Maximum instantaneous forward voltage	1.1	1.1	1.1	1.1
Maximum average forward rectified current	25	25	25	25
Maximum reverse current	5	5	5	5
TJ(℃）	-55-150	-55-150	-55-150	-55-150
