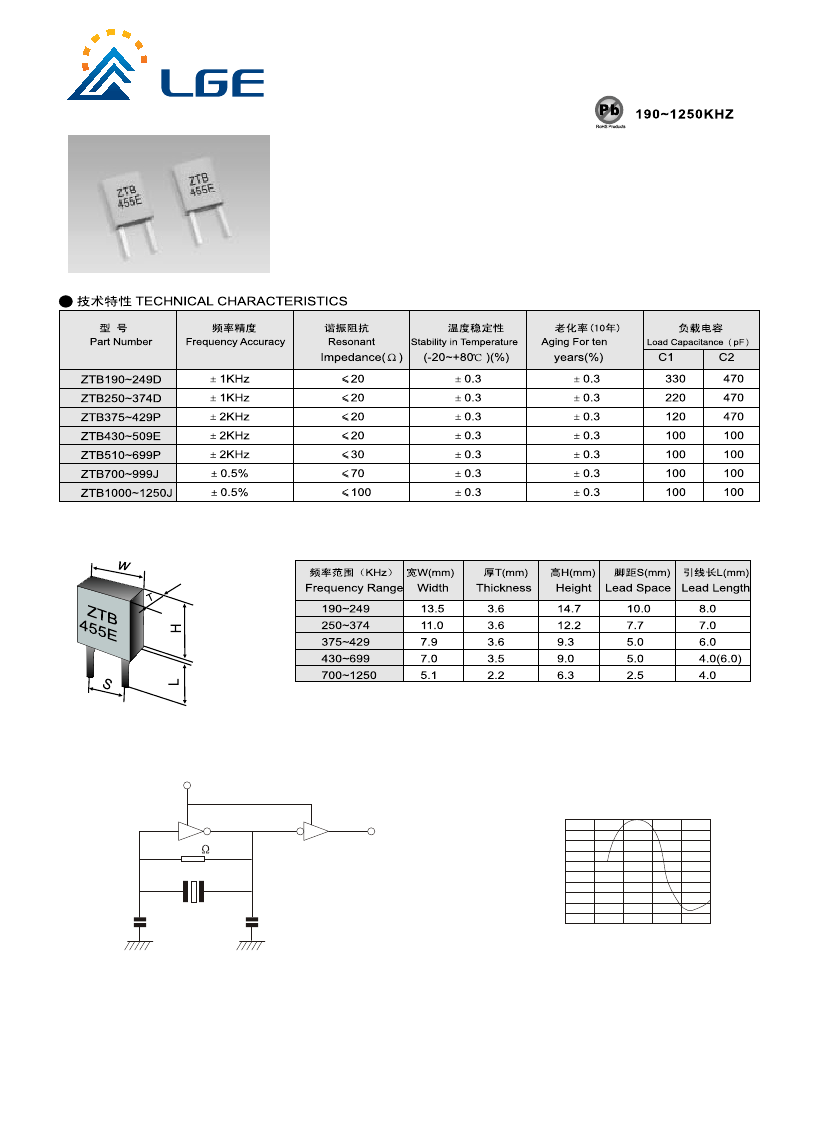

ZTB SERIES OF CERAMIC RESONATOR

The ZTB series ceramic resonator is the miniature

low profile frequency control products

of low frequency from 190KHz to 1250KHz.

It is of very competitive price than quartz crystal

parts and of high stability that make it substitute

the quartz crystal when need lower

price.

FEATURES

Low Cost

Plastic package

Low Freuqency

High Stability

Low Profile

Small Compact Size

Mechanical Dimensions(mm)

Test Circuit For MOS IC

V

DD

ZTB455E

IC

1m

IC

0

Output

(DB)

Attenuation

10

20

30

40

50

425

435

445

455

C1

X

C2

X: Ceramic Resonator

V

DD

(MG MX):+5V;

IC(MG MT):1/6TC4069UBPx2

(MX) :1/6TC7HCU04x2

Frequency(KHz)

ZTB700~999J Related Products

	ZTB700~999J	SM42-18-3.0M-50J1JH	1206CG223C6R3NT	ZTB510~699P	ZTB190~249D	ZTB250~374D	ZTB375~429P
Description	Piezoelectric ceramic resonator, ±0.5%mm, ≤70MHz, ±0.3%, ±0.3%, 100%	Parallel - Fundamental Quartz Crystal, 3MHz Nom, SMD, 2 PIN	Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 0.0011% +Tol, 0.0011% -Tol, C0G, -/+30ppm/Cel TC, 0.022uF, 1206,	Piezoelectric ceramic resonator, ±2KHzmm, ≤30MHz, ±0.3%, ±0.3%, 100%	Piezoelectric ceramic resonator, ±1KHzmm, ≤20MHz, ±0.3%, ±0.3%, 330%	Piezoelectric ceramic resonator, ±1KHzmm, ≤20MHz, ±0.3%, ±0.3%, 220%	Piezoelectric ceramic resonator, ±2KHzmm, ≤20MHz, ±0.3%, ±0.3%, 120%
Dimensions(mm)	±0.5%	-	-	±2KHz	±1KHz	±1KHz	±2KHz
Frequency Range(MHz)	≤70	-	-	≤30	≤20	≤20	≤20
Frequency Accuracy(%)	±0.3	-	-	±0.3	±0.3	±0.3	±0.3
Stability in Temperature(%)	±0.3	-	-	±0.3	±0.3	±0.3	±0.3
Aging For Ten Years(%)	100	-	-	100	330	220	120
