RL32SJ271 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RL32SJ271

RL32SJ271: DescriptionRESISTOR, METAL FILM, 1W, 5%, 200ppm, 270ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size194KB，2 Pages; ManufacturerHokuriku; Websitehttp://www.hdk.co.jp/english/index_e.htm

Download Datasheet Parametric View All

RL32SJ271 Overview

RESISTOR, METAL FILM, 1W, 5%, 200ppm, 270ohm, THROUGH HOLE MOUNT, AXIAL LEADED

RL32SJ271 Parametric

Parameter Name	Attribute value
package instruction	AXIAL LEADED
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	RL
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Rated power dissipation(P)	1 W
Rated temperature	70 °C
Guideline	MIL-R-22684
resistance	270 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	200 ppm/°C
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	500 V
Base Number Matches	1

Preview

Download Datasheet

View All

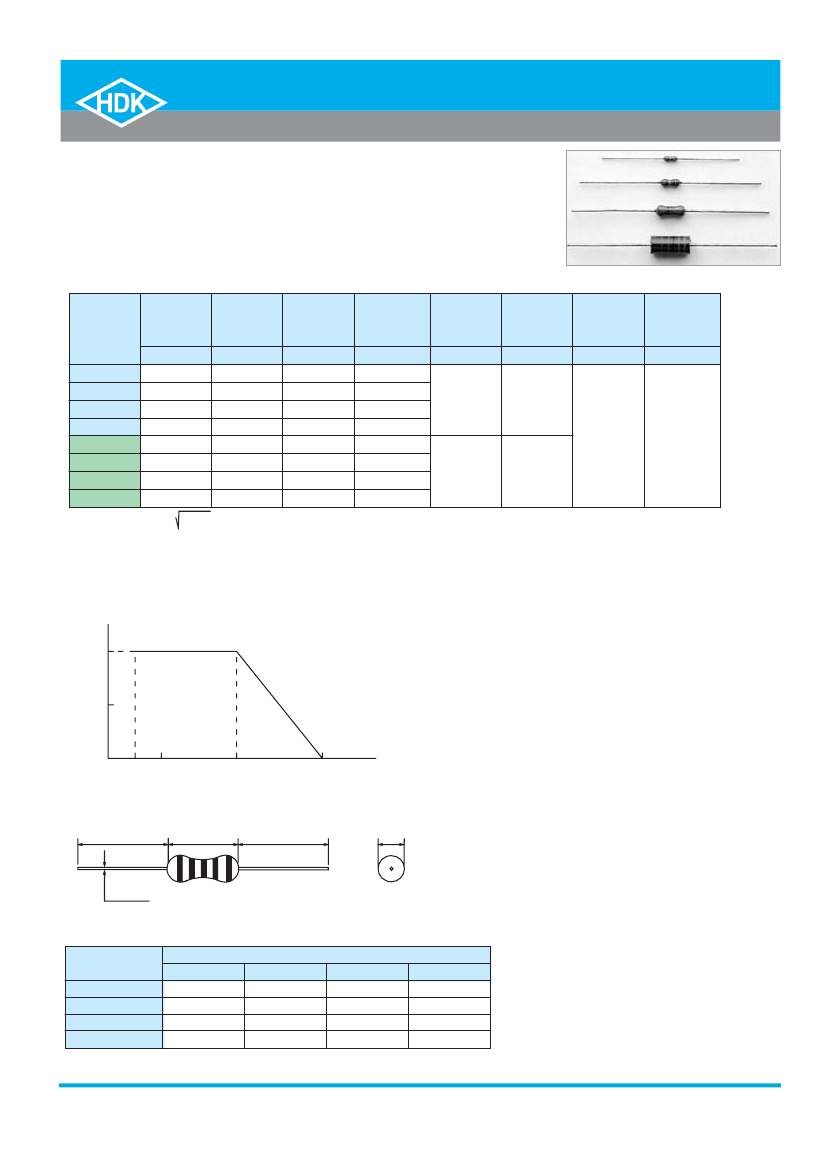

INSULATED HIGH STABILITY FIXED METAL FILM RESISTORS

RTL Type

Feature

Qualified RTL series by MIL specifications (MIL-R-22684B) with high stability and

reliability.

RTL series are available up to the tolerance of 0.5 , 1.0 , 2.0 ,

5.0

Power Rating

Type

Power

Rating

0.25

0.5

1.0

2.0

0.25

0.5

1.0

2.0

Max.

Working

Voltage

250

350

500

250

350

500

Max.

Overload

Volt age

500

700

1000

500

700

1000

Resistance

Range

T olerance

T.C.R.

ppm

100k

150k

470k

1.5M

0.5

1.0

2.0

5.0

2.0

5.0

100

200

-55

150

Rating

Ambient

T emp.

Operating

Temp.Range

RTL1/4

RTL1/2

RTL 1

RTL 2

RL07S

RL20S

RL32S

RL42S

Rated Voltage: P R P= Rated power(W) R= Nominal resistance(

value or Max. Working Voltage whichever less.

0.5%):100 100k

(All size available)

) Rated Voltage shall be decided between the calculation

Derating Curve

Rated Power Ratio / %

100

-55 0

Ambient Temp. /

150

Dimensions

Marking : G (

2.0),

J (

5.0)

are 4 color code lines

Dimensions(mm)

2.3 0.4

27min.

3.5 0.6

38 3

4.8 0.4

38 3

8.0 0.5

38 3

Body color : Brown

T ype

RT L1/4 (RL07S)

RT L1/2 (RL20S)

RT L 1 (RL32S)

RT L 2 (RL42S)

6.4 0.8

9.5 1.1

14.2 0.8

17.5 1.1

0.6

0.8

1.0

1.2

0.1

”Type”, ”Article” indicates the product No., which is not the trademark.

HOKURIKU

Specifications are subject to change without notice.
