AM2896DM datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> AM2896DM

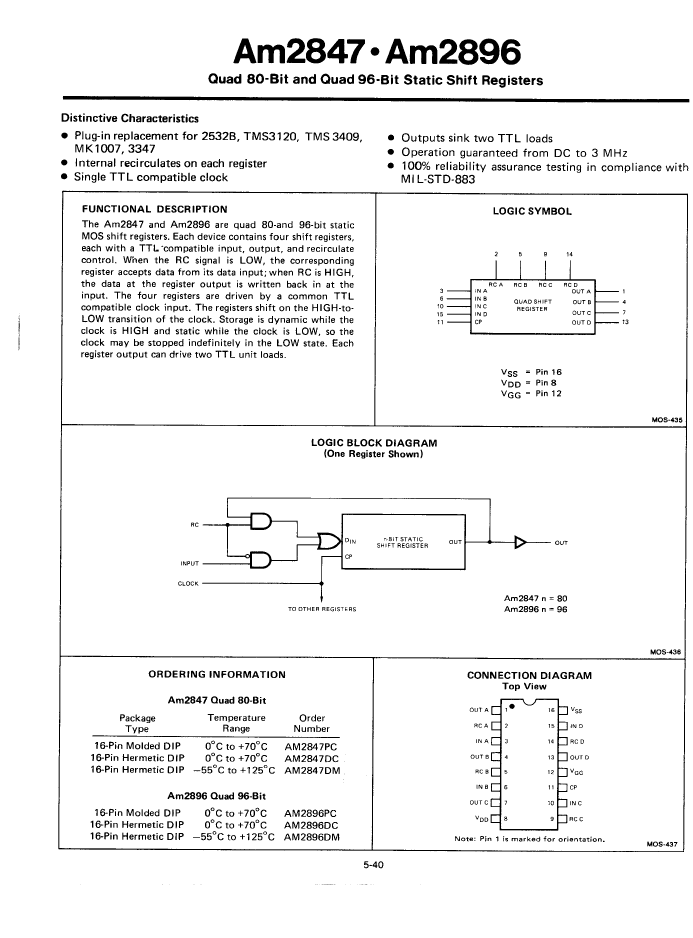

Preview

AM2896DM: DescriptionSerial In Serial Out, 96-Bit, Right Direction, True Output, CMOS, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16; Categorylogic logic; File Size145KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM2896DM Overview

Serial In Serial Out, 96-Bit, Right Direction, True Output, CMOS, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16

AM2896DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Counting direction	RIGHT
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	20.32 mm
Load capacitance (CL)	10 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT
Number of digits	96
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	280 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
minfmax	2.5 MHz

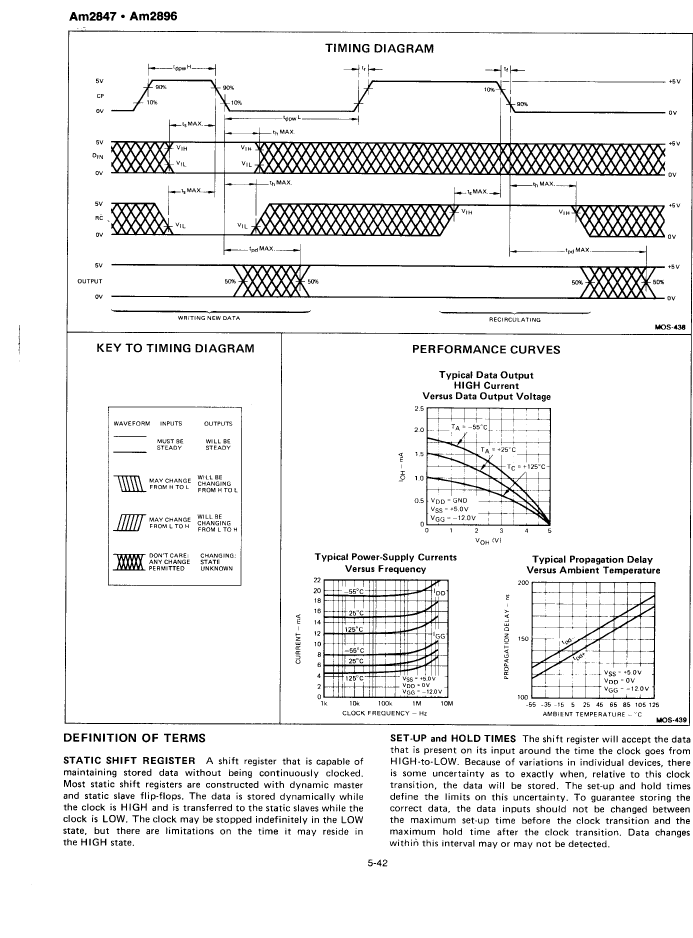

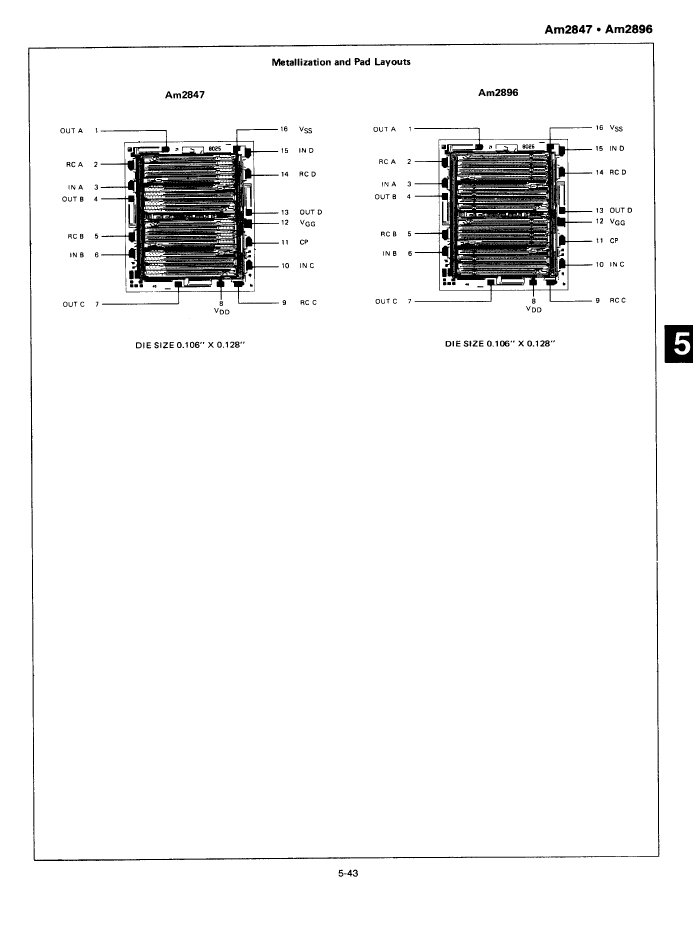

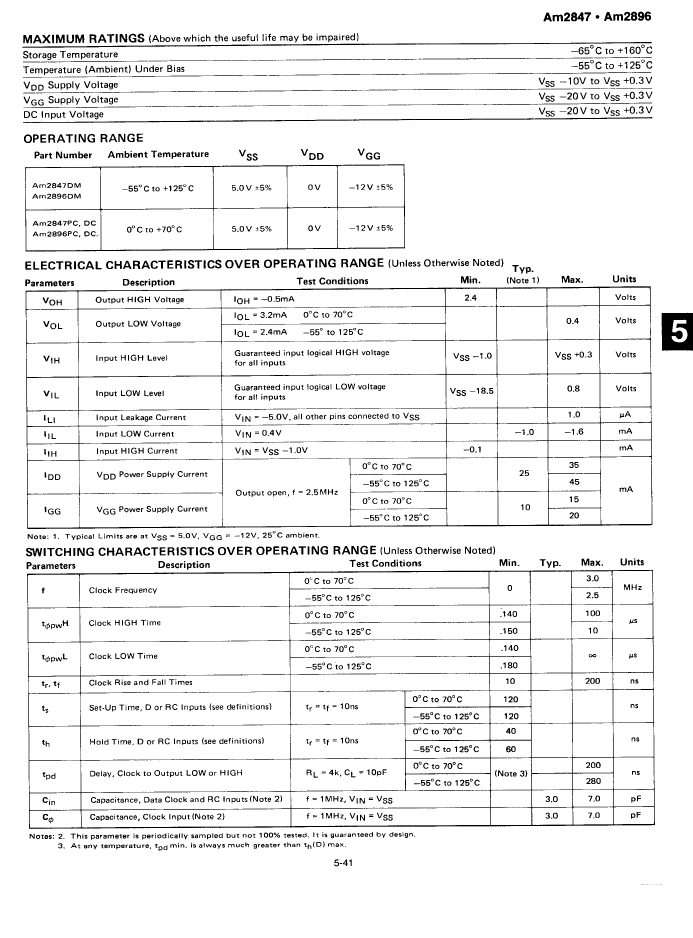

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AM2896DM Related Products

	AM2896DM	AM2847DC
Description	Serial In Serial Out, 96-Bit, Right Direction, True Output, CMOS, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	Serial In Serial Out, 80-Bit, Right Direction, True Output, CMOS, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknown	unknown
Counting direction	RIGHT	RIGHT
JESD-30 code	R-CDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0
length	20.32 mm	20.32 mm
Load capacitance (CL)	10 pF	10 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Number of digits	96	80
Number of functions	4	4
Number of terminals	16	16
Maximum operating temperature	125 °C	70 °C
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	280 ns	200 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
minfmax	2.5 MHz	3 MHz
