AM6606DM-8B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> AM6606DM-8B

AM6606DM-8B: DescriptionAnalog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24; CategoryAnalog mixed-signal IC The signal circuit; File Size252KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM6606DM-8B Overview

Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24

AM6606DM-8B Parametric

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-CDIP-T24
length	31.9405 mm
Nominal Negative Supply Voltage (Vsup)	-5.2 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.715 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

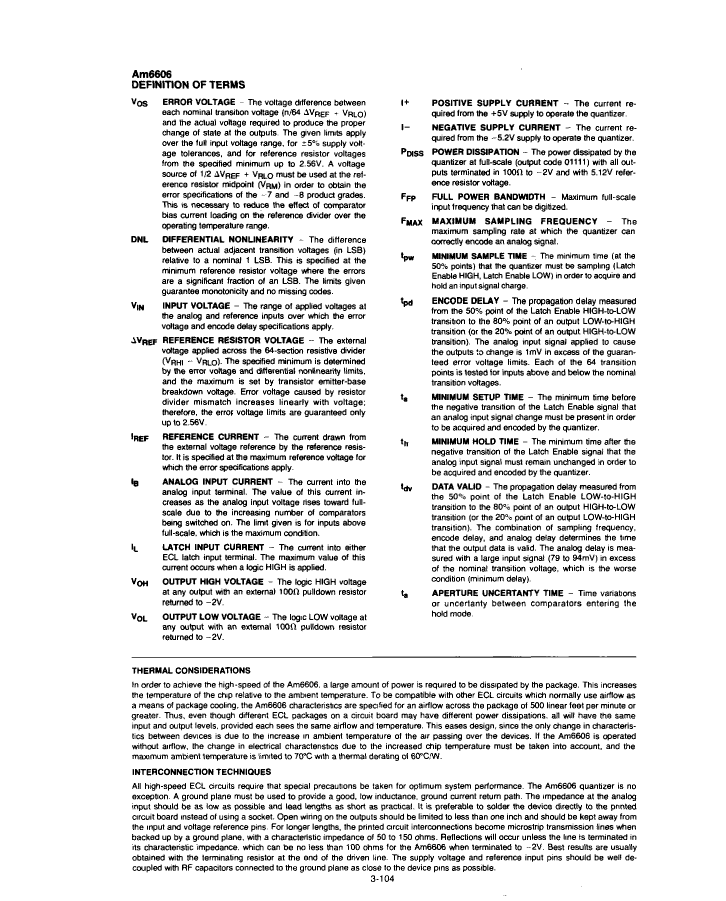

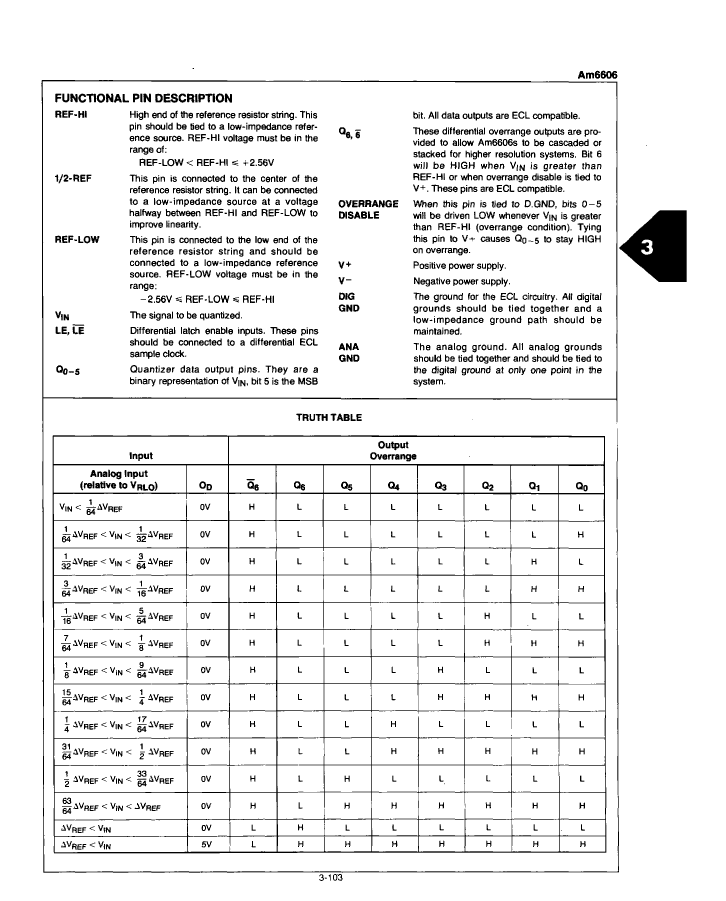

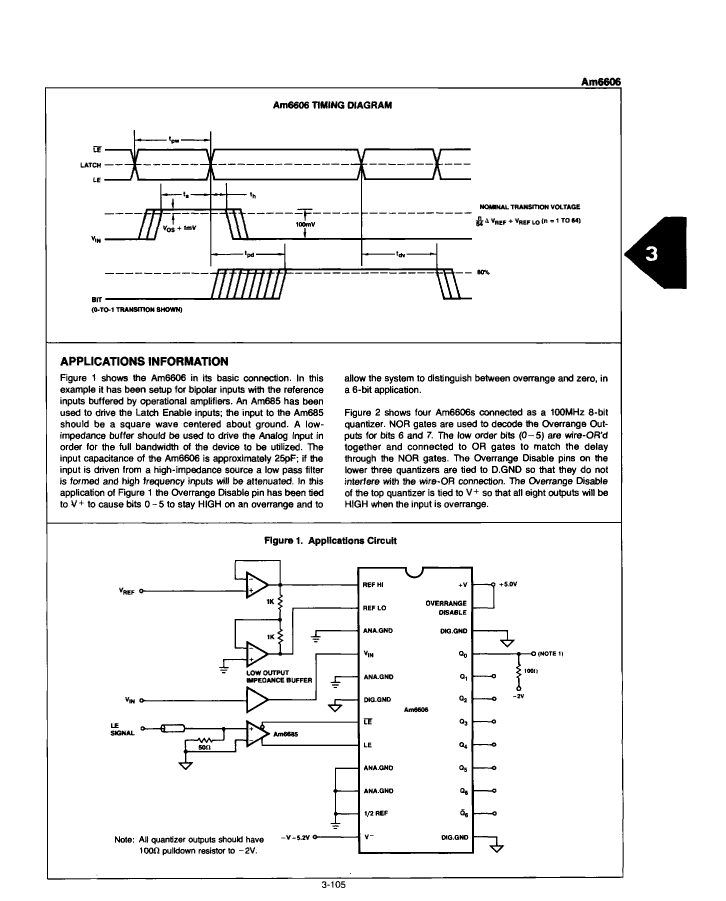

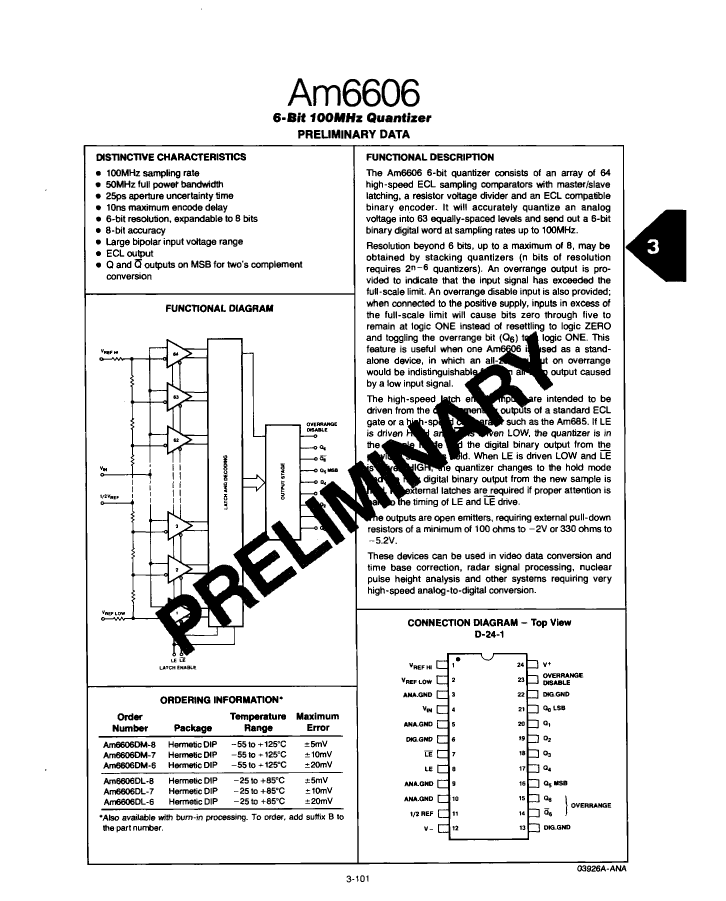

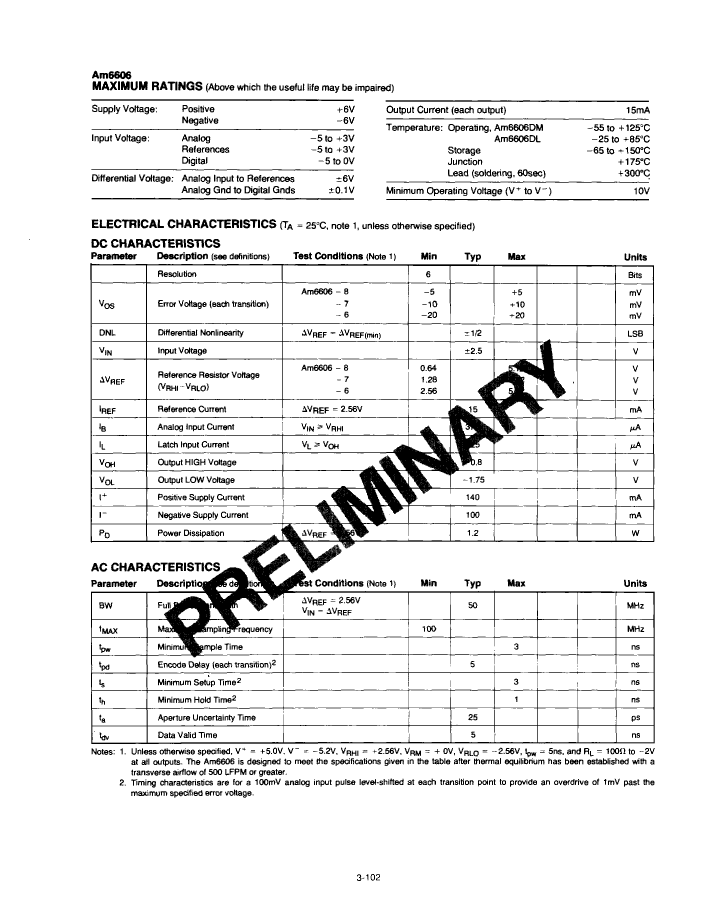

Preview

Download Datasheet

View All

AM6606DM-8B Related Products

	AM6606DM-8B	AM6606DL-6B	AM6606DL-7B	AM6606DL-8B	AM6606DM-6B	AM6606DM-7B
Description	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24	Analog Circuit, 1 Func, CDIP24, HERMETIC SEALED, DIP-24
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Contacts	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
length	31.9405 mm	31.9405 mm	31.9405 mm	31.9405 mm	31.9405 mm	31.9405 mm
Nominal Negative Supply Voltage (Vsup)	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-25 °C	-25 °C	-25 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	OTHER	OTHER	OTHER	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	AMD	AMD	AMD	-	AMD	AMD
