LS7260-TS

Description
Motion Control Electronic, PDSO20
CategoryOther integrated circuit (IC)    The signal circuit
File Size100KB,7 Pages
ManufacturerLSI Computer Systems
Websitehttps://lsicsi.com
Download Datasheet Parametric Compare View All

LS7260-TS Overview

Motion Control Electronic, PDSO20

LS7260-TS Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLSI Computer Systems
package instructionTSSOP, TSSOP20,.25
Reach Compliance Codecompliant
JESD-30 codeR-PDSO-G20
JESD-609 codee0
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply5/28 V
Certification statusNot Qualified
Maximum supply current (Isup)6 mA
surface mountYES
Temperature levelAUTOMOTIVE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL
LSI/CSI
UL
®
LS7260
LS7262
(631) 271-0400 FAX (631) 271-0405
October 2005
LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747
A3800
BRUSHLESS DC MOTOR COMMUTATOR/CONTROLLER
FEATURES:
Direct drive of P-Channel and N-Channel FETs (LS7260)
Direct drive of PNP and NPN transistors (LS7262)
Six outputs drive power switching bridge directly
Open or closed loop motor speed control.
+5V to +28V operation (Vss - V
DD
).
Externally selectable input to output code for 60°,
120°, 240°, or 300° electrical sensor spacing.
Three or four phase operation
Analog Speed control
Direction control
Output Enable control
Positive Static Braking
Overcurrent Sensing
LS7260, LS7262 (DIP); LS7260-S, LS7262-S (SOIC);
LS7260-TS, LS7262-TS (TSSOP) - See Connection Diag.
CONNECTION DIAGRAM
- TOP VIEW
CS1
OUT 1
OUT 2
OUT 3
COMMON
OUT 4
OUT 5
OUT 6
BRAKE
ENABLE
1
20
19
18
17
16
15
14
13
12
11
CS2
FWD/REV
V
DD
(-V)
S3
S2
S1
OSCILLATOR
V TRIP
OVERCURRENT SENSE
V
SS
(+V)
LSI
2
3
4
5
6
7
8
9
10
DESCRIPTION:
The LS7260/LS7262 are MOS integrated circuits de-
signed to generate the signals necessary to control a
three phase or four phase brushless DC motor. They
are the basic building blocks of a brushless DC motor
controller. The circuits respond to changes at the
SENSE inputs, originating at the motor position sensors,
to provide electronic commutation of the motor wind-
ings. Pulse Width Modulation of outputs for motor speed
control is accomplished through either the ENABLE in-
put or through the Analog input (V TRIP) in conjunction
with the OSCILLATOR input. Overcurrent circuitry is
provided to protect the windings, associated drivers and
power supply. The overcurrent circuitry causes the ex-
ternal output drivers to switch off immediately upon
sensing the overcurrent condition and on again only
when the overcurrent condition disappears and the pos-
itive edge of either the ENABLE input or the sawtooth
OSCILLATOR occurs. This limits the overcurrent sense
cycling to the chopping rate of the ENABLE input or the
sawtooth OSCILLATOR.
A positive braking feature is provided to effect rapid de-
celeration. While the LS7262 is designed for driving

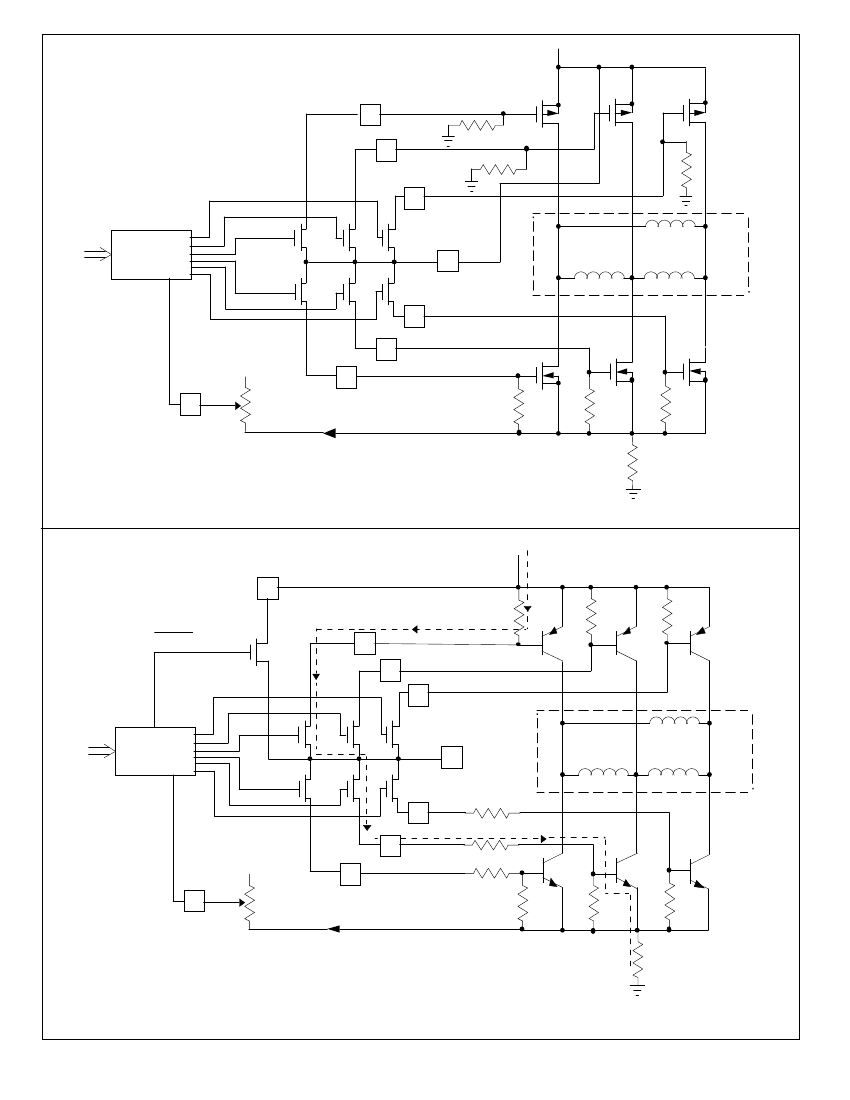

NPN and PNP transistors (See Fig. 2), the LS7260 is
designed to drive both NMOS and PMOS Power FETs
and develops a full 12V drive for both the N-Channel
and P-Channel devices (See Fig. 1) when using a 12V
power supply.
INPUT/OUTPUT DESCRIPTION:
COMMUTATION SELECTS
(Pins 1, 20)
These inputs are used to select the proper sequence of outputs
based on the electrical separation of the motor position sensors.
See Table 3. Note that in all cases the external output drivers
are disabled for invalid SENSE input codes. Internal pull down
resistors are provided at Pins 1 and 20 causing a logic zero
when these pins are left open.
FORWARD/REVERSE
(Pin 19)
This input is used to select the proper sequence of Outputs for
the desired direction of rotation for the Motor (See Table 3). An
internal pull-up resistor holds the input high when left open.
SENSE INPUTS
(Pins 15, 16, 17)
These inputs provide control of the output commutation
sequence as shown in Table 3. S1, S2, S3 originate in the posi-
tion sensors of the motor and must sequence in cycle code or-
der. Hall Switch pull-up resistors are provided at Pins 15, 16 and
17. The positive supply of the Hall devices should be common
to the chip Vss.
BRAKE
(Pin 9)
For the LS7262, a high level at this input unconditionally turns
Off Outputs 1, 2 and 3 and turns On Outputs 4, 5 and 6 (See
Fig. 2). For the LS7260, a high level at this input turns On Out-
puts 1, 2 and 3 and Outputs 4, 5 and 6 (See Fig. 1). In both
cases, transistors Q101, Q102 and Q103 cut off and transistors
Q104, Q105 and Q106 turn on, shorting the windings together,
The BRAKE has priority over all other inputs.
7260-101705-1
