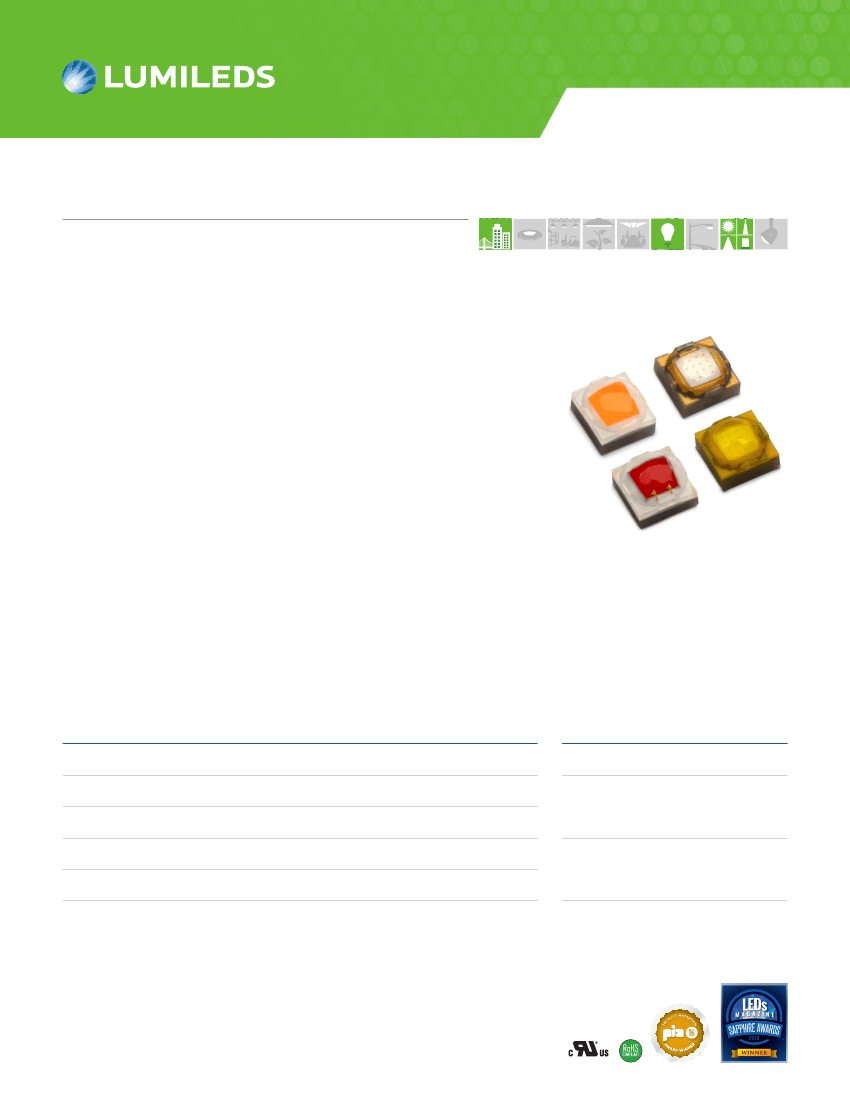

ILLUMINATION
LUXEON C Color Line
Multiple colors, a single focal length
The LUXEON C Color Line is an optically advanced portfolio of Color and
White LEDs. Designed for flawless color mixing, LUXEON C Color Line
has one focal length for all colors, which provides consistent radiation
patterns from secondary optics and maximizes optical efficiency. With
low dome design, it keeps effective source size small while still improving
light extraction. Designed for smooth color mixing and maximum punch,
LUXEON C Color Line is the optimal LED solution for architecture,
entertainment and emergency vehicle lighting applications.
FEATURES AND BENEFITS
One focal length allows flawless color mixing, maximum optical efficiency
and removes halos
Low dome design eliminates trade-offs between flux and source size
Hot tested—removes guesswork for designers
Industry’s lowest thermal resistance means greater light output
and lower heatsink costs
Small symmetrical 2x2mm² package enables dense packing and
limits the impact of rotation during reflow
PRIMARY APPLICATIONS
Architectural & Entertainment
Lamps
– Color Tunable
Specialty Lighting
– Emergency Vehicle
DS144 LUXEON C Color Line Product Datasheet ©2019 Lumileds Holding B.V. All rights reserved.
No. E352519
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Color Bin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Peak Wavelength Bins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Dominant Wavelength Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DS144 LUXEON C Color Line Product Datasheet 20190115 ©2019 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON C Color Line LEDs are tested and binned with a DC drive current of 350mA at a junction temperature, T
j
, of 85ºC.
Part Number Nomenclature
Part numbers for LUXEON C Colors follow the convention below:
L 1 C 1 –
A A A
1 0 0 0 0 0 0 0 0 0
Where:
A A A
– designates color (FRD=Far Red, DRD=Deep Red, RED=Red, RNG=Red-Orange, AMB=Amber,
PCA=PC Amber, MNT=Mint, LME=Lime, GRN=Green, CYN=Cyan, BLU=Blue, RYL=Royal Blue)
Therefore, the following part number is used for a LUXEON C Red LED:
L 1 C 1 –
R E D
1 0 0 0 0 0 0 0 0 0
Part numbers for LUXEON C White follow the convention below:
L 1 C 1 –
A A B B
0 0 0 0 0 0 0 0 0
Where:
A A
– designates nominal CCT (22=2200K, 27= 2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K, 57=5700K,
65=6500K)
B B
– designates minimum CRI (70=70CRI, 80=80CRI, 90=90CRI)
Therefore, the following part number is used for a LUXEON C White 4000K 70CRI LED:
L 1 C 1 –
4 0 7 0
0 0 0 0 0 0 0 0 0
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON C is
compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS144 LUXEON C Color Line Product Datasheet 20190115 ©2019 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1a . Product performance of LUXEON C Colors at 350mA, T
j
=85ºC .
COLOR
Far Red
Deep Red
Red
Red-Orange
Amber
PC Amber
Mint
Lime
Green
Cyan
Blue
Royal Blue
DOMINANT OR
PEAK WAVELENGTH
[1]
(nm)
MINIMUM
720
655
624
614
585
–
–
–
520
490
465
440
MAXIMUM
750
675
634
624
600
–
–
–
540
510
485
460
LUMINOUS FLUX (lm) OR
RADIOMETRIC POWER
[2]
(mW)
MINIMUM
190
280
35
45
20
80
140
125
90
65
25
480
TYPICAL
230
315
49
60
30
94
152
135
115
90
41
532
PART
NUMBER
L1C1-FRD1000000000
L1C1-DRD1000000000
L1C1-RED1000000000
L1C1-RNG1000000000
L1C1-AMB1000000000
L1C1-PCA1000000000
L1C1-MNT1000000000
L1C1-LME1000000000
L1C1-GRN1000000000
L1C1-CYN1000000000
L1C1-BLU1000000000
L1C1-RYL1000000000
Notes for Table 1a:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red and Royal Blue are binned by
peak wavelength. All other colors are binned by dominant wavelength.
2. Far Red, Deep Red and Royal Blue are binned by radiometric power. All other colors are binned by luminous flux.
Table 1b . Product performance of LUXEON C White at 350mA, T
j
=85°C .
COLOR
NOMINAL
CCT
4000K
5000K
5700K
6500K
2200K
2700K
White
3000K
3500K
4000K
2700K
3000K
4000K
5700K
MINIMUM
CRI
[1]
70
70
70
70
80
80
80
80
80
90
90
90
90
LUMINOUS FLUX
[1]
(lm)
MINIMUM
100
100
100
100
70
90
90
90
100
70
70
75
80
TYPICAL
116
117
118
119
85
94
102
108
113
82
86
95
93
TYPICAL
LUMINOUS EFFICACY
(lm/W)
121
122
124
124
88
98
106
112
117
85
89
99
94
PART
NUMBER
L1C1-4070000000000
L1C1-5070000000000
L1C1-5770000000000
L1C1-6570000000000
L1C1-2280000000000
L1C1-2780000000000
L1C1-3080000000000
L1C1-3580000000000
L1C1-4080000000000
L1C1-2790000000000
L1C1-3090000000000
L1C1-4090000000000
L1C1-5790000000000
Notes for Table 1b:
1. Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
DS144 LUXEON C Color Line Product Datasheet 20190115 ©2019 Lumileds Holding B.V. All rights reserved.
3
Optical Characteristics
Table 2a . Optical characteristics for LUXEON C Colors at 350mA, T
j
=85°C .
COLOR
Far Red
Deep Red
Red
Red-Orange
Amber
PC Amber
Mint
Lime
Green
Cyan
Blue
Royal Blue
PART
NUMBER
L1C1-FRD1000000000
L1C1-DRD1000000000
L1C1-RED1000000000
L1C1-RNG1000000000
L1C1-AMB1000000000
L1C1-PCA1000000000
L1C1-MNT1000000000
L1C1-LME1000000000
L1C1-GRN1000000000
L1C1-CYN1000000000
L1C1-BLU1000000000
L1C1-RYL1000000000
TYPICAL SPECTRAL
HALF-WIDTH
[1]
(nm)
20
20
20
20
20
80
80
80
30
30
20
20
TYPICAL TEMPERATURE
COEFFICIENT OF DOMINANT
OR PEAK WAVELENGTH
(nm/°C)
0.06
0.06
0.06
0.06
0.06
-0.01
-0.01
-0.01
0.04
0.03
0.03
0.03
TYPICAL TOTAL
INCLUDED
ANGLE
[2]
175°
175°
175°
175°
175°
175°
175°
175°
175°
175°
175°
175°
TYPICAL
VIEWING
ANGLE
[3]
162°
162°
162°
162°
162°
150°
150°
145°
170°
170°
170°
165°
Notes for Table 2a:
1. Spectral half-width is the spectral bandwidth at 50% of the peak intensity.
2. Total angle at which 90% of total luminous flux is captured.
3. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Table 2b . Optical characteristics for LUXEON C White at 350mA, T
j
=85°C .
COLOR
White
PART NUMBER
L1C1-xxx0000000000
TYPICAL TOTAL INCLUDED ANGLE
[1]
170°
TYPICAL VIEWING ANGLE
[2]
150°
Notes for Table 2b:
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Electrical and Thermal Characteristics
Table 3 . Electrical and thermal characteristics for LUXEON C Color Line at 350mA, T
j
=85ºC .
COLOR
Far Red
Deep Red
Red
Red-Orange
Amber
PC Amber
Mint
Lime
Green
Cyan
Blue
Royal Blue
White
PART NUMBER
L1C1-FRD1000000000
L1C1-DRD1000000000
L1C1-RED1000000000
L1C1-RNG1000000000
L1C1-AMB1000000000
L1C1-PCA1000000000
L1C1-MNT1000000000
L1C1-LME1000000000
L1C1-GRN1000000000
L1C1-CYN1000000000
L1C1-BLU1000000000
L1C1-RYL1000000000
L1C1-xxx0000000000
FORWARD VOLTAGE
[1]
(V
f
)
MINIMUM
1.50
1.50
1.75
1.75
1.75
2.50
2.50
2.50
2.50
2.50
2.50
2.50
2.50
TYPICAL
1.73
1.95
2.00
2.05
2.05
2.75
2.75
2.75
3.05
3.05
2.84
2.75
2.75
MAXIMUM
2.30
2.30
2.50
2.50
2.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
TYPICAL TEMPERATURE
COEFFICIENT OF FORWARD
VOLTAGE
[2]
(mV/°C)
-1.7
-1.7
-1.6
-1.6
-2.0
-1.7
-2.7
-2.7
-2.4
-2.4
-2.6
-1.7
-1.7
TYPICAL THERMAL
RESISTANCE—JUNCTION
TO SOLDER PAD (°C/W)
2.8
2.8
2.8
2.8
2.8
3.0
2.8
2.8
3.5
3.5
3.5
2.8
2.8
Notes for Table 3:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2. Measured between 25°C and 85°C.
DS144 LUXEON C Color Line Product Datasheet 20190115 ©2019 Lumileds Holding B.V. All rights reserved.
4
