D -S U B H o o d s an d Ac ce s so ries

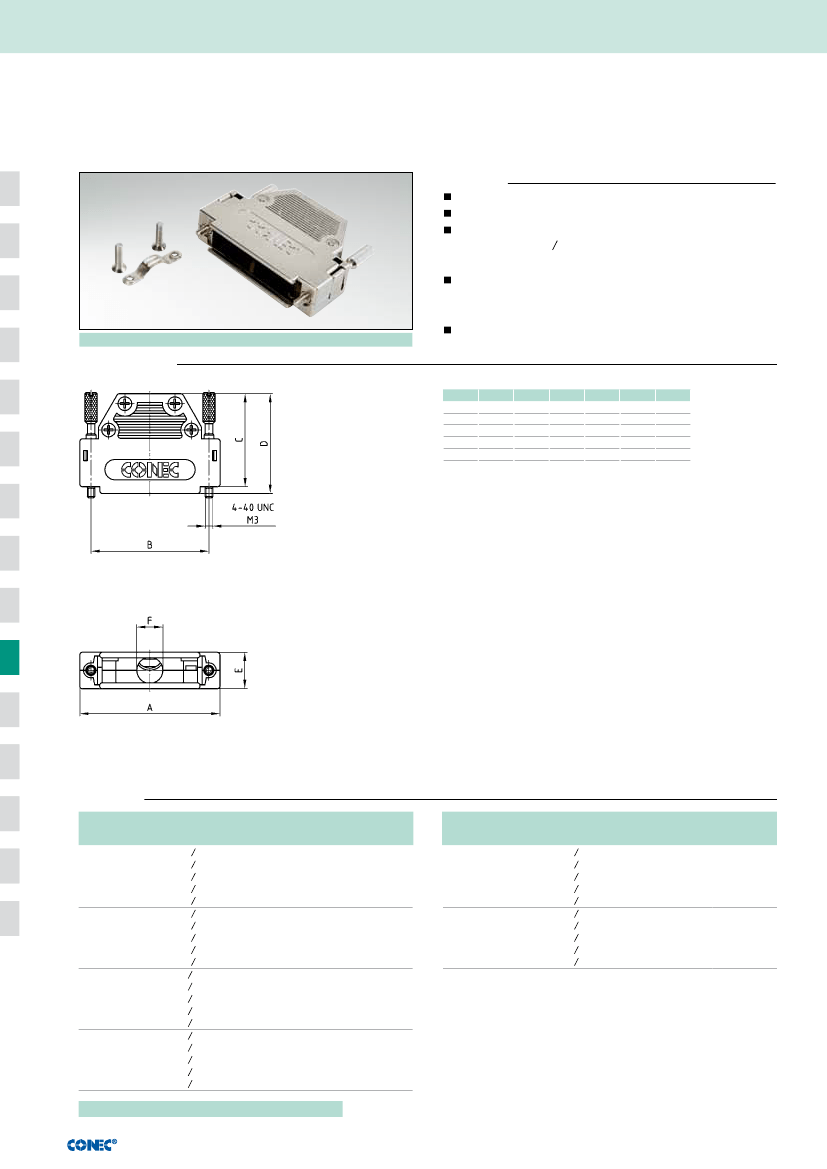

D-SUB Plastic Hood
Straight cable entry – 9-50 pos. – With jack screws
Description
Two-part plastic hood
Integrated cable clamping
Material:
- Plastic hood grey black: Polyamide + Glas filled, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
- 4-40 UNC jack screw
- M3 jack screw
Bulk or single packaged units
RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
Product drawing
No. of pos.
09
15
25
37
50
A
34.00
42.30
56.00
72.50
67.00
B
25.00
33.30
47.00
63.50
61.10
C
25.00
37.00
37.00
37.00
49.10
D
27.75
39.75
39.75
39.75
51.40
E
14.50
14.50
14.50
14.50
19.80
ØF
8.50
10.00
10.50
10.50
14.00
Order data
D-SUB Plastic hood – Straight cable entry
No. of pos. Design
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
Grey housing
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
4-40-UNC Jack screw
4-40-UNC Jack screw
4-40-UNC Jack screw
4-40-UNC Jack screw
4-40-UNC Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
D-SUB Plastic hood – Straight cable entry - Metallized
Part Number
165 X 10139 X
165 X 10149 X
165 X 10159 X
165 X 10169 X
165 X 10179 X
165 X 10189 X
165 X 10199 X
165 X 10209 X
165 X 10219 X
165 X 10229 X
165 X 14109 X
165 X 14119 X
165 X 14129 X
165 X 14139 X
165 X 14149 X
165 X 14159 X
165 X 14169 X
165 X 14179 X
165 X 14189 X
165 X 14199 X
No. of pos. Design
09
15
25
37
50
09
15
25
37
50
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
Part Number
165 X 10909 X
165 X 10919 X
165 X 10929 X
165 X 10939 X
165 X 10949 X
165 X 10959 X
165 X 10969 X
165 X 10979 X
165 X 10989 X
165 X 10999 X
For single packaged add the letter „E“ at the end of the part number.
10| 14
