10042140-003C-TRLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10042140-003C-TRLF

10042140-003C-TRLF: DescriptionTelecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size210KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10042140-003C-TRLF Overview

Telecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE

10042140-003C-TRLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 1.27 MM
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (50) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10042140
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0

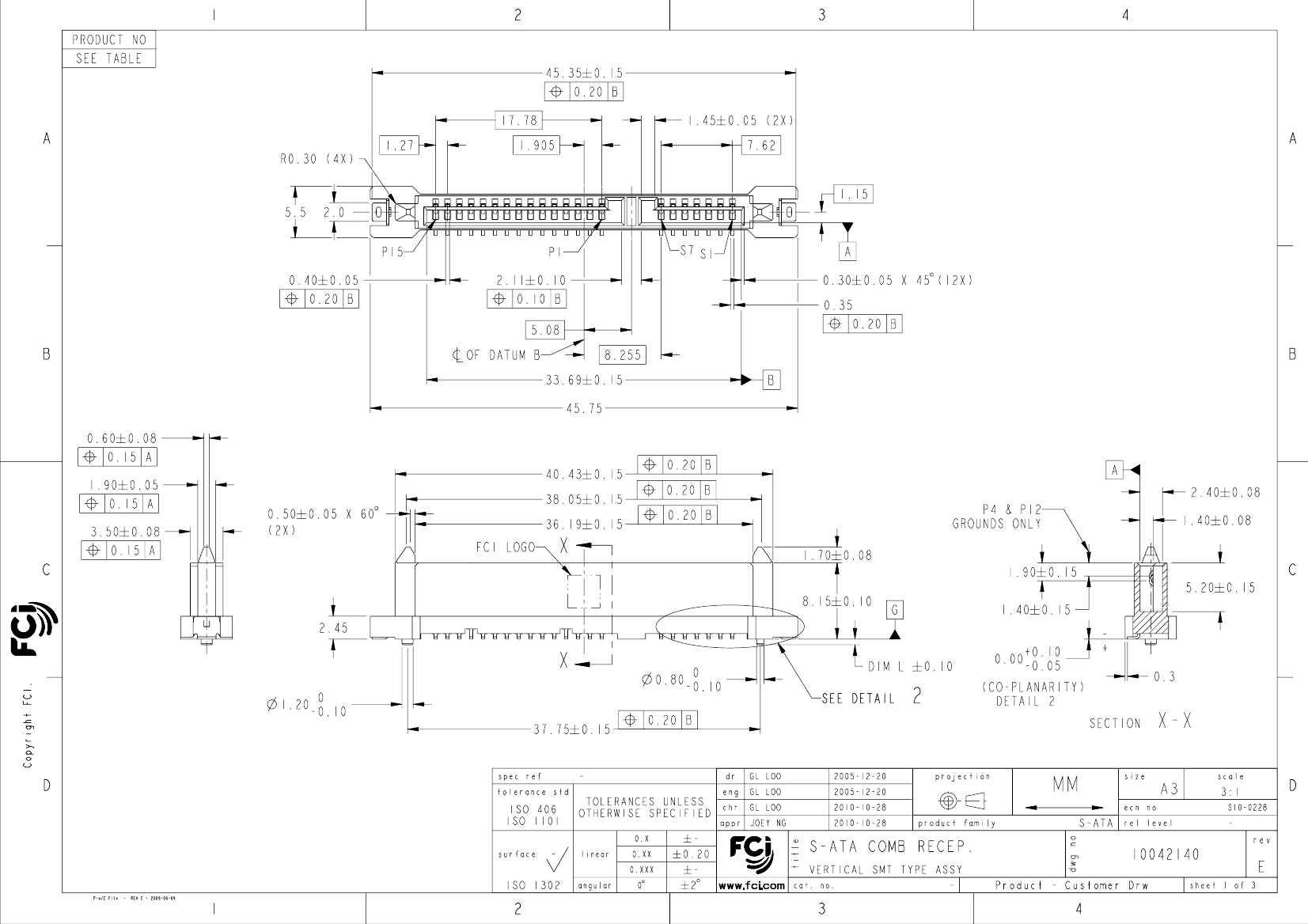

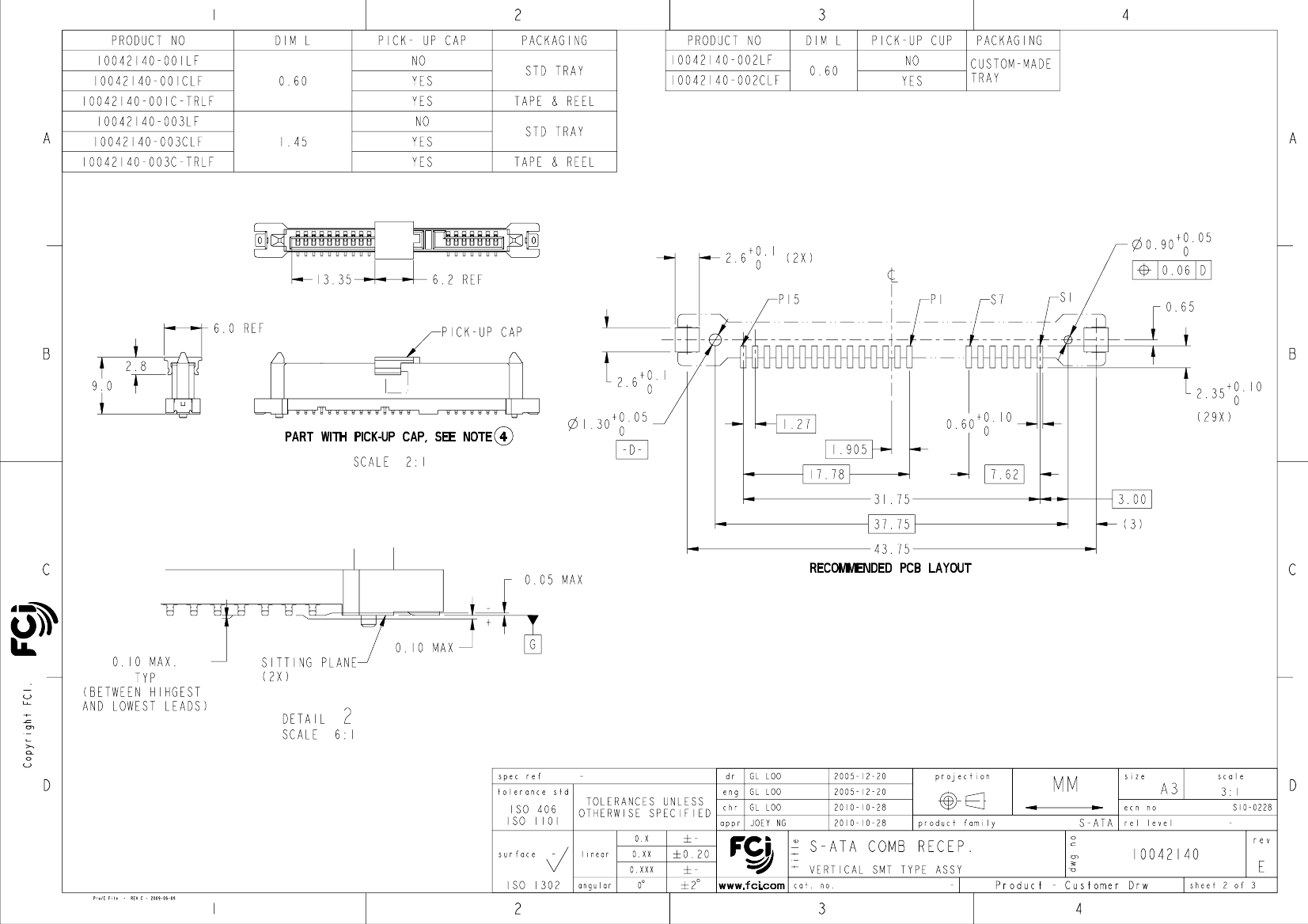

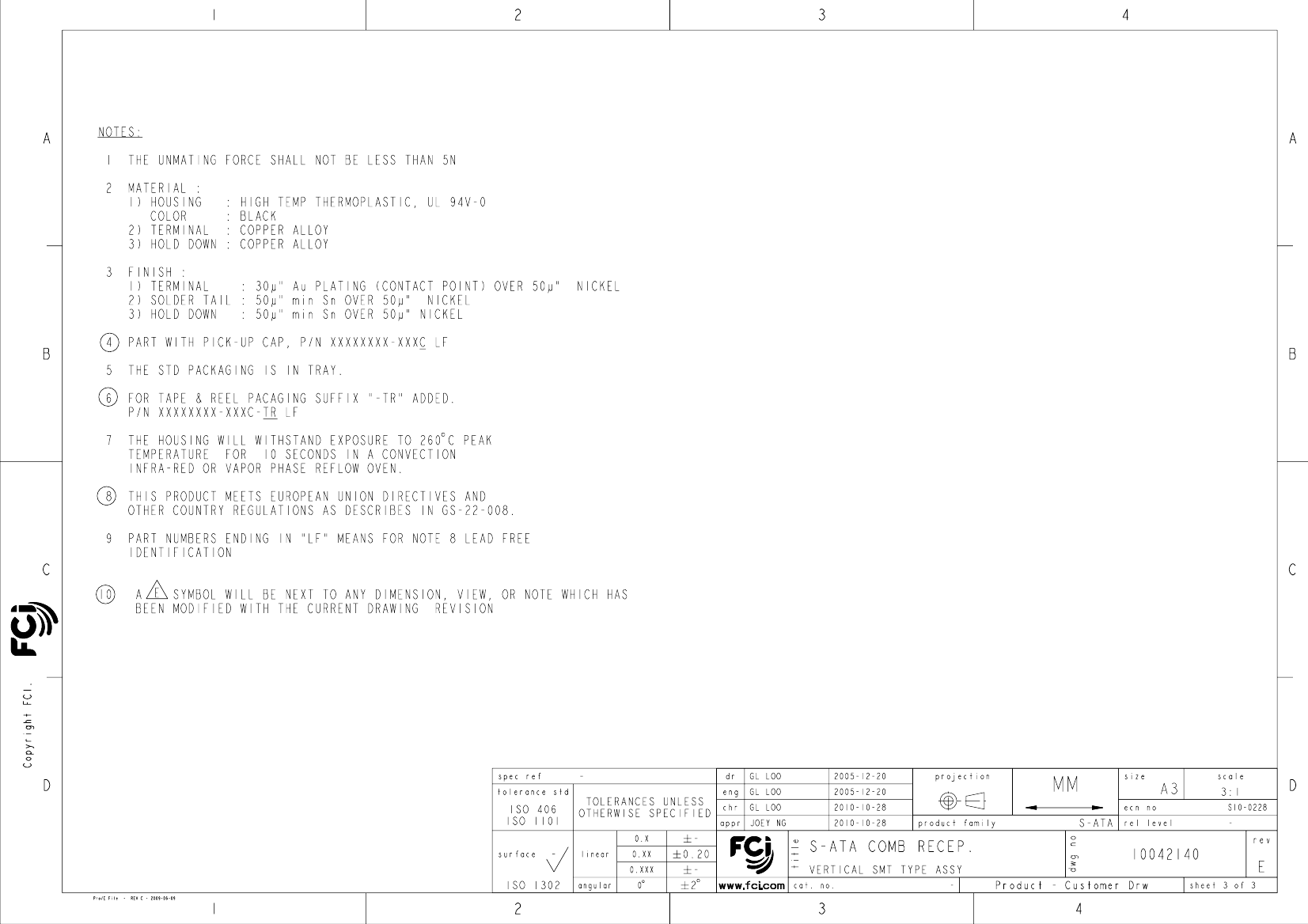

Preview

Download Datasheet

View All

PDS: Rev :E

STATUS:Released

Printed: Nov 01, 2011

10042140-003C-TRLF Related Products

	10042140-003C-TRLF	10042140-003CLF	10042140-003LF	10042140-001LF
Description	Telecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	CONN SATA RCPT 22POS SLD SMD	Telecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 1.27 MM	TERMINAL PITCH FOR POWER CONTACTS: 1.27 MM	TERMINAL PITCH FOR POWER CONTACTS: 1.27 MM	TERMINAL PITCH FOR POWER CONTACTS: 1.27 MM
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	22	22	22	22
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN (50) OVER NICKEL	NOT APPLICABLE	TIN (50) OVER NICKEL	-
