10056098-1050021: DescriptionBoard Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10056098-1050021 Overview

Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle

10056098-1050021 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	1.055 inch
subject depth	0.49 inch
body length	0.783 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Manufacturer's serial number	10056098
Plug contact pitch	0.079 inch
Match contact row spacing	0.055 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.397 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	150
Evacuation force-minimum value	.139 N

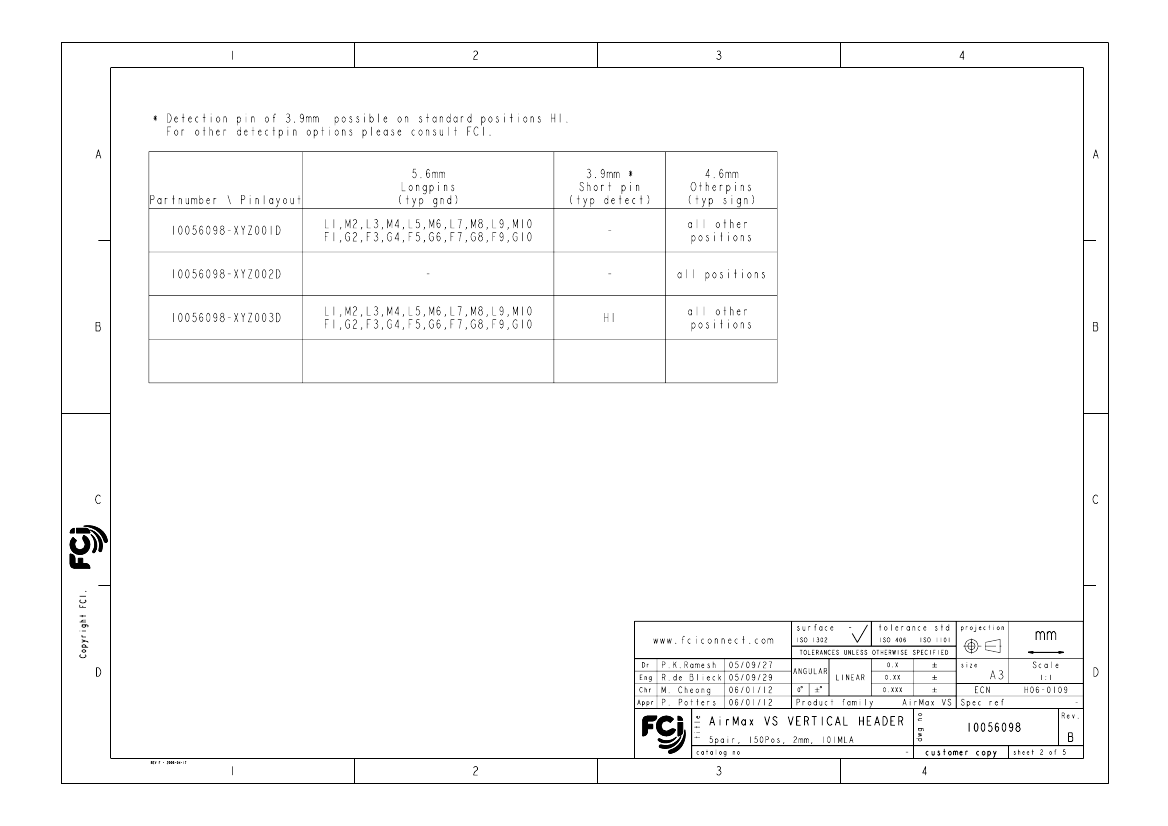

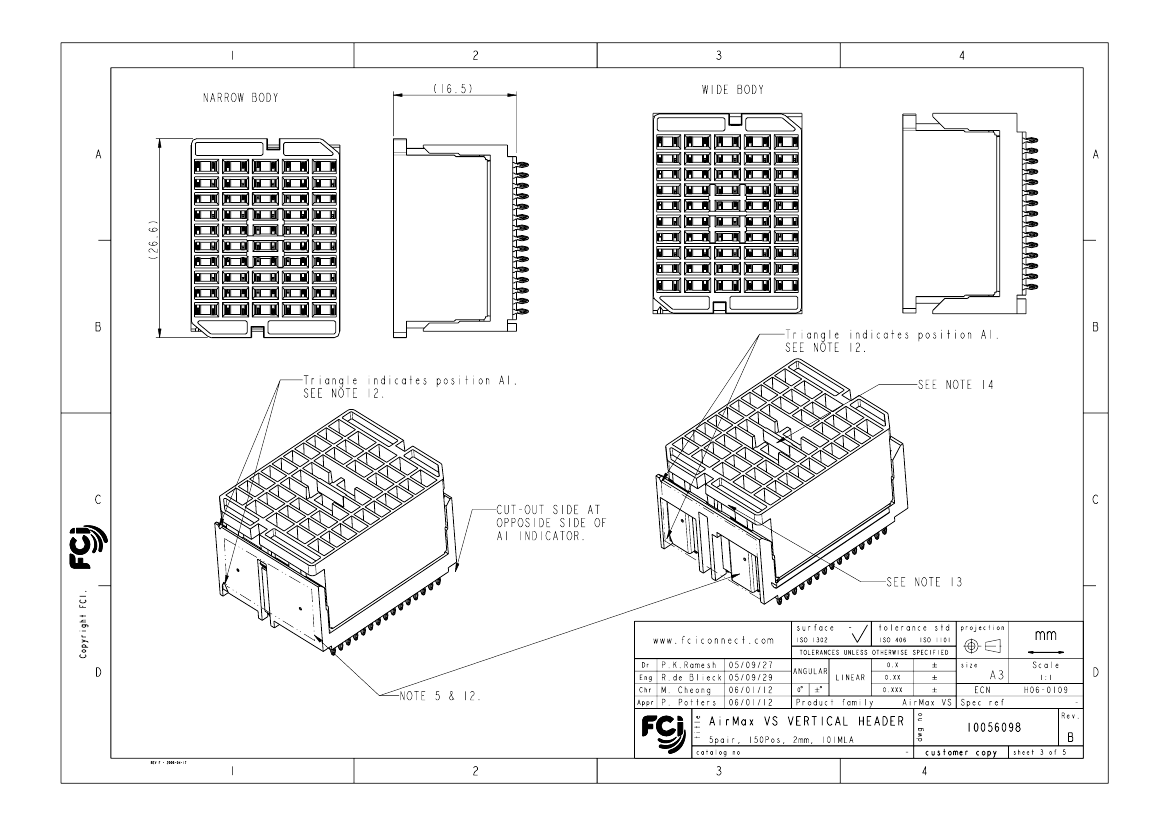

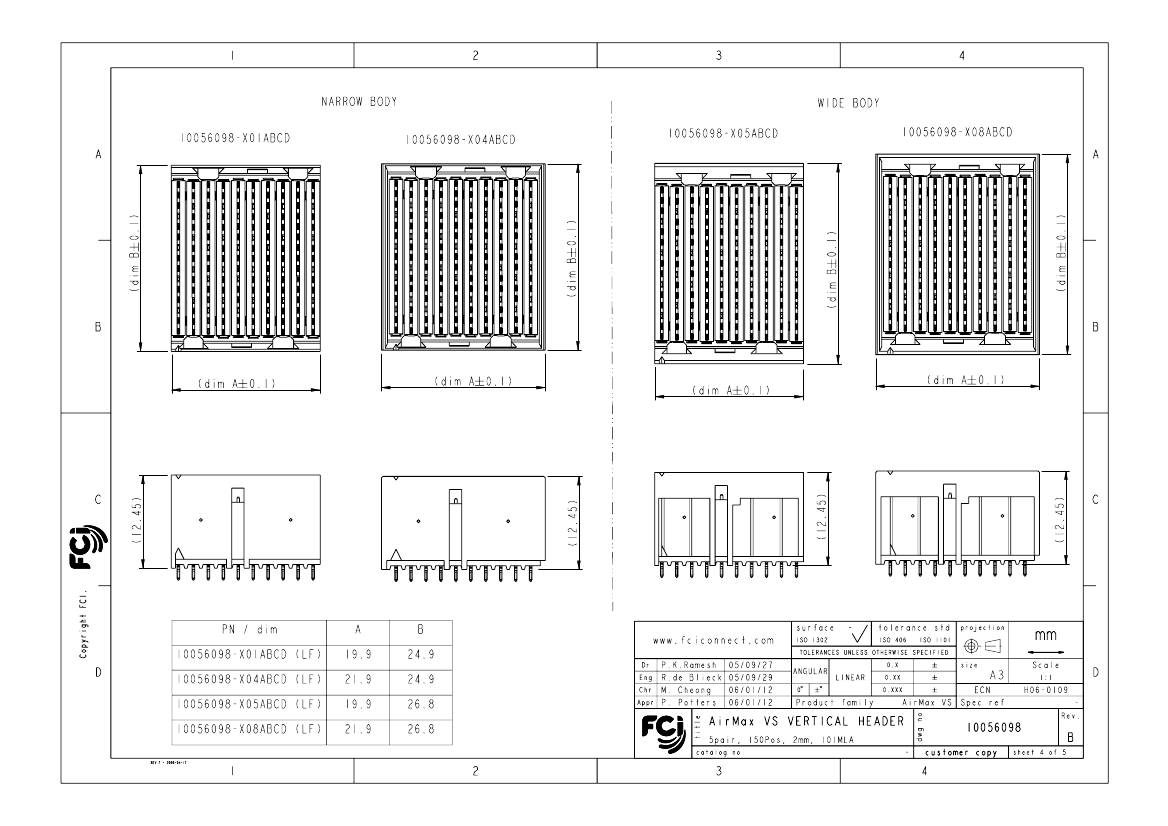

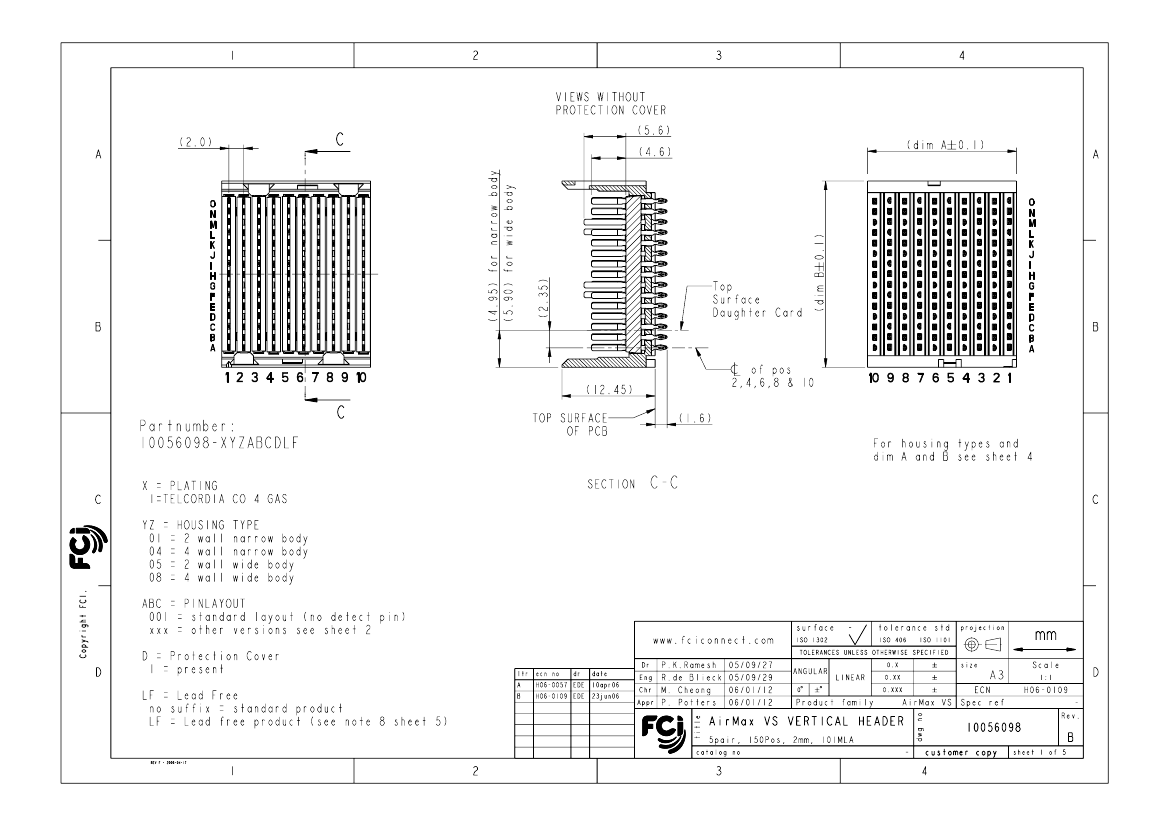

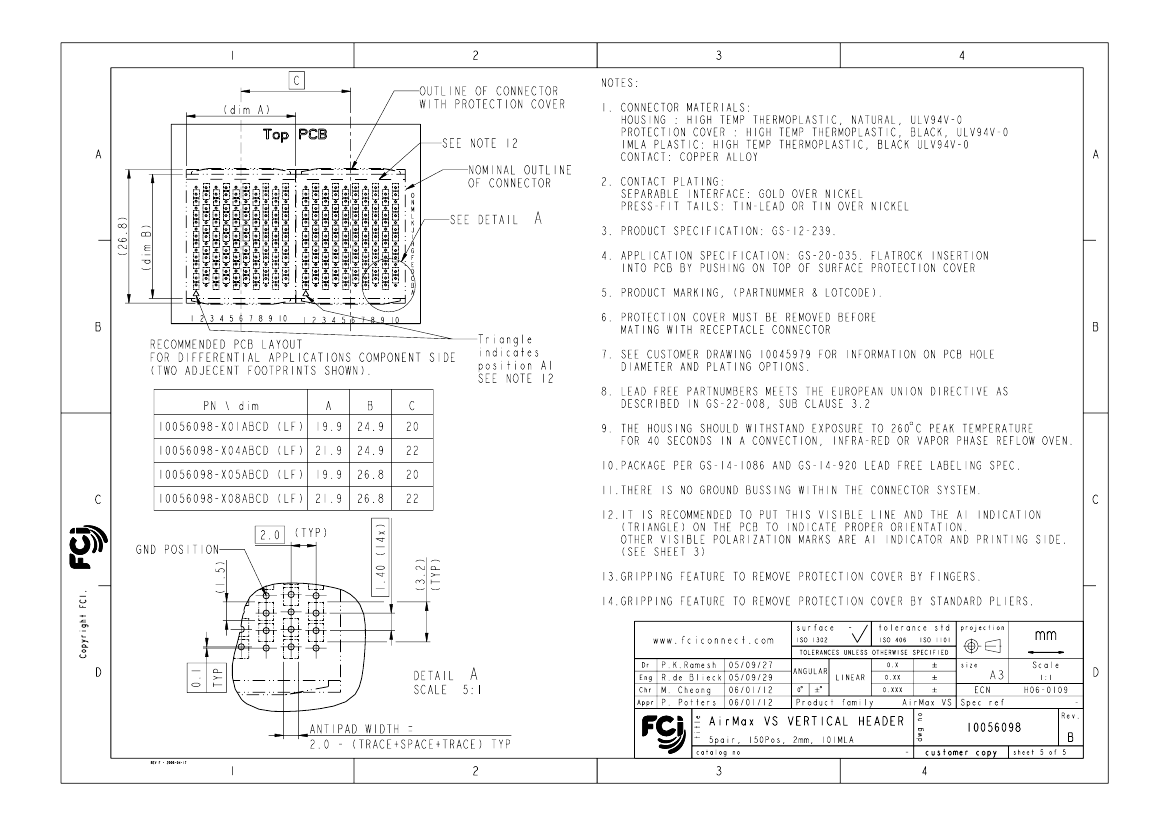

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Jul 19, 2006

.

10056098-1050021 Related Products

	10056098-1050021	10056098-1050021LF	10056098-1010021	10056098-1080021
Description	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle	Board Connector, 150 Contact(s), 15 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	1.055 inch	1.055 inch	0.98 inch	1.055 inch
subject depth	0.49 inch	0.49 inch	0.49 inch	0.49 inch
body length	0.783 inch	0.783 inch	0.783 inch	0.862 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	.4448 N	.4448 N	.4448 N	.4448 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	10056098	10056098	10056098	10056098
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.055 inch	0.055 inch	0.055 inch	0.055 inch
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	15	15	15	15
Number of rows loaded	15	15	15	15
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.397 mm	1.397 mm	1.397 mm	1.397 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.063 inch	0.063 inch	0.063 inch	0.063 inch
Terminal pitch	2.0066 mm	2 mm	2.0066 mm	2.0066 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	150	150	150	150
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N
Maker	Amphenol	-	Amphenol	Amphenol
Contact completed and terminated	TIN/LEAD OVER NICKEL	-	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
