10118061-1031010LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10118061-1031010LF

10118061-1031010LF: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size187KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10118061-1031010LF Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

10118061-1031010LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.543 inch
subject depth	0.831 inch
body length	1.22 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	50 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	2250VDC V
Durability	1000 Cycles
Insulation resistance	50000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16

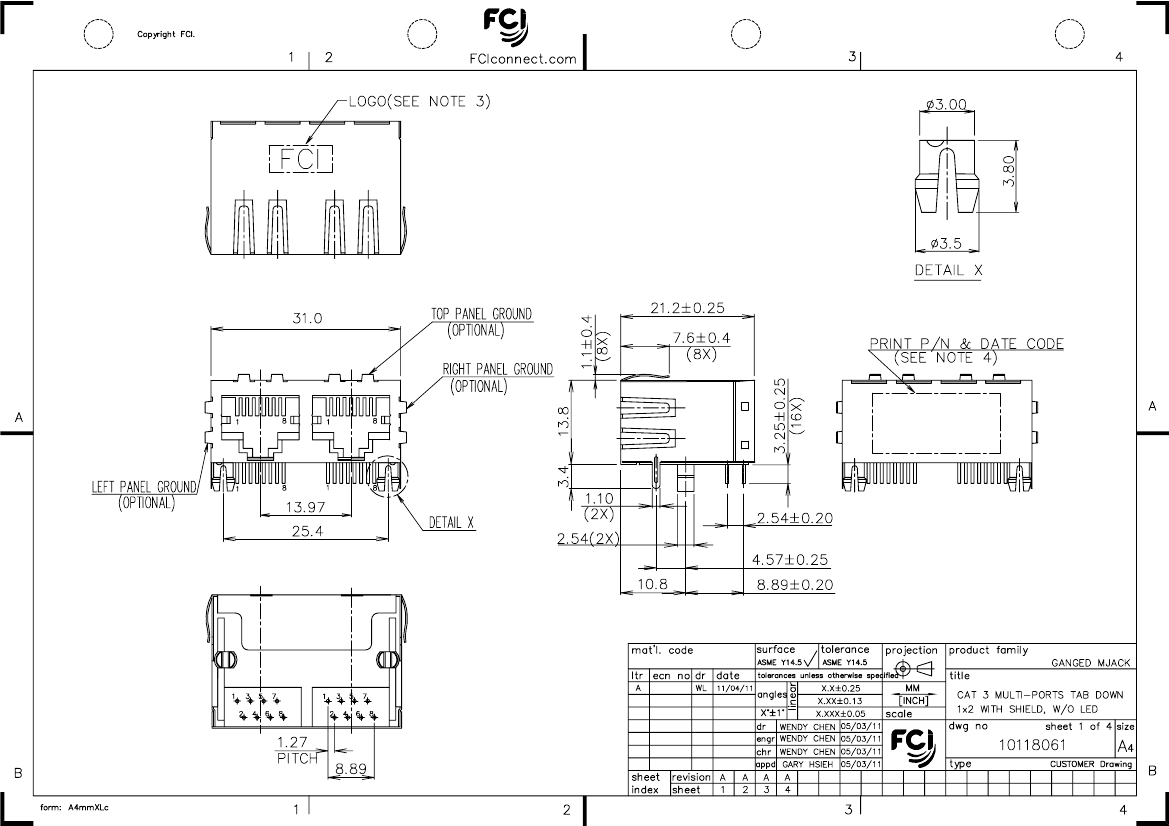

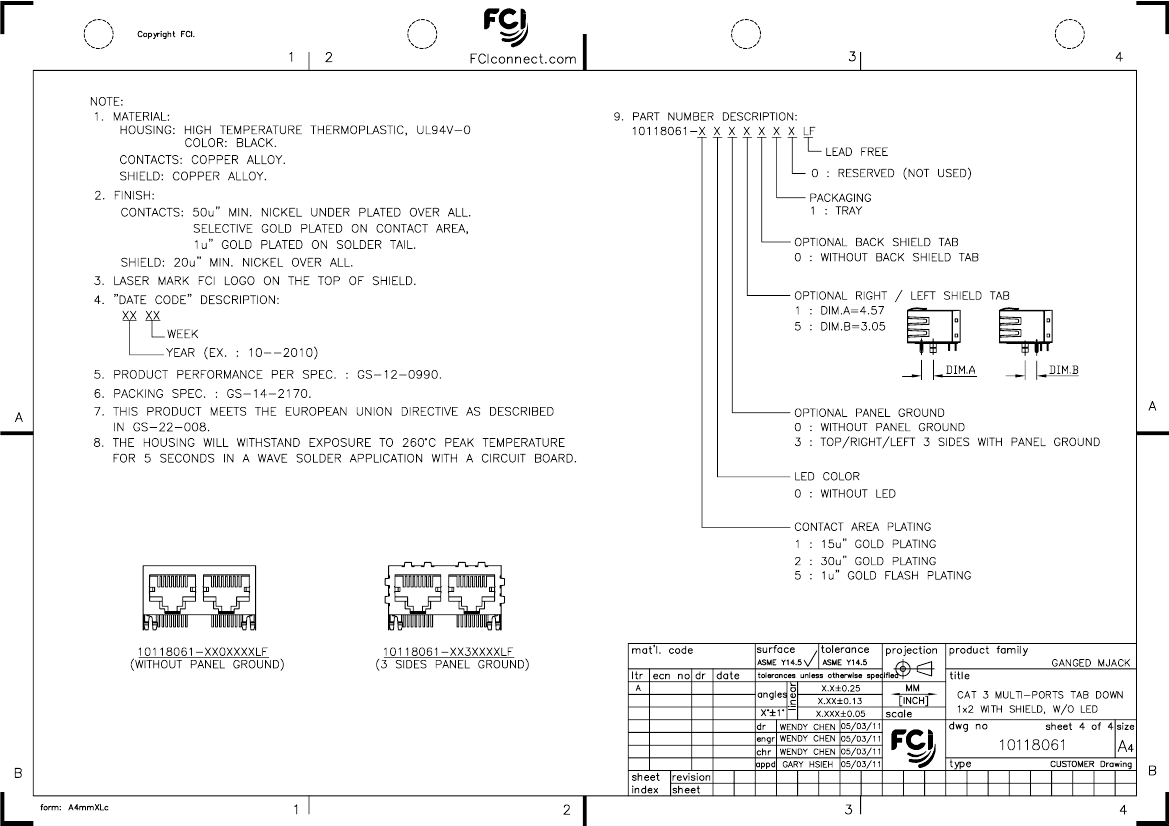

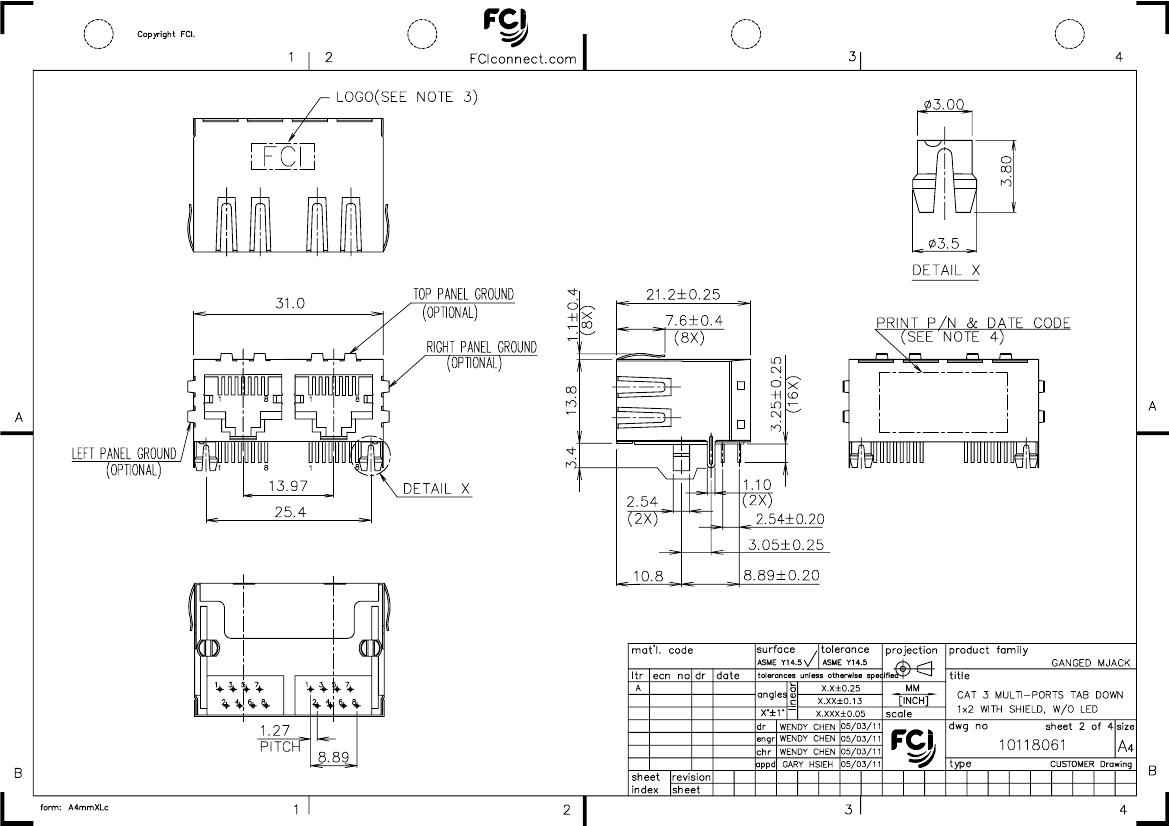

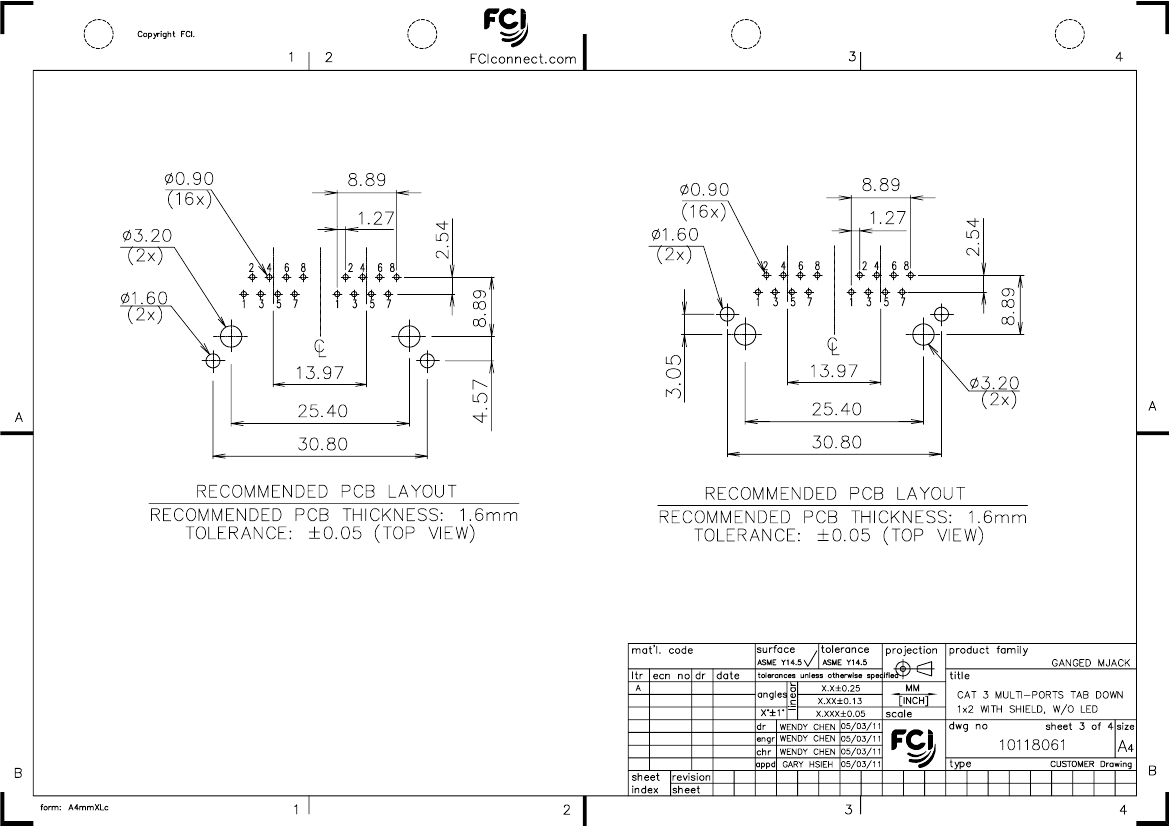

Preview

Download Datasheet

View All

10118061-1031010LF Related Products

	10118061-1031010LF	10118061-5035010LF	10118061-5031010LF	10118061-2035010LF	10118061-1035010LF	10118061-2001010LF	10118061-2031010LF	10118061-2005010LF
Description	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch
subject depth	0.831 inch	0.831 inch	0.831 inch	0.831 inch	0.831 inch	0.831 inch	0.831 inch	0.831 inch
body length	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	2250VDC V	2250VDC V	2250VDC V	2250VDC V	2250VDC V	2250VDC V	2250VDC V	2250VDC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	1u inch	1u inch	30u inch	15u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16	16	16	16	16	16
