53290-1071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53290-1071

53290-1071: Description10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size155KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53290-1071 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

53290-1071 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	53290
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0532901071

Planned for Obsolescence

2.00mm (.079") Pitch Board-to-Board Header, Vertical, Single Row, 0.50mm (.020")

Square Pin, with Friction Lock, Lead-free, 10 Circuits, without Kinked PC Tails, Tube

Package

Documents:

3D Model

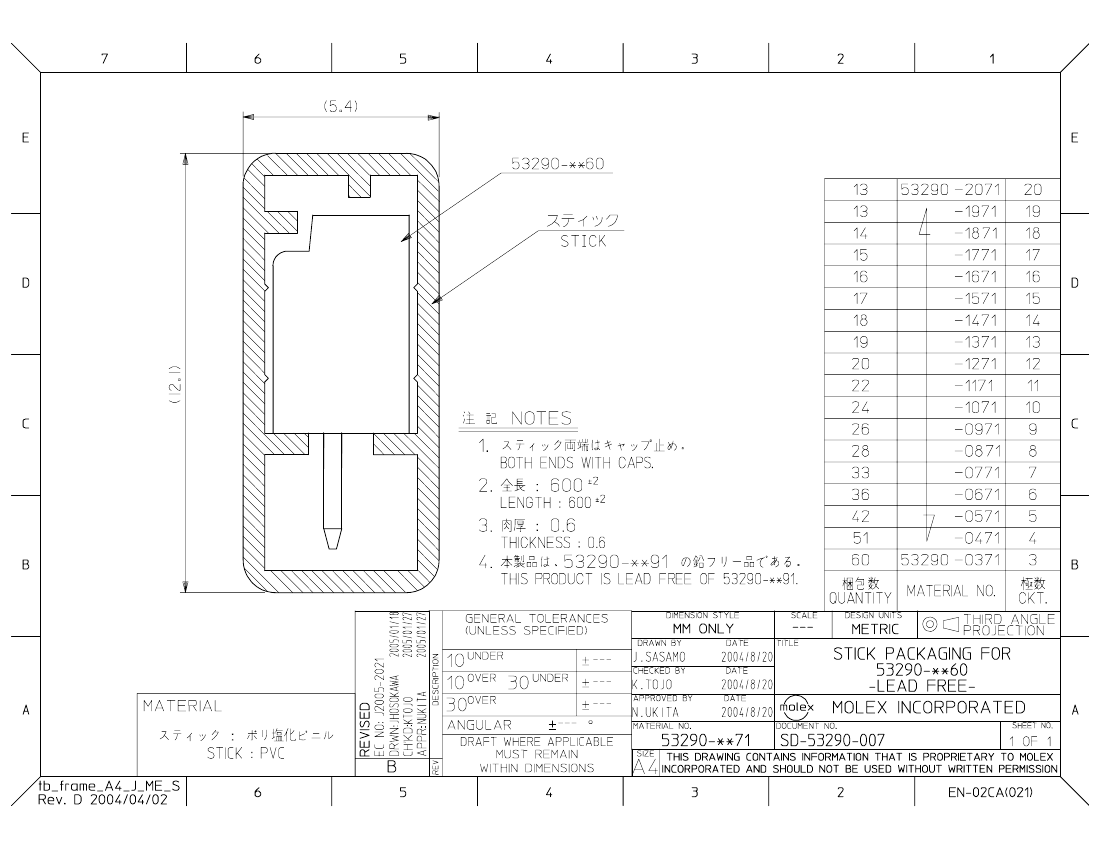

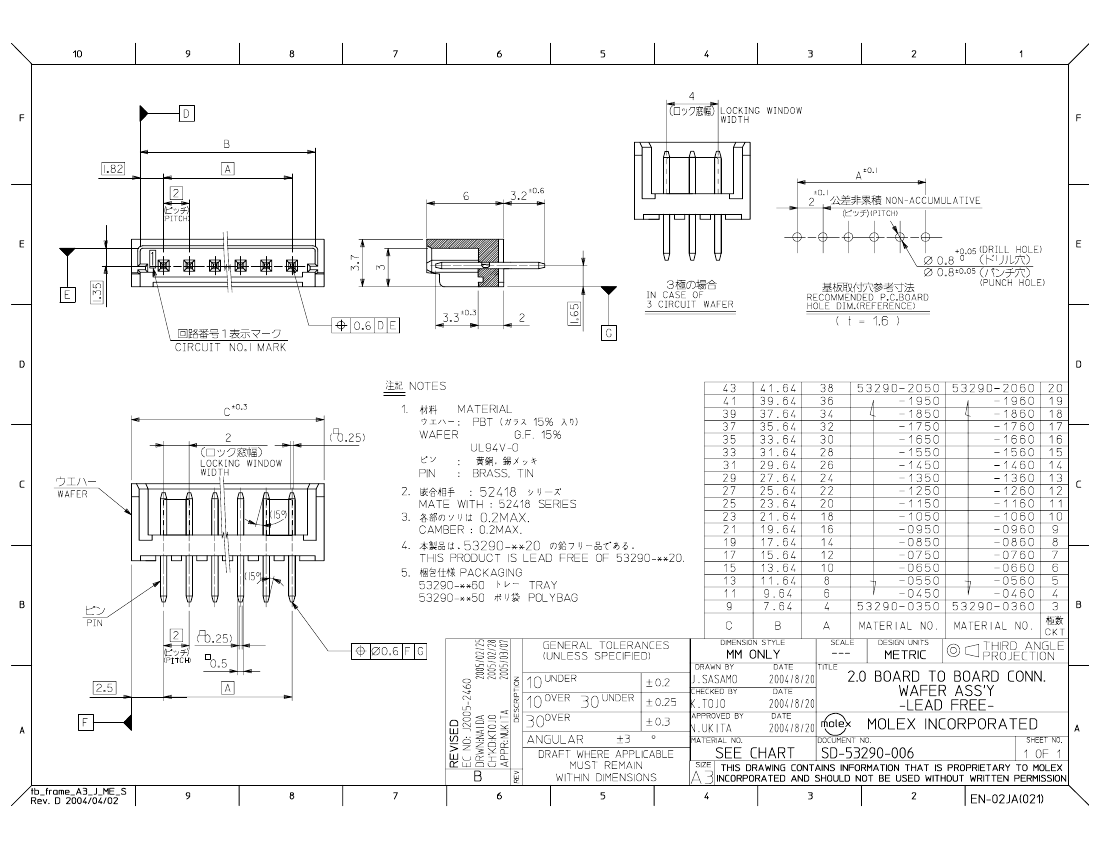

Drawing (PDF)

Product Specification PS-52418-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

53290

Board-to-Board

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

None

Yes

0.236 In

6.00 mm

Brass

Tin

Polyester

Vertical

0.126 In

3.20 mm

None

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

1.00

Yes

Partial

-40°C to +105°C

Through Hole

Search Parts in this Series

53290Series

Mates With

52418 PCB Receptacle

53290-1071 Related Products

	53290-1071	293D107(1)004C(2)
Description	10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	Solid Tantalum Surface Mount Chip Capacitors
