A-70400-0528 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> A-70400-0528

A-70400-0528: Description4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector; File Size228KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

A-70400-0528 Overview

4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

A-70400-0528 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	PHOSPHOR BRONZE
Total number of contacts	4
Processing package description	LEAD FREE
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
width	0.0990 inch
body_depth	0.6000 inch
body_diamete	0.3990 inch
Shell style	PLUG
Contact surface matching	AU
Contact coated terminals	GOLD
Connector male and female	FEMALE
contact_patte	RECTANGULAR
contact_resistance	15 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	600VAC
According to DIN	NO
Filter characteristics	NO
Comply with IEC	NO
insertion_force_max__n_	2.224
insulation_resistance	1.00E10 ohm
insulator_col	BLACK
insulator_material	GLASS FILLED POLYESTER
Manufacturer Series	70400
mating_contact_pitch__inch_	0.1
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
Installation type	CABLE
Number of load rows	1
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	120
Options	GENERAL PURPOSE
lating_thickness__inch_	15u
ed_current__signal_	3 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
Terminal type	IDC
UL flammability code	94V-0
wire_size_mi	28 AWG
wire_size_max	24 AWG
withdrawl_force_min__n_	.278
dditional_feature	STACKED

Preview

Download Datasheet

View All

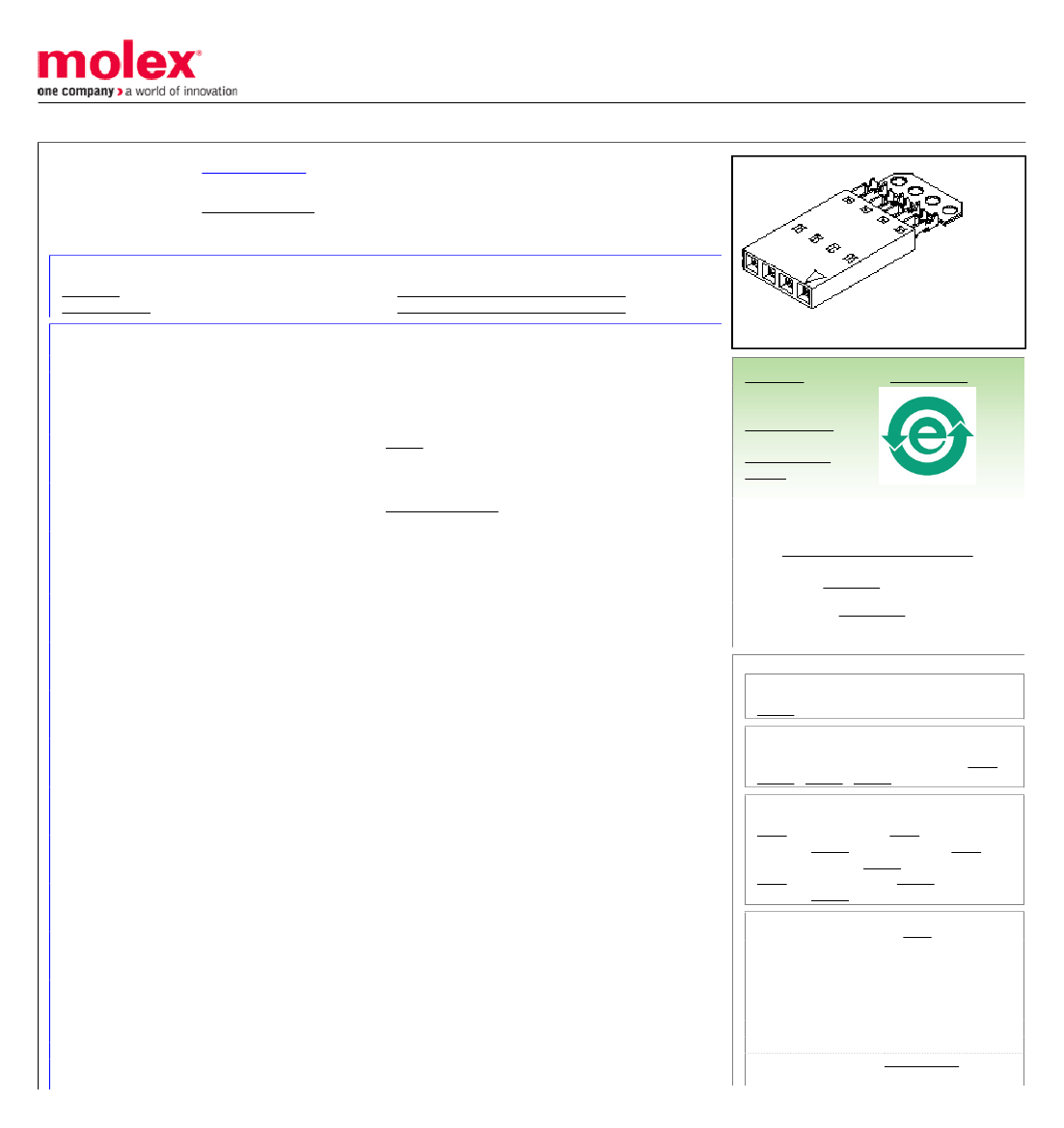

This document was generated on 05/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014562041

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version A, Nonpolarized, Wire Size 24, 0.38µm (15µ") Gold (Au), 4 Circuits

Documents:

3D Model

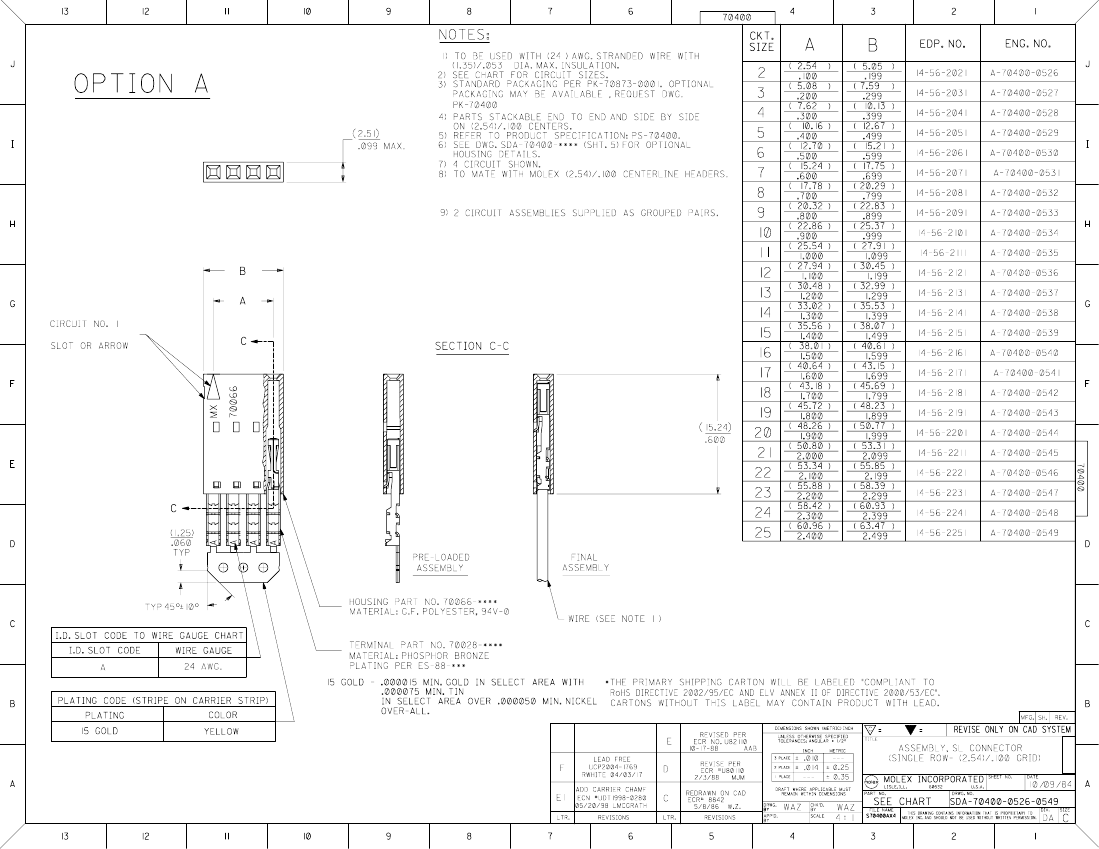

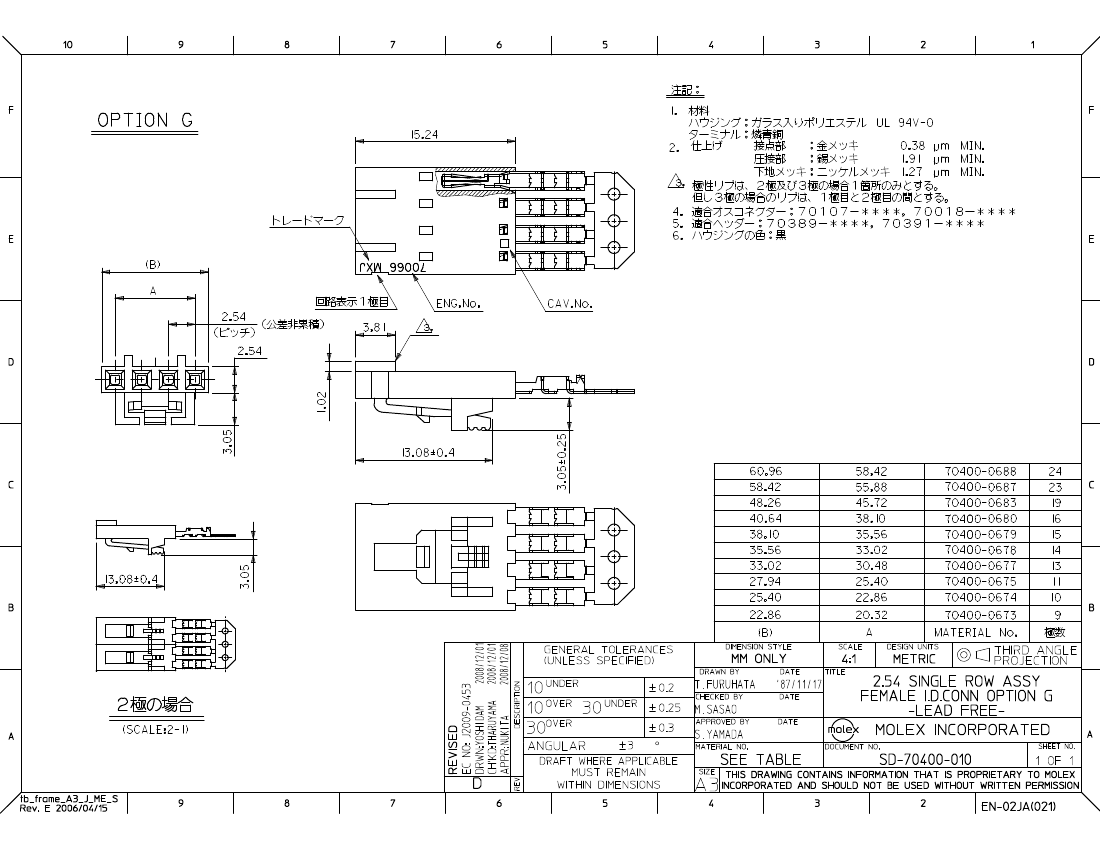

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Gold

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Search Parts in this Series

70400Series

Mates With

Single Row headers and housings, 8624 ,

70203 , 42375 , 42377

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hawk Semi-

0011201337

Automatice Discrete

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

A-70400-0528 Related Products

	A-70400-0528	70400-0528
Description	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact materials	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Total number of contacts	4	4
Processing package description	LEAD FREE	LEAD FREE
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	Active	Active
width	0.0990 inch	0.0990 inch
body_depth	0.6000 inch	0.6000 inch
body_diamete	0.3990 inch	0.3990 inch
Shell style	PLUG	PLUG
Contact surface matching	AU	AU
Contact coated terminals	GOLD	GOLD
Connector male and female	FEMALE	FEMALE
contact_patte	RECTANGULAR	RECTANGULAR
contact_resistance	15 mohm	15 mohm
contact_style	SQ PIN-SKT	SQ PIN-SKT
dielectric_withstanding_voltage__v_	600VAC	600VAC
According to DIN	NO	NO
Filter characteristics	NO	NO
Comply with IEC	NO	NO
insertion_force_max__n_	2.224	2.224
insulation_resistance	1.00E10 ohm	1.00E10 ohm
insulator_col	BLACK	BLACK
insulator_material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer Series	70400	70400
mating_contact_pitch__inch_	0.1	0.1
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO	NO
hybrid connection	NO	NO
Installation type	CABLE	CABLE
Number of load rows	1	1
Minimum operating temperature	-40 Cel	-40 Cel
erating_temperature_max__cel_	120	120
Options	GENERAL PURPOSE	GENERAL PURPOSE
lating_thickness__inch_	15u	15u
ed_current__signal_	3 A	3 A
eference_standard	UL, CSA	UL, CSA
eliability	COMMERCIAL	COMMERCIAL
sub_category	Headers and Edge Type Connectors	Headers and Edge Type Connectors
Terminal type	IDC	IDC
UL flammability code	94V-0	94V-0
wire_size_mi	28 AWG	28 AWG
wire_size_max	24 AWG	24 AWG
withdrawl_force_min__n_	.278	.278
dditional_feature	STACKED	STACKED
