Part Number

Search

SMM25

Description
MEDIUM BLOW ELECTRIC FUSE, 25A, 250VAC, 65VDC, 100A (IR), SURFACE MOUNT
CategoryCircuit protection
File Size680KB,4 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric Compare View All

SMM25 Overview

MEDIUM BLOW ELECTRIC FUSE, 25A, 250VAC, 65VDC, 100A (IR), SURFACE MOUNT

SMM25 Parametric

Parameter NameAttribute value
Minimum operating temperature-55 Cel
Maximum operating temperature85 Cel
Processing package descriptionHALOGEN FREE AND ROHS COMPLIANT
each_compliYes
stateActive
circuit_protection_typeELECTRIC FUSE
Fusing characteristicsMEDIUM
width3.1 mm
high3.1 mm
length or diameter9.8 mm
jesd_609_codee3
Rated joule integral420 J
Manufacturer SeriesSMM
Installation featuresSURFACE MOUNT
cking_methodTAPE AND REEL
Dimensions9.8mm x 3.1mm x 3.1mm
Rated breaking capacity100 A
Rated current25 A
ed_voltage__ac_250 V
ed_voltage__dc_65 V
eference_standardCE; UL
terminal coatingMATTE TIN
Terminal shapeWRAPAROUND
dditional_featurePRE-ARCING TIME: OPEN WITHIN 60 SEC. AT 200% RATED CURRENT, RATED BREAKING CAPACITY AT 65VDC: 300A

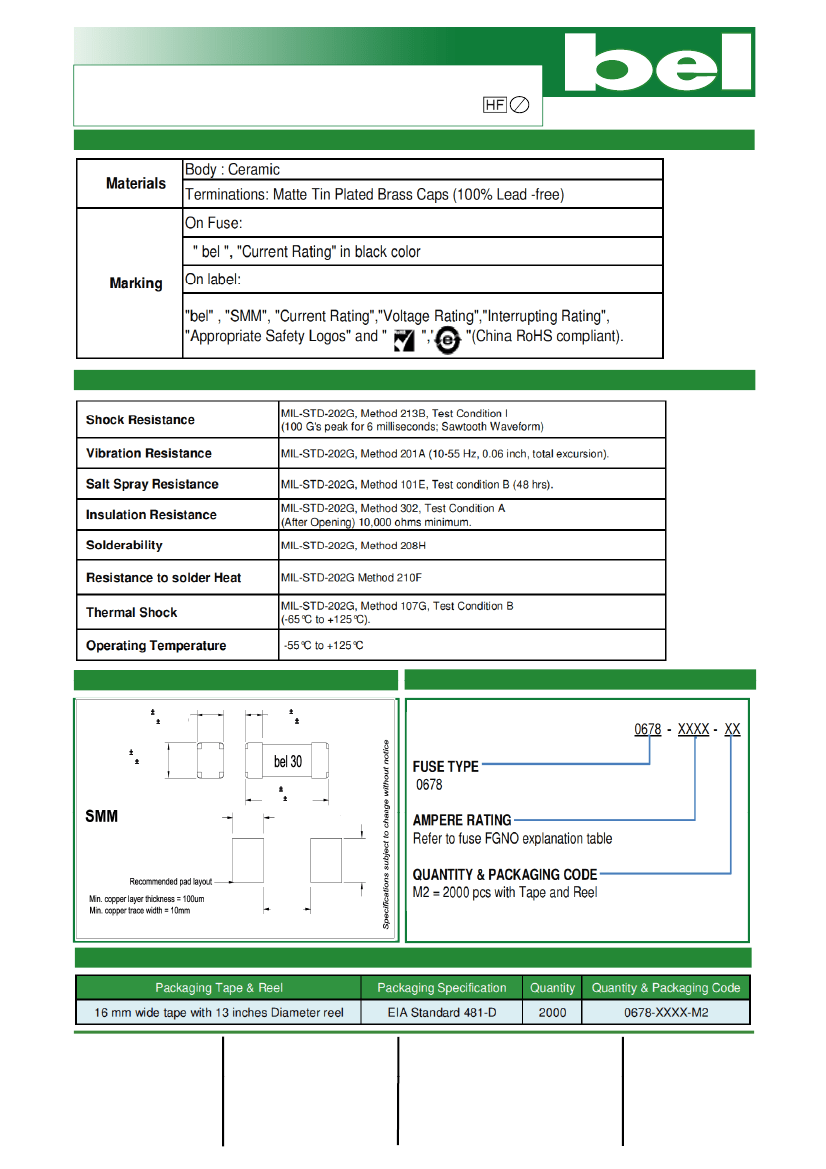

Type SMM
SMM Feb 2012D
3812 Size
RoHS 6 Compliant

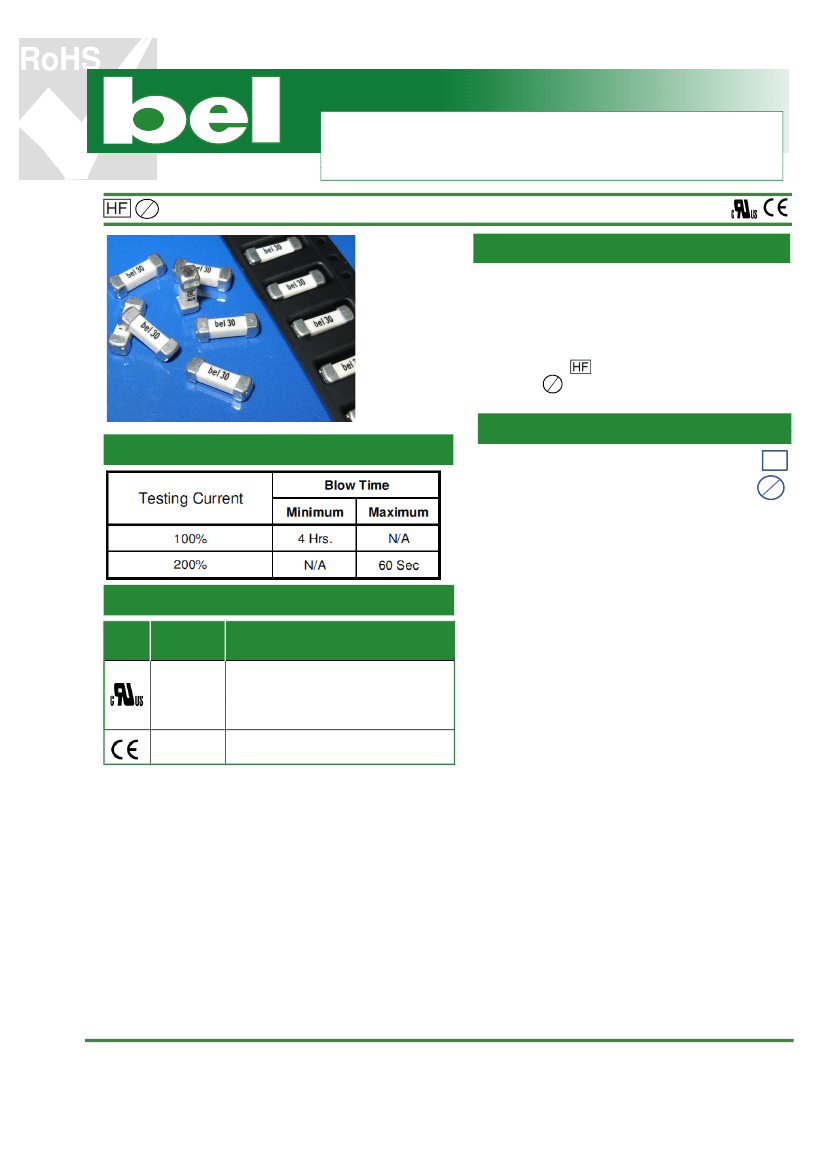

Square Ceramic Surface Mount Medium Blow Fuse
SMM Series Fuse
Features
- Medium Blow
- Suface mount high current fuse
- Current rating from 20A to 30A
- Wide operating temperature range from -55
o
C to 125
o
C
- Tape and Reel for auto-insert SMD process

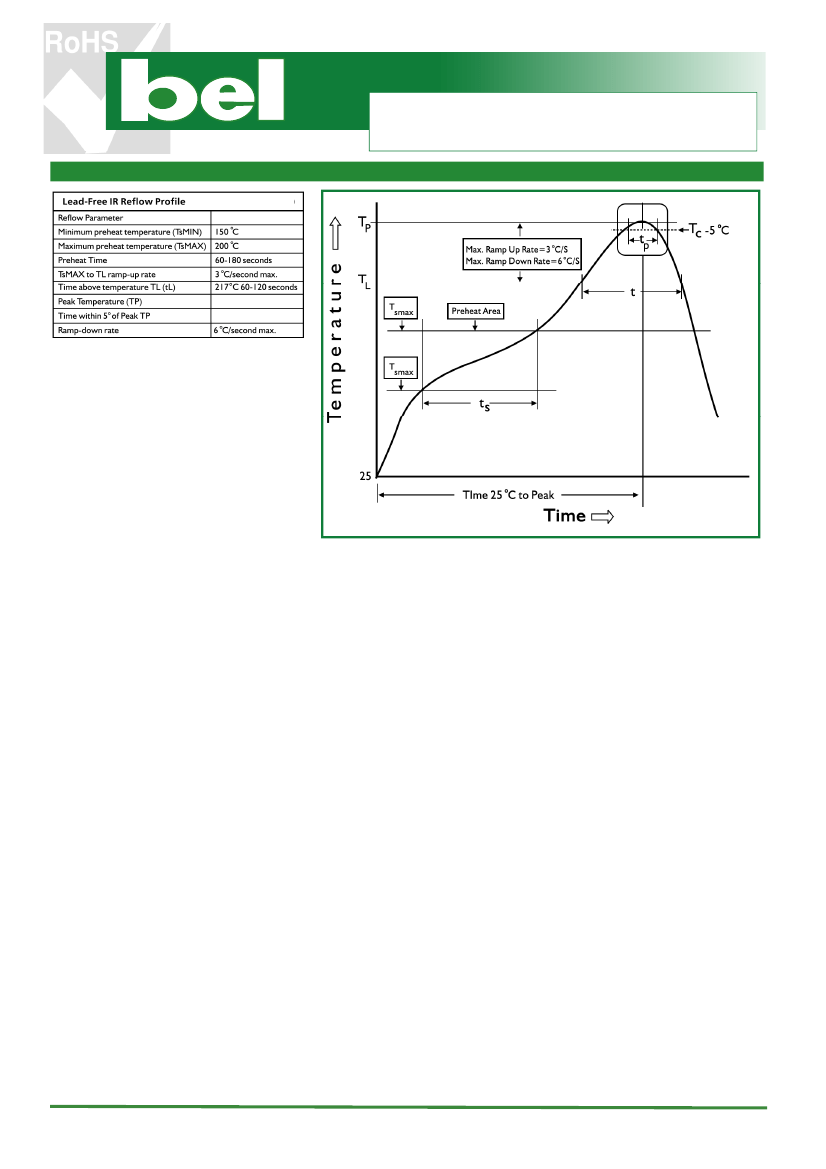

- Compatible with reflow process
- Halogen Free
- Leadfree Pb
Pb
Applications

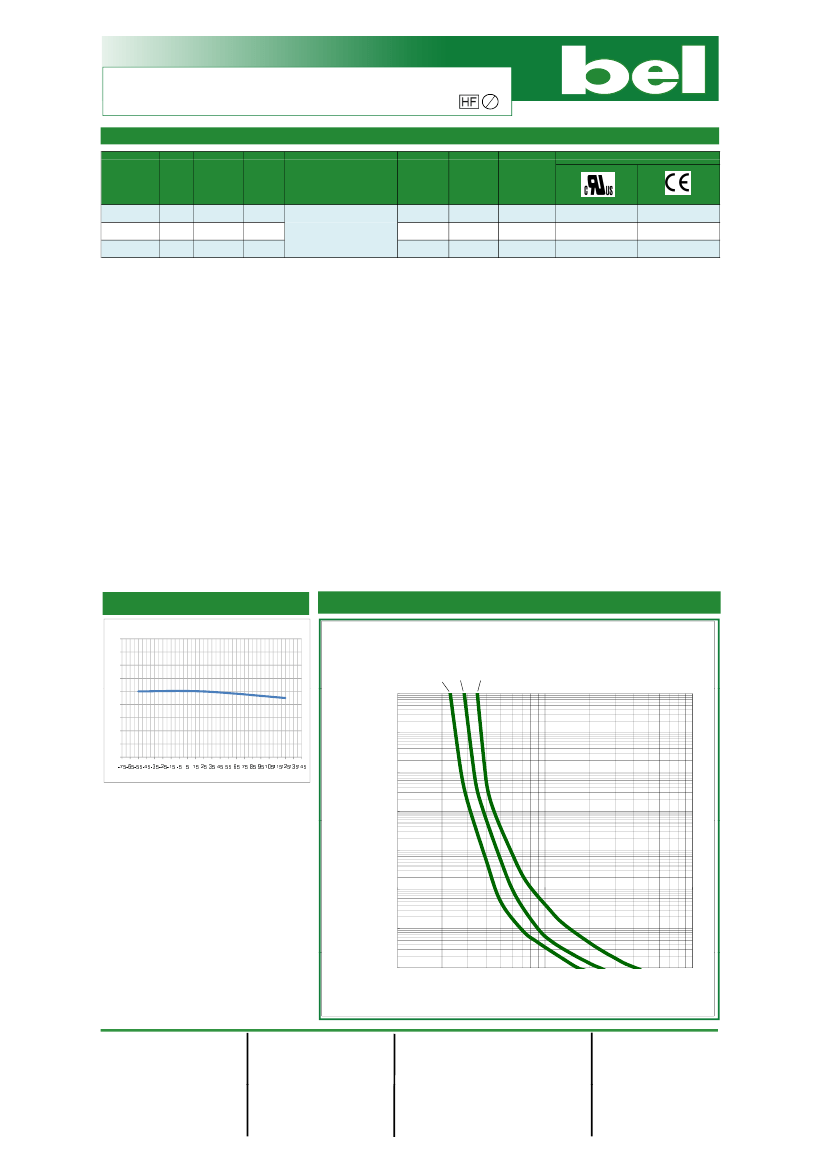

Electrical Characteristics (UL / CSA /STD.248-14)
- Voltage regulator module
- PC server
- Office electronic equipment
- Industrial equipment
- Medical equipment
- POE, POE+
- Power supply
- DC-DC Converter
HALOGEN FREE =
LEAD FREE =
HF
Pb
Safety Agent Approvals
SAFETY
AGENCY
SAFETY
AGENCY
CERTIFICATE
AMPERE RANGE / VOLT
@ I.R.ABILITY
E20624
20A - 30A / 250V @100A AC
125V @ 150A AC
72V @ 130A DC
65V @ 300A DC
20A - 30A
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
‧Tel:
201-432-0463
‧Fax:
201-432-9542
‧E-Mail:
belfuse.com
Website: www.belfuse.com

SMM25 Related Products

SMM25 SMM_12 SMM20
Description MEDIUM BLOW ELECTRIC FUSE, 25A, 250VAC, 65VDC, 100A (IR), SURFACE MOUNT MEDIUM BLOW ELECTRIC FUSE, 20A, 250VAC, 65VDC, 100A (IR), SURFACE MOUNT MEDIUM BLOW ELECTRIC FUSE, 20A, 250VAC, 65VDC, 100A (IR), SURFACE MOUNT
