5239-07

Description
3.96mm
CategoryThe connector    The connector
File Size99KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5239-07 Overview

3.96mm

5239-07 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationNO
Mixed contactsNO
Number of rows loaded1
OptionsGENERAL PURPOSE
Total number of contacts7
UL Flammability Code94V-2

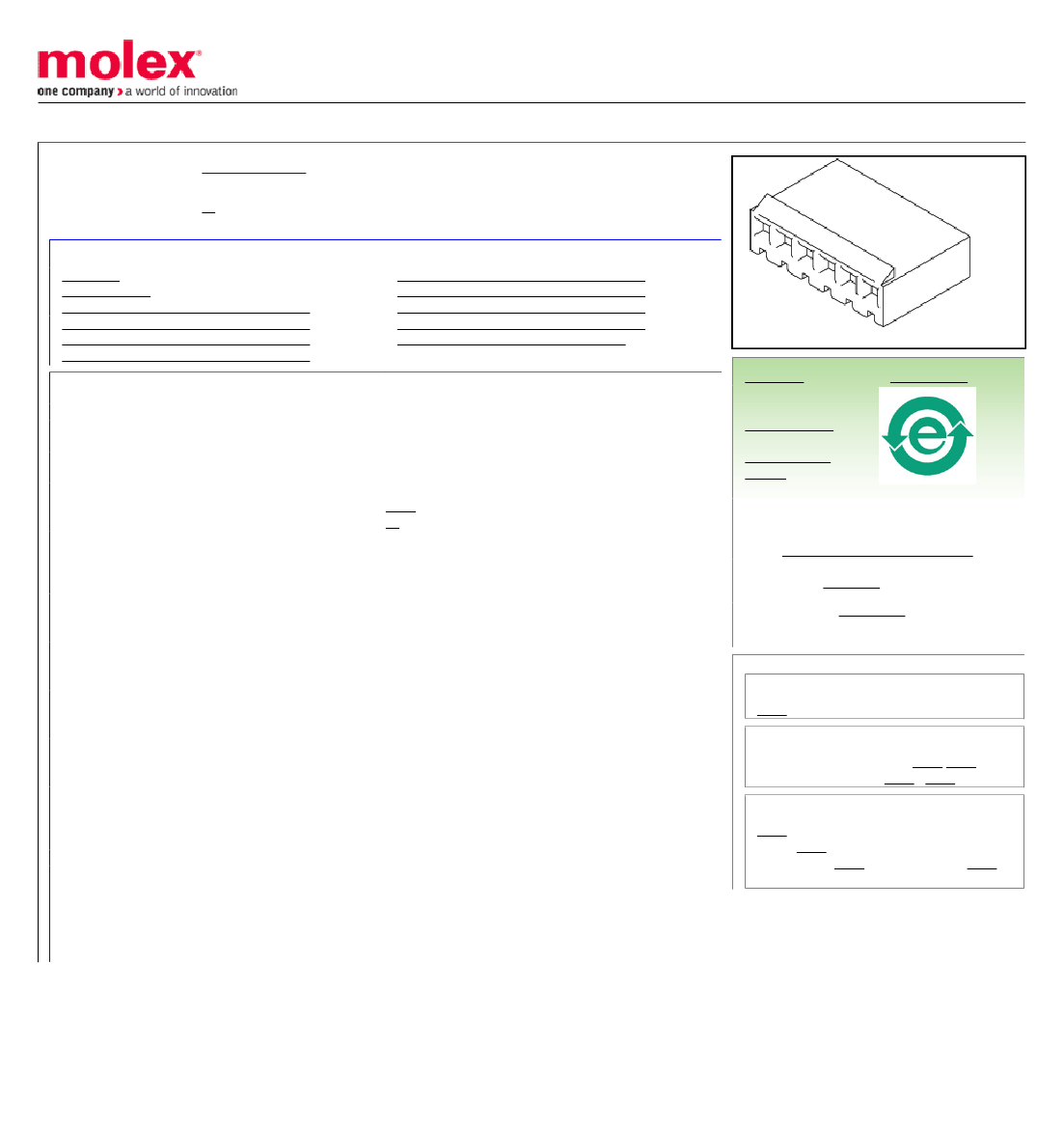

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0009524074
Active
kk
3.96mm (.156") Pitch KK® Crimp Housing, Female, Friction Ramp, 7 Circuits
Documents:
3D Model

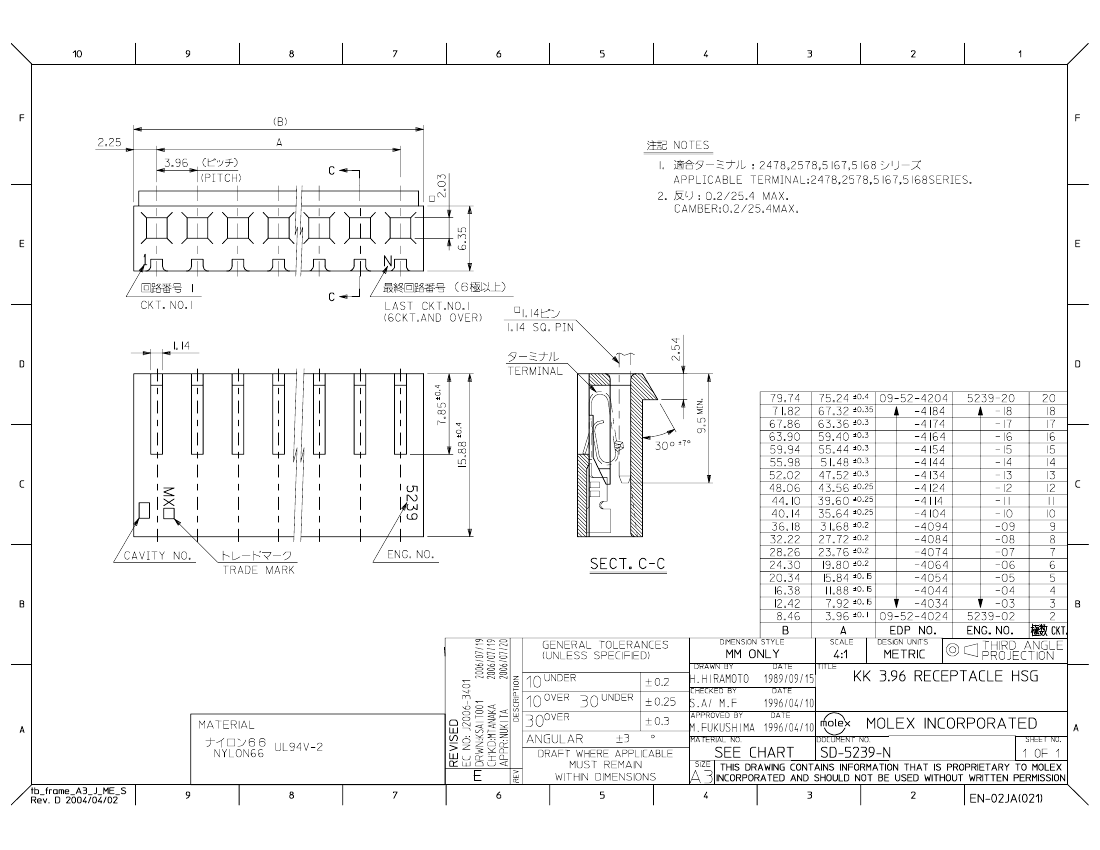

Drawing (PDF)
Product Specification PS-5239-002 (PDF)
Product Specification PS-5239-003 (PDF)
Product Specification PS-5239-004 (PDF)
Product Specification PS-5239-005 (PDF)
Product Specification PS-5239-006 (PDF)
Product Specification PS-5239-007 (PDF)
Product Specification PS-5239-010 (PDF)
Product Specification PS-5239-011 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
LR19980
R72090224
E29179
General
Product Family
Series
Overview
Product Name
Crimp Housings
5239
kk
KK®
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
7
Natural
94V-2
Female
No
Yes
Nylon
1
Bag
No
0.156 In
3.96 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
5239Series
Mates With
Right Angle PCB Header, 5274 5272 ,
Vertical PCB Header 5271 , 5273
Use With
5168 Cat Ear Crimp Terminals for 22-28
AWG, 5167 Cat Ear Crimp Terminals for
18-24 AWG, 2478 Crimp Terminal, 2578
Crimp Terminal
Material Info
Old Part Number
5239-07
Reference - Drawing Numbers
Product Specification
PS-5239-002, PS-5239-003, PS-5239-004,
PS-5239-005, PS-5239-006, PS-5239-007,
PS-5239-010, PS-5239-011, RPS-5239-001
SD-5239-N
Sales Drawing
